Alpha CNC ABS-2030: 3-Axis Entry Level CNC Router for Woodworking & Sign Making
Description
Experience precision cutting with Alpha CNC ABS-2030, an entry level CNC machine featuring high accuracy, spindle, and rigid steel frame. Ideal for woodworking, sign making, and prototyping. Includes automatic tool zero and vacuum table. Perfect for small businesses seeking an affordable 3 axis CNC machine!
Features
High-Precision Cutting
- High Accuracy: Advanced motion control ensures flawless cuts in wood, acrylic, and non-ferrous metals.
- Water-Cooled Spindle: Delivers smooth finishes and handles detailed engraving.
Industrial-Grade Build
- Rigid Steel Frame: Military-grade manganese steel anti-burn plates ensure long years of stability.
- Dust Collection Port: Keeps work areas clean and extends machine life.
Efficient Workspace
- 1300×2500mm Work Area: Processes full-sized sheets for cabinetry, art panels, and signs.
- Vacuum Table: Secures materials, eliminating slippage.
Parameters
Model | ABS-2030 |
X,Y axis travel | 2000*3000*200mm option: 1300*2500mm; 2100*3000mm; 2100*4000mm, etc. |
Z axis travel | 200mm option: 300mm, 400mm, etc. |
Spindle type | Air cooling spindle |
Inverter type | Delta/Fuling/Best inverter |
Tool holder with collet | ER32 collet: φ4, φ6, 1/8, 1/2 |
Control system | DSP/Syntec/LNC Control system |
Driving system | Driving servo motor |
Machine structure | Heavy duty body with quenching treatment |
Work table | Aluminum T-slot&vacuum work table |
Linear guide | Taiwan Linear guide |
Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan high precision ball screw |
Lubrication system | Automatic lubrication system |
Tool calibration | Automatic tool sensor calibration |
Compatible software | ARTCAM,Aspire,etc |
Command language | G Code |
Traveling speed | 70-80m/min |
Working speed | 0-25m/min |
System resolution | ±0.0025mm |
Working air pressure | 0.6MPa |
Optional items
Loading Unloading System
for Wood Nesting Machine Aggregate Head Cutting Saw Drilling Bank
Frequent asked questions
Q: Is the ABS-2030 suitable for aluminum cutting?
A: Yes! Its 4.5–8kW spindle and rigid frame handle aluminum at speeds.
Q: Why choose this as the best entry level CNC router for small business?
A: Combines high precision, large work area, and automatic tool zero at an unmatched price.
Q: Do you offer after-sales technical support?
A: Yes, we provide 24/7 remote support, spare parts supply, and engineer dispatch if needed.

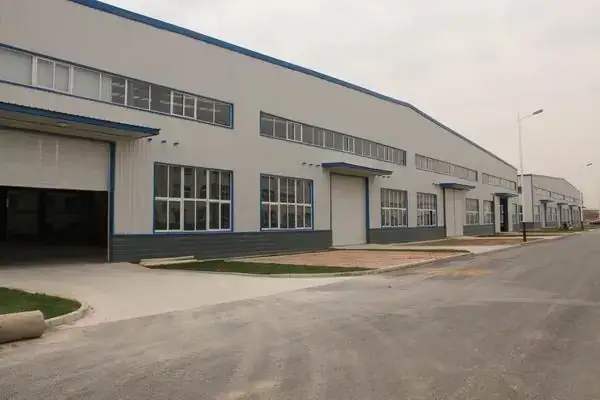

Production facility
