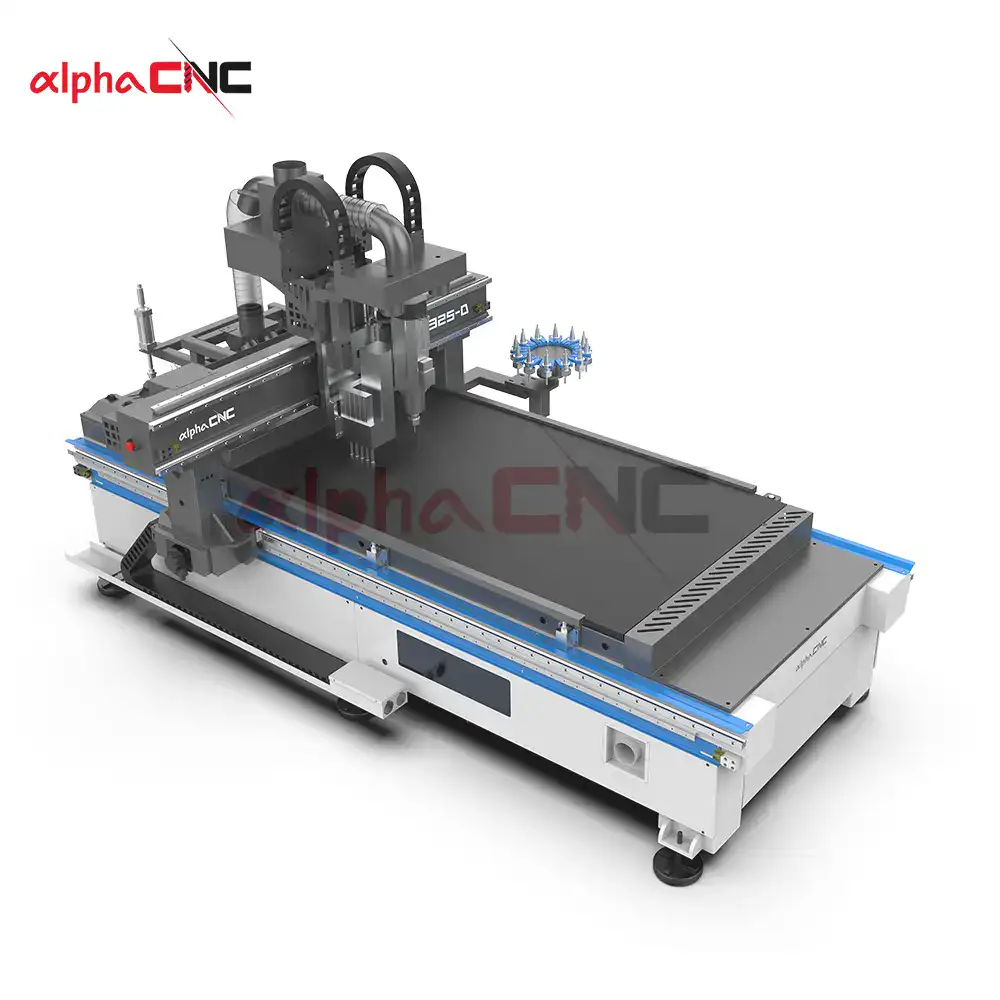

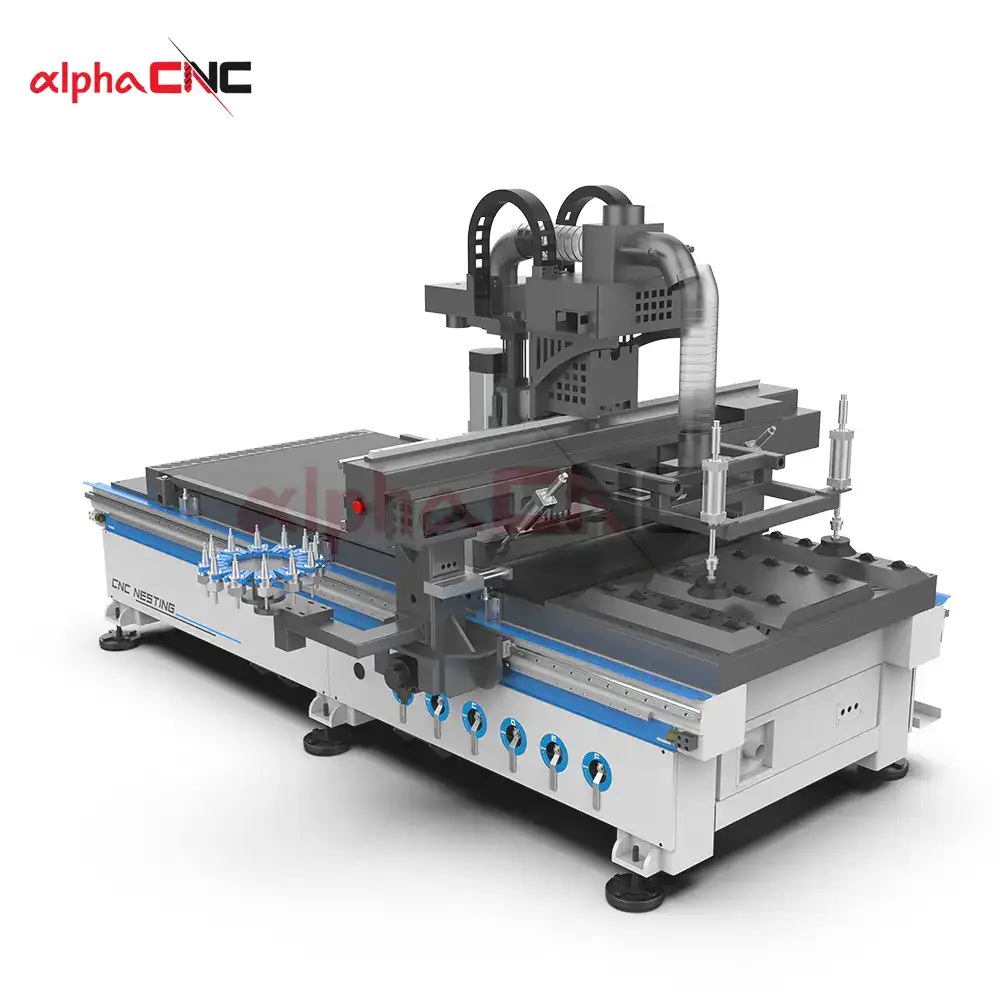

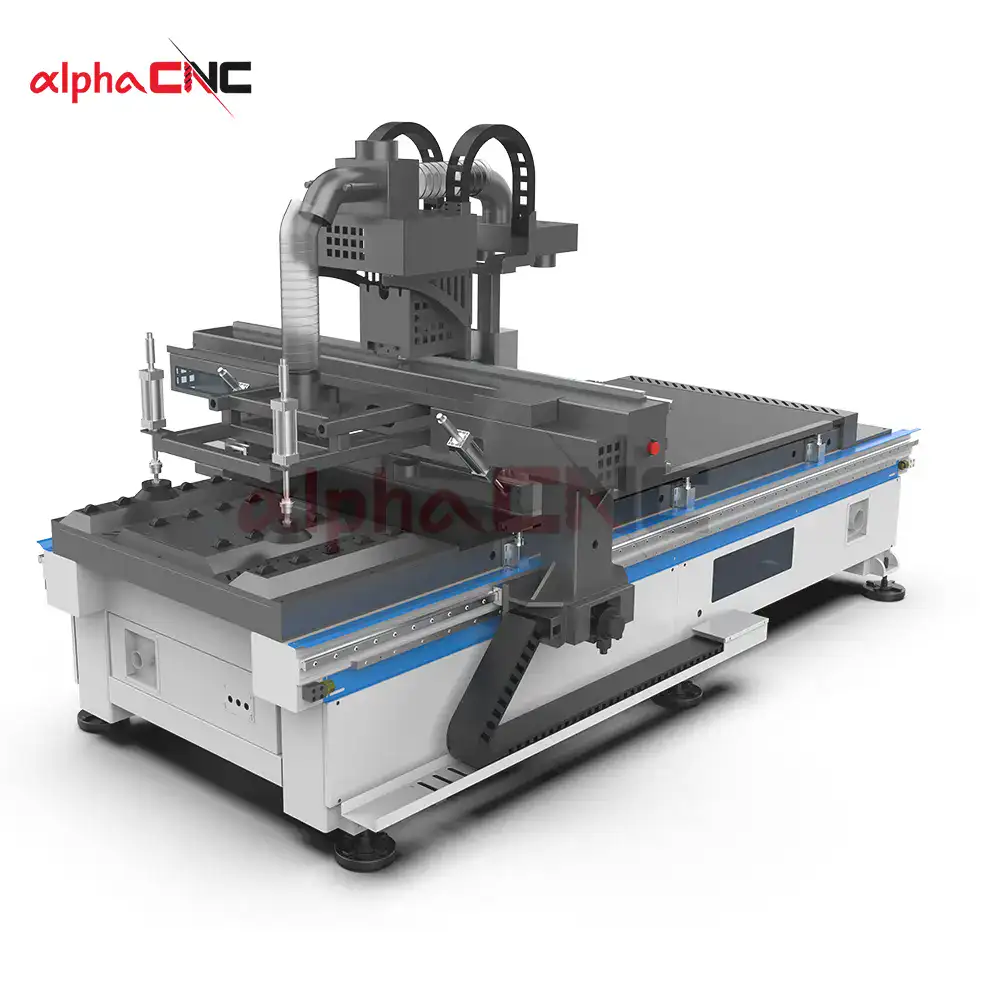

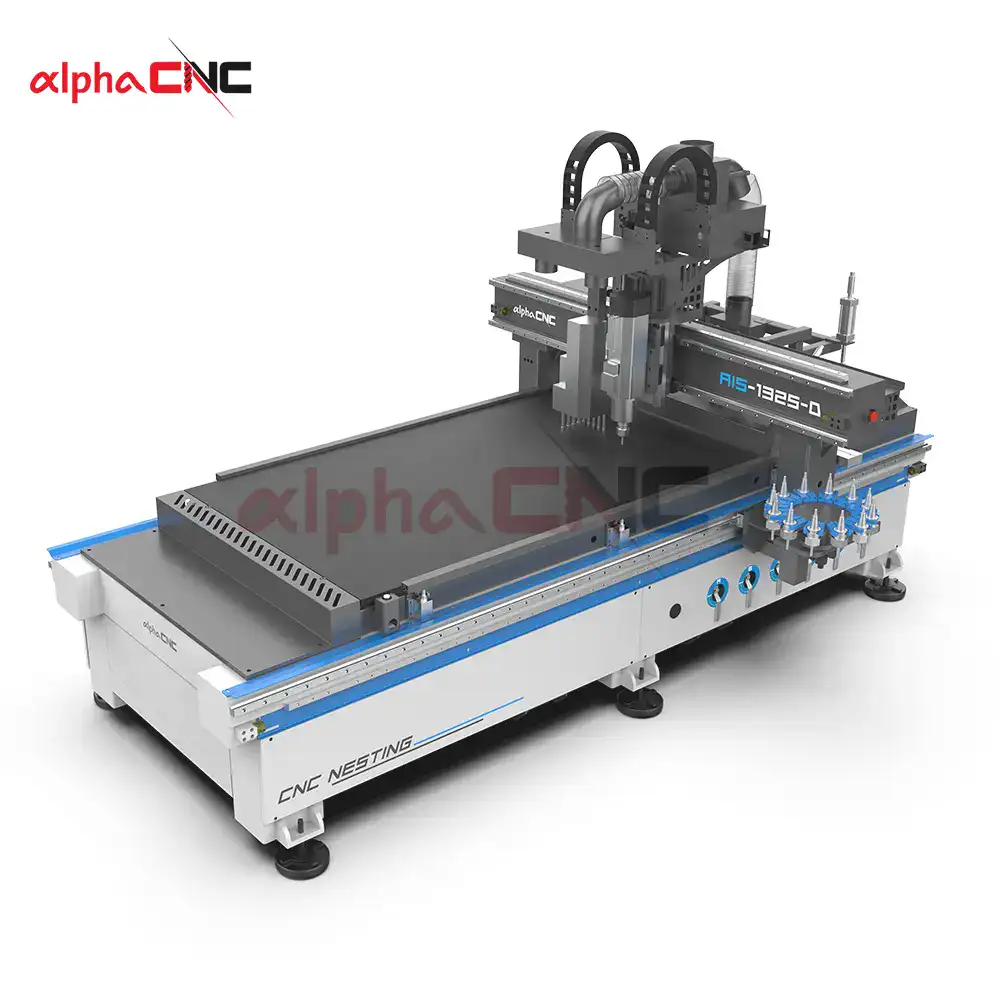

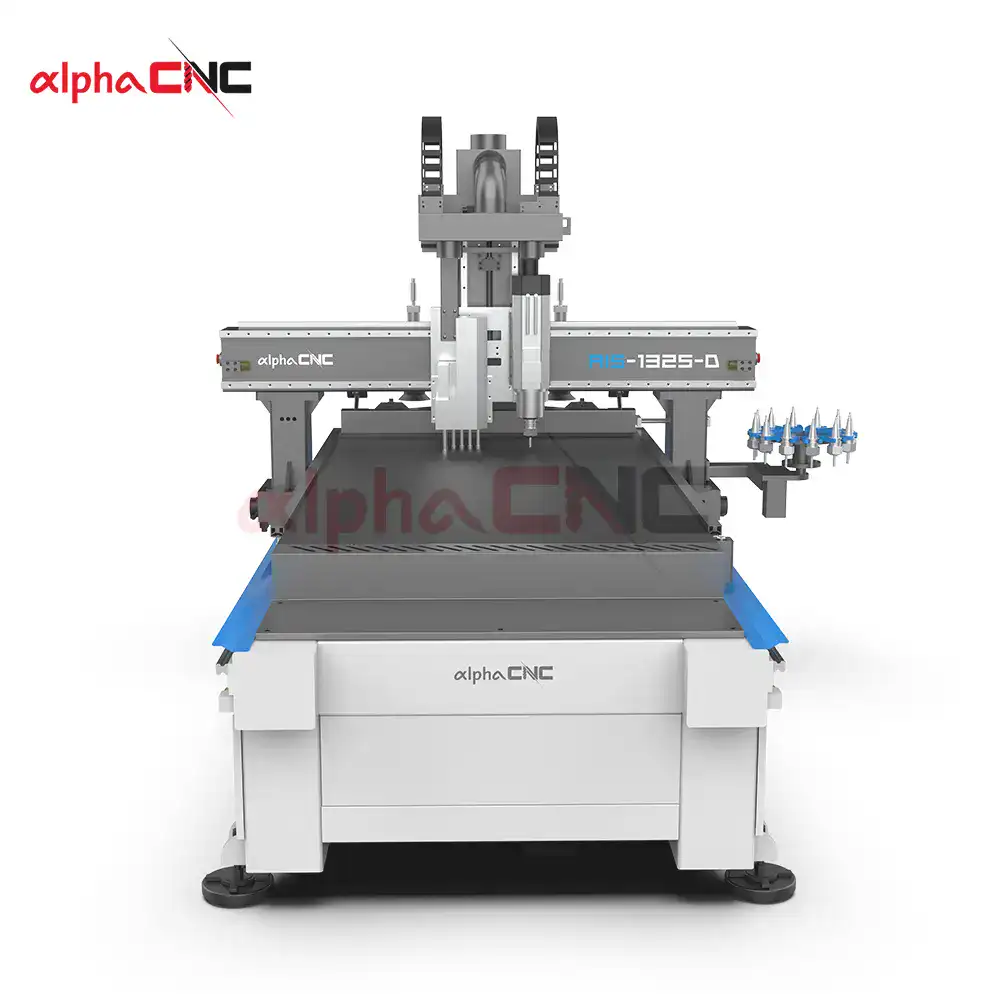

Alpha CNC AIS-1325 ATC Nesting Machine: Precision Automation for Woodworking

Brand: Alpha

Model: AIS-1325-D-L

Category: Furniture CNC

Price range: 10,000 to 20,000 / Set based on the configuration

Payment terms: T/T/Visa/Mastercard/American Express/Discover cards

After-sale service: After-sale serice

Supply ability: 200 Sets per Month

Get a quote

Description

Alpha CNC’s AIS-1325 CNC Nesting Machine combines a 12-tool Carousel Tool Changer and high-power spindle for precision cutting in custom cabinet production, furniture manufacturing, and signage fabrication. Engineered for continuous operation, it features a aluminum profile countertop, Syntec control, and high quality spindle. Ideal for processing plywood, MDF, and aluminum with high accuracy.

Features

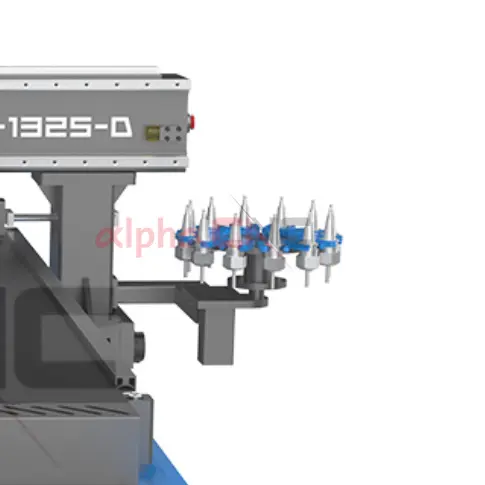

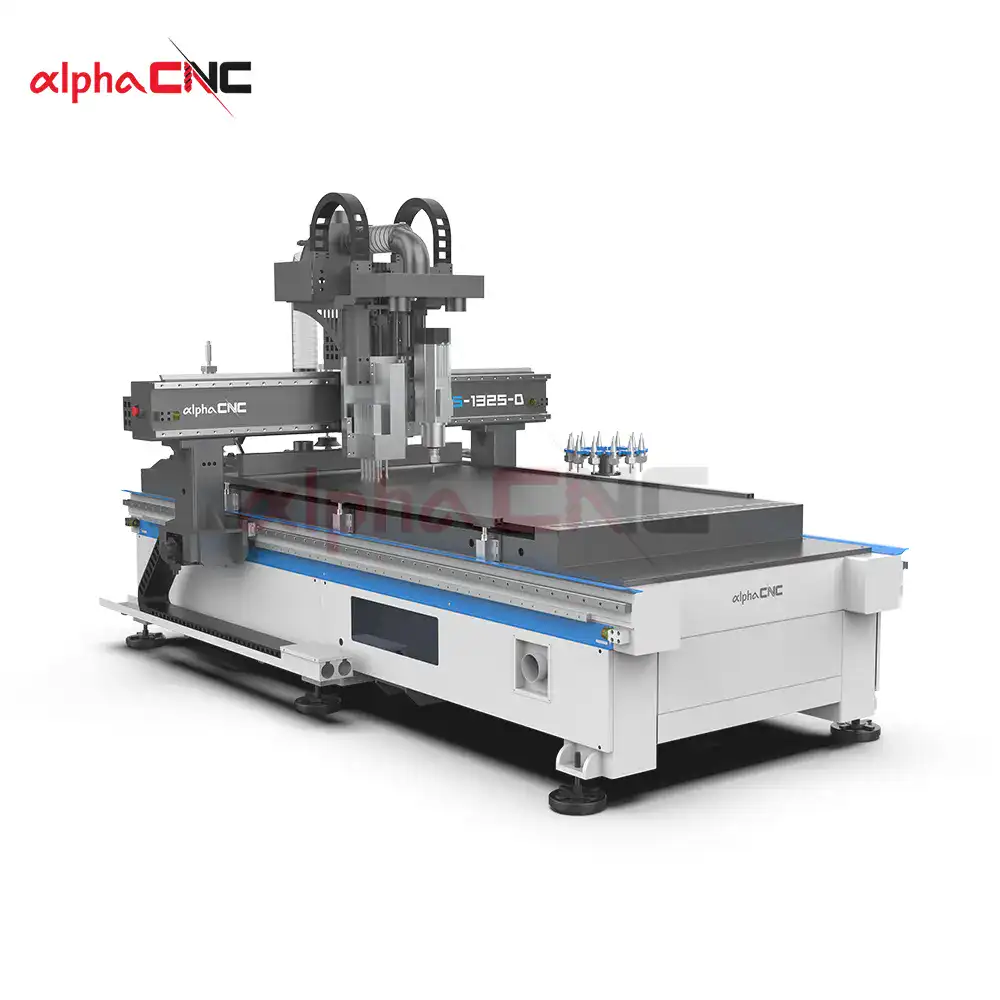

Carousel Tool Changer System 12-Tool Capacity: Seamless automatic tool swaps for engraving, drilling, and cutting operations.

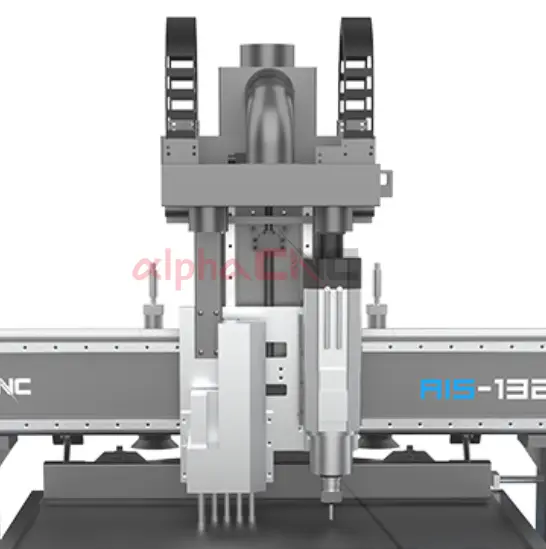

High-Power Machining Performance 9kW ATC Spindle: Handles hardwood, MDF, acrylic, and non-ferrous metals with high precision.

Industrial-Grade Construction:Taiwan linear guides + heavy-duty steel frame: Ensures vibration-free furniture manufacturing at feed rates.

Dust-proof electronics and servo motor extend machine lifespan.

Parameters

Model	AIS-1325
X,Y axis travel	1220x2440mm option: 15003000mm; 21003000mm; 2100*4000mm, etc
Z axis travel	200mm
Spindle type	9kw ATC air cooling spindle, ISO30, ER32
Inverter type	Delta/Fuling/Best inverter
Tool magazine	Carousel type auto tool changer Option:linear type auto tool changer
Tool holder with collet	ISO30, ER32 collet: φ4, φ6, 1/8, 1/2
Control system	Taiwan SYNTEC/LNC controller
Driving system	Driving servo motor
Reducer	Japan SHIMPO reducer
Machine structure	Heavy duty body with quenching treatment
Work table	Aluminum T-slot & Profile countertop
Linear guide	Taiwan Linear guide
Transmission	X,Y axis: Taiwan /Germany Helical Rack and Pinion Z axis:Taiwan high precision ball screw
Lubrication system	Automatic lubrication system
Tool calibration	Automatic tool sensor calibration
Compatible software	Artcam, Alphcam, Type 3, Ucancam, Aspire, etc
Command language	G Code & M Code
Traveling speed	80m/min
Working speed	0-25m/min
Working air pressure	0.6MPa
Working voltage	220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ

Optional items

24-Tool Magazine Upgrade: Double capacity for complex projects.
Laser Scanning System: 3D surface mapping for relief carving.
Industrial Dust Collector: 5.5kW model for enhanced workshop cleanliness.
Rotary 4th Axis: For cylindrical carvings (e.g., table legs, columns).

Click for details

Frequent asked questions

Q: Can this machine handle cabinet door panels?
A: Absolutely. The CNC Nesting Machine achieves high accuracy on plywood/MDF, making it ideal for custom cabinet production
Q: How does the Carousel Tool Changer improve productivity?
A: Tools auto-swap in <3 seconds, enabling continuous operation for multi-process jobs like furniture manufacturing without pauses.
Q: Do you offer after-sales technical support?
A: Yes, we provide 24/7 remote support, spare parts supply, and engineer dispatch if needed.

Furniture CNC details

Application

The AIS-1325 Heavy Duty CNC Router delivers uncompromising performance in complex, large-scale, and continuous operations across diverse industries. Engineered for precision and durability, it excels in:

✅ Advanced Wood & Composite Fabrication

High-volume production of architectural elements (custom doors, intricate moldings)
Industrial furniture manufacturing with flawless joinery
3D carving of hardwoods and engineered boards (MDF, HDF, Plywood)
Nesting optimization for sheet material cutting with near-zero waste

✅ Precision Metal & Plastic Processing
