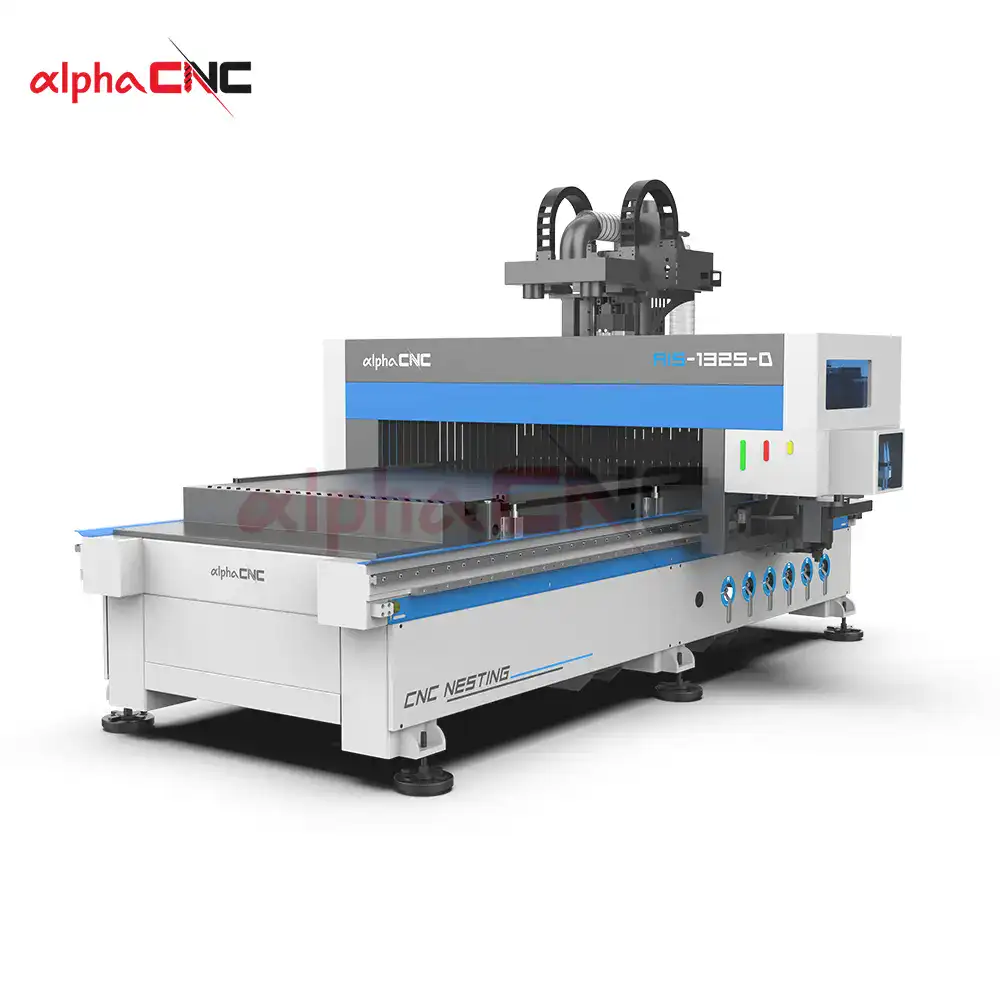

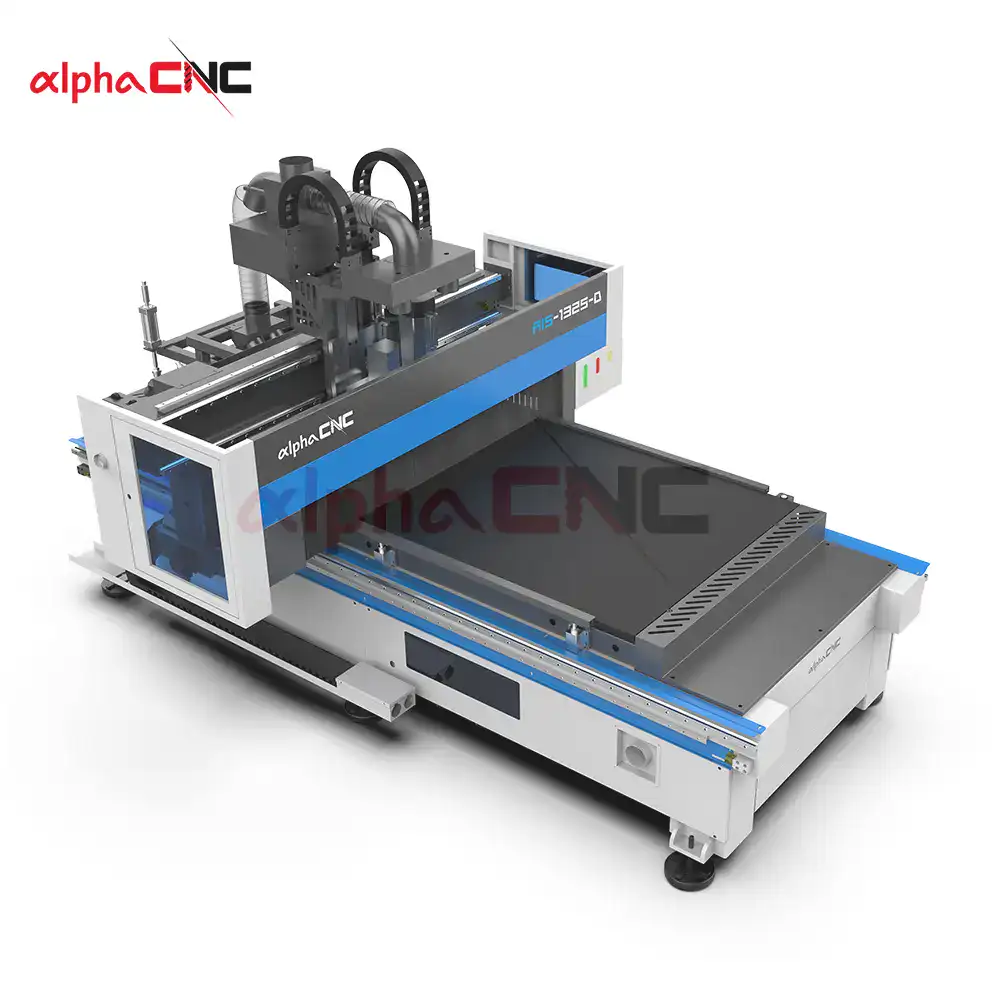

Alpha CNC 1325 ATC Router: Precision Carving & Cutting Solution with 12-Tool Carousel
Description
The Alpha CNC 1325 ATC Router revolutionizes woodworking and furniture production with its advanced carousel tool changer, delivering seamless automatic tool change for complex tasks like cabinet making, 3D carving, and MDF processing. Featuring a 9kW ATC spindle, servo motors, and a rigid T-slot table, this machine ensures high-precision cutting with high repetition accuracy. Designed for industrial durability, it supports continuous 24/7 operation—ideal for manufacturers seeking efficiency and reliability in furniture production machines.
Features
Efficient Tool Management
- 12-Tool Carousel with Large Cover: Enables uninterrupted switching for multi-step operations, reducing downtime.
- 9kW ATC Spindle: Maintains high-speed cutting of hardwood, acrylic, and aluminum.
Superior Stability & Precision
- T-Slot Table (1300×2500mm): Secures heavy materials without vacuum limitations, compatible with clamps and fixtures.
- Taiwan Rails & Servo Motors: Achieve high precision repeatability and smooth multi-axis machining.
Industrial Durability
- Low-Maintenance Design: Reinforced steel frame and dust-proof carousel mechanism withstand demanding environments.
Parameters
Model | AIS-1325 |
X,Y axis travel | 1220x2440mm option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc |
Z axis travel | 200mm |
Spindle type | 9kw ATC air cooling spindle, ISO30, ER32 |
Inverter type | Delta/Fuling/Best inverter |
Tool magazine | Carousel type auto tool changer Option:linear type auto tool changer |
Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
Control system | Taiwan SYNTEC/LNC controller |
Driving system | Driving servo motor |
Reducer | Japan SHIMPO reducer |
Machine structure | Heavy duty body with quenching treatment |
Work table | Aluminum T-slot & Profile countertop |
Linear guide | Taiwan Linear guide |
Transmission | X,Y axis: Taiwan /Germany Helical Rack and Pinion Z axis:Taiwan high precision ball screw |
Lubrication system | Automatic lubrication system |
Tool calibration | Automatic tool sensor calibration |
Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc |
Command language | G Code & M Code |
Traveling speed | 80m/min |
Working speed | 0-25m/min |
Working air pressure | 0.6MPa |
Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Optional items
Advanced Vacuum Systems: | 1.High-Efficiency Pumps: Choose from eco-friendly water-ring, maintenance-free oil-free rotary vane, or energy-saving ring blower systems for superior material hold-down. |
Industrial Dust Extraction: | 1.Complete Dust Collection: Integrated systems (3kw-7.5kw) with hoods, pipes, and filters for workshop cleanliness. |
Safety & Precision Upgrades: | 1.Light Curtain Protection: Non-contact safety barriers for collision-free operation. 2.High-Performance Spindles: Air/water-cooled options (3kw-12kw) for optimized thermal control during extended runs. |
Air Compressor: | 1.Piston air compressor, screw air compressor |
Other: | Optional accessories |
Frequent asked questions
Q: Can it handle sheet metal or aluminum processing?
A: Yes! The spindle and rigid frame support light aluminum engraving.
Q: How long does tool changing take?
A: The carousel tool changer completes swaps in 3–5 seconds, thanks to optimized servo positioning.
Q: Do you offer after-sales technical support?
A: Yes, we provide 24/7 remote support, spare parts supply, and engineer dispatch if needed.
Furniture CNC details
Application
The AIS-1325 Heavy Duty CNC Router delivers uncompromising performance in complex, large-scale, and continuous operations across diverse industries. Engineered for precision and durability, it excels in:
✅ Advanced Wood & Composite Fabrication
- High-volume production of architectural elements (custom doors, intricate moldings)
- Industrial furniture manufacturing with flawless joinery
- 3D carving of hardwoods and engineered boards (MDF, HDF, Plywood)
- Nesting optimization for sheet material cutting with near-zero waste
✅ Precision Metal & Plastic Processing
- Aerospace-grade aluminum machining (signage, prototypes)
- Acrylic display fabrication with polished edges
- Foam molding for packaging, props, and insulation
✅ Specialized Industrial Solutions
- Composite material processing
- Stone inlays and marble engraving (with optional accessories)
