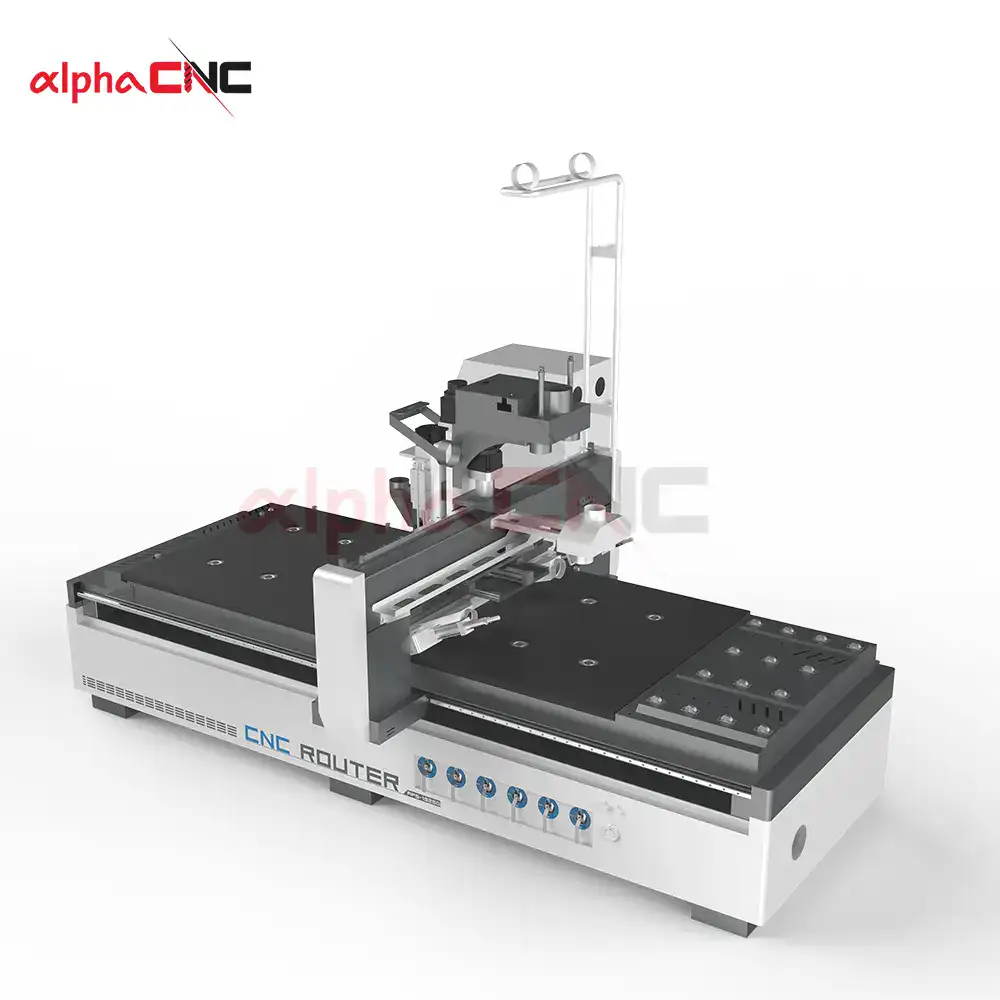

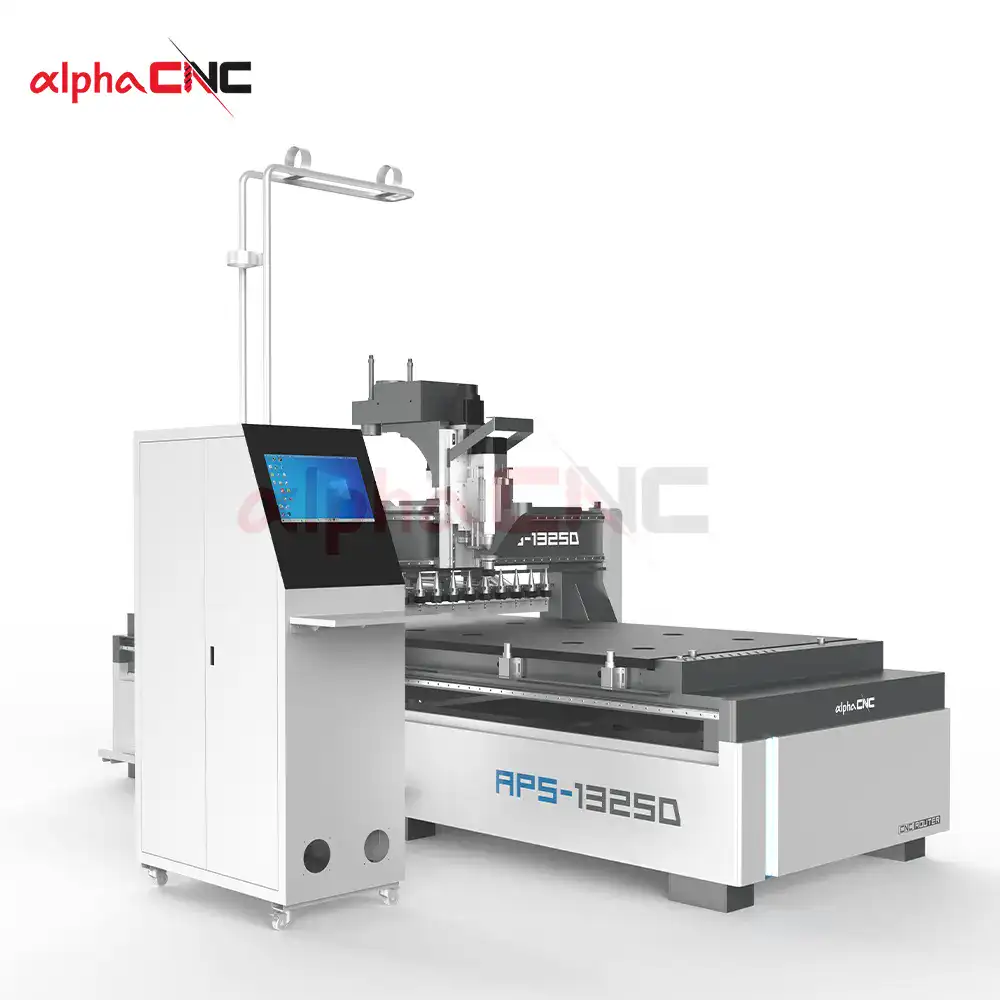

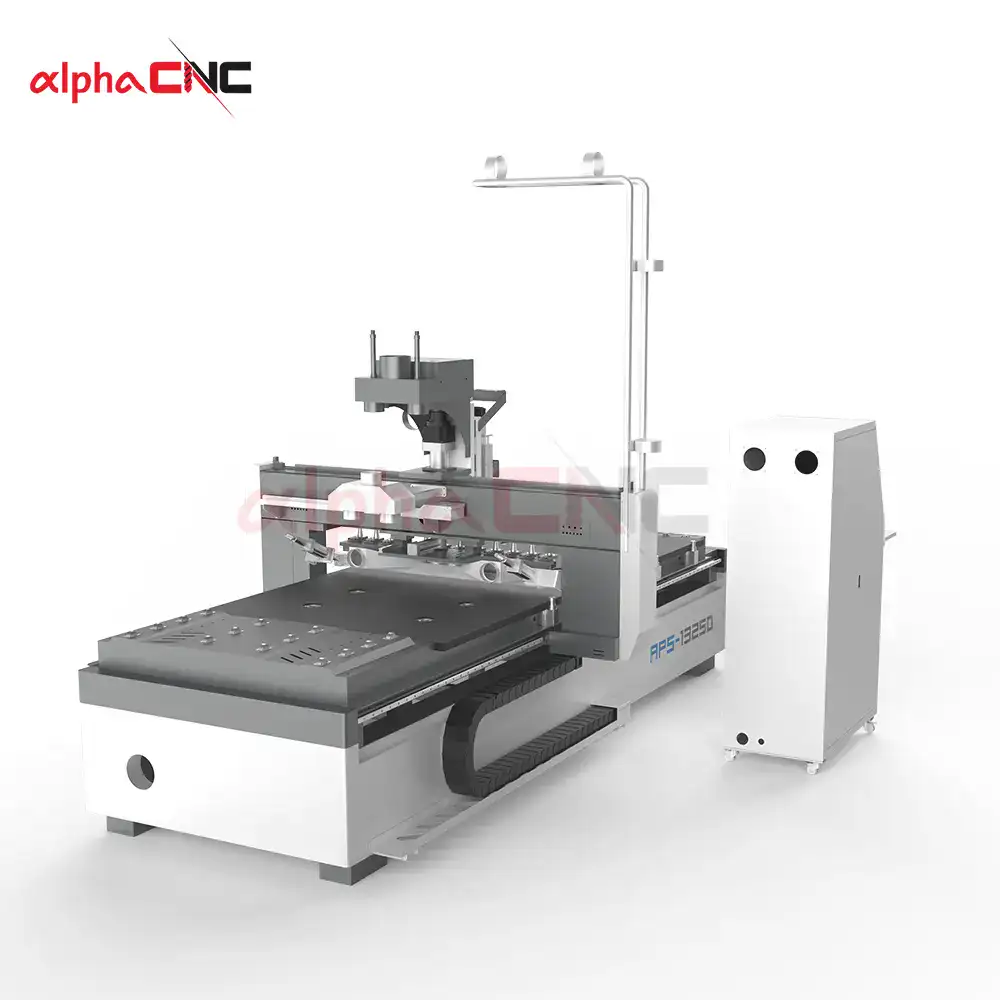

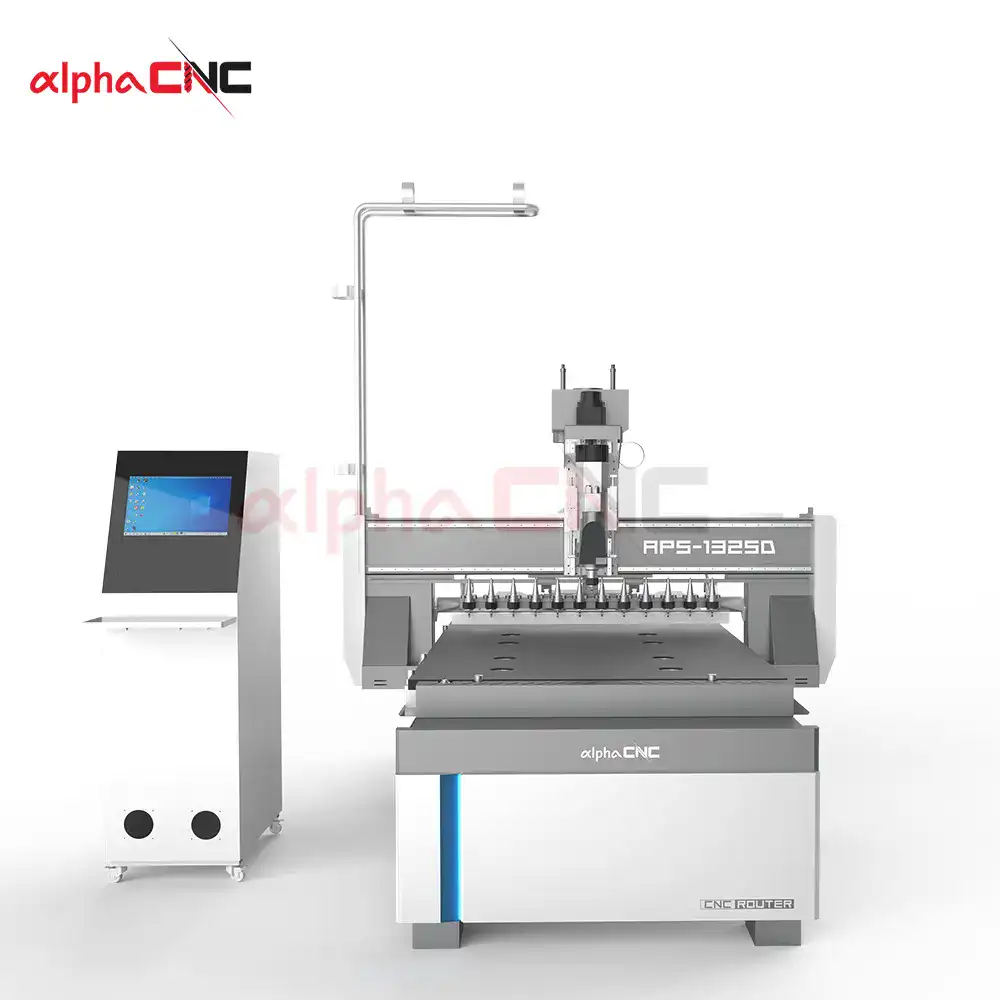

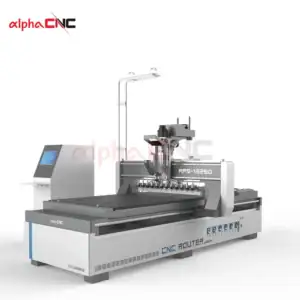

Alpha CNC APS-1325D Ball Screw Driven Nesting ATC Router
Description
The Alpha CNC APS-1325D ball screw CNC router delivers industrial precision for cabinet production, furniture manufacturing, and intricate wood carving. Featuring a high-performance automatic tool changer, this 1325 CNC machine enables uninterrupted high-speed nesting and precision cutting of wood, MDF, and plywood. Built with ball screw drive systems and linear guide rails, it guarantees stability for heavy-duty operations.
Features

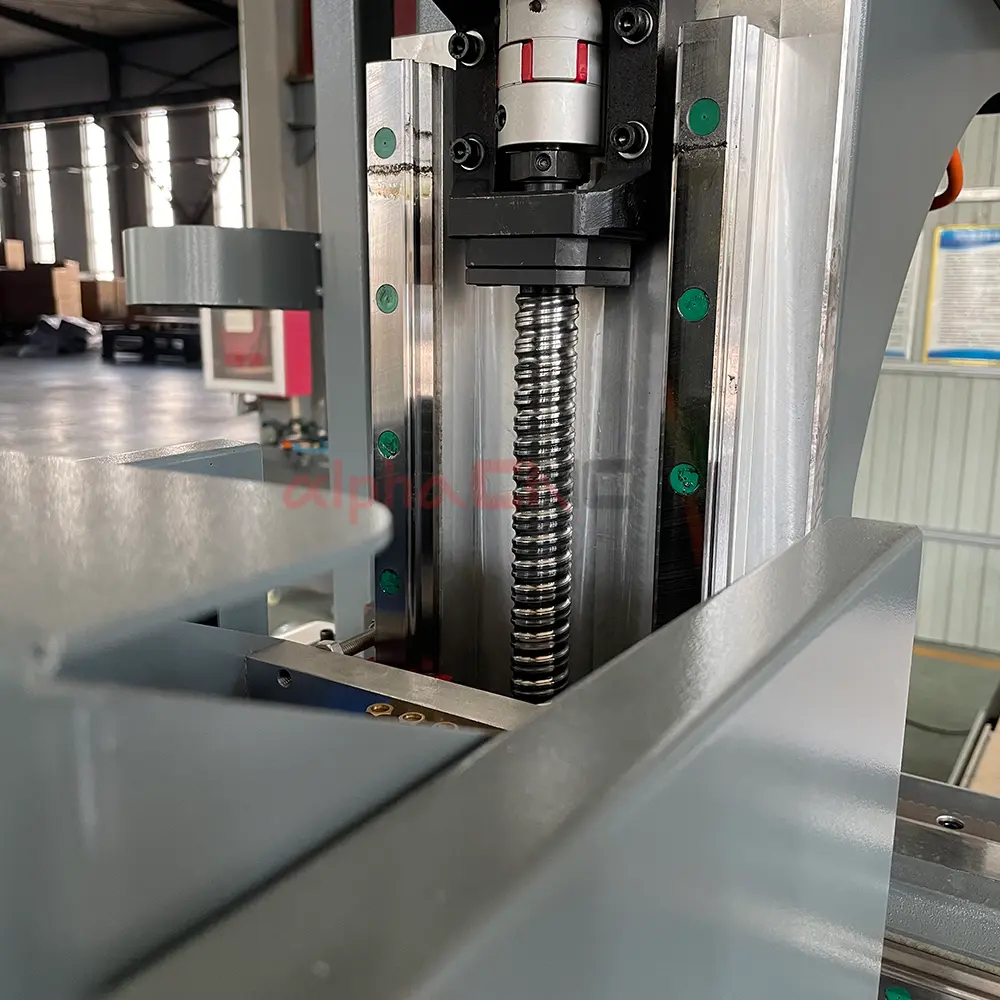

Ball Screw Drive System
Zero-backlash design ensures high repeat accuracy for detailed projects.
Automatic Tool Changer (ATC)
Rapid tool switching for continuous high-speed nesting operations.
Industrial-Grade Rigidity
Reinforced steel frame with linear guide rails for vibration-free precision cutting.
High-Speed Spindle
9kW HSD spindle for efficient wood carving and aluminum processing.
Parameters
Model | APS-1325D |
X,Y axis travel | 1300x2500mm |
Z axis travel | 200mm |
Spindle type | 9kW ATC air cooling spindle, ISO30, ER32 |
Inverter type | Delta/Fuling/Best inverter |
Tool magazine | Linear type tool changers |
Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
Control system | Taiwan SYNTEC/LNC control system |
Driving system | Driving servo motor |
Reducer | Japan SHIMPO reducer |
Machine structure | Heavy duty body with quenching treatment |
Work table | Aluminum T-slot & vacuum work table |
Linear guide | Taiwan linear guide |
Transmission | X,Y, Z axis: Taiwan grinding grade ball screw |
Lubrication system | Automatic lubrication system |
Tool Calibration | Automatic tool sensor calibration |
Compatible Software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc |
Command Language | G Code & M Code |
Traveling speed | 80m/min |
Working speed | 0-25m/min |
System resolution | ±0.0025mm |
Working air pressure | 0.6MPa |
Working voltage | 380V, 3PH, 60HZ |
Optional items
Vacuum Pump Systems
Water circulation, ring blower, or oil-free rotary vane pumps
Dust Collection Systems
Complete sets with hoods/pipes (3kW, 5.5kW, 7.5kW) – new efficient models
Air Compressors
Piston or screw-type industrial compressors
Safety Protection
Light curtain safety barriers
Spindle Upgrades
9kW (HSK F63) or 12kW (ISO30/HSK F63) ATC spindles
Rotary Devices
Industrial-grade 4th axis with 200mm/320mm chucks
Others: Optional accessories
Frequent asked questions
Q: Can I upgrade the spindle for aluminum processing?
A: Yes! Optional 12kW ISO30/HSK F63 spindles handle aluminum while maintaining wood carving precision.
Q: What safety features are available?
A: Our light curtain protection ensures operator safety during high-speed nesting operations.
Q: Do you offer after-sales technical support?
A: Yes, we provide 24/7 remote support, spare parts supply, and engineer dispatch if needed.
Furniture CNC details
Application
The APS-1325D Ball Screw CNC Nesting Machine delivers industrial-grade precision for diverse fabrication processes. Engineered for high-speed, high-accuracy production, it transforms raw materials into finished components across these key industries:
Industry-Specific Applications
✅ Furniture Manufacturing:
- Cabinets, wardrobes, kitchen panels, and closet systems, doors, tables, shelves, and decorative elements.
✅ Architectural Millwork:
- Custom moldings, window/door frames, and stair components.
✅ Signage & Displays:
- Acrylic letters, POP displays, and exhibition structures.
✅ DIY & Prototyping:
- Rapid prototyping for custom designs and small-batch production.
Production facility
Quality control & testing
Related products
FAQ
Q: Can I upgrade the spindle for aluminum processing?
A: Yes! Optional 12kW ISO30/HSK F63 spindles handle aluminum while maintaining wood carving precision.
Q: What safety features are available?
A: Our light curtain protection ensures operator safety during high-speed nesting operations.
Q: Do you offer after-sales technical support?
A: Yes, we provide 24/7 remote support, spare parts supply, and engineer dispatch if needed.
