6-Sided CNC Drilling Machine with Carousel Tool Magazine | High-Accuracy Panel Processing
6-Sided CNC Drilling Machine With Carousel Tool Magazine Vertical-Horizontal Drills Cutting
Description
Alpha CNC’s Six-Side CNC Drilling Machine revolutionizes panel furniture production with through-feed drilling technology. Featuring dual clamp handling and smart air flotation, it processes all six sides in one pass—eliminating manual flipping and slashing labor costs. Ideal for cabinet manufacturing, customized furniture, and batch production of engineered wood. Achieve high accuracy with our precision boring technology and high-speed servo control for flawless hinge holes, slots, and edge milling.
Features
Dual-Clamp Smart Handling System
Dual servo-driven clamps securely grip panels, enabling one-pass six-side drilling without slippage. Integrated milling & drilling cuts processing time traditional methods.
6-Axis Precision Drilling & Milling
Vertical + horizontal drills + spindles simultaneously bore holes, mill slots, and chamfer edges. Precision boring technology ensures high repeat accuracy for hinge holes and connectors.
Smart Air Floatation Table
Smart air flotation creates a frictionless air layer, preventing scratches on delicate laminates while accelerating panel transfer. Paired with vacuum suction, it stabilizes boards during high-speed servo control operations.
Carousel Tool Magazine
High-capacity, automatic tool changer supporting dozens of tools for diverse operations without manual intervention.

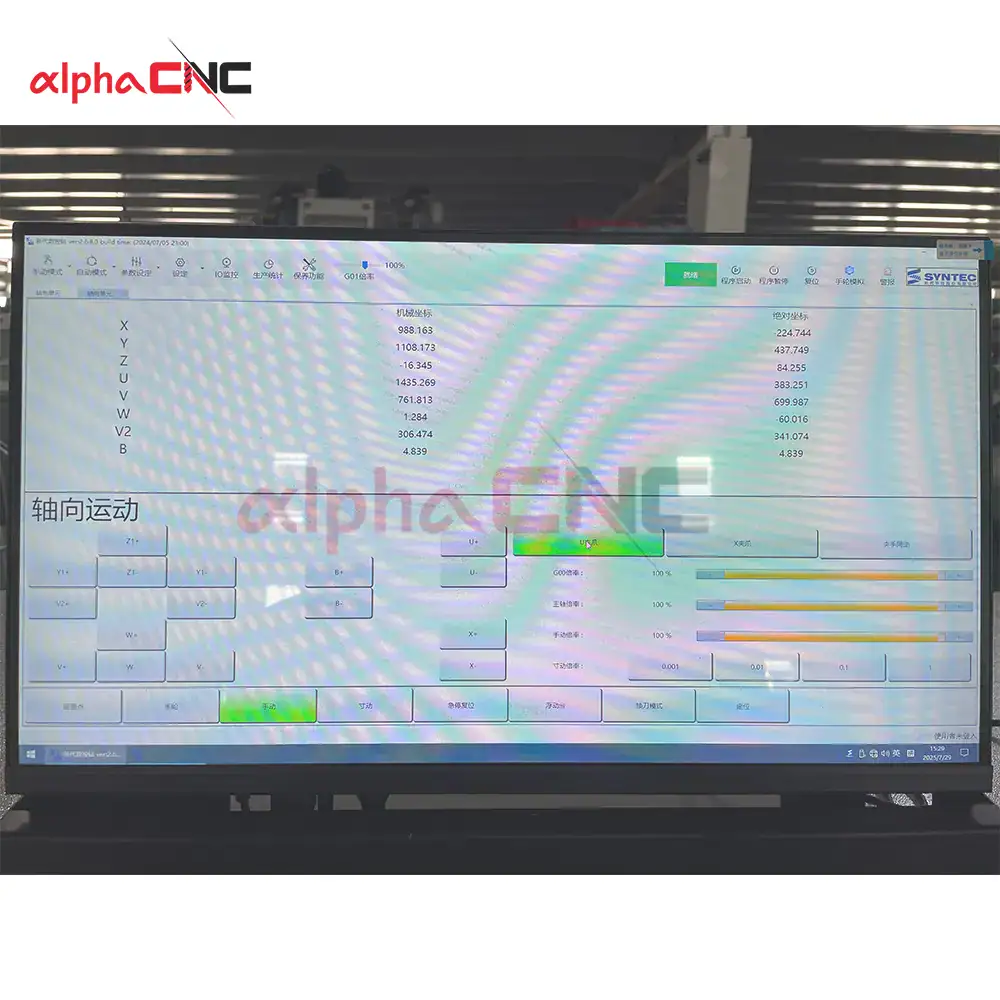

Advanced CNC Control System
User-friendly interface that executes complex machining programs with simple, reliable commands.
Rigid Construction & High Accuracy
Robust frame and precision components ensure long-term stability and high accuracy for perfect assembly fit.
Parameters
Working size | 1300x2500mm |
Spindle type | Air Cooling Spindle |
Type of tools | Vertical top drilling+horizontal drilling +bottom vertical drilling |
Control system | Syntec/LNC,etc control system |

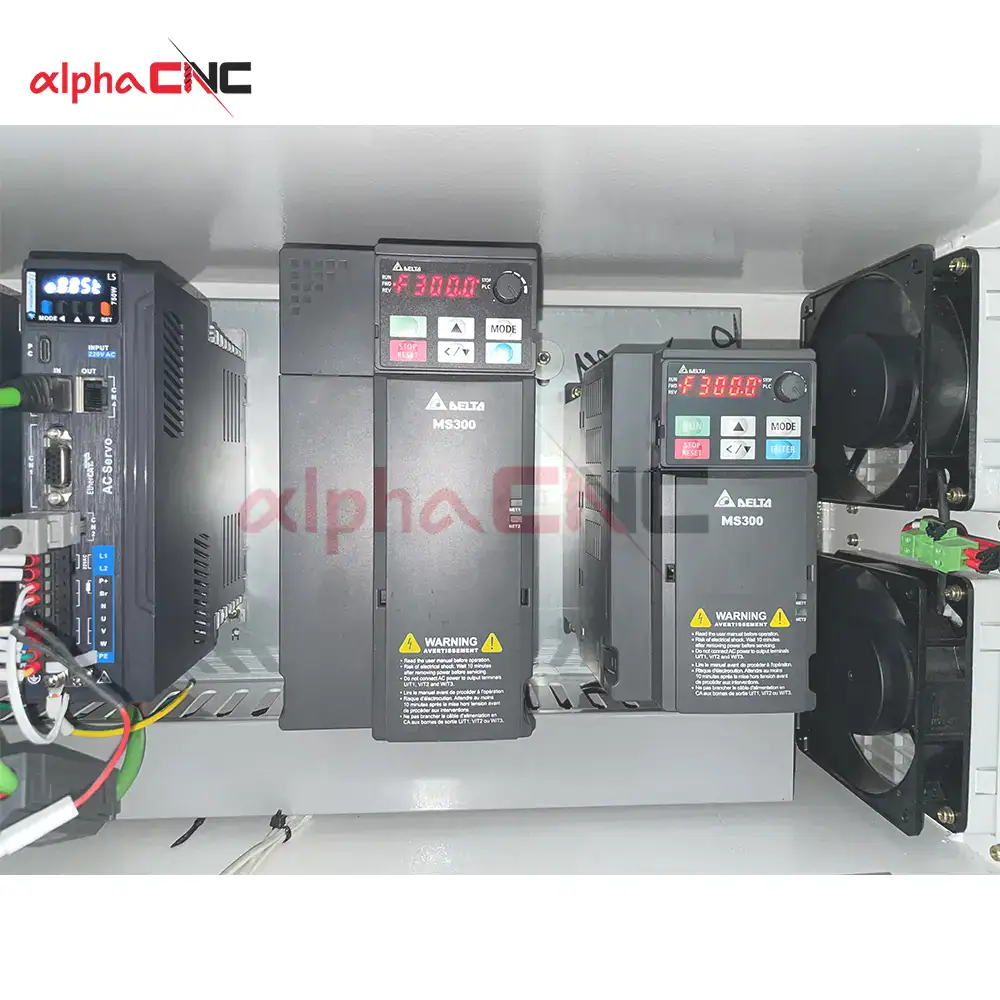

Driver system | Driving servo motor |
Transmission | Taiwan helical rack |
X axis Travel speed | 120m/min |
Y axis Travel speed | 80m/min |
Working voltage | 220V /380V/ 50-60HZ |
Other | Optional accessories |
Optional items
Automatic Loading/Unloading Conveyor
- For continuous through-feed drilling in high-volume factories.
Dust Extraction System
- 7.5kW cyclone suction to maintain precision boring technology in dusty environments.
Tool Changer
- 12-tool capacity for mixed drilling/milling tasks.
Frequent asked questions
Q: How does it avoid drilling errors?
A: Sensors detect hole positions in real-time. The CNC drilling center for custom cabinet auto-skips occupied areas.
Q: What materials are compatible?
A: Particleboard, MDF, plywood (12-50mm thick), and soft metals like aluminum composite.
Q: Do you offer after-sales technical support?
A: Yes, we provide 24/7 remote support, spare parts supply, and engineer dispatch if needed.
Furniture CNC details
Application
The Alpha Six-Sided CNC Drilling Machine is engineered for high-volume production of precision-drilled panels in modern woodworking facilities. By deploying independent drilling heads, it eliminates manual flipping, reduces labor costs, and processes full-sized panels in a single pass.
Industry-Leading Applications Include:
✅ Custom Cabinetry & Kitchen Manufacturing

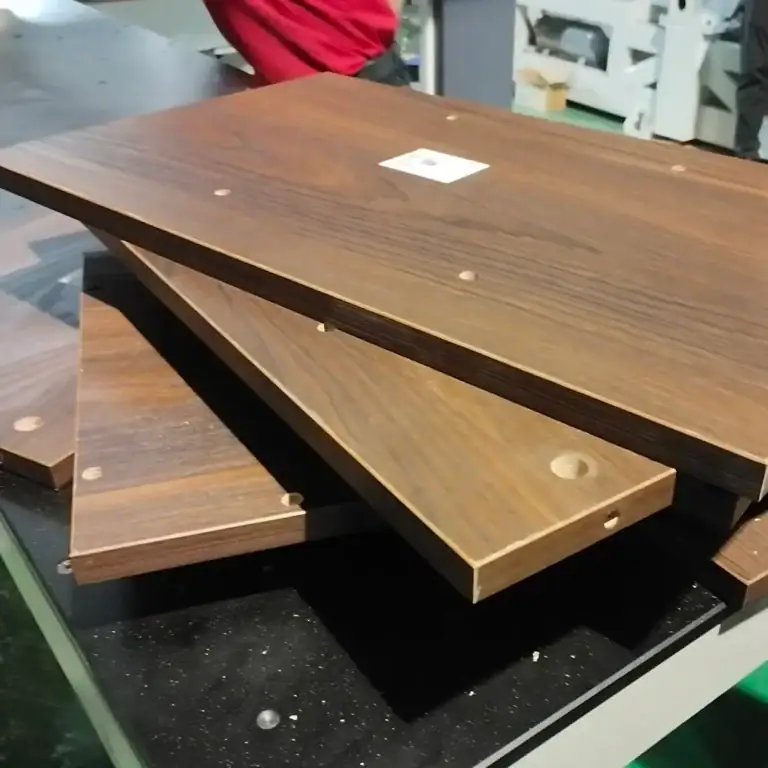

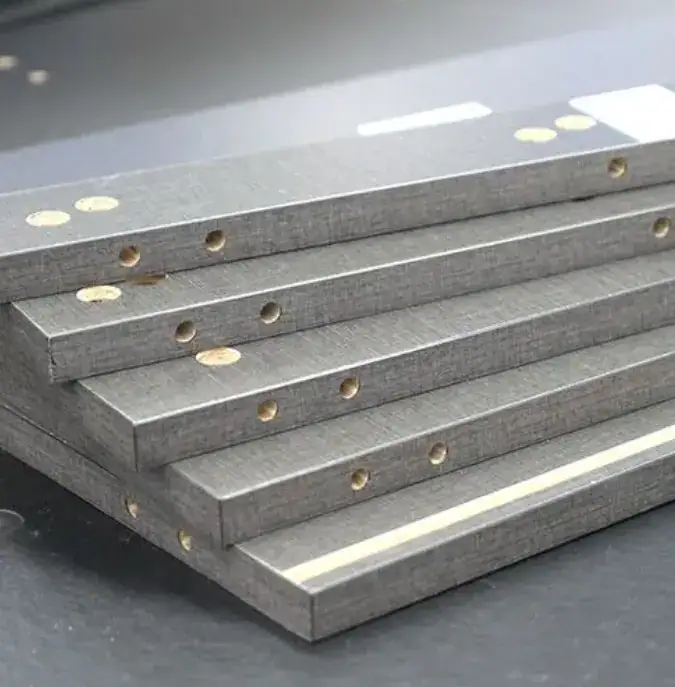

Create flawless hinge bores, shelf-pin holes, and hardware mounting points on cabinet sides, doors, and drawers with repeatability.
✅ Office & Commercial Furniture Production
Drill complex connector holes for desks, partitions, and storage units across plywood, MDF, particle board, and solid wood.
✅ Door & Window Component Fabrication
Execute precision lock prep, handle installs, and rail/stile joinery on all six edges without repositioning.
✅ Custom Architectural Millwork
Ideal for boutique projects requiring automated, error-free drilling for curved or irregular panels.
