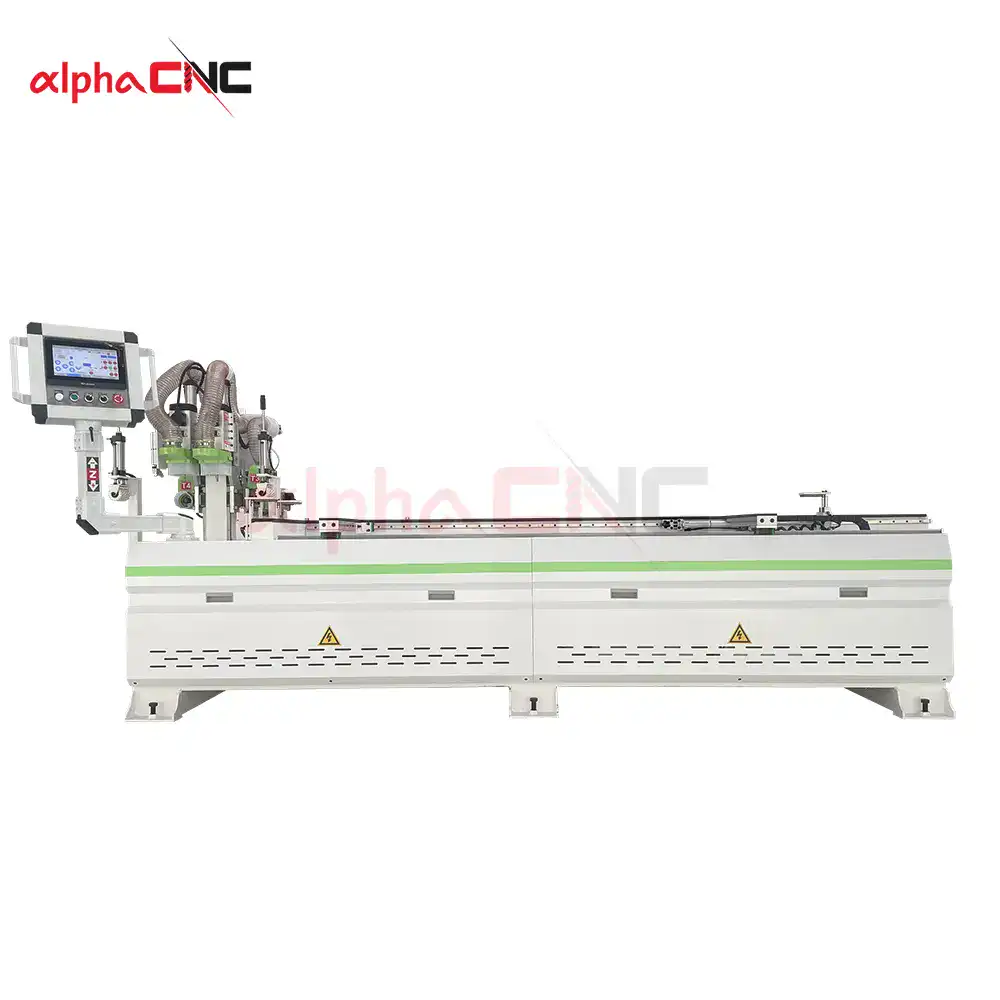

Ultimate CNC Door Machine for Precision Hinge Boring & Lock Drilling
Description
Alpha CNC’s CNC Door Machine delivers industrial-grade accuracy for hinge boring and lock hole drilling. Engineered for cabinet making, furniture manufacturing, and door production, it features rigid construction and high repeatability to reduce material waste. Boost productivity with our energy-efficient solution—request a custom quote today!
Features
Multi-Spindle Setup & Automatic Tool Changer
Swap tools in seconds for continuous high-speed door lock drilling on diverse materials (wood, MDF, laminate).
Precision Drilling
Achieve high accuracy for flawless hinge and lock holes using advanced calibration.
Heavy-Duty Rigid Construction
Reinforced steel frame absorbs vibrations for stable operation during high-volume furniture manufacturing.
User-Friendly Touchscreen Control
Intuitive interface with pre-set programs for cabinets, doors, and custom geometries.

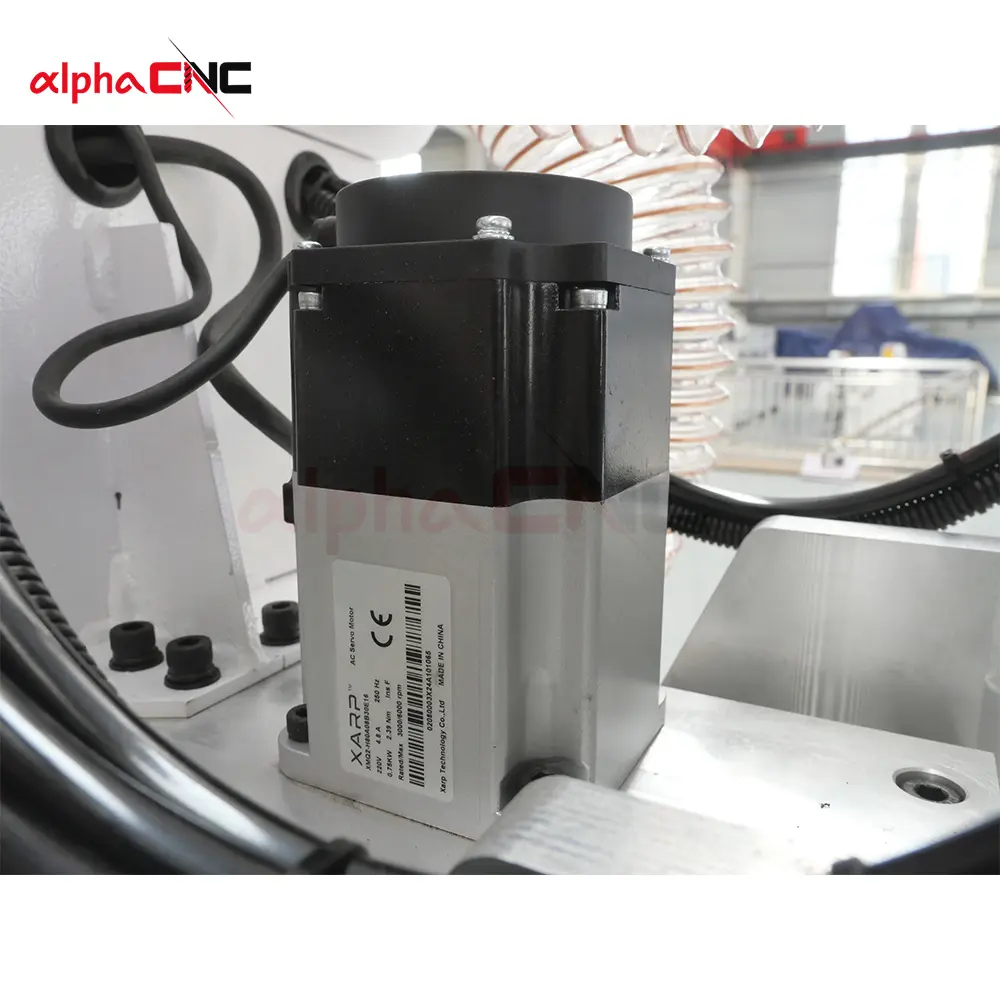

Energy-Efficient Servo Motors
Reduce power consumption compared to standard CNC machines.
Parameters
Power of 4 spindles | T1 vertical spindle for boring T2 vertical spindle for milling T3 side spindle for milling T4 side spindle for trimming |
Max. travel of each spindle | T1: 2500x90x70mm T2: 2600x90x70mm T3: 2700x100x70mm T4: 2400x90x70mm |
Spindle rotating speed | 18000RP m/min |
Idling speed | 10-100m/min |
Processing speed | 10-80m/min |
Motor | Driving servo motor |
Inverter | Delta/Fuling/Best inverter |

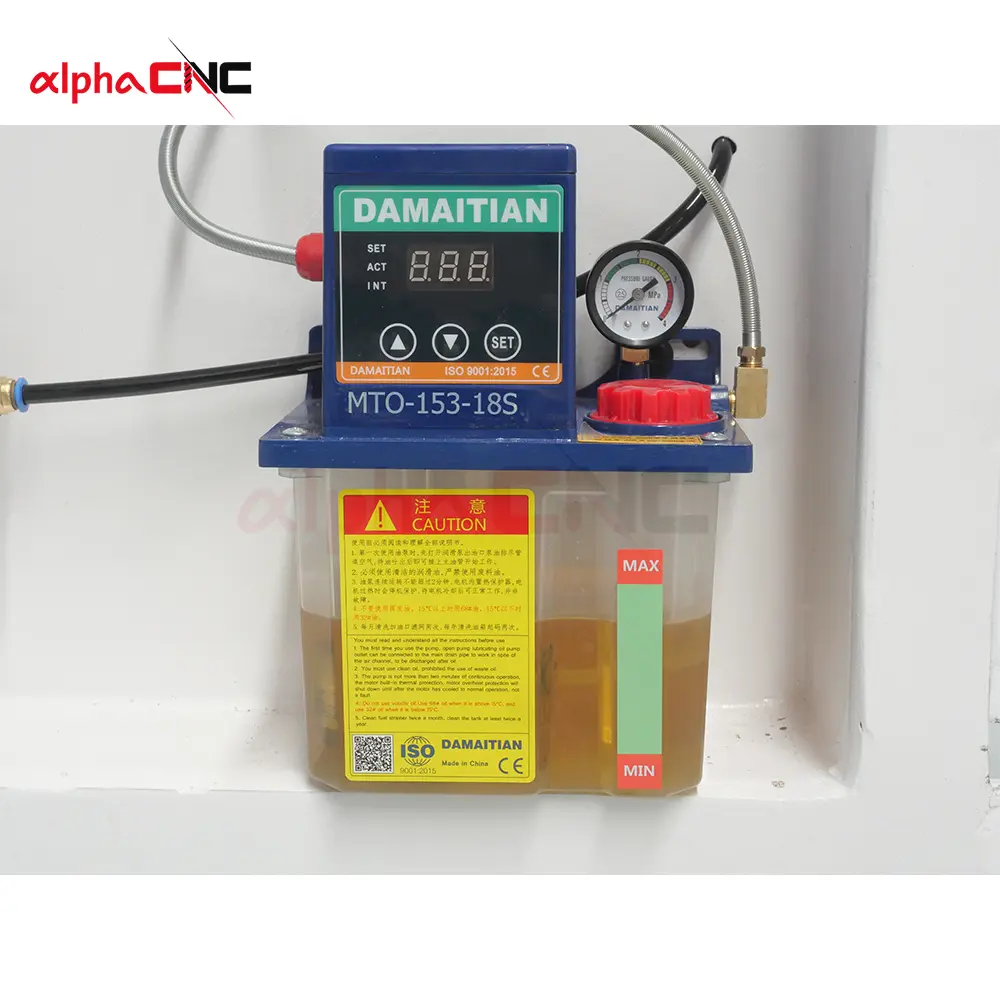

Lubrication | Automatic lubrication system |
Ball screw | Taiwan high-precision ball screw |
Guide rail | Taiwan Linear guide |
Bearing and bearing seat | Taiwan High precision bearing |

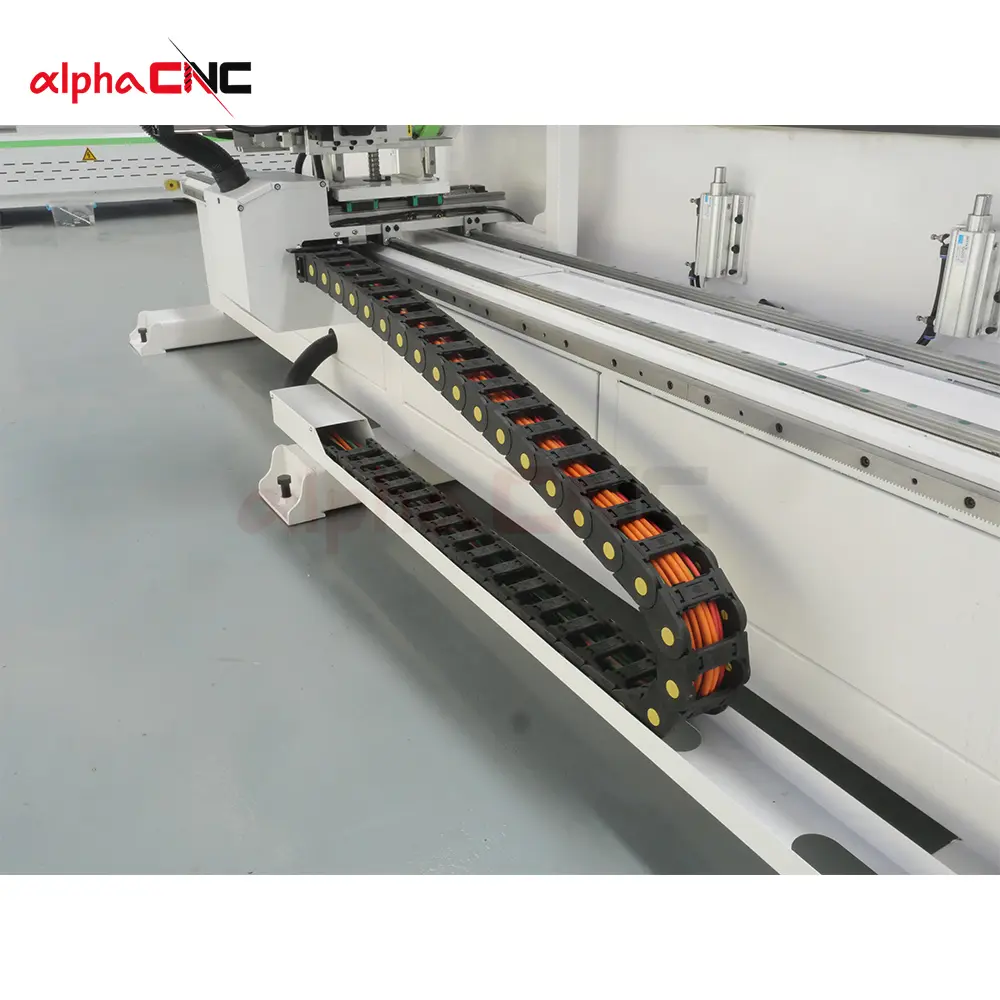

Cable | High flexible double shielded wire |
Reducer | Planetary Reducer |
Rack | High precision rack gear |
Optional items
Dust Extraction System
- Keep workspaces clean and extend tool life during intensive furniture manufacturing.
Extended Work Table
- Accommodate oversized doors or panels.
Custom Tooling Kit
- Tailored drills/bits for exotic woods or composite materials
Frequent asked questions
Q: What materials can this CNC door machine handle?
A: Optimized for wood, MDF, plywood, and laminates—ideal for cabinet making and door production.
Q: Can it be customized for small workshops?
A: Absolutely. Configure table size, spindle count, or software for a cost-effective CNC door machine.
Q: Do you offer after-sales technical support?
A: Yes, we provide 24/7 remote support, spare parts supply, and engineer dispatch if needed.
Furniture CNC details
Application
Our CNC Door Lock Machine isn’t just a tool—it’s your end-to-end solution for flawless door processing. Engineered for woodworking factories and door manufacturers, this industrial-grade CNC machine automates the entire machining cycle for doors, cabinets, and furniture components in a single setup. Eliminate manual errors and your throughput while maintaining high-level accuracy.
Key Applications:

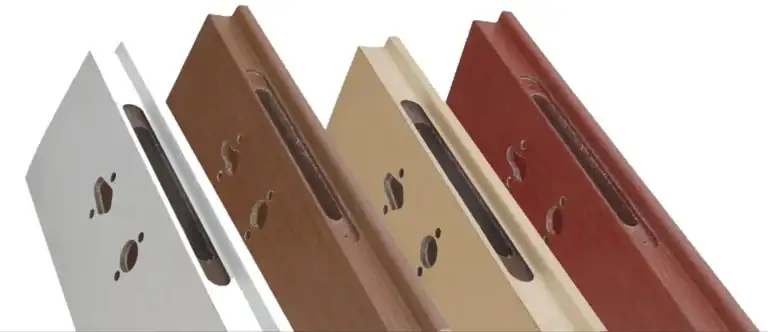

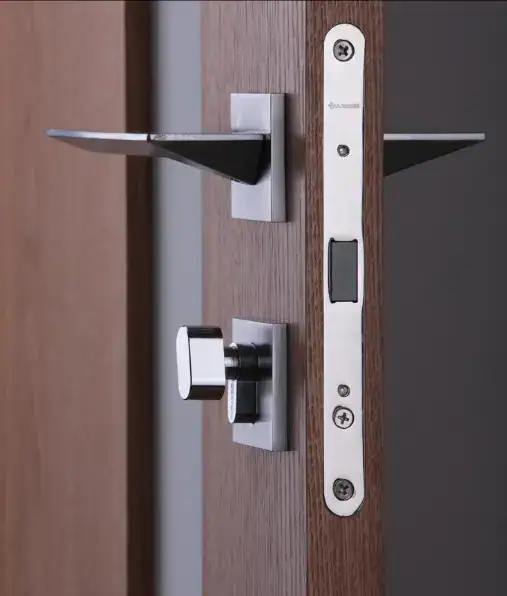

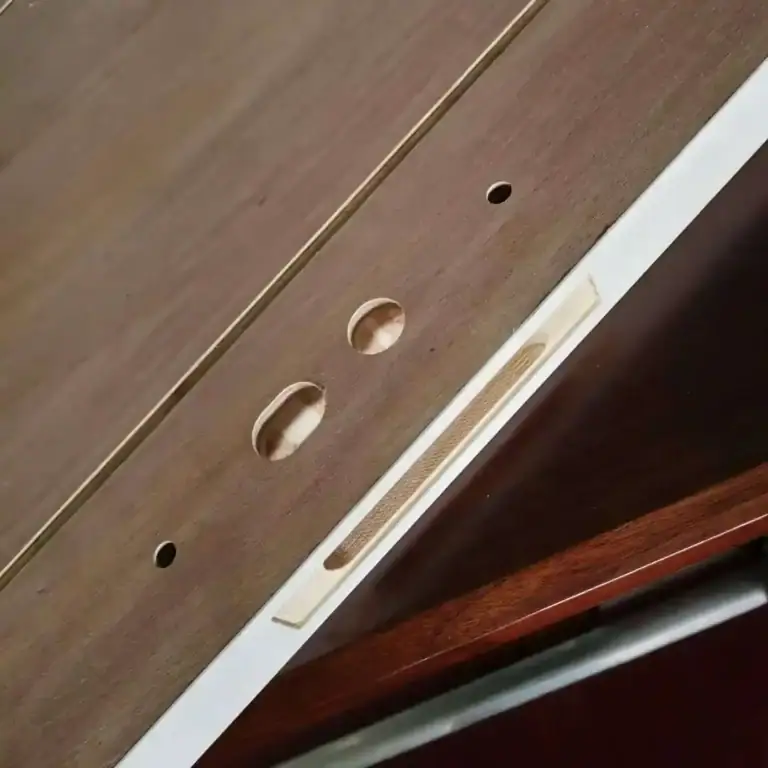

✅ All-in-One Machining: Drill, mill, and slot lock holes, hinge recesses, latch pockets, door closer grooves, and handle holes in one automated operation.
✅ Universal Compatibility: Processes hollow-core, solid wood, MDF, HDF, and laminated doors.
✅ Industrial-Grade Efficiency: Cuts production time. manual methods – perfect for high-volume orders.
✅ 0-Config Switching: Shift between door styles instantly using pre-loaded digital templates.
