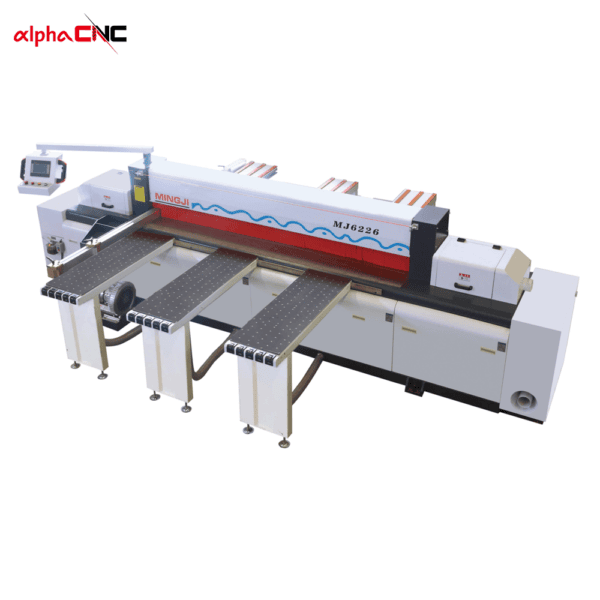

High-Accuracy Computer Saw of Beam Automatic Beam Saw Cnc Panel Saw Wooden Cutter Cutting Machine
Description
A modern woodworking solution featuring front-load material handling and digital precision cutting technology.
Features
Key Features:
Convenient Front Loading – Easy material feeding for efficient workflow
Digital Cutting Precision – Ensures accurate and consistent results
Compact Workshop Design – Space-saving yet powerful performance
Ideal For:
Custom furniture production
Cabinet manufacturing
Professional woodshops
Available Options:
Touchscreen control panel
Quick blade change system
Dust collection connectivity
Parameters
Sawing Length | 1500mm | Head Saw Motor | 11kw |
Sawing Thickness | 80mm | Saw Cariage Drive Motor | 1.5kw |
Dia.o Main Saw Blade | 355mm | Automatic Feeding Motor | 1kw |
Axis Dia.of Main Saw Blade | φ60mm | High Pressure Bower Motor | 2.2kw |
Rotate Speed of Main Saw Blade | 5600rpm | Total Power | 17kw |
Dia.of Grooving Saw Blade | 180mm | Automatic Feeding Speed | 0-80m/min |
Axis Dia.of Grooving Saw Blade | φ30mm | Operatin Pressure | 6-8kg/cm |
Rotate Speed of Grooving Saw Blade | 6300rpm | Workbench Height | 850mm |
Saw Carriaqe Forward Speed(stepless) | 0-60 min | Net Weight | 3400kg |
Saw Carriage Back Speed | 30-120min | Dimensions(L×W×H) | 4100×5400×1900mm |
Optional items
Enhance the performance and versatility of your Automatic Beam Saw CNC Panel Saw with these high-value optional accessories:
- Dust Collection System – Improve workshop cleanliness and operator safety with an efficient integrated dust extraction unit.
- Automatic Lubrication System – Extend machine lifespan and ensure smooth operation with automated maintenance.
- Additional Saw Blades – Optimize cuts for different materials (e.g., laminates, hardwood, plywood) with specialized blades.
- Conveyor Output System – Streamline material handling with an automated unloading solution for high-volume operations.
- Advanced CNC Controller Upgrade – Unlock more complex cutting functions and user-friendly programming interfaces.
Frequent asked questions
Q: What materials does it support? Maximum processing thickness?
A: Processes MDF, solid wood, PVC, etc., with max thickness typically 60-100mm (depends on spindle power).
Q: What's the warranty period?
A: 1-year machine warranty.
Q: What's the delivery timeline?
A: 15-30 days after payment (longer for custom configurations).
Furniture CNC details
Application
Our CNC Beam Saw revolutionizes panel cutting operations across key furniture manufacturing sectors:
Core Industry Applications:
Custom Cabinet Manufacturing
- Precisely cuts cabinet components (doors, sides, shelves) from MDF, particleboard, plywood, and laminates
- Enables batch processing of custom sizes for bespoke kitchen and wardrobe production
Office Furniture Production
- High-volume cutting of desk panels, partition walls, and storage units
- Processes melamine-coated boards and solid wood panels for executive furniture lines
Commercial Fixture Fabrication
- Cuts large-format panels for retail displays, hotel fixtures, and exhibition booths
Modular Furniture Systems
- Enables mass customization of panel components for flat-pack furniture
- Optimizes material yield for IKEA-style production lines
Production facility
Quality control & testing
Related products
FAQ
Q: What materials does it support? Maximum processing thickness?
A: Processes MDF, solid wood, PVC, etc., with max thickness typically 60-100mm (depends on spindle power).
Q: What's the warranty period?
A: 1-year machine warranty.
Q: What's the delivery timeline?
A: 15-30 days after payment (longer for custom configurations).
