APS-1325D Dual-Station CNC Nesting Machine: Robotic Arm Loading & Auto Labeling for Furniture
APS-DM-U9 CNC Nesting Machine with Robotic Arm Auto-Loading Labeling and Cutting in Wooden Furniture
Description

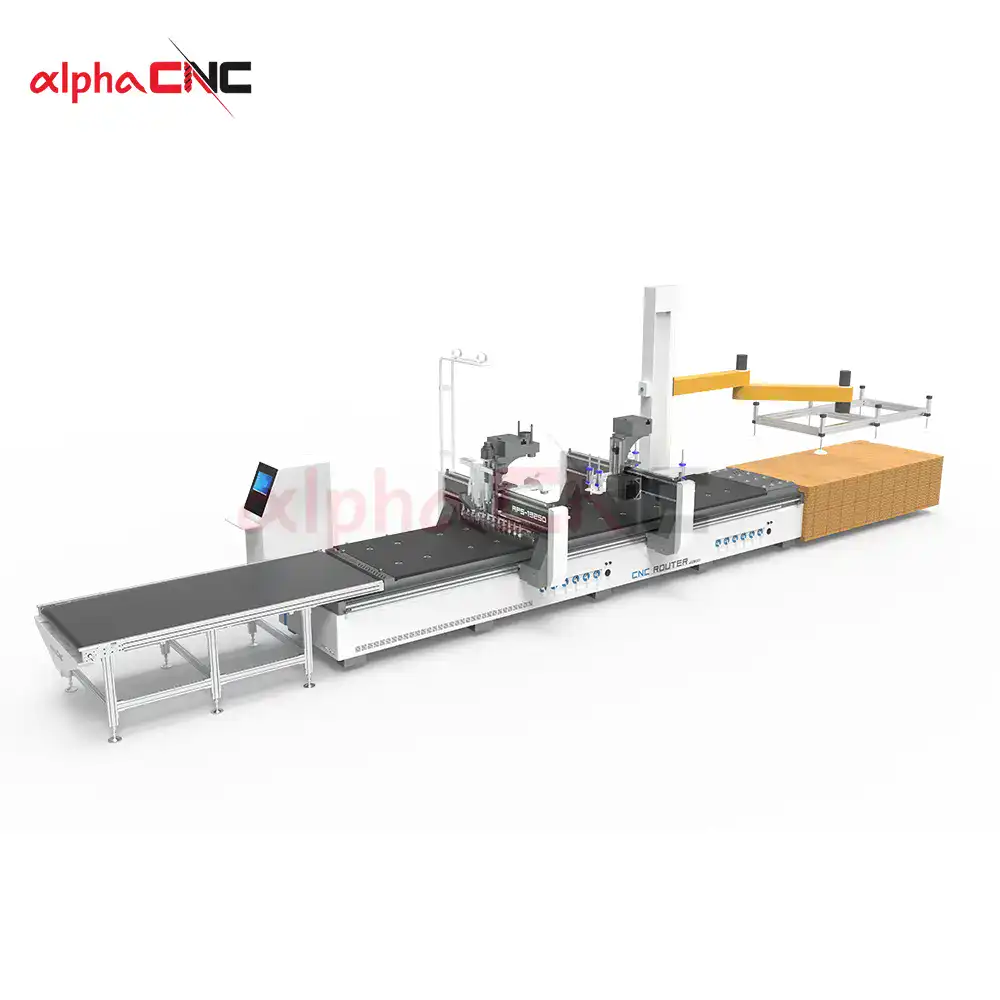

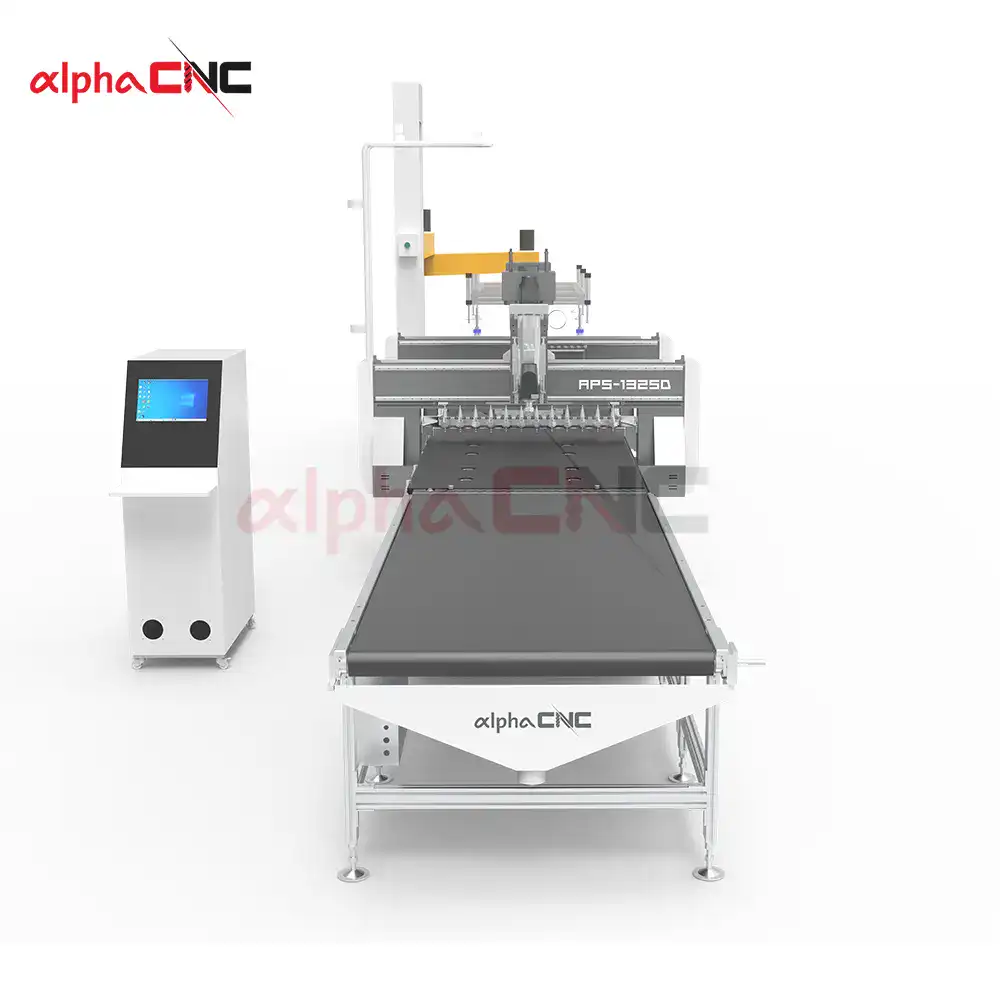

The Alpha CNC APS-1325D CNC Nesting Machine transforms furniture manufacturing with its dual-station design and robotic arm loading. Engineered for 24/7 continuous operation, this 1300×2500mm system features automatic labeling/unloading and high-accuracy cutting for cabinets, panels, and wood components. Ideal for custom cabinet production and panel furniture manufacturing, it delivers industrial-grade efficiency for scalable wood component processing.
Features

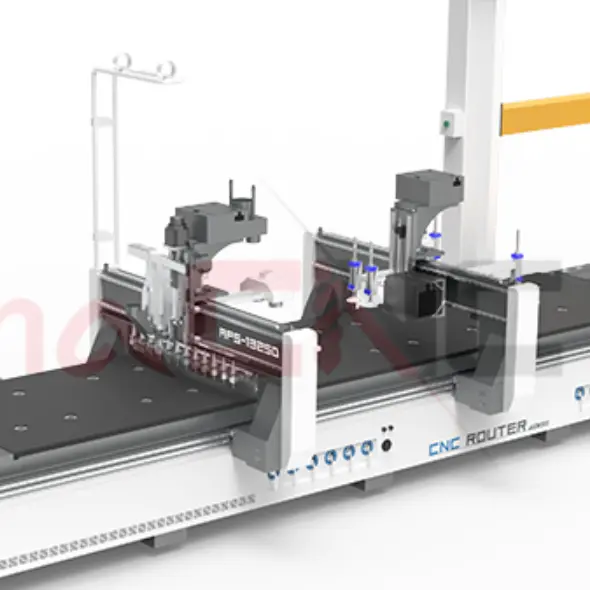

Synchronized Dual-Station Workflow
- A single robust 1300×2500mm worktable with dual processing zones enables continuous operation. While Zone A cuts materials, Zone B simultaneously undergoes robotic arm loading or automatic unloading – eliminating production gaps for panel furniture manufacturing.

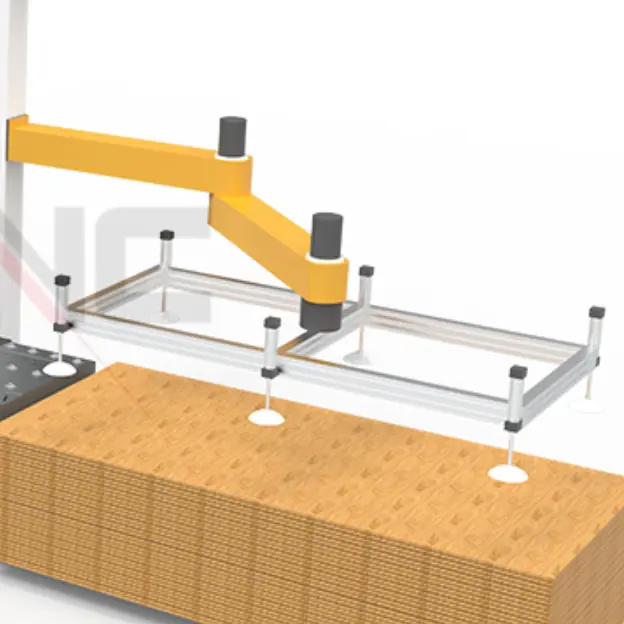

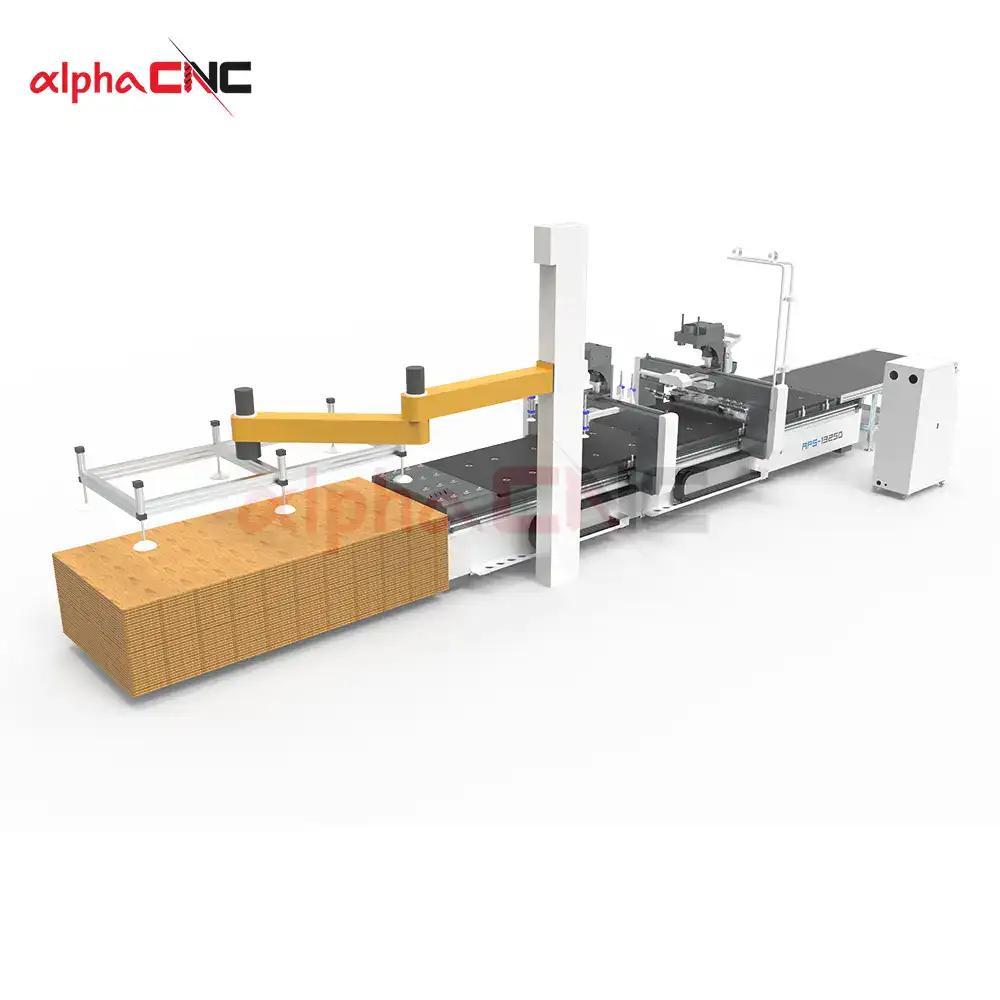

Integrated Arm & Labeling System
- Robotic arm loading precisely positions raw panels
- Auto-labeling applies traceable IDs during unloading
- Seamless transition between cutting and part-handling cycles
Industrial-Grade Precision & Efficiency
- High-accuracy cutting with 24,000 RPM spindle
- Heavy-duty steel frame ensures vibration-free 24/7 continuous operation
- Optimized for full 4’x8’ sheet processing in custom cabinet production
Parameters
Model | APS-1325D |
X,Y axis travel | 1300x2500mm, option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc |
Z axis travel | 200mm |
Spindle type | 9kw ATC air cooling spindle |
Inverter type | Delta/Fuling/Best inverter |
Tool magazine | Linear type auto tool changer |
Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
Control system | Taiwan SYNTEC/LNC controller |
Driving system | Driving servo motor |
Reducer | Japan SHIMPO reducer |
Machine structure | Heavy duty body with quenching treatment |
Work table | Vacuum work table |
Positioning cylinder | 5 pieces (X2, Y3) |
Linear guide | Taiwan linear guide |
Transmission | X, Y axis: Taiwan / Germany Helical Rack and Pinion Z axis: Taiwan high precision screw |
Lubrication system | Automatic lubrication system |
Tool calibration | Automatic tool sensor calibration |
Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc |
Command language | G Code & M Code |
Traveling speed | 80m/min |
Working speed | 0-25m/min |
System resolution | ±0.0025mm |
Working air pressure | 0.6MPa |
Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Optional items
Loading Unloading System
for Wood Nesting Machine Aggregate Head Cutting Saw Drilling Bank
Frequent asked questions
Q: How does robotic arm loading improve efficiency?
A: The arm transfers raw materials to one station while the other processes parts, enabling 24/7 continuous operation with zero idle time.
Q: Can it process full 1300x2500mm sheets?
A: Yes. Vacuum table holds 4'x8' sheets securely for high-accuracy cutting.
Q: Do you offer after-sales technical support?
A: Yes, we provide 24/7 remote support, spare parts supply, and engineer dispatch if needed.
Furniture CNC details
Application
The APS-1325D Dual-Station CNC Nesting Machine revolutionizes batch production for panel furniture factories, cabinet manufacturers, and custom woodshops. Engineered for zero downtime processing, it excels in high-efficiency fabrication of:
- Kitchen & Bathroom Cabinets: Rapidly cut cabinet boxes, doors, shelves, and components with precision fit.
- Custom Wardrobes & Closets: Seamlessly handle large panels for sliding doors, frames, and modular units.
- Office & Commercial Furniture: Optimize sheet utilization for desks, partitions, storage units, and display fixtures.
- Doors & Architectural Elements: Produce flush doors, laminated doors, signboards, and decorative panels.
- Batch Production of Flat-Pack Furniture: Ideal for shelves, cupboards, bookcases items.
