Fully Automatic Wood Cutting Machine Computer Saw Machine Horizontal Beam Saw With Feeding Platform

Brand: Alpha

Model:

Category: Furniture CNC

Price range: 10000 to 16000 / Set based on the configuration

Payment terms: T/T/Visa/Mastercard/American Express/Discover cards

After-sale service: Professional operation training service

Supply ability: 200 pcs/month

Get a quote

Description

A cutting-edge woodworking solution featuring front-loading convenience and intelligent operation. This advanced system combines precision cutting with workflow optimization for modern workshops.

Features

·Controlled by lPC, simple user interface, easy to operate；

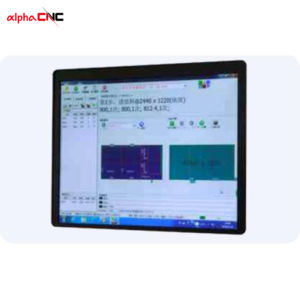

·Install optimization software, you can directly import the cutting list, same color and more orders optimization cutting and printlabels, synchronously;

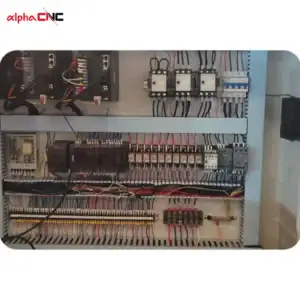

·Equipped with fault online detection device, when it break down, it will shut down automatically, and automatic fault detection function will find the fault cause quickly;

·Quick host sawing speed, frequency control according to panel thickness.

Parameters

Sawing Length	4200mm	Head Saw Motor	15kw
Sawing Thickness	80mm	Saw Cariage Drive Motor	1.5kw
Dia.o Main Saw Blade	355mm	Automatic Feeding Motor	1kw
Axis Dia.of Main Saw Blade	φ60mm	High Pressure Bower Motor	2.2x2kw
Rotate Speed of Main Saw Blade	5800rpm	Total Power	24kw
Dia.of Grooving Saw Blade	180mm	Automatic Feeding Speed	0-100m/min
Axis Dia.of Grooving Saw Blade	φ30mm	Operatin Pressure	6-8kg/cm
Rotate Speed of Grooving Saw Blade	6800rpm	Workbench Height	850mm
Saw Carriaqe Forward Speed(stepless)	0-60 min	Net Weight	5000kg
Saw Carriage Back Speed	30-120min	Dimensions(L×W×H)	7000×7500×1900mm

Optional items

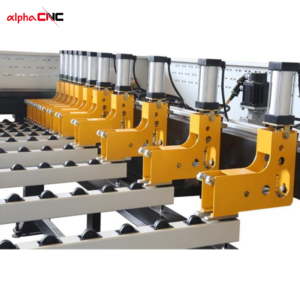

Multiple groups of manipulator feeding

Multiple groups of mechanical hand clampbinding process, protect the surface of the plate.

No scratching, clamping hand automatically and fast clamping plate, pushing and feeding stable.

Using imported electrical appliances prolong the service life of machinery.

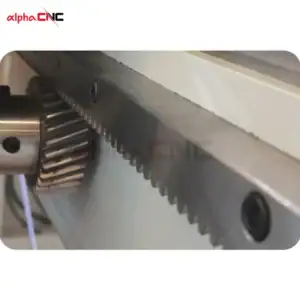

The transmission structure

Grinding grade rack and pinion, highhardness, high precision, durable, long-termaccuracy assurance.

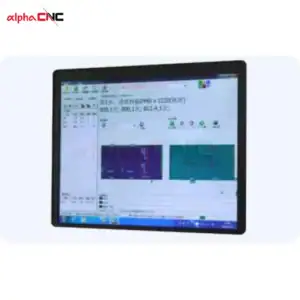

panel cutting optimization

Click for details

Frequent asked questions

Q: What materials does it support? Maximum processing thickness?
A: Processes MDF, solid wood, PVC, etc., with max thickness typically 60-100mm (depends on spindle power).
Q: What's the warranty period?
A: 1-year machine warranty.
Q: What's the delivery timeline?
A: 15-30 days after payment (longer for custom configurations).

Furniture CNC details

Application

Our Fully Automatic Wood Cutting Machine, featuring advanced computer control and horizontal beam saw technology, revolutionizes wood processing across multiple sectors. Designed for precision, speed, and automation, this machine excels in applications where efficiency and accuracy are paramount. By leveraging its cutting-edge capabilities, businesses can streamline operations, reduce labor costs, and achieve superior results. Here’s how it drives innovation in key industries:

Furniture Manufacturing – Effortlessly cut wood panels for cabinets, tables, shelves, and custom furniture pieces, ensuring seamless assembly and high-quality finishes in residential, office, and commercial settings.
Construction and Building Materials – Prepare timber frames, beams, and structural components with exact dimensions, ideal for housing projects, renovations, and prefabricated construction.
Custom Woodworking and Carpentry – Craft bespoke items like doors, windows, and decorative elements with intricate designs, supporting artisans and small workshops in delivering unique, high-end products.
Panel Processing for Interiors – Saw large wood panels into precise sizes for partitions, countertops, and flooring, enhancing efficiency in kitchen, bathroom, and retail fit-out projects.

Signage and Display Manufacturing – Create wooden signs, exhibition stands, and retail displays with clean edges and complex shapes, perfect for advertising and event industries.
