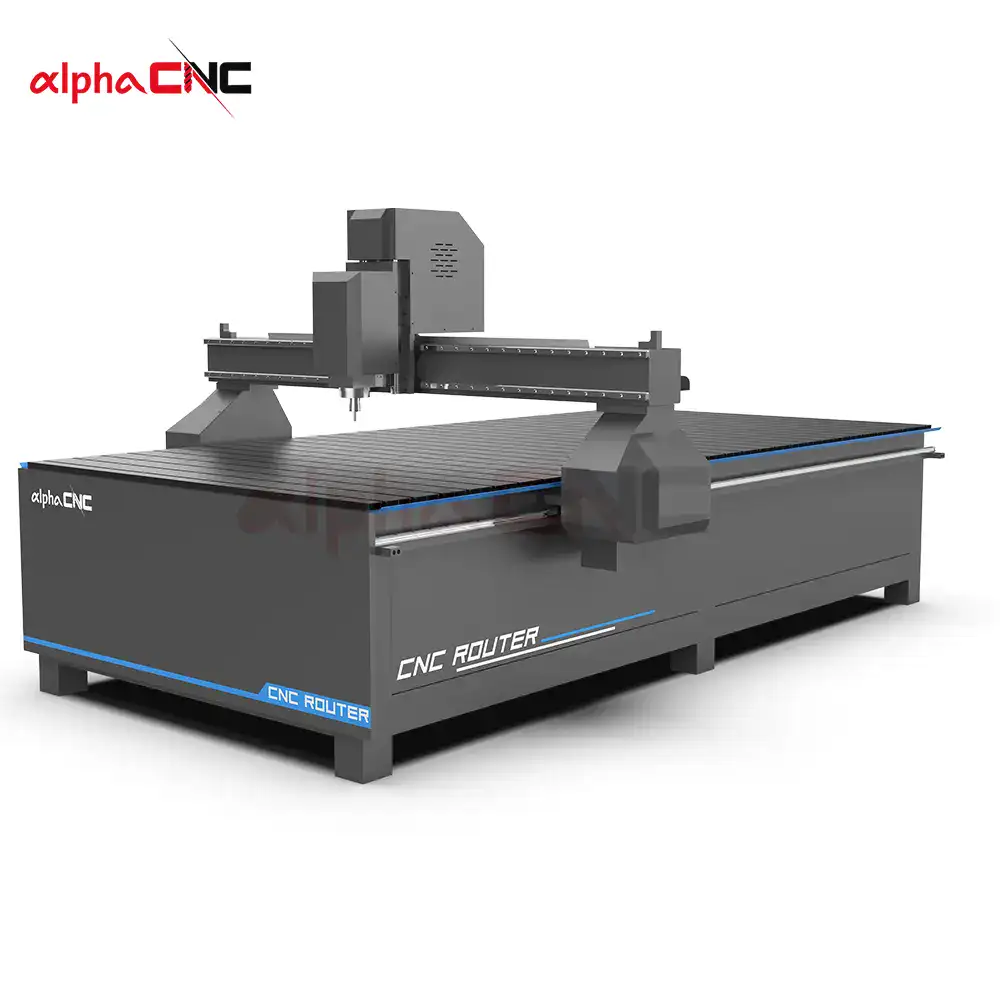

ABS-1325E Industrial Wood CNC Machine | Precision 3 Axis CNC Router
Description
The ABS-1325E wood CNC machine delivers professional 2D/3D engraving and carving for woodworking, cabinetry, and door production. Equipped with an spindle and robust steel frame, this cnc router machine ensures stability, precision, and extended tool life. Ideal for entry-level to industrial users seeking reliability.
Features

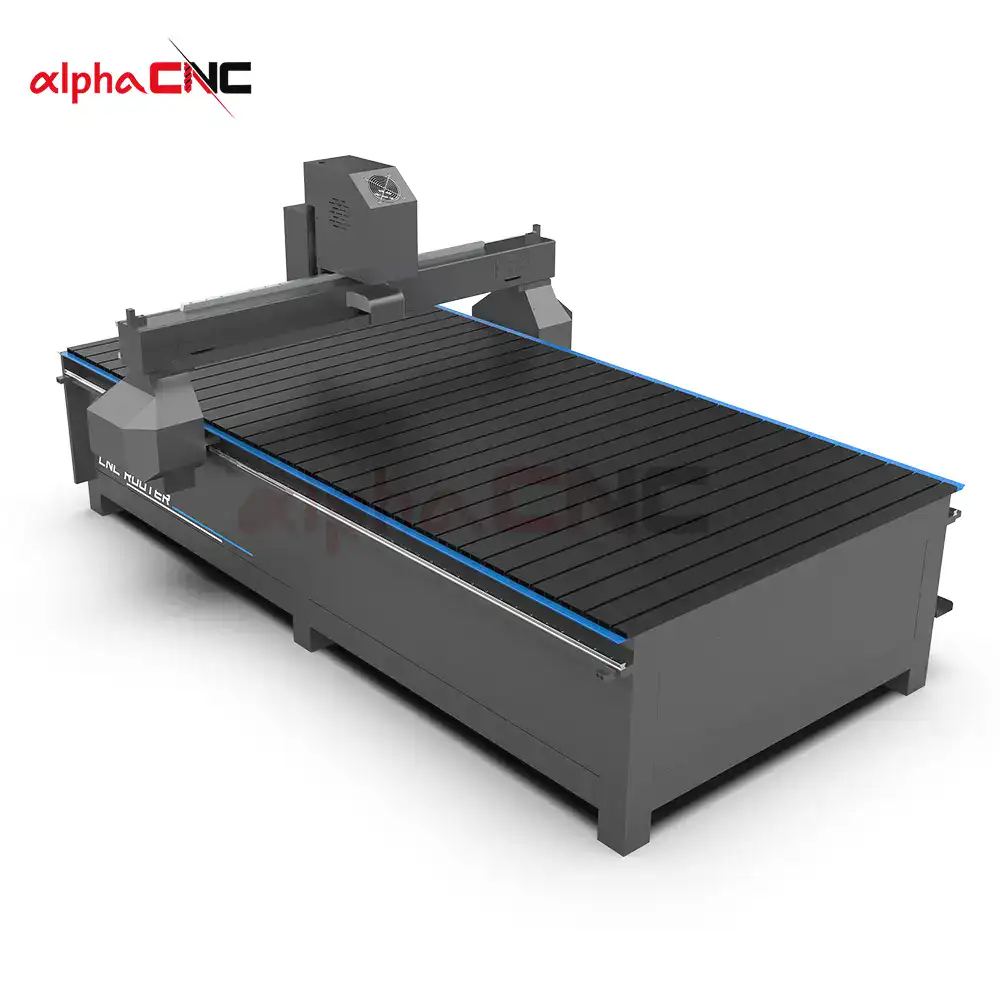

- High Quality Spindle Power: High-torque spindle ensures smooth 3D carving and superior finish quality.

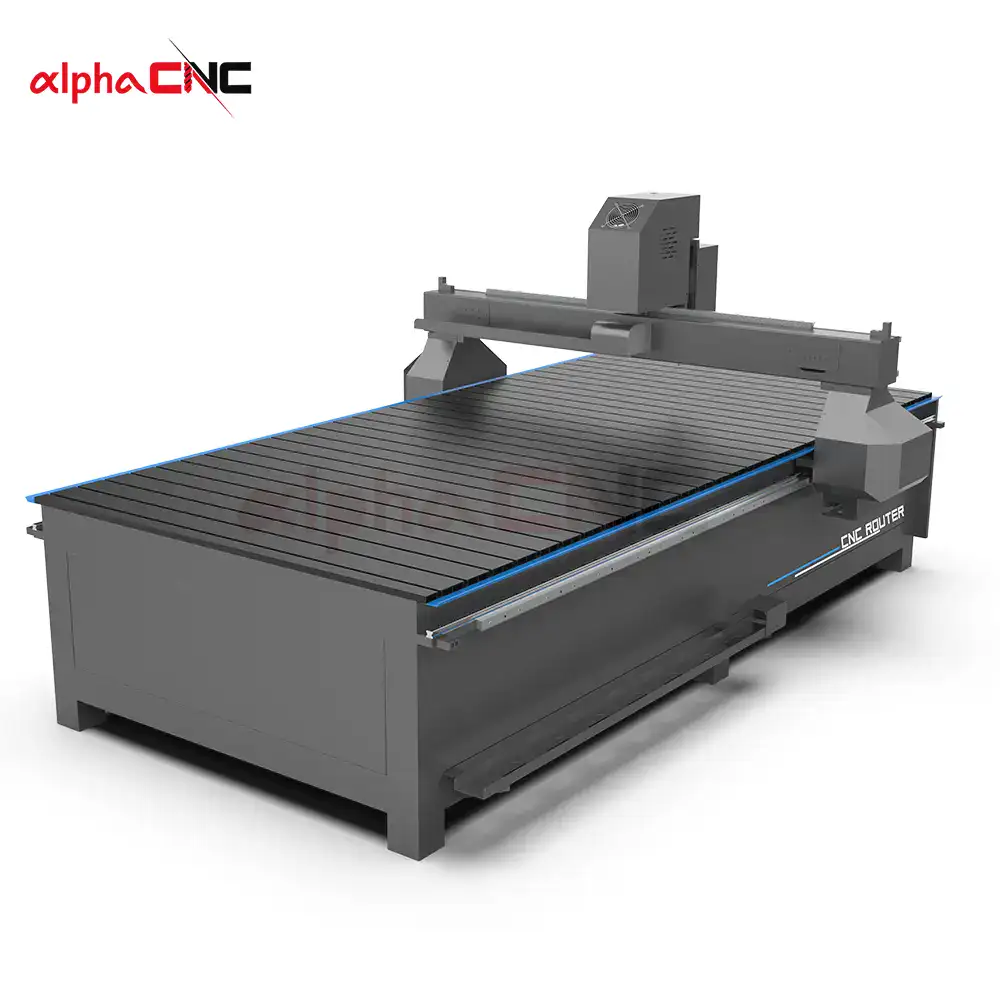

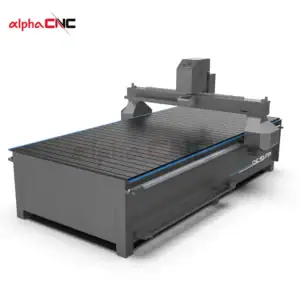

- Industrial-Grade Stability: Reinforced steel frame and gantry eliminate vibration for precision.

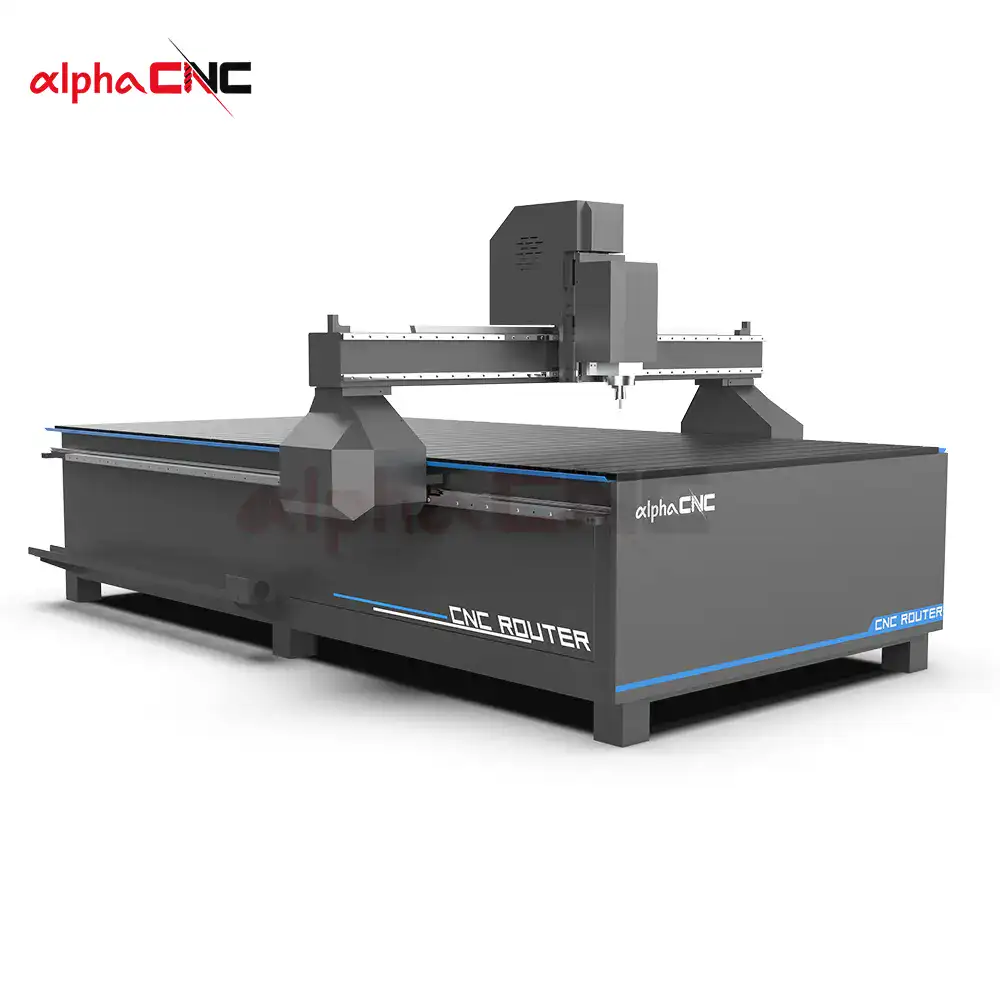

- Smart Control System: Controller enables easy operation and error-free wood processing.

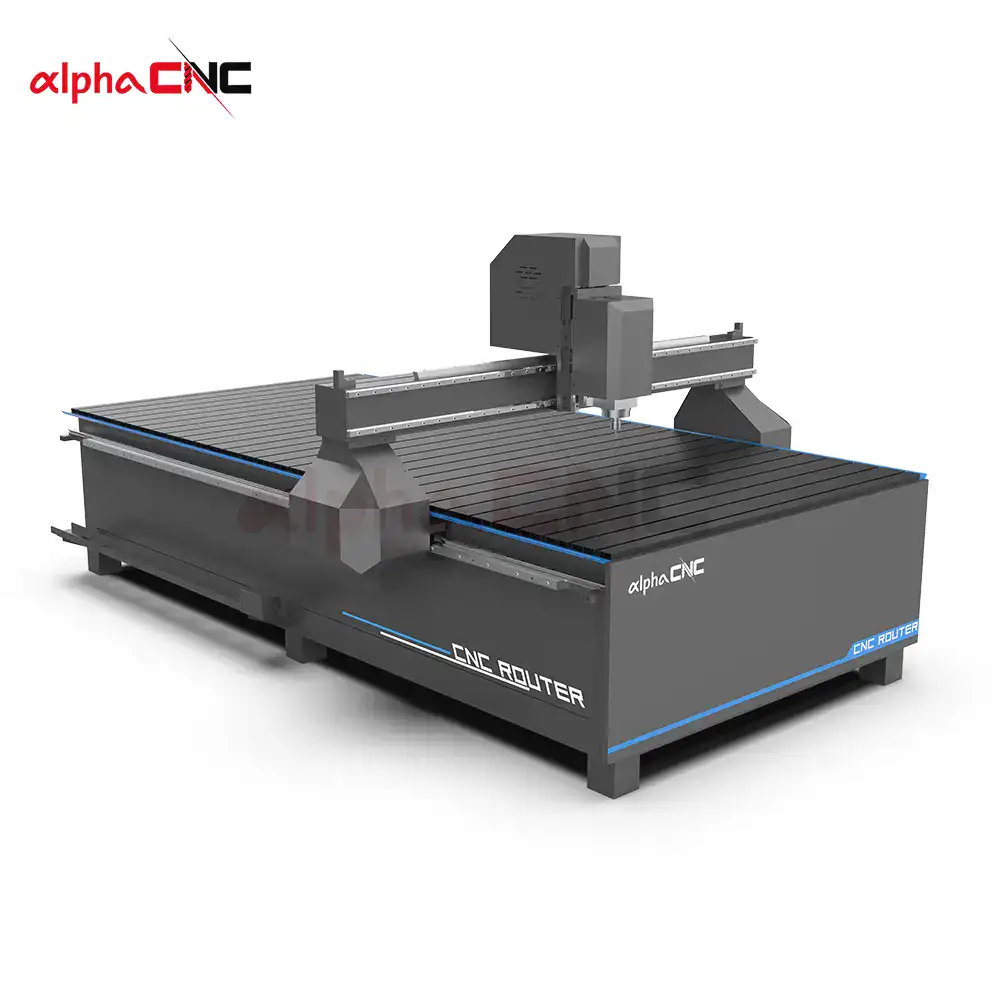

- Tool Sensor: Quick calibration for accurate bit positioning, minimizing setup time.
- Heavy-Duty Engineering: Optimized weight distribution prevents deflection during high-speed routing.
Parameters
Model | ABS-1325E |
X,Y axis travel | 1300x2500mm option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc |
Z axis travel | 200mm option: 300mm, 400mm, 500mm, 600mm, etc |
Spindle type | Air cooling spindle |
Control system | Nc studio PM95A controller option: DSP,etc |
Driving system | Driving servo motor |
Machine structure | Heavy duty body with quenching treatment |
Work table | Aluminum T-slot & vacuum work table |
Lubrication system | Manual lubrication system |
Tool calibration | Automatic tool sensor calibration |
Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc |
Command language | G Code |
Traveling speed | 30m/min |
Working speed | 0-15m/min |
System resolution | ±0.0025mm |
Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Optional items
- Vacuum Pumps: Oil-free models (3–7.5kW)

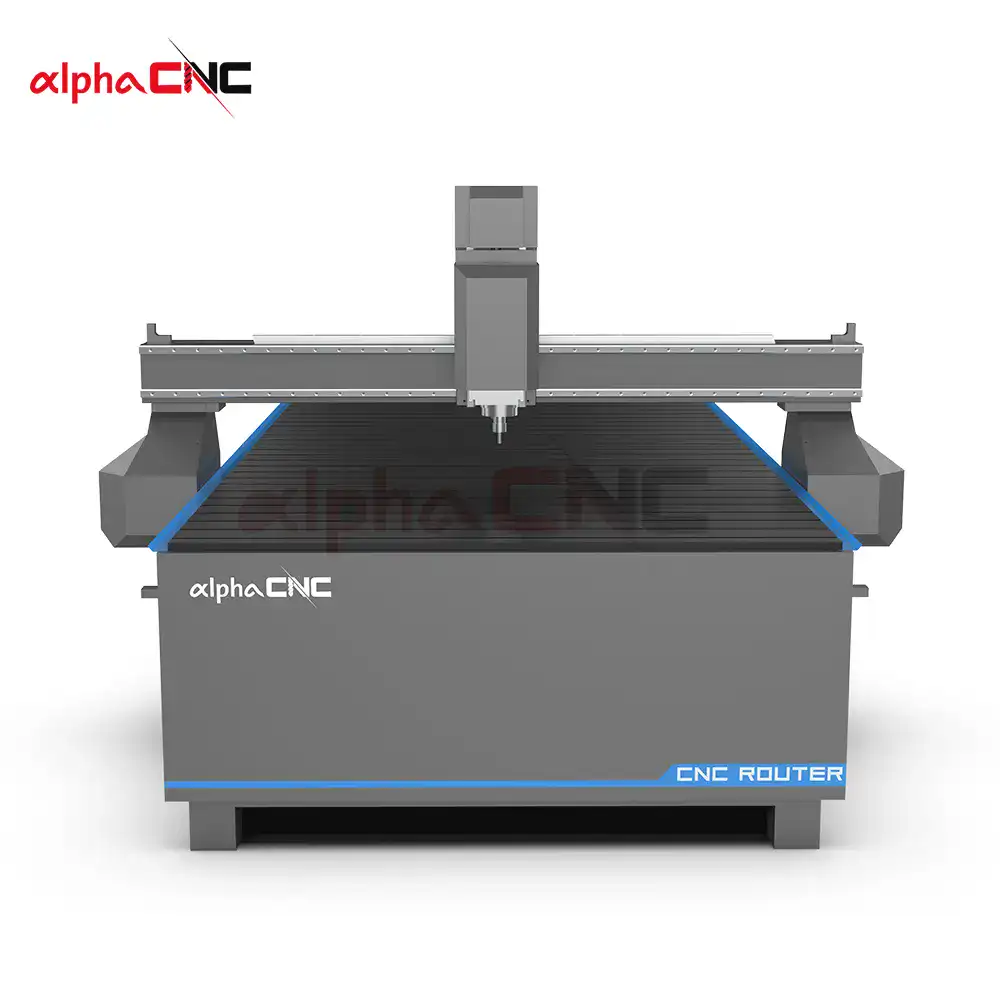

- Dust Collection: Full-set systems with hoods/pipes
- Air Compressors: Piston/screw types

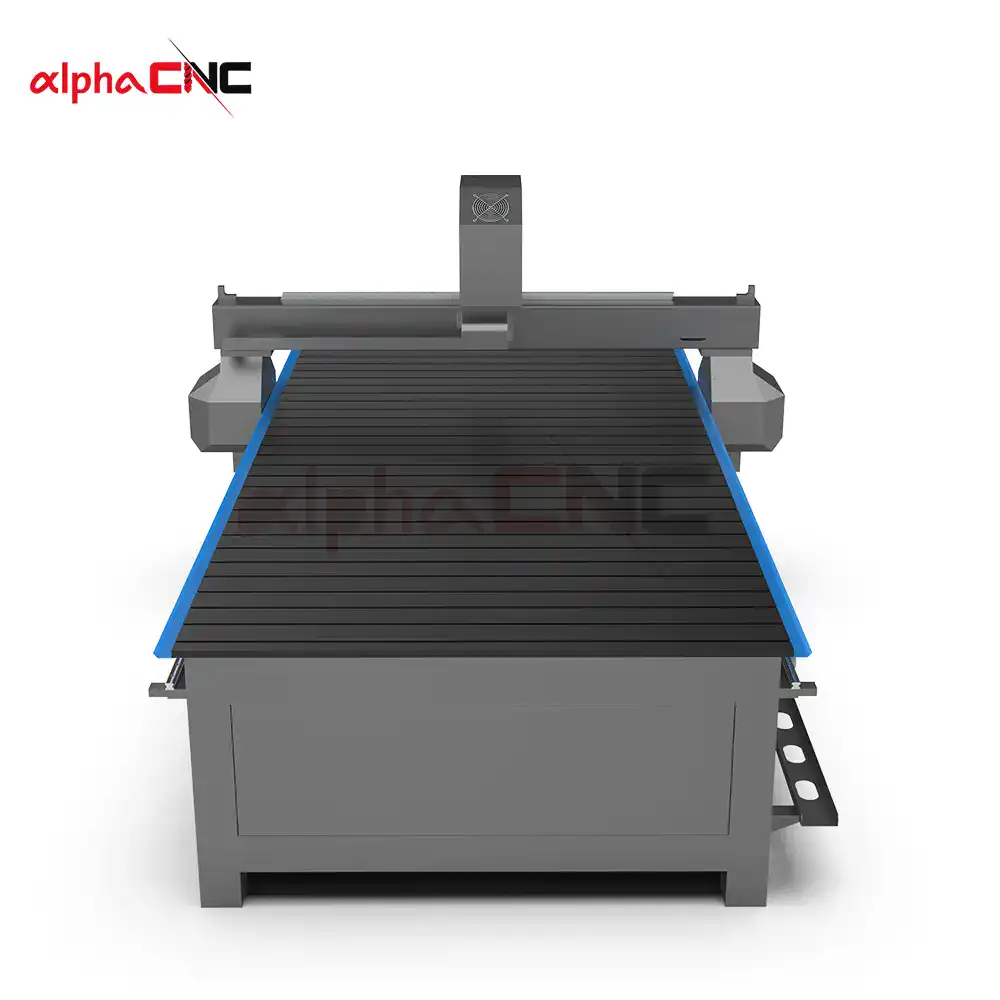

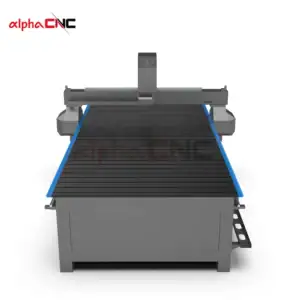

- Safety: Light curtain protection
- Spindle Upgrades: 4.5kW, 6.0kW, 9.0kW
Frequent asked questions
Q: How does the tool sensor improve accuracy?
A: It auto-detects bit length/breakage, ensuring precise depth control.
Q: What materials can it process?
A: Ideal for wood, MDF, plywood, acrylic, and soft metals.
Q: Do you offer after-sales technical support?
A: Yes, we provide 24/7 remote support, spare parts supply, and engineer dispatch if needed.
3 Axis CNC Router details
Application
The ABS-1325E 3-Axis ATC CNC Router revolutionizes production across diverse sectors with its high-speed automatic tool changer, rigid steel frame, and industrial-grade vacuum table. Engineered for precision and efficiency, it excels in:
- Furniture Manufacturing: Batch-produce cabinets, doors, and custom panel furniture with flawless joinery.
- Signage & Advertising: Carve intricate acrylic, PVC, and aluminum composite boards for logos, channel letters, and displays.
- Aerospace & Automotive: Machine lightweight aircraft composites, prototypes, and molds fromABS, or aluminum, etc.
- Metal Fabrication: Process soft metals and mild steel for enclosures, brackets, and jewelry.
- Stone & Architecture: Engrave granite, marble, and ceramics for countertops, monuments, and architectural décor.
