Swing Head Independent Protection
Fixed shock-absorbing packaging for tilted core shaft components to avoid structural displacement.

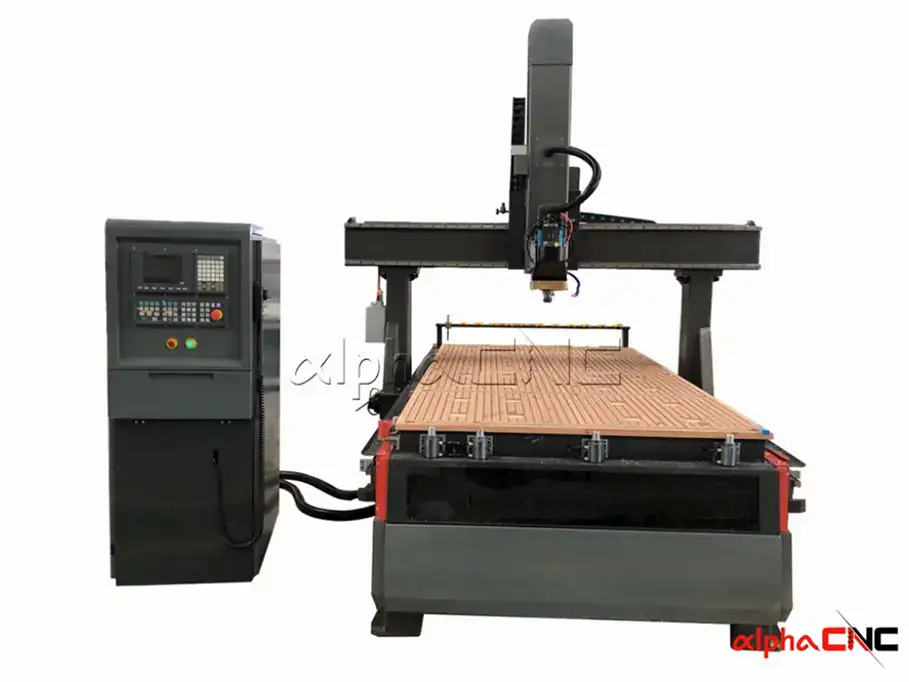

4 Axis CNC Router Swing Head Tilting Spindle CNC Router
Alpha CNC‘s 4 axis CNC router, also named four axis wood carving cnc machine, is equipped with a swinging spindle head, which can perform multi angle oblique cutting, side milling, and 3D surface machining. Can solve problems such as labor waste, high equipment costs, and precision drift.
It is different from the rotary axis four-axis machine used for processing cylindrical workpieces. The swing head cnc router has a workpiece that does not move and a spindle that tilts and swings. The machine can process materials such as cabinet doors, RV interior, foam molds, soft metals, etc. Eliminating multiple clamping processes, improving processing accuracy and production efficiency, targeting global woodworking manufacturers.
Industrial 4 Axis CNC Router with Swing Head for Curved Wood & Mold Machining
Precision swing spindle 4 axis CNC router solution for bevel cutting, side milling and one-clamp multi-angle forming.
Four Axis CNC Router Parameters
Parameter Item | Specification Details |

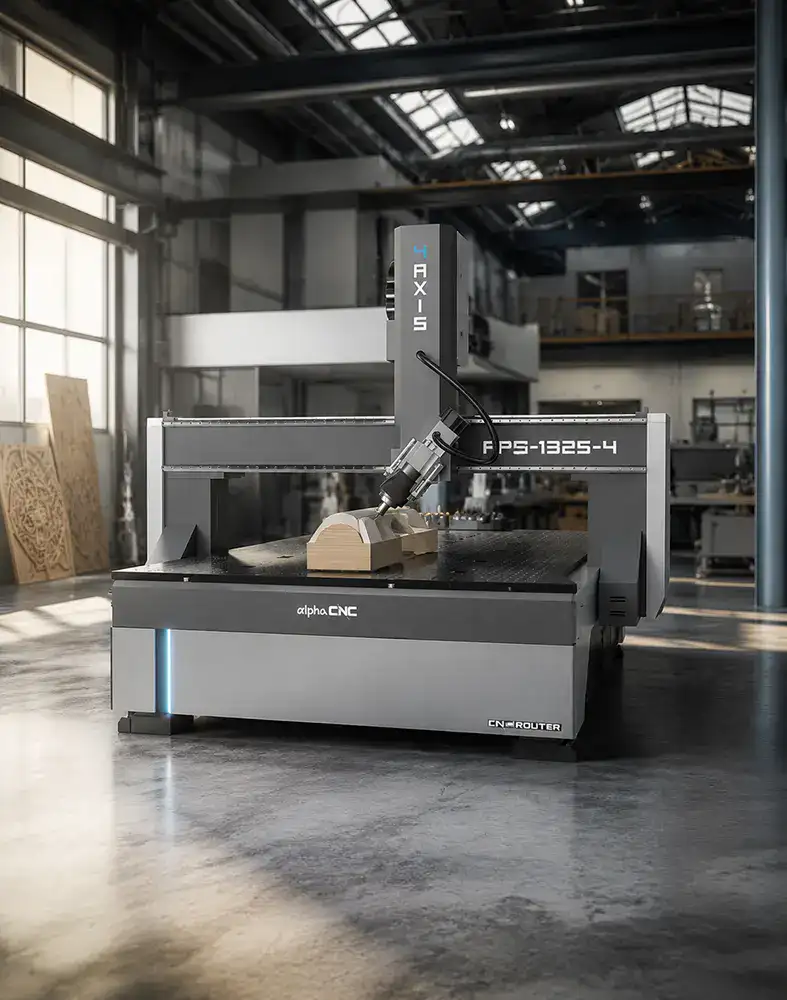

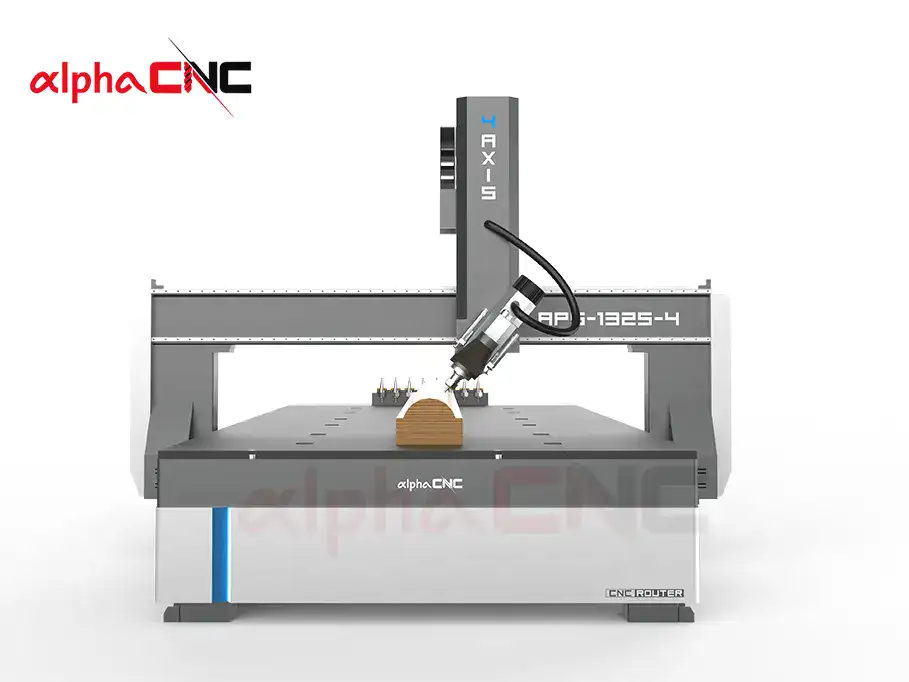

Machine Name | Industrial 4 Axis Swing Head CNC Router (APS-1325-4) |
Swing Range | ±90° spindle tilting angle |
Control System | True 4-axis simultaneous interpolation control system |
Working Size | 1300×2500mm / customized industrial working area |
Spindle Power | High-power tilting spindle for solid wood, MDF, acrylic, foam, composite board, soft metal, musical instrument parts processing |
Transmission Mode | High-precision linear guide rail + servo motor drive |
Processing Materials | Solid wood, MDF, acrylic, PVC, EPS foam, composite board |
Optional Configuration | Vacuum pump, dust collector,rotary axis |
Key Advantages of the 4-Axis CNC Router
Our four axis swing head CNC router machine overcomes the common defects of low-cost similar machines on the market and is specially designed for long-term stable industrial production by global manufacturers.
- True four axis linkage
It is not a pseudo four axis that can only swing at a fixed angle; The spindle can continuously tilt dynamically for smooth and fluent 3D surface machining, and supports mainstream CNC programming software.
- Clearance eliminating swing spindle structure
Equipped with high-precision reducer to eliminate transmission clearance. Long term and large-scale processing will not result in tool lines or precision deviation.
- Supporting dedicated post processor
Perfectly compatible with Vectric, Mastercam, and UG software, no need to manually modify G code, reducing programming errors and saving workshop time.
- Dust proof swing head protection design
Specially made sealing structure can prevent wood chips and foam dust from invading the transmission components to prevent jamming and precision failure.

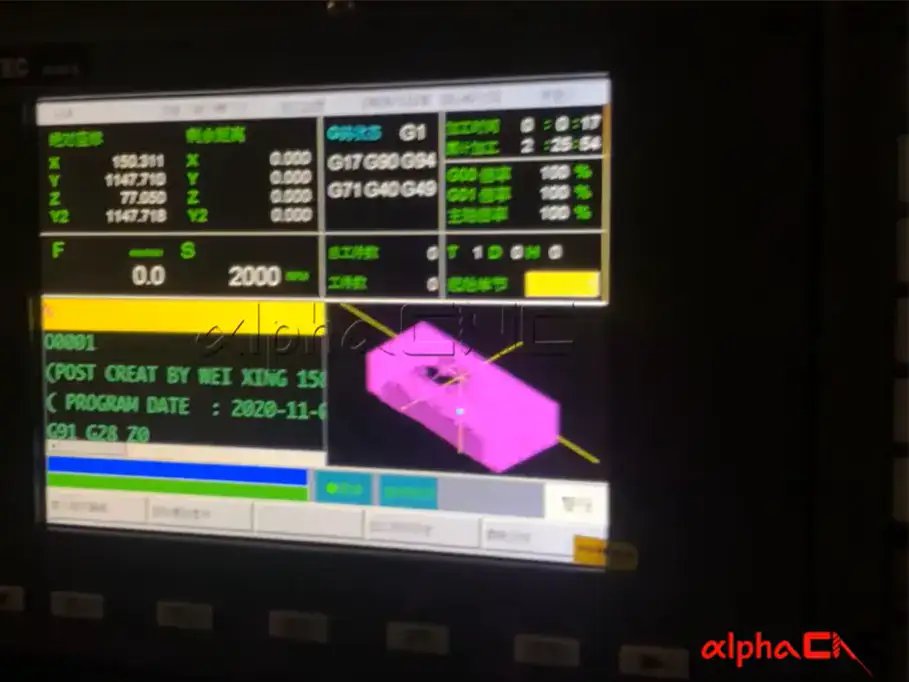

- 3D simulation anti-collision system
Avoiding the risk of head collision during multi angle processing, reducing equipment damage and production losses.
- Heavy duty integrated machine tool bed
Thickened heavy frame steel structure reduces vibration during heavy load oblique cutting operations, improves surface smoothness of solid wood, MDF workpieces, and extends tool life.

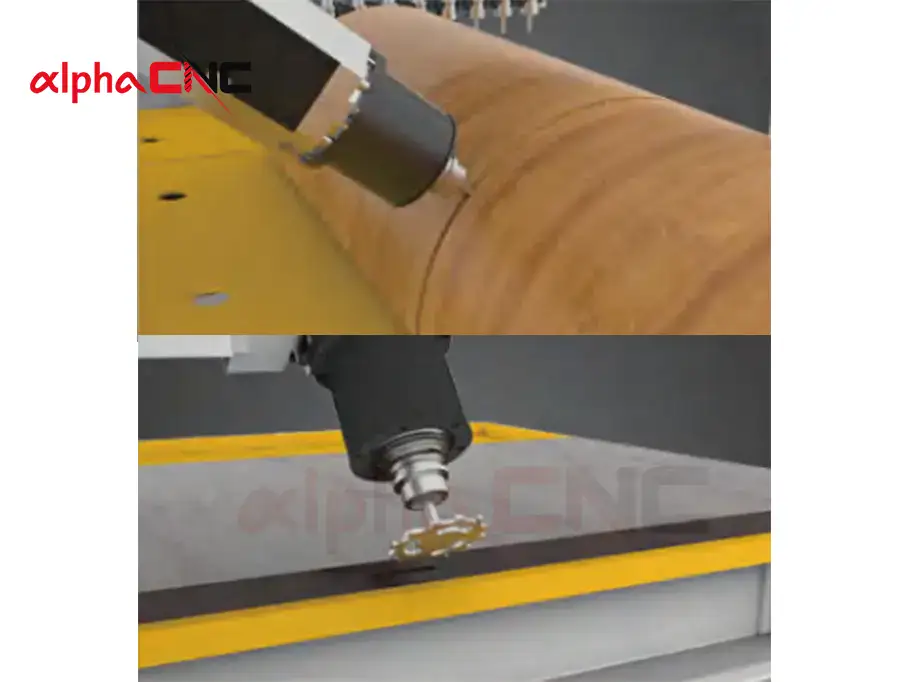

Two Types of 4 Axis CNC Router: Swing Head VS Rotary Axis Four Axis Carving Router
Many buyers confuse 4-axis swing head CNC router machines with 4-axis rotating axis CNC router. Here are two mainstream four axis woodworking machines we have compiled to help you choose the appropriate CNC machine for production.
Item | 4 Axis Swing Head CNC Router (This Page) | 4 Axis Rotary Axis CNC Router (Separate Page) |
Working Principle | Workpiece fixed, spindle tilts ±90° | Spindle fixed, workpiece 360° rotating |
Core Machining | Bevel cutting, side wall milling, undercut, curved panel, foam mold | Cylindrical parts, columns, chair legs, round sculptures |
Target Industry | Cabinet making, RV/yacht interior, mold manufacturing, landscape decoration | Stair parts, wooden crafts, religious sculpture, furniture columns |
Solvable Painpoint | Avoid repeated clamping, realize one-time multi-angle processing | Realize full 360° rotary carving for rotary wooden workpieces |
Budget & Best User | Medium cost, cabinet/mold factories, job shops | Low entry cost, craft manufacturers, small carving workshops |

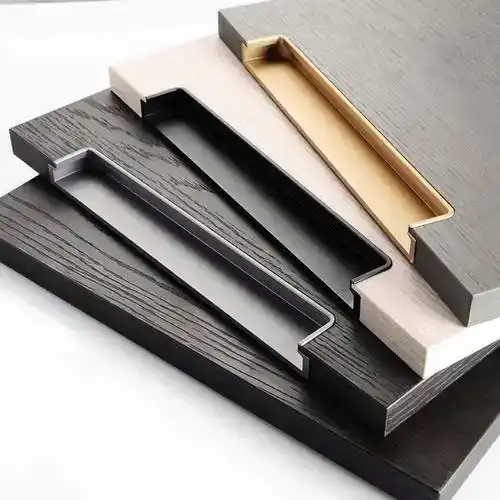

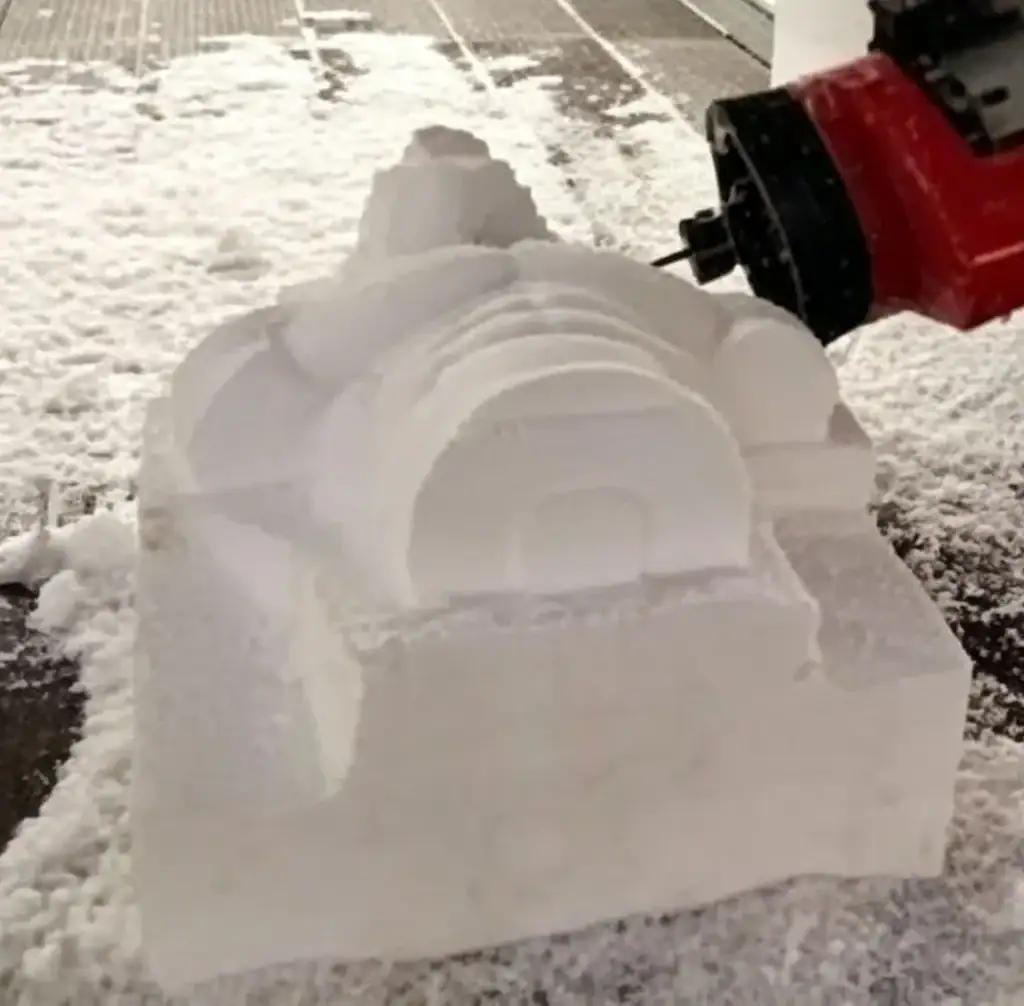

Work Samples Machined by 4 Axis CNC Router

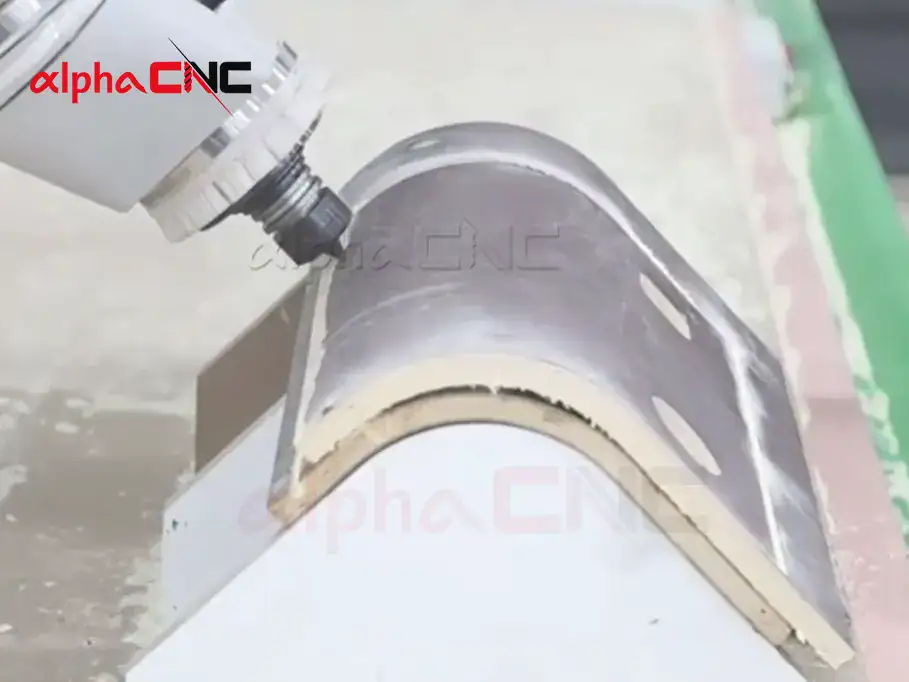

Real multi-angle bevel, curved surface and mold processing results from our 4 axis cnc router with swing head.
Supporting Production Line Machines
Alpha CNC as industrial 4 axis cnc router manufacturer China provides a complete set of supporting solutions to help you achieve fully automated woodworking and mold production lines.
Global Cases of 4 Axis CNC Router
Customized Swing Head 4-axis CNC Router Solutions for Australia, USA and Poland Industrial Manufacturers.
- Case 1
- Case 2
- Case 3
Item 1
Australian Manufacturer

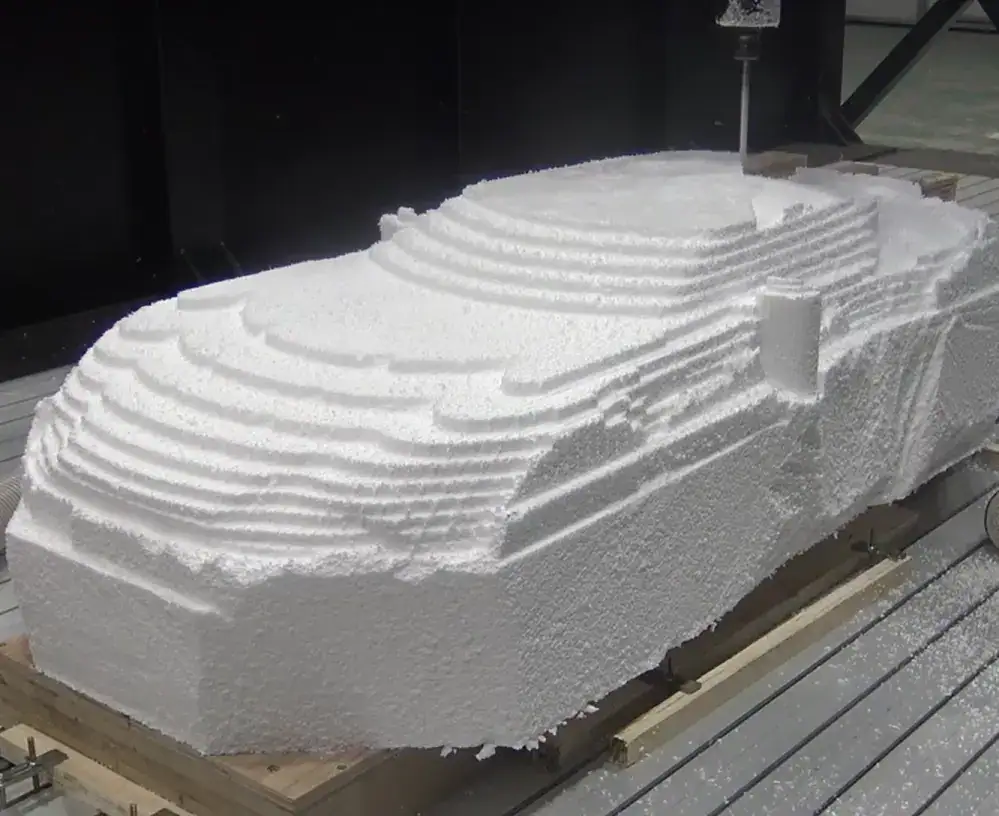

Heavy duty high Z axis 4 Axis CNC router for large foam model & 3D mold processing
Challenge
The local foam mold workshop needs to process large 3D foam molds and car wood model blanks. The Z-axis stroke of ordinary four axis machines is insufficient, and the stability under heavy load is poor, making it impossible to complete deep cavity surface machining in one setting.
Solution
Adopting our heavy-duty high-Z-axis 4-axis CNC router machine, equipped with reinforced gantry frame and genuine 4-axis swing head connecting rod. It supports deep foam carving and multi angle surface forming of large 3D mold projects.
Outcome
Eliminate manual secondary clamping and manual trimming, reduce single piece processing time by 30%, and lower the workpiece defect rate to below 2%. The customer's monthly mold production has increased by 20%, fully meeting the local standards for mass production of construction and automotive molds.
Item 2
USA Furniture Factory
APS-1325 4 Axis ATC CNC Router for Precision Wood Carving & Furniture Production
Challenge
The old three-axis cnc router relied on frequent manual tool changes and workpiece flipping, wasting 4-6 hours of labor time per day. The inconsistency between slope and carving accuracy results in a very high rework rate for high-end orders.
Solution

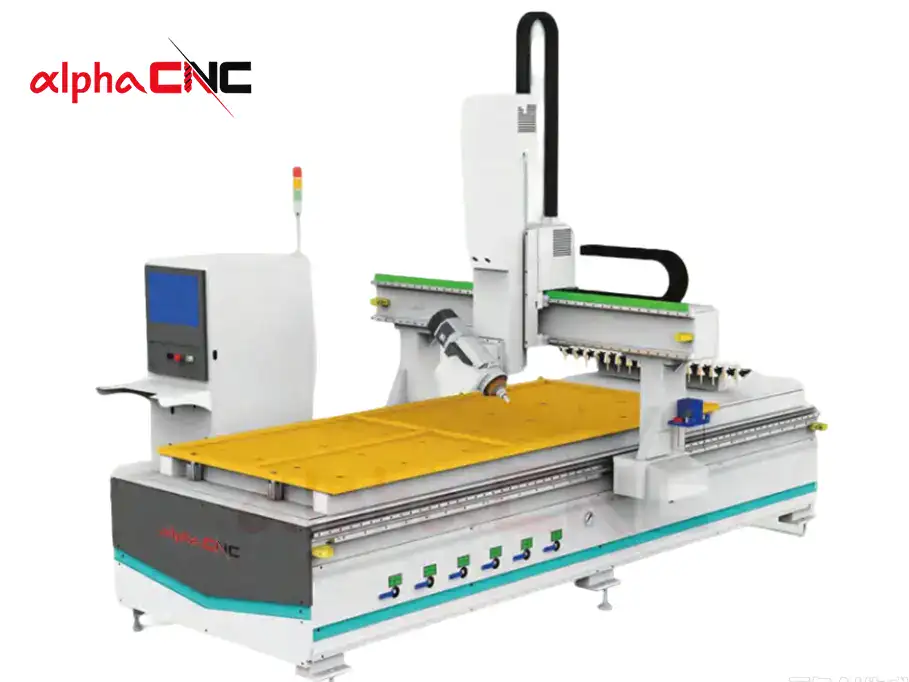

APS-1325-4 is a swing head machine equipped with automatic tool changing, which can achieve 3D machining. Mature Weihong control system, built-in complete set of process programs: arc machining, Ramino tenon, no handle slotting, cabinet door forming, etc. Simply enter the parameters to start production; No need for complex programming, greatly saving production time.
Outcome
Saved 90% of manual tool changing time, reduced rework rate to 1.5%, and greatly improved batch production consistency. The customer expanded their customized curved furniture product line and increased their high-value order volume by 25% within 3 months.
Item 2
Poland
DM-L9 4 Axis Swing Spindle CNC Router for European Standard Cabinet Panels
Challenge
Customized cabinet panels in Europe require complex serrated grooves, beveled edges, and irregular curved structures. Ordinary three-axis fixed angle CNC machines cannot achieve continuous multi angle seamless machining.
Solution
Equipped with DM-L9 swing spindle 4-axis CNC router machine. The linkage tilt swing head is suitable for serrated processing of European standard cabinet panels and supports one-time molding of various irregular inclined surfaces and groove structures.
Outcome
We have achieved one-time molding of all complex sawtooth and inclined structures, reducing manual rework by 95% and increasing production efficiency by 40%. The customer successfully passed the EU furniture quality audit, stabilizing long-term European engineering bulk orders.
Why Choose Alpha CNC 4 Axis CNC Router?
Factory Reliable 4 Axis Swing Head CNC Router With Full Global Support.
Cost-Effective & Customized Solution
Our swing head 4-axis CNC router achieves machining effects close to 5-axis machines at lower equipment costs. Alpha CNC supports full configuration and size customization to meet different production needs, supply wholesale 4 axis cnc router for bulk order distributors. Help global factories reduce CNC router investment and labor costs while improving output efficiency.
Premium Quality & Stable Reliability
As a professional industrial 4 axis cnc router manufacturer China, we adopt anti backlash swing head structure and heavy-duty frame. Each machine undergoes a 72 hour aging test to ensure long-term stable multi angle processing and achieve zero precision drift in industrial mass production.
Technical Innovation, Full Certification & Global After-Sales
The four axis CNC router is equipped with an upgraded four axis linkage system and a dedicated post processor. All four axis CNC router machines in the series have complete CE certificate for import 4 axis cnc router from China. For customers in Europe, America, Australia, and Southeast Asia, we support global shipping and provide professional technical guidance and long-term warranty services.
Package & Shipping Solution about 4 Axis CNC Router
The swing head four axis CNC router is designed with multiple precision protections, calculating clear 4 axis cnc router shipping cost, ensuring accuracy without deviation even after export transportation.
Pre-shipment Full Inspection
Complete precision recalibration and trial operation before wooden box packaging.
Global Sea & Air Shipping
Supports port to port and door-to-door delivery, adapting to logistics in Europe, America, Southeast Asia, and the Middle East.
Official Certification and Factory Qualifications
Legitimate Authorization Certificate, Assisting Global Customs Clearance and Local Sales.
Full set of CE certification: with formal DOC declaration and technical documents, smooth customs clearance for import 4 axis cnc router from China to the EU, avoiding goods being detained.
Factory production qualification: Standardized CNC router production workshop, implementing strict quality inspection system.
Export enterprise qualification: With long-term stable export experience, serving CNC router distributors and terminal processing plants around the world.
Real Reviews of Alpha CNC 4-axis Swing Head CNC Router
European Furniture Factory
4-Axis CNC router
We purchased this 4-axis swing head CNC engraving and milling machine for producing curved cabinet doors.
Unlike rotary four axis machines, it perfectly solves our side milling and chamfering problems. Stable operation with low failure rate.
Australian Processing Job Shop
Four axis swing head CNC router
I use it to process wood, foam, and plastic. It performs better in handling surface design. This machine has been running for several months without any major issues.
The 4-axis linkage function is exactly what we need for customized bending parts. The matching post processor has saved us a lot of programming time. Alpha CNC is a reliable Chinese CNC supplier.
Southeast Asia Mold Manufacturer
APS-1325-4 4 Axis CNC Router
I am very satisfied with the Alpha CNC APS-1325-4 machine used so far. This company has high efficiency in handling affairs and is also very cooperative in machine installation and debugging.
We are also very satisfied with the technical personnel, who can promptly solve various small problems during the operation process. We really like the functionality of this machine.
CNC Distributor from Middle East
Four Axis CNC Router
Their machine positioning is clear, with a clear division between the swing head four axis machine and the rotary axis four axis machine, and clear explanations.
This is our third year of cooperation. Alpha CNC has a complete set of qualification certificates and English version materials, which are very suitable for overseas local distributors to sell and promote.
4 Axis CNC Router Component Brand Configuration
World-Class Brand Core Components Ensure Long-Term Stable Machining Precision of 4 Axis Swing Head CNC Router.
Wide Application Industries of 4 Axis CNC Router
- Custom Cabinet & Furniture Factories
Specializing in European standard curved cabinet panels, serrated grooves, and multi angle beveled edge processing. This swing head four axis CNC router does not require multiple clamping and reduces manual adjustment. It can maintain consistent accuracy in mass production of furniture, meeting high standard production requirements.
- Architectural & Decorative Workshops
Produce curved decorative lines and 3D architectural decorative components with heavy duty 4 axis cnc router. Stable multi angle cutting capability, capable of undertaking large quantities of engineering orders and ensuring long-term project supply.
- High-End Woodworking & Job Shop Factories
Can process curved musical instrument shells, acrylic/PVC shaped parts, and composite material beveled edge milling. Compared to expensive five axis cnc router, it has a higher cost-effectiveness and is suitable for small batch and multi category customized processing.
- Foam & FRP Mold Processing Plants
The four-axis linkage of the large stroke swing head enables the processing of deep cavity 3D foam molds and landscape architectural sculpture building molds in one clamping, which significantly reduces the waste rate of large-scale mold processing.
Common Questions about 4 Axis CNC Router
What is a 4 axis CNC router？
Four axis CNC router belong to multi-axis woodworking cutting equipment, which are mainly divided into two types on the market:
One is the four axis swing head (the main axis can be tilted, used for processing curved panels and molds); Another type is a four rotary axis cnc router, specifically designed for processing cylindrical workpieces. There are also mini desktop 4 axis cnc routers and small 3040 / 6040 / 6090 4 axis cnc router kit for diy use.
Alpha CNC swing head cnc router can complete multi angle beveling with one clamping, which is very suitable for cabinet factories, motorhome interior decoration workshops and foam mold processing factories.
How much does a 4-axis CNC router cost?
The price difference of four axis CNC router is significant, depending on the machine structure, processing format, and configuration.
The performance of the low-cost cnc router 4 axis for sale like desktop 3040, 6040, 6090 diy 4 axis cnc router kit is vastly different from that of industrial swing head machines equipped with servo drive and true four axis linkage.
Automatic tool change, increased Z-stroke, vacuum adsorption table, and other optional features will also affect the quotation.
What are the key benefits of upgrading to a 4-axis CNC router?
Upgrading from ordinary three-axis CNC router has significantly improved production efficiency.
High quality four axis carving machine does not require repeated clamping of workpieces, reduces manual adjustment, and achieves more uniform processing dimensions.
It can easily complete the surface and oblique milling processes that are difficult to efficiently process on three-axis machines.
For most furniture and mold factories, the machining effect of this four axis cnc router is close to that of the expensive entry-level five axis machining center, and the cost-effectiveness is higher.
Where can I find reliable suppliers for compact 4-axis CNC routers?
Many traders sell low-priced small four axis CNC machines, which have poor stability of the swing head accuracy.
It is recommended to directly choose a legitimate source manufacturer: the machine has undergone complete aging testing, has CE certification, and provides global after-sales support.
We are a professional manufacturer of four axis CNC router in China, with customers spread across Southeast Asia, the United States, Australia, Poland and other countries.
If you are looking for the best 4-axis CNC router that fits your budget, please send your requirements for a detailed solution. We can customize and provide a complete set of technical documents to facilitate local customs clearance for customers.
How does a 4 axis CNC router work?
Our swing head four axis CNC router keeps the workpiece stationary and the spindle can tilt within ± 90 °, enabling X/Y/Z/A four axis synchronous linkage. This set of swing structure can conduct uninterrupted multi angle cutting for curved panel, foam mold, acrylic and soft metal.
After the CAM programming software generates the machining path, we provide a dedicated post-processing unit to avoid G-code errors and facilitate direct use by woodworking manufacturers worldwide. Full compatible software covers Vectric, Mastercam, UG, Artcam, Aspire.
What is the typical investment for a quality hobbyist 4-axis CNC router?
Hobby level four axis CNC router is only suitable for small handicraft carving, and its mechanical structure cannot meet the standards of industrial swing head four axis machines, making it unable to withstand long-term mass production.
If you need to undertake bulk processing of furniture, molds, or commercial orders, using entry-level small hobby machine can easily lead to accuracy deviation.
Tell us your production needs, and we will help you compare hobbyist machines with entry-level industrial grade four axis CNC router, making it easier for you to make reliable and long-term purchasing choices.
How to maintain swing head clearance and voltage adaptation?
For mass production, we recommend calibrating the swing head every 3 months; The anti recoil structure reduces daily gap maintenance. The machine supports customized voltages for the global market of 220V/380V.
