Alpha CNC vacuum CNC router is specially designed for furniture factories, woodworking manufacturers, and sign processing factories. The CNC router with a vacuum table has high cutting accuracy and production efficiency. It can fix the board stably and is suitable for MDF, plywood, solid wood, acrylic, and other materials.
The vacuum table firmly fixes the board on the entire processing table, reducing the displacement of the board during processing. It is suitable for continuous cutting and batch repetitive production of sheets. The actual cutting tolerance is affected by materials, cutting tools, vacuum suction, and processing parameters.
According to machine configuration and differences in production materials, the max speed of the vacuum CNC router can reach 20m/min; fast movement speed can be set even higher. It takes into account both cutting speed and stable production, making it suitable for MDF, plywood, solid wood, and acrylic.
The wood CNC router with a vacuum table provides ±0.05mm positioning accuracy; it ensures the consistency of mass production. But actual production effects should be considered comprehensively in terms of materials, tool diameter, spindle rotational speed, feed rate and vacuum adsorption.
When using a strong vacuum table for cutting, MDF, plywood, solid wood, and acrylic boards can be firmly fixed. This can reduce the displacement of the boards, ensure smoother processing, and thus guarantee stable processing quality.
The vacuum system simplifies sheet positioning operations and reduces labor clamping time. Efficient processing of sheets results in higher production process efficiency.
The CNC router with vacuum table can process MDF, plywood, solid wood, acrylic, plastic, foam and other materials. Different spindle powers and configurations can be selected according to the materials.

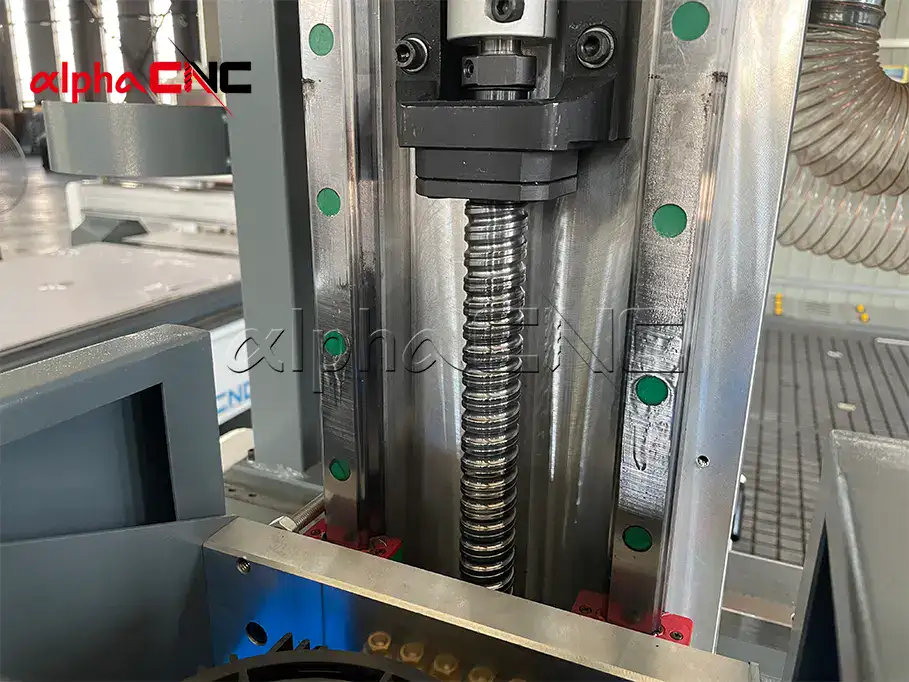

The frame has strong rigidity and a precise transmission system. This industrial vacuum CNC router has stable performance in repeated processing and can ensure accurate sizes of workpieces from different batches.
From small wooden workshops to large furniture production lines, machines can be customized with processing tables, vacuum zones, spindles, and automatic tool changing systems according to production needs.
The vacuum CNC router features a heavy-duty body, branded accessories and high-quality CNC systems, which are suitable for long-term operation in a high-intensity environment. It can help your factory improve efficiency and reduce machine breakdown time.

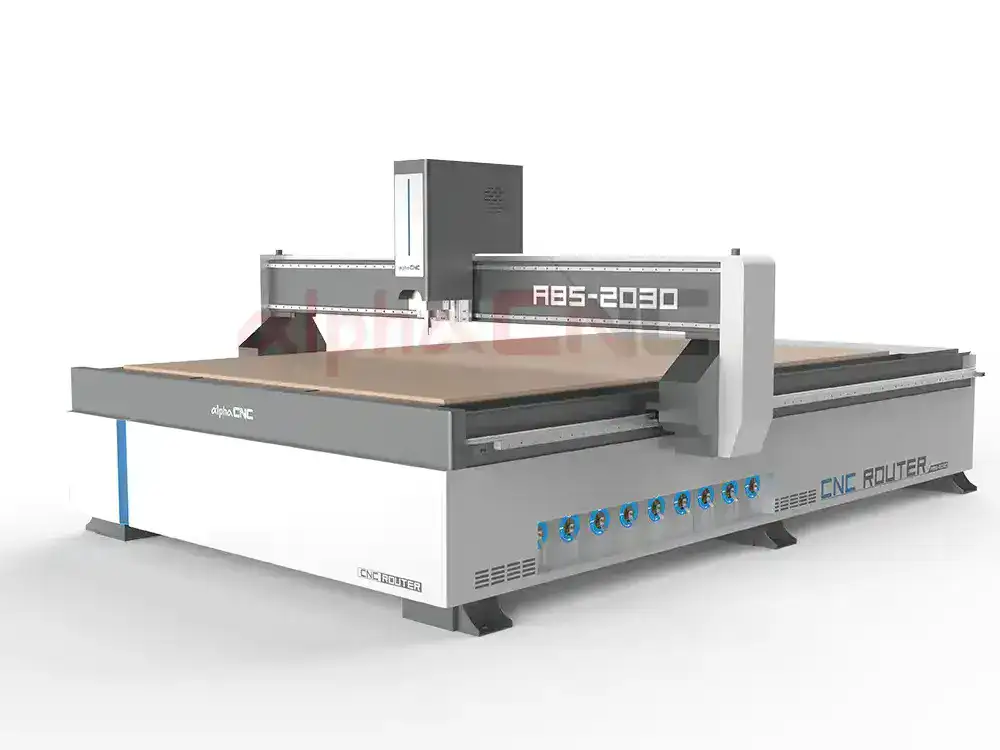

For small workshops and ordinary panel production

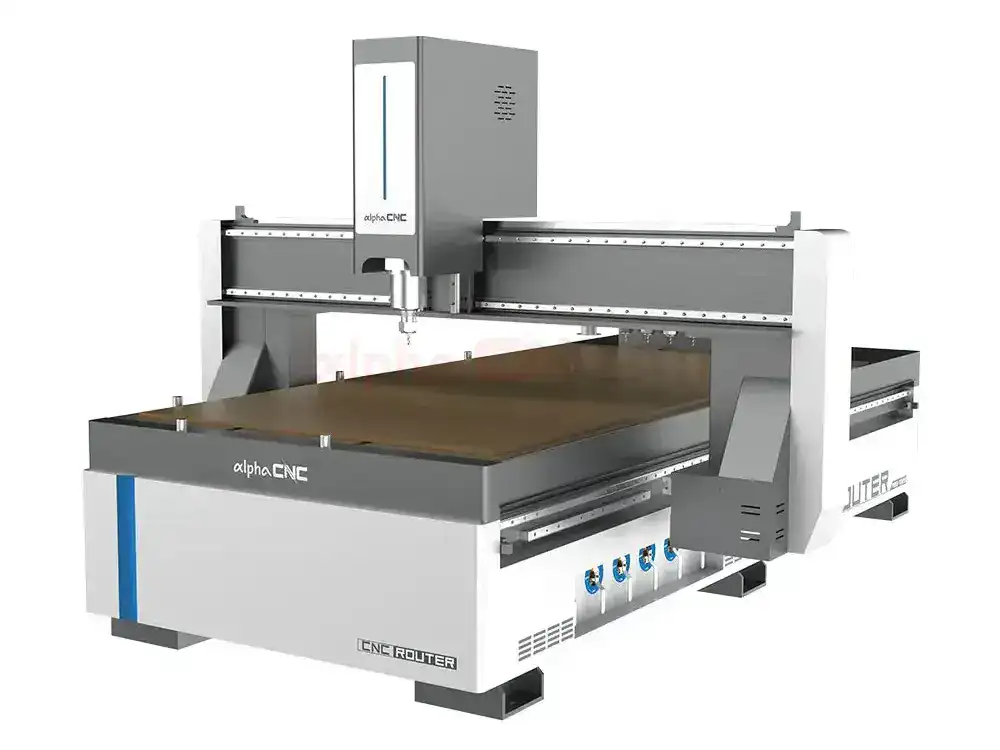

A 3-axis vacuum CNC router can cut, carve, and mill MDF, plywood, solid wood, acrylic, and flat materials. It is suitable for small and medium factories which need a stable vacuum CNC router for woodworking and lower automation functions.

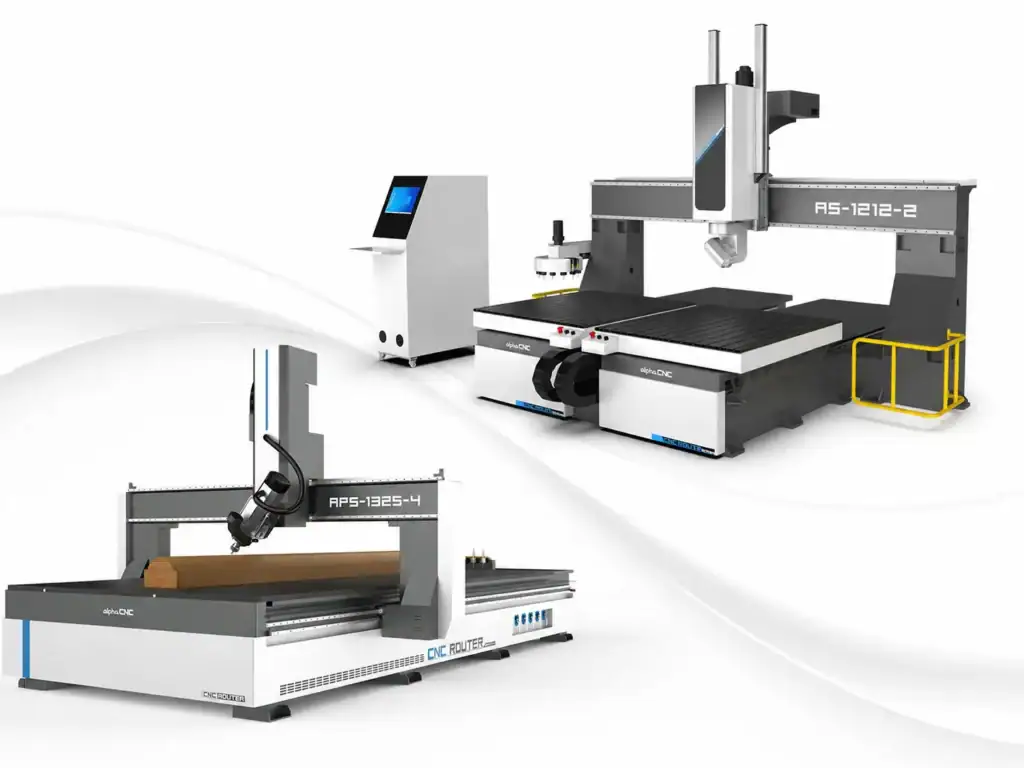

Used for 3D and multi-angle woodworking processing
The four-axis configuration increases the ability for rotation machining, breaking through the limitations of ordinary three-axis cutting. The 5-axis configuration can achieve multi-angle machining. This type of high-end vacuum CNC router can be used to process furniture accessories, columns, decorative parts, molds, and 3D woodworking workpieces.

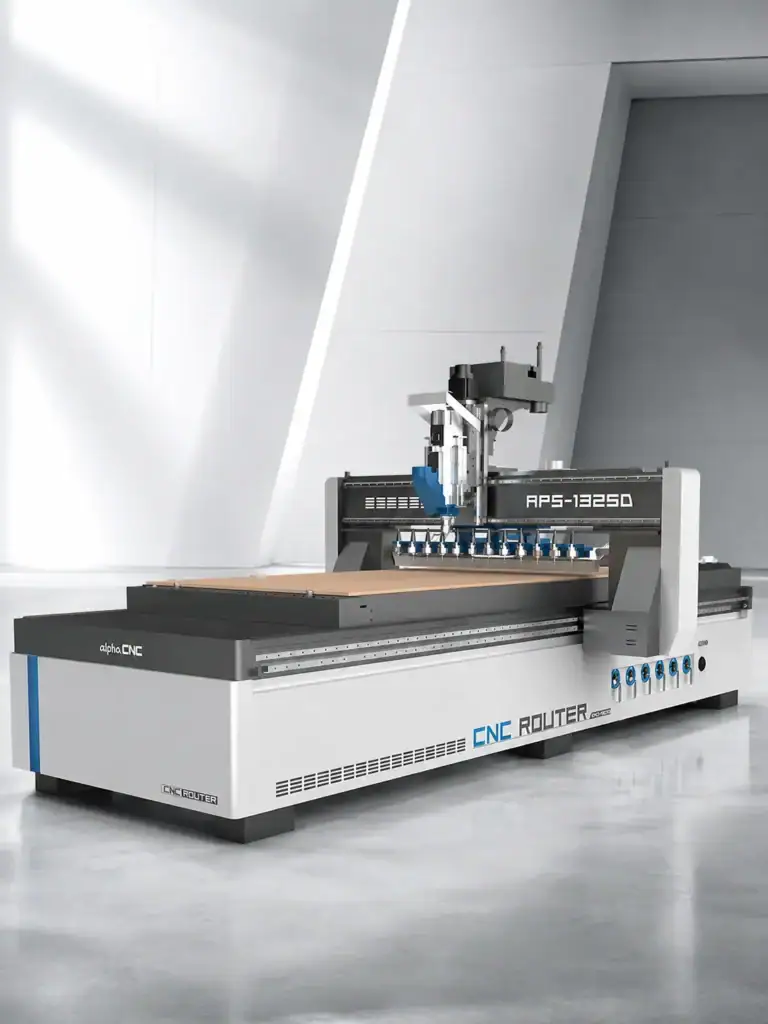

For furniture and cabinet manufacturers

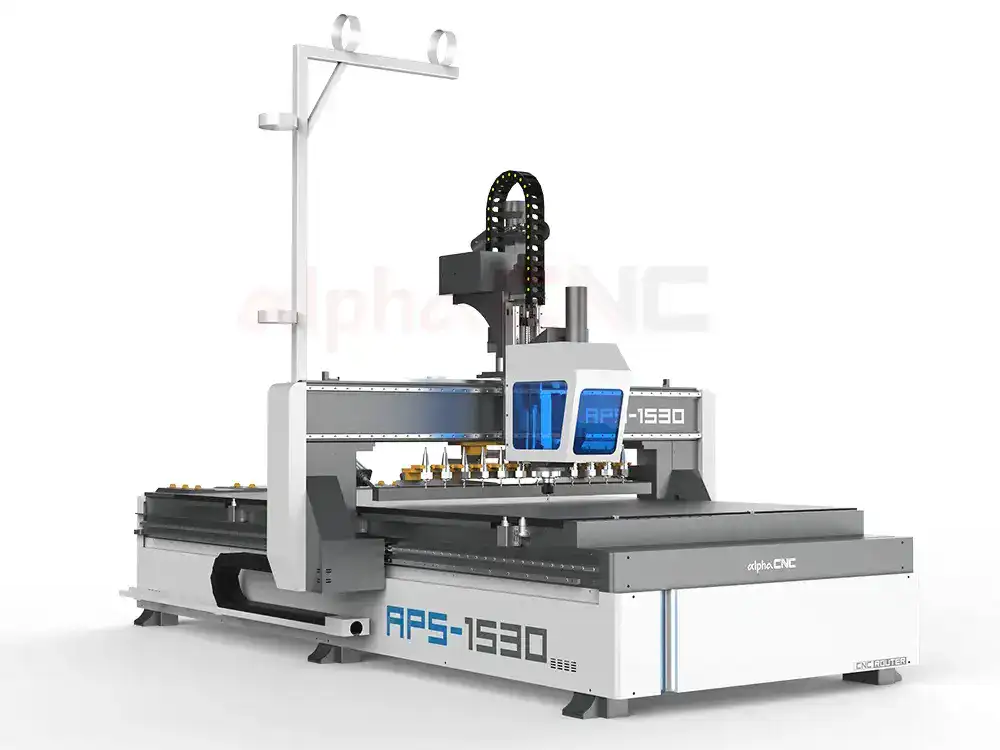

The ATC vacuum CNC router provides automatic tool change in cutting, grooving, drilling, and carving; it can reduce manual tool‑changing operations. The ATC CNC router with vacuum table is suitable for cabinet components, furniture panels and mass production scenarios. Usually, an ATC vacuum CNC router features a partitioned vacuum platform.
Suitable for wooden doors, wall panels, and large panel materials
Large vacuum CNC routers like 1530/2030/2040 and other large sizes of CNC routers have more production strokes; they achieve processing of extra-large sheets and workpieces. The vacuum CNC router for wood is suitable for wood doors, decorative walls, furniture panels, and large production scenarios. It avoids board shifting and improves production efficiency.
For mass production of panel furniture

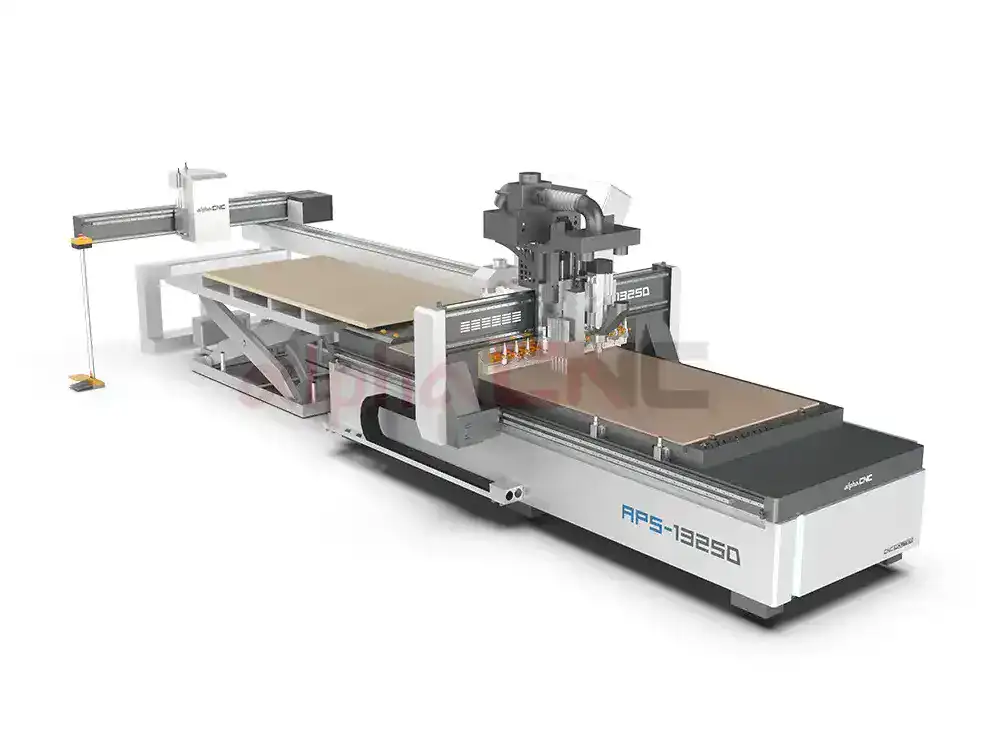

When a factory cuts various cabinet and furniture accessories from a sheet panel, this nesting CNC router can integrate vacuum adsorption, automatic tool change, and CNC nesting software into one process, making it a complete production unit.
Vacuum CNC routers are suitable for furniture factories, cabinet manufacturers, and customized furniture workshops. It processes MDF, plywood, particleboard, and decorative panels into cabinet side panels, shelves, doors, and various furniture accessories.
Adapts to the production needs of wooden door factories and construction woodworking processing factories. It is used for processing various customized wooden door accessories such as door panels, decorative patterns and reliefs, and performing slotting and opening. A large-format vacuum table is particularly practical when processing the entire door panel.
The vacuum CNC router for sign making is suitable for advertising companies and display processing manufacturers. It can cut and carve acrylic, PVC, foam sheets, wood and other sign materials, which are used for sign making, logos, display products and decorative signage.
Woodworking CNC routers with vacuum table are used in interior decoration factories, woodworking workshops, furniture designers, architecture woodworking factories, and panel processing manufacturers. They can achieve relief carving and produce decorative sheets, wall panels, furniture patterns, and various customized wood components.
Pain Point
Furniture production requires repeated cutting of MDF and wooden boards of different sizes. Frequent tool changes and manual operations can slow down production.
Solution

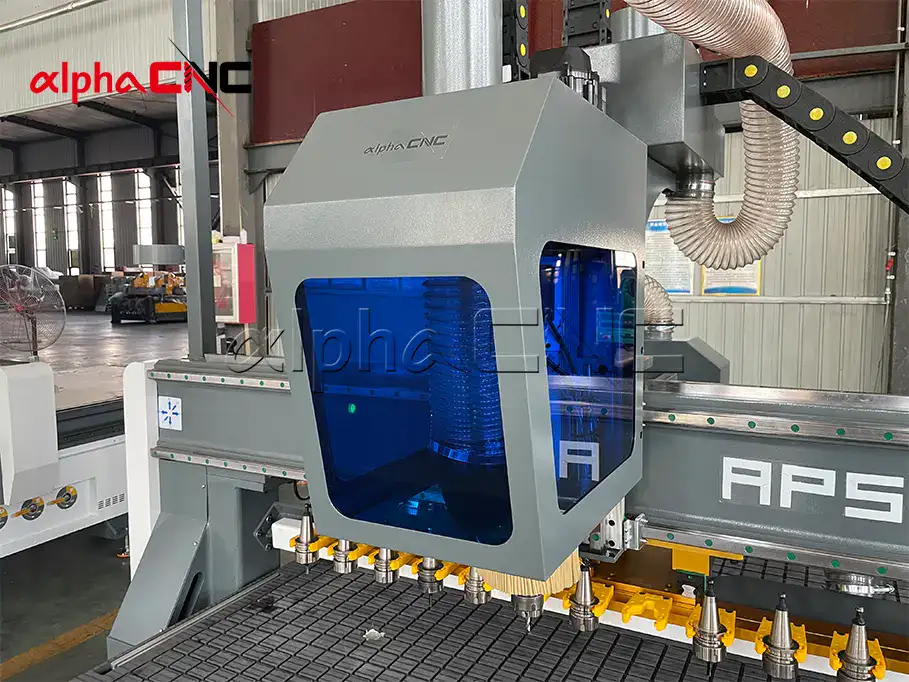

The APS-1532D is equipped with a 9kW spindle and an automatic tool changing function to complete various cutting processes and reduce manual tool changes. It is suitable for furniture factories that require high-speed equipment for bulk processing of density boards and wooden boards.
Effect
Strong cutting ability, improving the efficiency of furniture board processing. Combined with automatic tool changing, continuous CNC production can be achieved.
Pain Point
Furniture accessories require both CNC cutting and drilling, and need to be processed separately using different CNC routers. This will increase workpiece handling and positioning operations, and increase production hours.
Solution
The APS-2030-DR combines the automatic tool-changing spindle and drilling unit, completing cutting and drilling in the same processing flow. It is suitable for furniture factories that require milling and batch punching.
Effect
The integrated configuration reduces the repeated handling of workpieces and simplifies the processing of furniture accessories, especially suitable for production scenarios that require cutting and punching at the same time.
Pain Point
After the increase in cabinet production, manual handling, positioning, and identification of the entire board for reprocessing are inefficient. It is also difficult to coordinate the processes of sheet loading and CNC nesting.
Solution

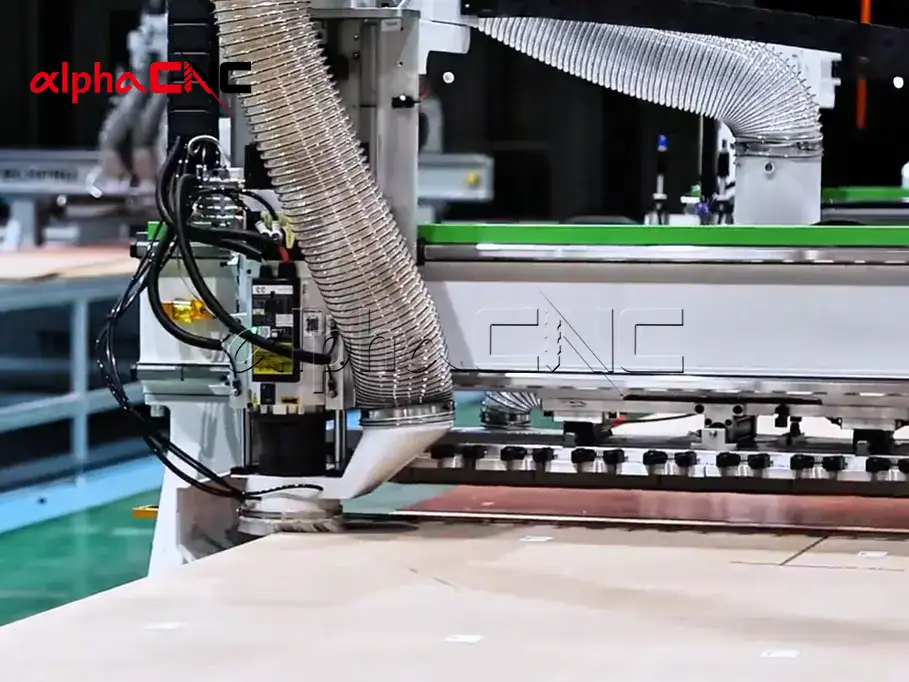

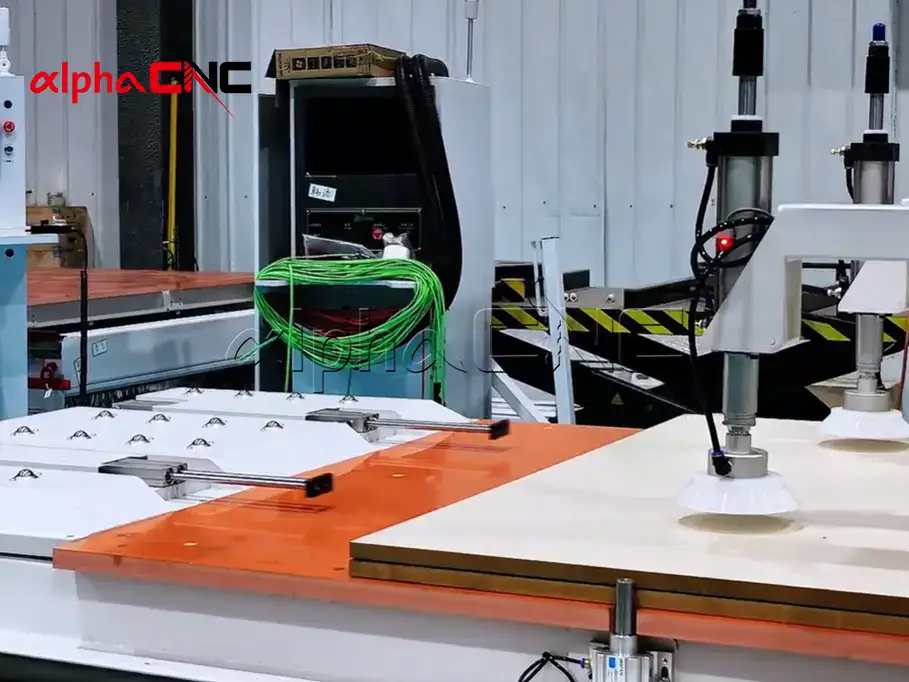

DM-U9 integrates CNC nesting, automatic marking, and gantry vacuum feeding systems into an integrated processing flow. It is specially designed for the production of cabinet furniture and realizes automatic feeding, labeling, nesting, and processing of boards.
Effect
This solution reduces manual panel handling, making it easy to control the entire CNC cutting process from material feeding to workpiece recognition. It is suitable for cabinet factories which are ready to improve their automation level.
According to the processing materials and procedures, select accessories such as spindle power, vacuum zoning, automatic tool changing, drilling function, and control system.
We offer common standard worktables such as 6090/1325/1328/1530. You can also customize a 1630/2040 worktable for processing oversized furniture boards, wooden doors, and other large boards.
Electrical configuration, voltage, machine parameters, data files, etc. can be customized according to the export market and on-site installation conditions.
When purchasing an industrial CNC router machine with vacuum table from China, it is not only important to value the price, but also to confirm that the machine is indeed produced, tested, packaged, and provided with after-sales support by the supplier.
Produced by Our Own Factory: The complete assembly, electrical wiring, component integration, and factory testing of the vacuum CNC routers are all completed by our factory.
Pre-Delivery Testing: After each vacuum CNC router is assembled, an overall inspection will be carried out. We verify core functions according to machine parameters.
Global Export Supply: Our machines are supplied to global furniture, woodworking, cabinet and industrial processing customers, and we can provide export packaging, shipment coordination, technical information, and lifelong remote technical support.
Before shipments, our professional team checks the vacuum CNC router configuration and tests all core operational functions, including installation and configuration.
When you receive the CNC router with vacuum table, our professional and technical personnel provide remote guidance, helping you install, operate, and troubleshoot. If needed, we can provide on-site technical support.
The vacuum CNC router uses export packaging, which facilitates cross-border transportation. We coordinate transportation information and provide all necessary delivery documents.
Item | Specification Options |
Working Area | 600x900mm,900x1500mm,1300x2500mm, 1300x2800mm, 1500x3000mm, 1600x3000mm, 2000x3000mm, Custom sizes. |
Machine Type | 3-axis/4-axis/5-axis vacuum CNC router, ATC CNC router with vacuum table, industrial vacuum CNC router. |
Vacuum Table | A multi-zone vacuum table can provide stable adsorption and fixtures for boards. The adsorption effect depends on work panels, vacuum table size, vacuum partition layout, sealing conditions and air volume needs. |
Vacuum & T-slot | Vacuum adsorption is used to fix the board; T-slots can accommodate mechanical fixtures to meet the needs of additional clamping of products. |
Spindle Power | 3.5kW–11kW options. |
Spindle Type | Air-cooled / Water-cooled spindle |
Tool Changer | Optional automatic tool changer system. |
Drive System | High precision rack and pinion transmission. |
Control System | Syntec/LNC/Mach 3/ NC Studio/Weihong/DSP/XDW |
Application Materials | MDF, plywood, wood, acrylic, PVC, foam, composites |
We have a daily production of various cabinet panels over the long term; stable cutting precision helps us reduce material costs. Our bulk order products have stable quality.
We often need production changes between different kinds of materials. This multi-function CNC router meets order requirements from various customers.
We often process large-sized boards, and the CNC router machine with vacuum table operates stably, enabling us to deliver home decoration and commercial projects on time.
Although there is no on-site guidance, online guidance is very helpful. The cutting and nesting functions can process panel furniture efficiently. We plan to buy another vacuum CNC router for furniture to expand production scale.
A vacuum CNC router is a CNC cutting and carving machine with a vacuum suction table. When cutting and carving panels, it can stably fix boards with vacuum suction force.
The vacuum CNC router for woodworking is used for processing MDF, solid wood, plywood, PVC and acrylic. The vacuum suction method does not require complex manual clamping to fix, so it ensures stability during the production process. The vacuum CNC router is widely used in furniture manufacturing, cabinet production, woodworking production and the advertising and signage industry.
The vacuum CNC router price depends on production size, spindle power, vacuum pump, machine structure, control system, and functions of automatic tool change and drilling.
For example, the prices of an original 4×8 CNC router with a vacuum table, a 1530 (5×10 ft) automatic tool changer vacuum CNC router, and a fully automatic CNC cutting machine are different.
For an accurate price, please provide us with the production material, panel size, and production output; we will give you a suitable configuration solution.
The most suitable vacuum CNC router depends on your process materials, workpiece size, output and production requirements.
It’s suitable for ordinary woodworking factories to choose a 3-axis vacuum CNC router. It can meet requirements for cutting and carving MDF, plywood and solid wood.
For furniture manufacturers’ mass production, an ATC CNC router is better because of its high automation.
Large factories can choose a vacuum CNC cutting machine with automatic loading and unloading functions.
All in all, the configuration of the machine should be designed for actual production. Do not choose a powerful machine blindly.
If choosing a machine for small workshops, you should consider production size, panel compatibility, operation convenience and total investment firstly.
In general, a standard 3-axis 1325 (4×8 ft) vacuum CNC router is suitable for workshops processing MDF, plywood, solid wood, acrylic. If you only need simple cutting and carving, the automatic tool change function can be left unselected.
We suggest choosing spindles, vacuum pumps and work tables depending on actual production and expected output.
The choice of vacuum pump depends on panel size, vacuum zone size and coverage of the vacuum area by the sheet material. Porous sheets (like MDF) and dense boards (like acrylic panels and decorative panels) have different requirements. Choosing a vacuum pump not only depends on power, but also matches work table size and air vacuum.
After knowing your materials, panel size and production requirements, we can recommend a suitable vacuum pump and vacuum partitioning solution.
If your factory is comparing various CNC router configurations, you can browse our vacuum CNC routers for woodworking, carving, cutting and customized processes.
Need multi processing? Hope to reduce manual cost? You can learn about our ATC CNC router solutions. They are suitable for furniture, woodworking and continuous mass processes.
Cabinet and panel furniture factories need to cut the entire large board into multiple components, and our CNC cutting machine has both layout cutting and efficient board cutting functions.
After the CNC cutting of the board is completed, the automatic edge banding machine can complete the edge banding process of the cabinet and panel furniture.
If you need to batch drill furniture panels, such as hinge holes, you can refer to our CNC wood drilling machine solutions.
If you are uncertain how to choose configurations for a CNC router with a vacuum table, please tell our team your process materials, panel size, and production scale. We will recommend a suitable machine and production solutions.
