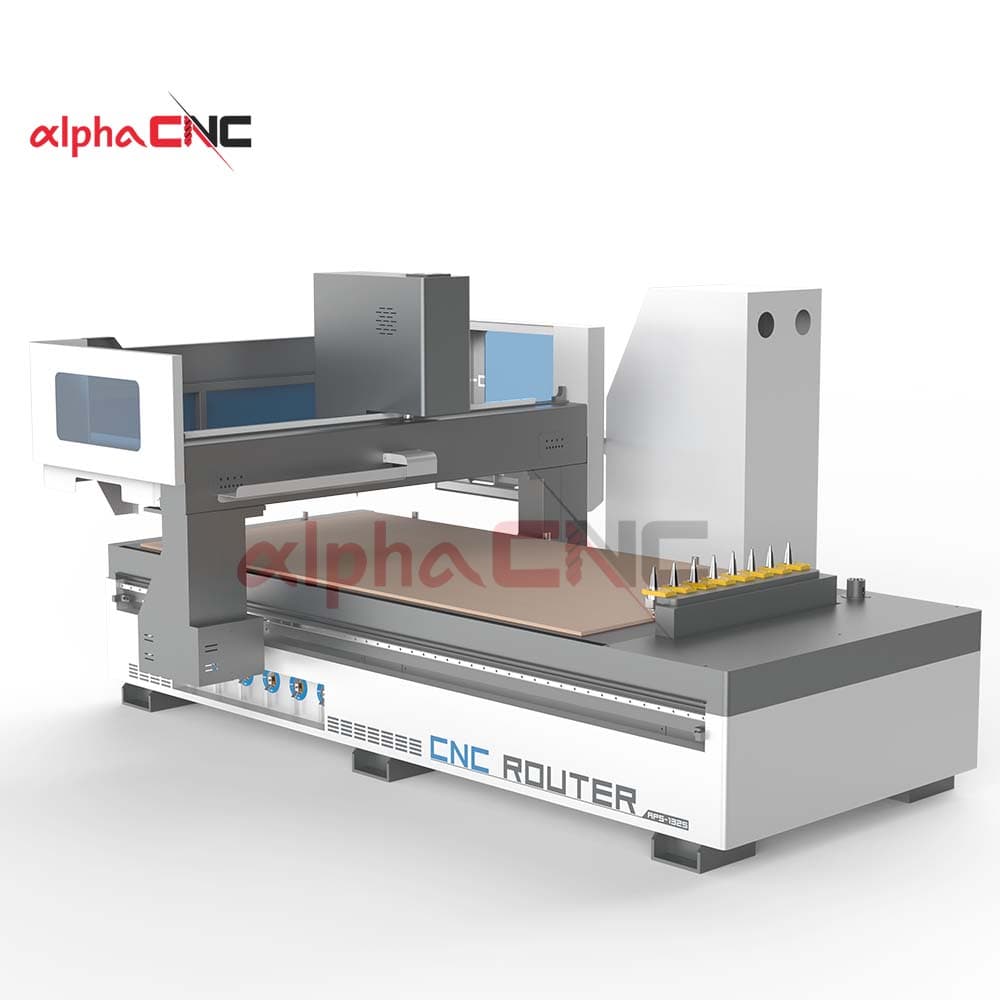

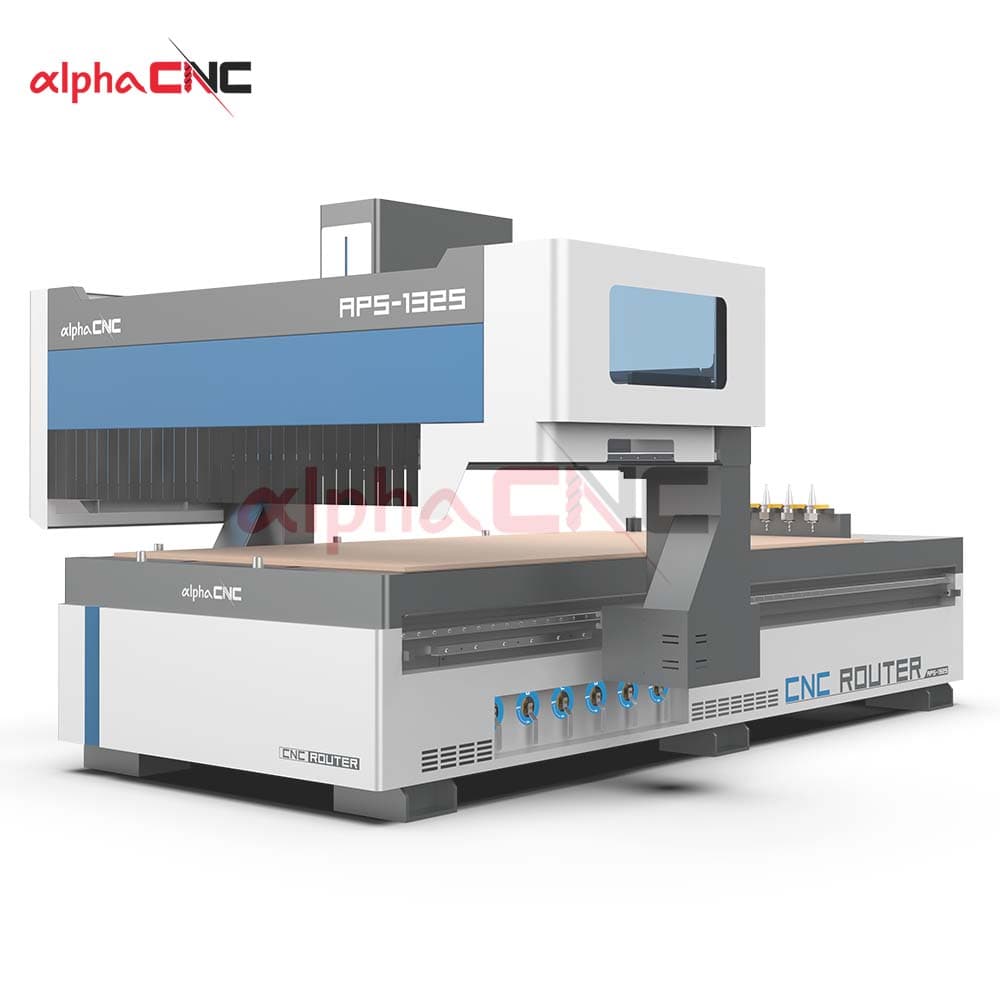

4×8 ATC CNC Router with Safety Enclosure|Elite Wood CNC Machine
Description
This 1325 ATC CNC Router has a 1300×2500 mm working table, ATC automatic tool changing system, safety enclosure, and is widely used in furniture manufacturing, cabinet processing, woodworking products, advertising signs, customized product production.
CNC router enclosure is a feature that stands out. It encloses the main machining area, minimizing the splashing of chips and the danger of operators getting caught in moving parts and tools. This can make for a safer and tidier workshop when combined with the dust collection system.
Features
- 1300×2500 mm Working Area: Suitable for processing common 4×8 ft sheets.
- Automatic Tool-changing System: It can automatically switch between different tools according to the machining program and continuously complete multiple processes.
- Integrated Safety Enclosure: Covers the main machining area, isolates the operator from the main cutting area, and also prevents dust from entering the core parts of the machine.
- Servo Drive System: Achieves more stable and precise axial movement and can maintain good consistency during batch processing.
Parameters
Model | APS-1325 |
X, Y axis travel | 1300x2500mm Options: 1500*3000mm; 2000*3000mm; 2000*4000mm, etc. |
Z axis travel | 200mm Options: 300mm, 400mm, etc. |
Spindle | ATC air cooling spindle |
Control system | LNC/Syntec controller |
Driving system | Driving servo motor |
Machine structure | Heavy duty machine body |
Work table | T-slot & vacuum work table |
Lubrication system | Automatic lubrication system |

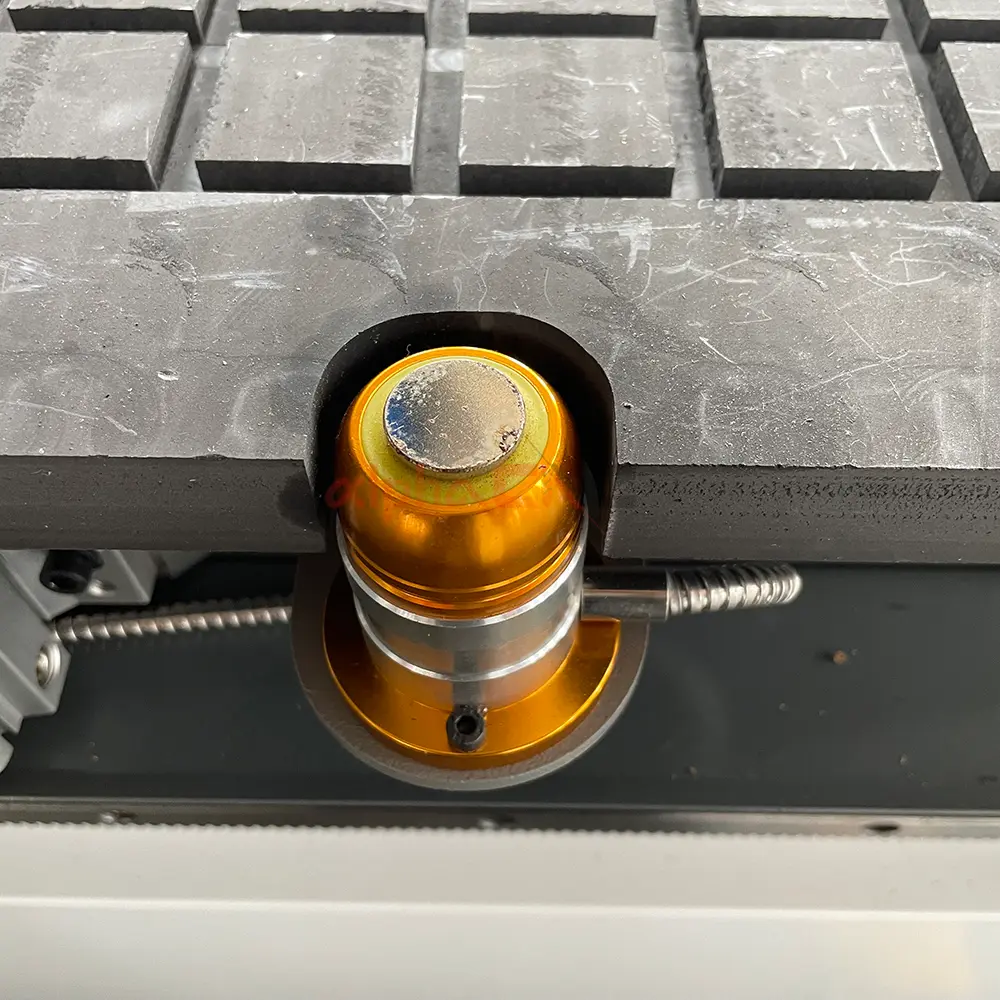

Tool calibration | Auto tool sensor calibration |
Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire,etc |
Command language | G Code & M Code |
Working speed | 0-25m/min |
Working air pressure | 0.8MPa |
Working voltage | 380V 3PH 50HZ/60HZ |
Optional items
- Dust Collection System: Used together with the safety enclosure, it further controls the spread of dust and chips.
- Control System: LNC, Syntec, and other control systems are available.
- Vacuum Pump: According to the configuration of the vacuum table and the actual vacuum requirements, different specifications of vacuum pumps can be selected.
Frequent asked questions
Does the safety enclosure affect the automatic tool changing speed?
No. The CNC router can normally complete tool changes automatically according to the machining program, and it can better protect the tool changing system from chip interference.
Will the workshop noise be improved after adding the safety enclosure?
Yes. The safety enclosure can create a barrier against the noise generated during the machining process and reduce noise transmission to a certain extent.
How much space needs to be reserved for installing this machine?
The working area of this machine is 1300 × 2500 mm. It is generally recommended to reserve an area of 5 m × 6 m to facilitate automatic loading and unloading and machine maintenance.

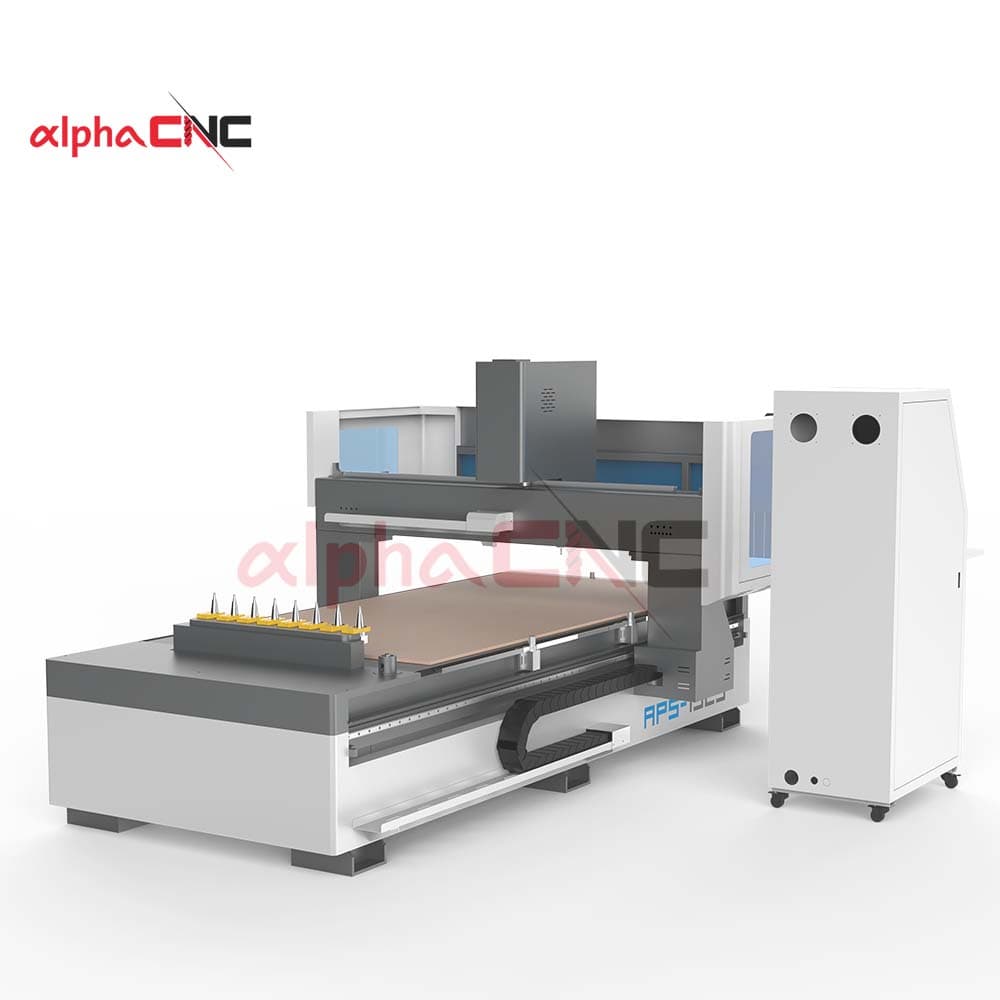

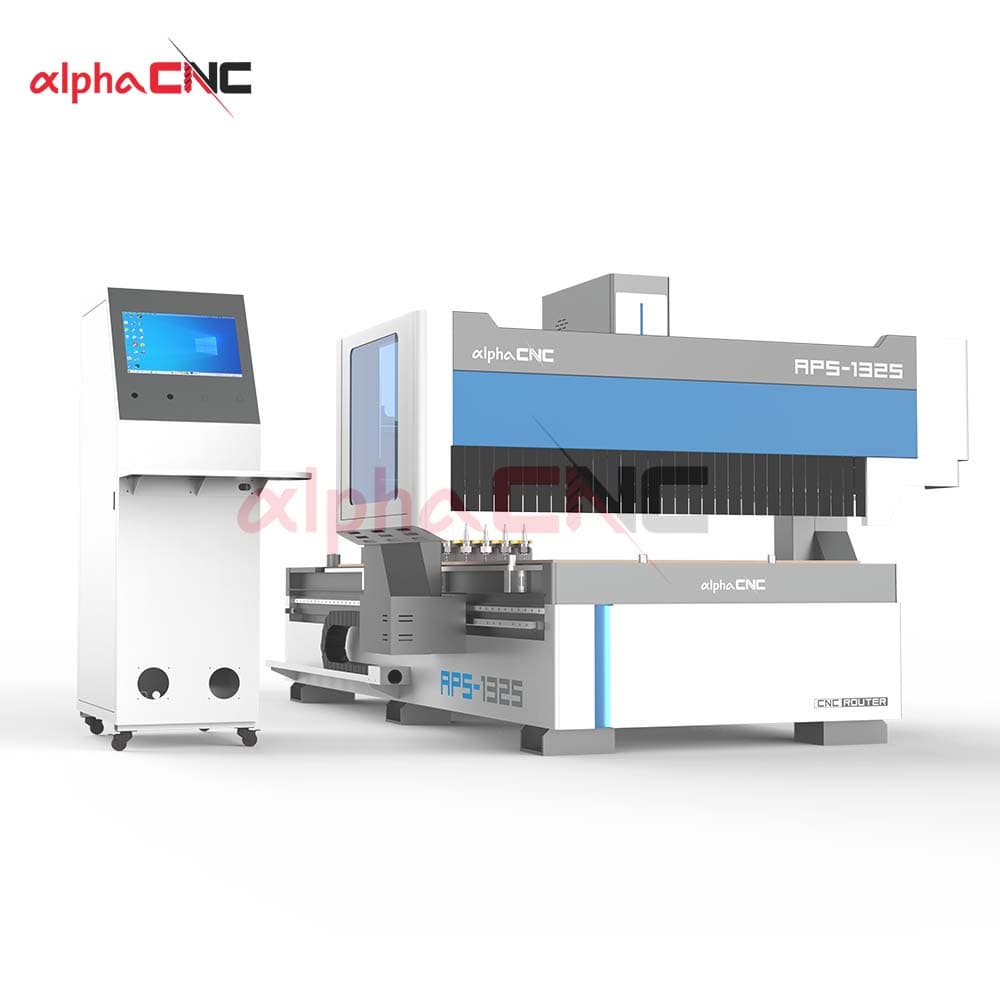

1325 CNC Router details
Application
- Furniture & Cabinet Making: Can be used for the processing of cabinets, wardrobes, bookcases, desktops, bed boards, and other furniture parts.
- Customization & Multi-process Manufacturing: Ideal for customized production jobs with frequent tool changing or multiple processing. It minimizes human intervention and enhances the machining process continuity.
- Wooden Door & Decorative Panel Processing: It can be used to carve, hollow out, and pattern wooden doors and cabinet doors as well as decorative panels, satisfying various processing demands.
- Advertising & Display Products: Advertising boards, signboards, display boards, letter signs. Used to treat acrylic, PVC, etc.

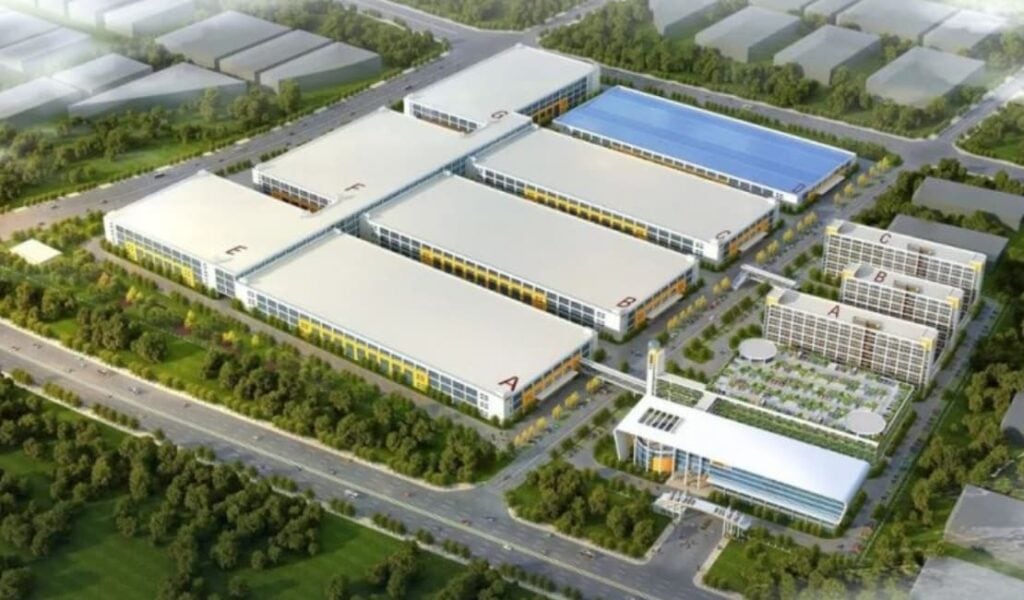

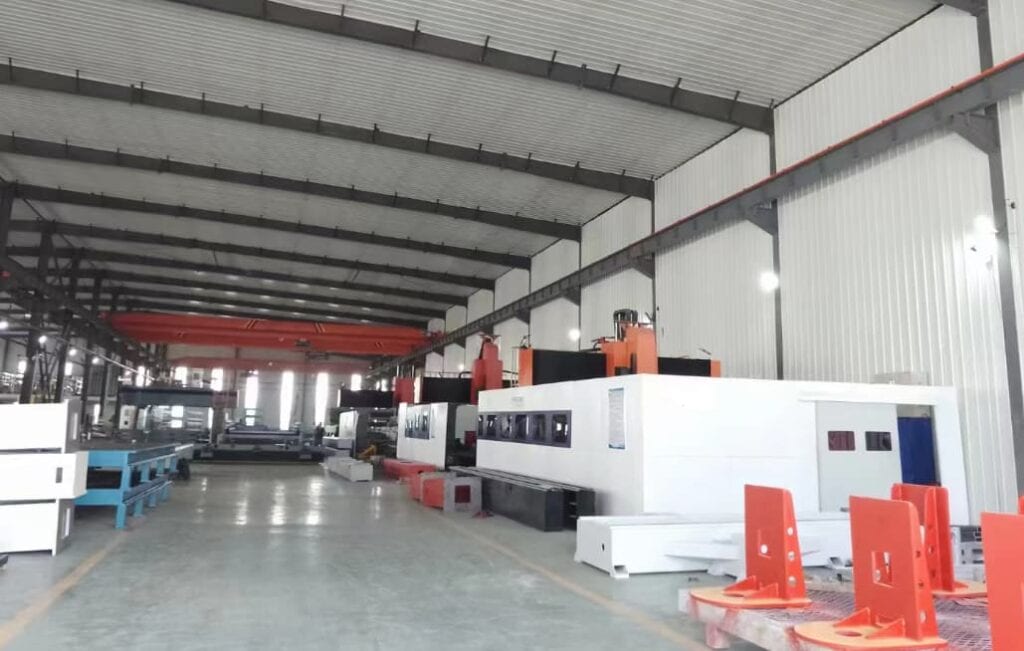

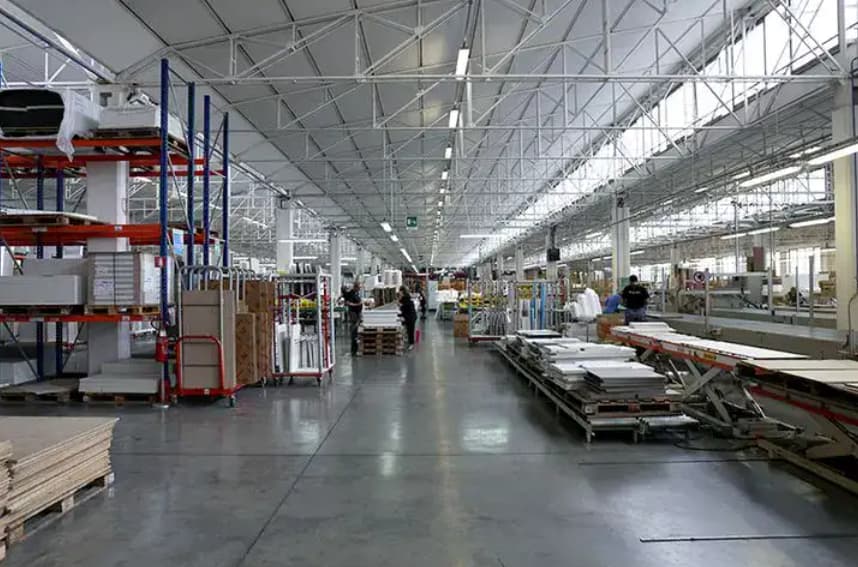

Production facility
Quality control & testing
FAQ
Does the safety enclosure affect the automatic tool changing speed?
No. The CNC router can normally complete tool changes automatically according to the machining program, and it can better protect the tool changing system from chip interference.
Will the workshop noise be improved after adding the safety enclosure?
Yes. The safety enclosure can create a barrier against the noise generated during the machining process and reduce noise transmission to a certain extent.
How much space needs to be reserved for installing this machine?
The working area of this machine is 1300 × 2500 mm. It is generally recommended to reserve an area of 5 m × 6 m to facilitate automatic loading and unloading and machine maintenance.
Review
Furniture Factory Boss
July 24, 2026
I run a furniture factory in Brazil. Last month, I bought a 1325 CNC router with ATC from Alpha CNC. To be honestly, this machine changed the production method totally, make it easy and fast to cutting more wood materials.
