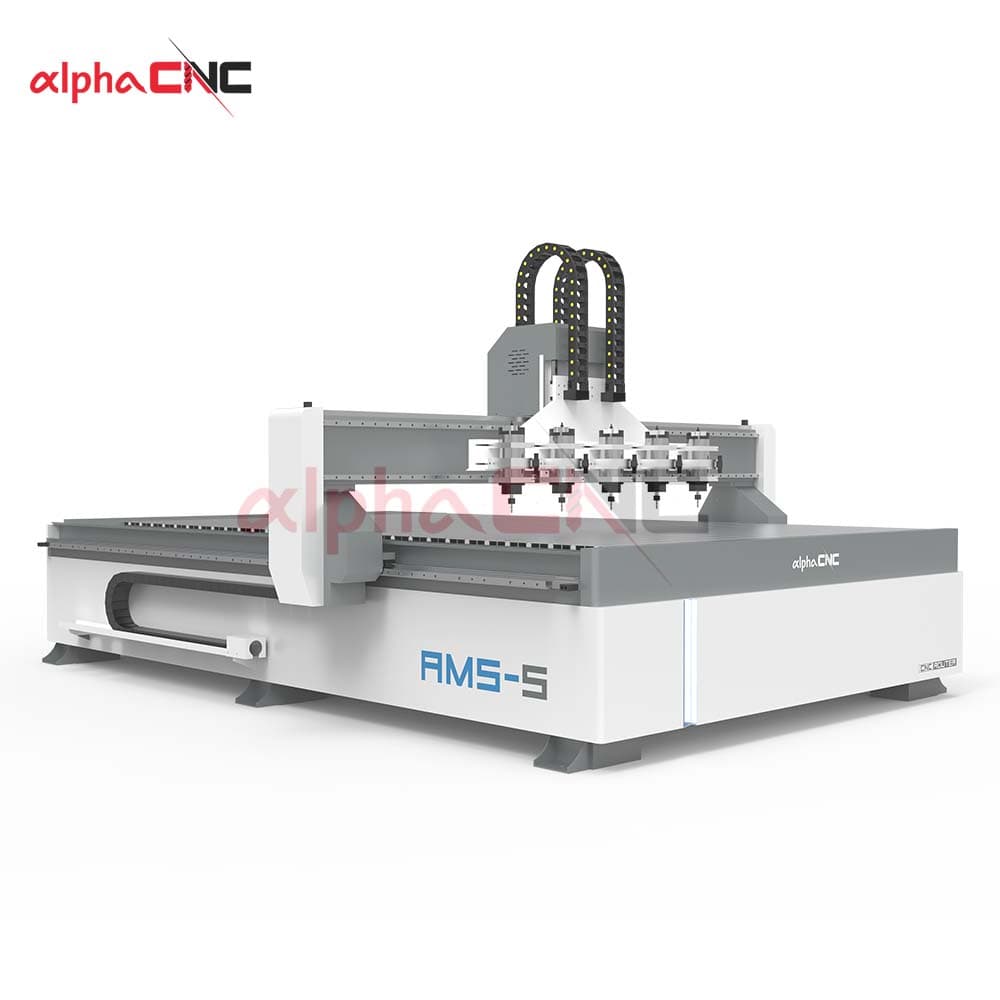

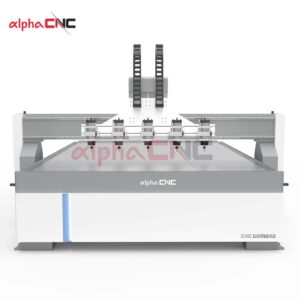

AMS-5 CNC Router for High-volume Woodworking & Furniture Production
Description
The 5-Spindle CNC Router is a multi-spindle Wood CNC Router designed for batch woodworking processing and equipped with 5 spindles. This machine is mainly used for batch processing of furniture components, wooden hollow-out screens, decorative partitions, reliefs, and other wooden decorative parts. Multiple spindles work synchronously according to the same machining program, which can reduce the time for repeated loading and unloading and allow workpieces in the same batch to maintain relatively consistent machining results.
Features
- 5-Spindle Synchronous Processing: The 5 spindles can process 5 identical workpieces at the same time according to the same machining program. It is suitable for woodworking products with a high degree of repetition, such as furniture legs, decorative parts, hollow-out screens, and reliefs.

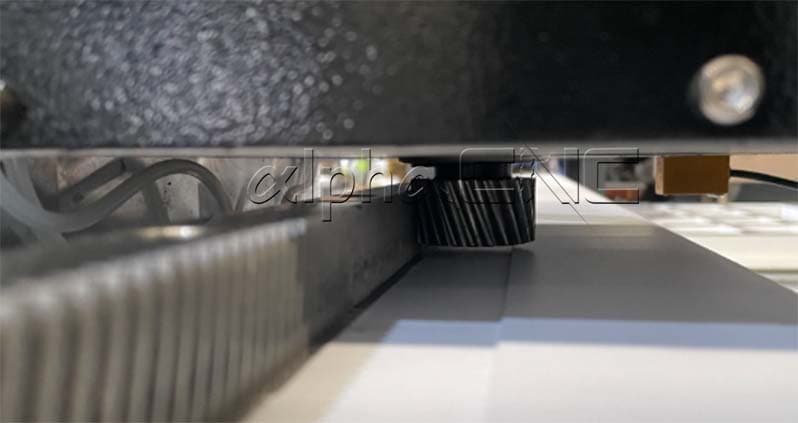

- Stable Machine Body and Transmission Structure: It adopts a relatively stable machine frame structure and is equipped with square linear guide rails and rack-and-pinion transmission, allowing the equipment to maintain stable operation when multiple spindles are processing at the same time, and is suitable for long-term batch processing.
- Suitable for Batch Repetitive Production: The machine is particularly suitable for woodworking workshops that need to continuously process identical workpieces. Through a unified machining program, products in the same batch can maintain similar dimensions and machining results, reducing repeated manual operations.
Parameters
Model | AMS-5 |
X,Y axis travel | 2000*3000*200mm option: 1300*2500mm; 2100*3000mm; 2100*4000mm, etc. |
Z axis travel | 200mm option: 300mm, 400mm, etc. |
Spindle type | Air cooling/ Water cooling spindle |
Spindle quantity | 5 |
Spindle power | 2.2kw option: 1.5kw~4.5kw |
Inverter type | Delta/Fuling/Best inverter |
Control system | DSP/Syntec/LNC/NC studio/ Mach 3 |
Driving system | Stepper motor |
Machine structure | Heavy duty body with quenching treatment |
Work table | Aluminum T-slot working table |
Compatible software | Artcam, Aspire, etc |
Command language | G Code |
Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Optional items
- Multi-spindle Configuration
It supports adjusting the spindle configuration according to production requirements. You can increase the number of spindles. It can further improve your production efficiency. This 5-spindle CNC router is the best CNC machine for enterprises with higher capacity.
- Spindle Power Selection
Different spindle power configurations such as 1.5kw, 2.2kw, and 4.5kw can be selected to meet the processing requirements in different application scenarios.
- Control System
Different systems have differences in operation methods. DSP, LNC, Mach 3, or Syntec systems can be selected according to operating habits.
- Dust Collection System
For enterprises that need to perform woodworking processing for a long time, a dust collection system can be configured to improve the production environment.
Frequent asked questions
Is this CNC router suitable for small woodworking shop?
This mainly depends on your production requirements. If you mainly perform custom processing with small order volumes, a single-spindle CNC router will be more flexible. AMS-2030-5 is more suitable for furniture factories and wood product manufacturing enterprises with stable orders and the need to continuously process large quantities of identical products.
What is the difference between this machine and an ATC CNC router?
AMS-2030-5 CNC Router is more suitable for production modes with fixed products, repeated orders, and a focus on batch processing efficiency. ATC CNC Router is more suitable for production tasks with complex processing procedures, frequent tool changes, and multiple process combinations.
What information do I need to provide before purchasing a CNC router?
To recommend the best CNC router for you, we suggest providing information about the processing material type, workpiece size, production volume, main processing requirements, as well as your budget and workshop size.

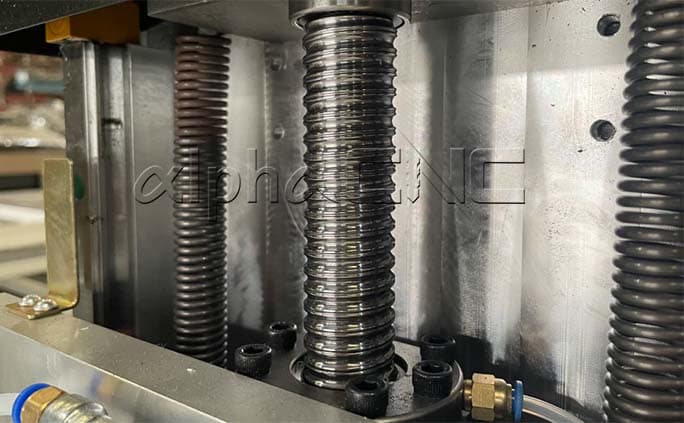

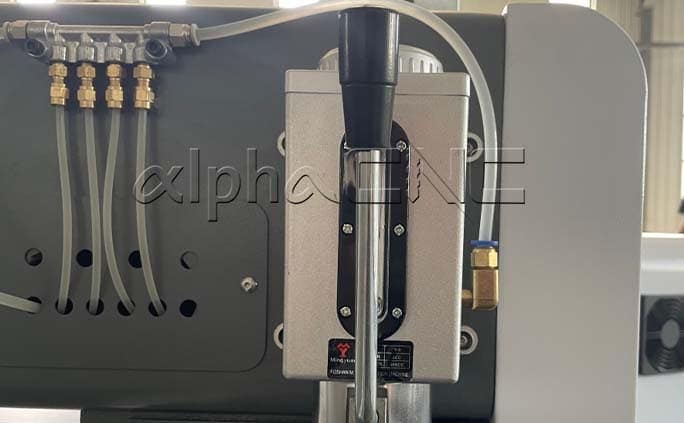

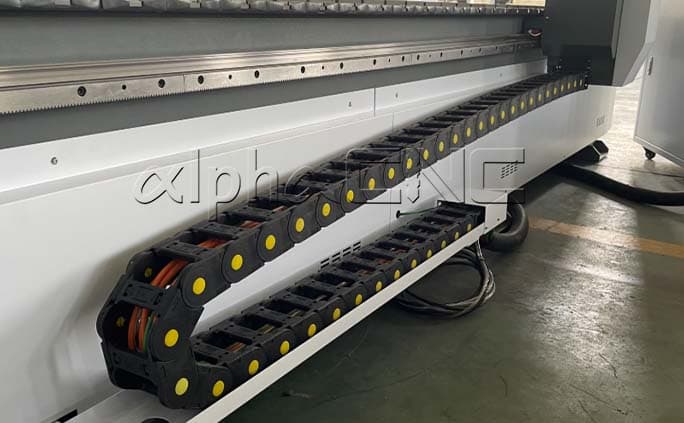

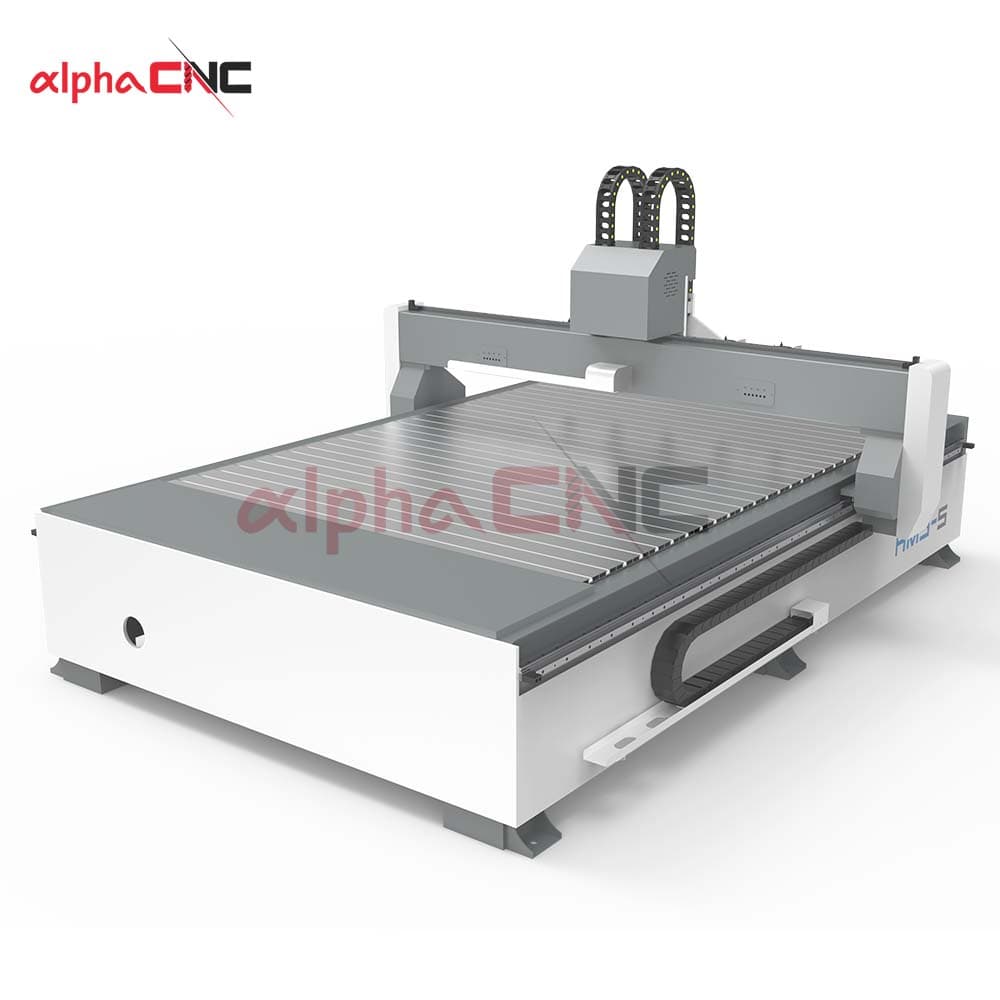

3 Axis CNC Router details
Application

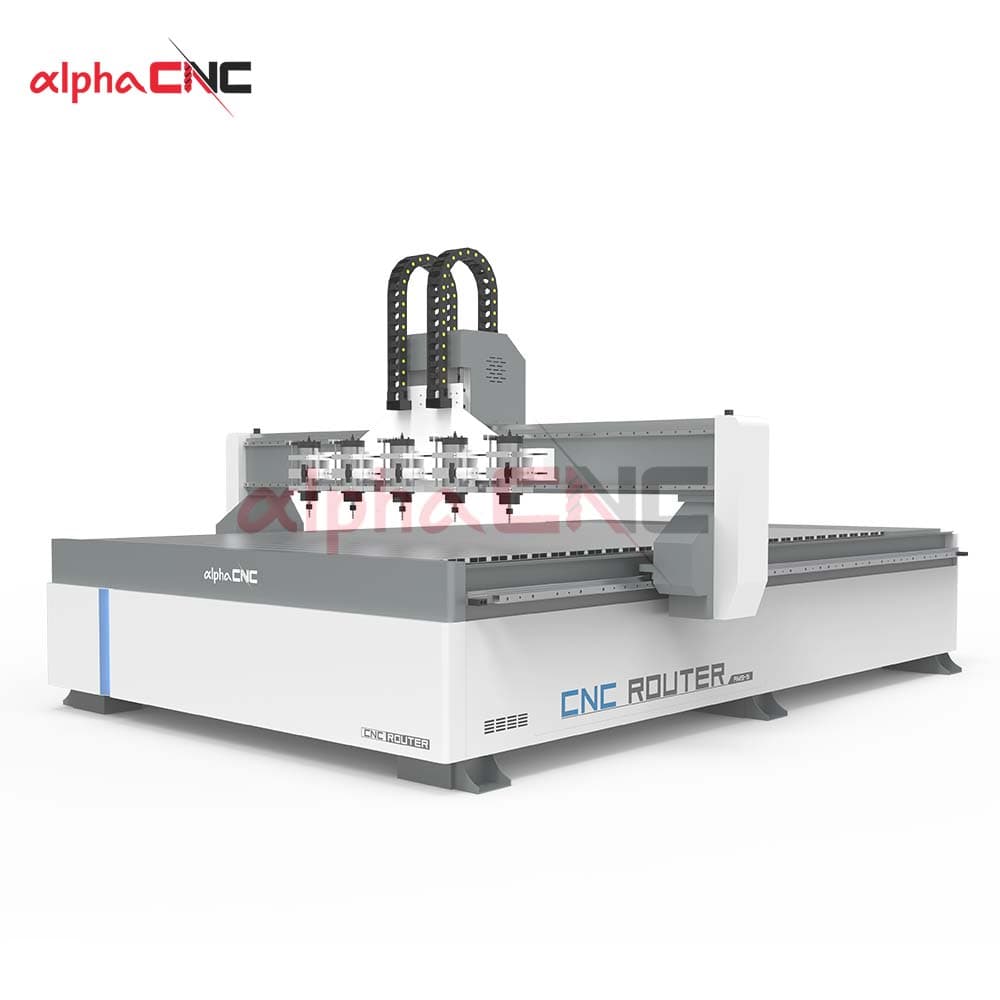

- Furniture Components
Suitable for batch processing of highly repetitive wooden parts such as wood decorative components, especially suitable for orders that require the simultaneous production of multiple identical workpieces.
- Decorative Screens and Partitions
Can be used to process wooden hollow-out screens, decorative lattice patterns, and decorative partitions, and batch-produce the same patterns through a unified machining program.
- Relief Carving
Suitable for processing reliefs, decorative textures, and three-dimensional patterns on materials such as solid wood and MDF, and suitable for wooden doors, decorative panels, and furniture decorative parts.
- Wood Decorative Products
Can be used to process various solid wood carved parts, decorative parts, and wooden products for repetitive production, suitable for woodworking workshops with stable batch orders.
Production facility
Quality control & testing
FAQ
Is this CNC router suitable for small woodworking shop?
This mainly depends on your production requirements. If you mainly perform custom processing with small order volumes, a single-spindle CNC router will be more flexible. AMS-2030-5 is more suitable for furniture factories and wood product manufacturing enterprises with stable orders and the need to continuously process large quantities of identical products.
What is the difference between this machine and an ATC CNC router?
AMS-2030-5 CNC Router is more suitable for production modes with fixed products, repeated orders, and a focus on batch processing efficiency. ATC CNC Router is more suitable for production tasks with complex processing procedures, frequent tool changes, and multiple process combinations.
What information do I need to provide before purchasing a CNC router?
To recommend the best CNC router for you, we suggest providing information about the processing material type, workpiece size, production volume, main processing requirements, as well as your budget and workshop size.
Review
Morocco Furniture Company PM
August 18, 2026
Before purchase this 5 Spindle CNC router, our factory usually use traditional woodworking equipment and single spindle CNC router. As the order volume increasing, we find Alpha CNC. Alpha CNC team are all professional. They won’t recommended the expensive machine but instead based on my production needs.
