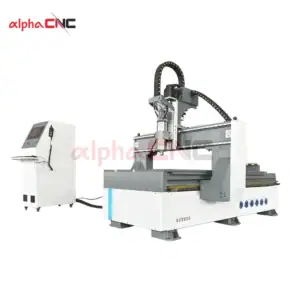

Alpha CNC APS-1020 ATC CNC Router with Water-Cooled Spindle and Spray Cooling
Description

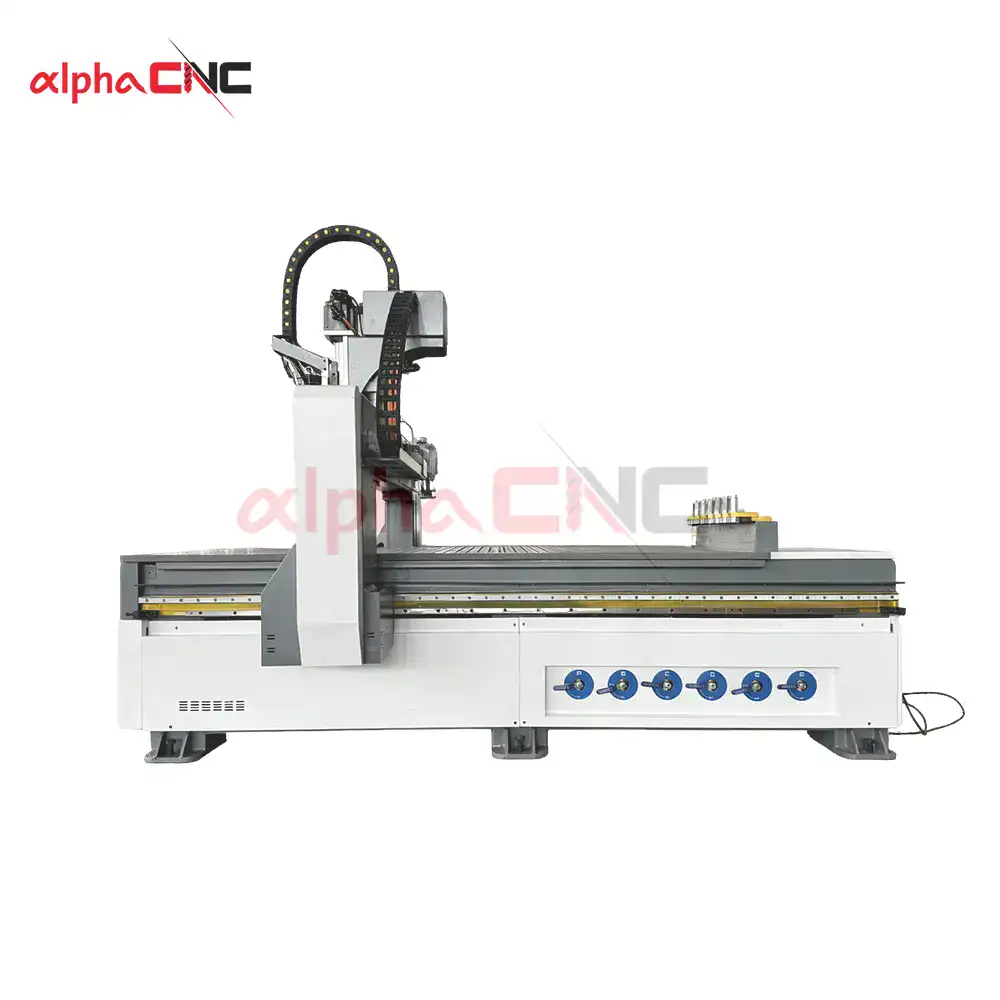

Alpha CNC APS-1020 CNC router comes with a rear linear automatic tool changer. The rear tool magazine supports storing multiple tools, with fast tool changing. It is very suitable for factories that need continuous production and less manual operation. The machine is equipped with a water-cooled spindle and spray cooling system, which can work stably for a long time. This machine can be used to process wood, MDF, acrylic, plastic, aluminum, copper, and other materials.
Features

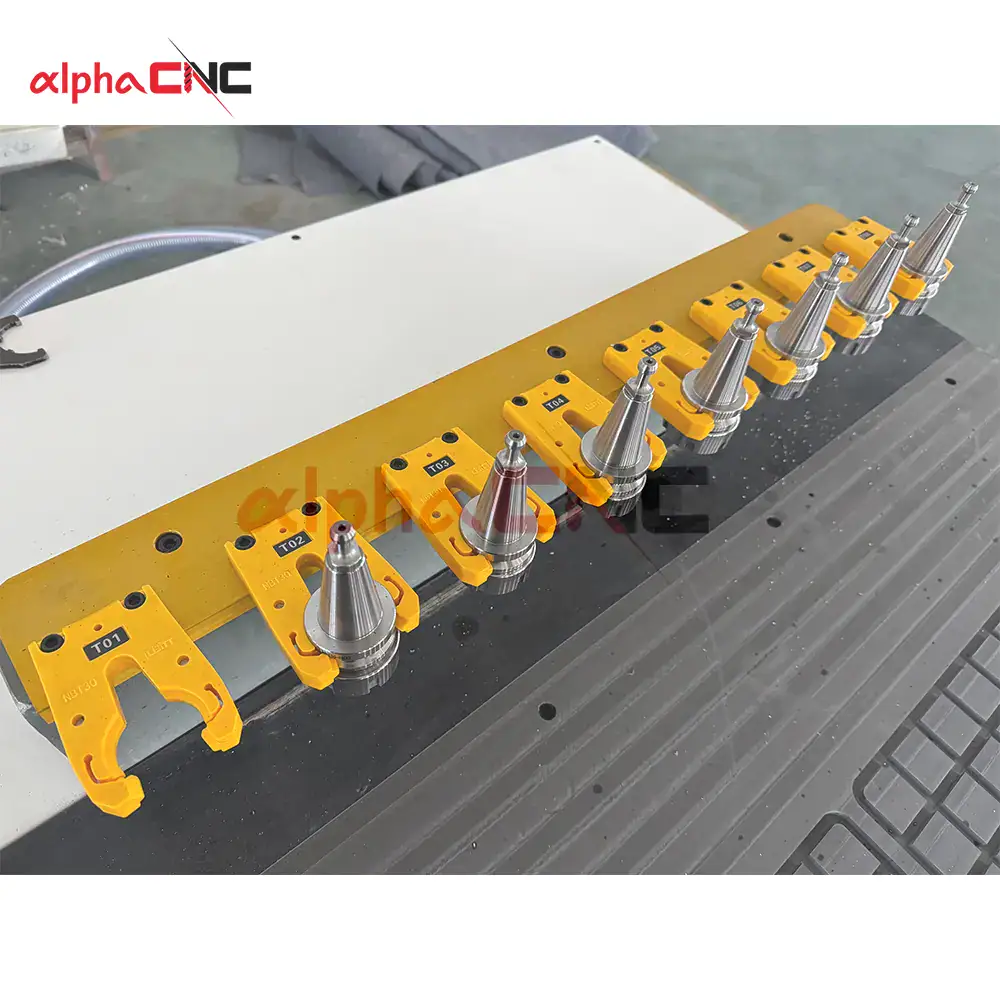

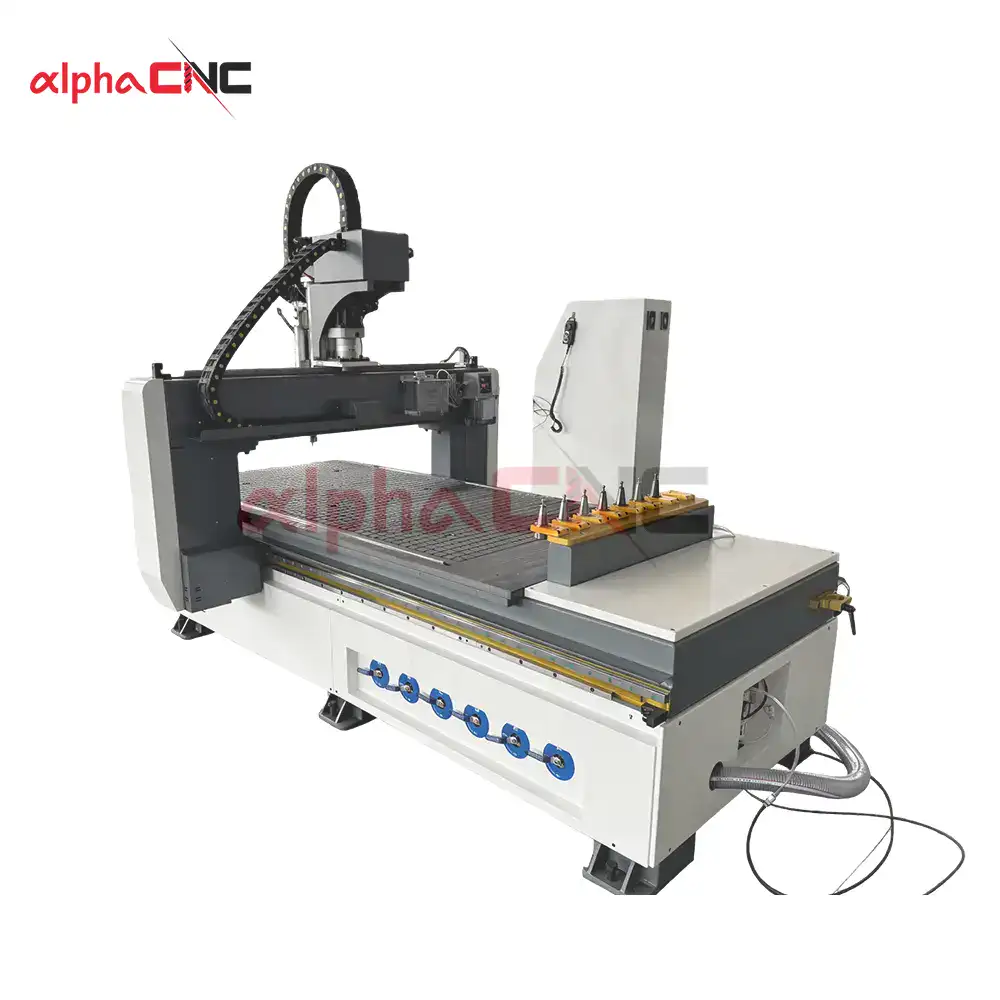

- Rear Linear Tool Magazine – The tool magazine is installed at the rear of the machine and can hold multiple tools. The whole tool changing process can be completed in just a few seconds.

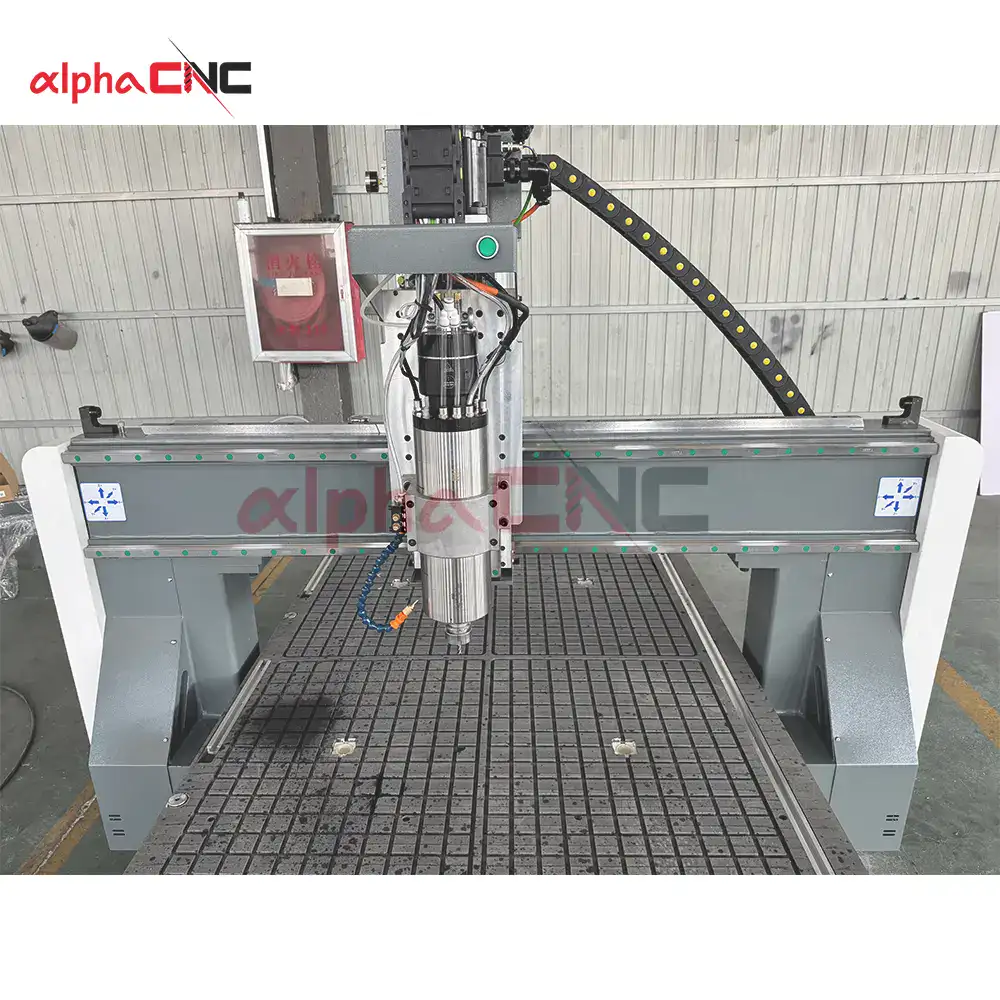

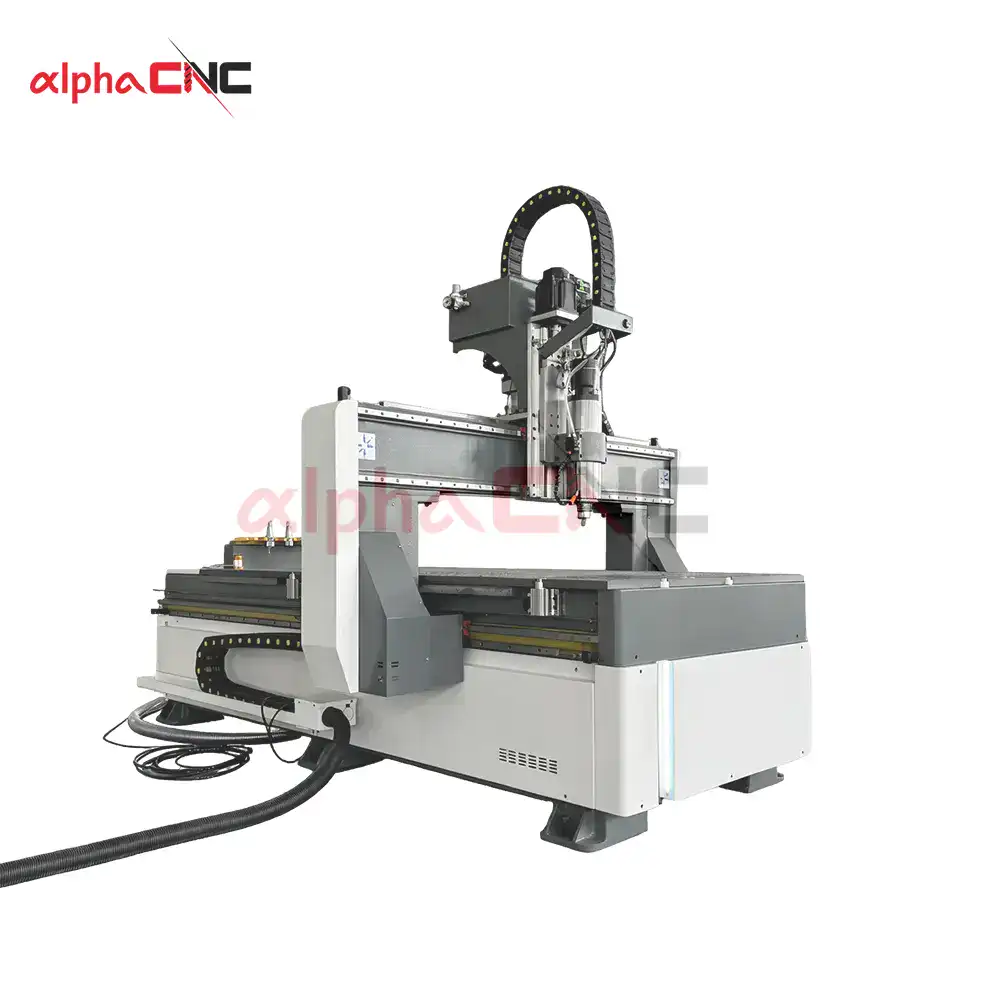

- Machine Equipped with Water-Cooled Spindle – Equipped with a complete water cooling circulation system, it has good cooling effect and lower operating noise. It supports long-time continuous operation of the machine and effectively extends the service life of the spindle.
- Spray Cooling System – During processing, it can directly spray the tool and workpiece surface for cooling, avoiding high-temperature tool wear and tool sticking problems, making the finished product look better.
- Heavy-Duty Machine Structure – The machine frame has enough rigidity and strong operating stability, fully suitable for various heavy cutting conditions.
- High-Precision Transmission Configuration – It uses linear guide rails and ball screw structure. The machine has accurate positioning and stable repeat positioning.

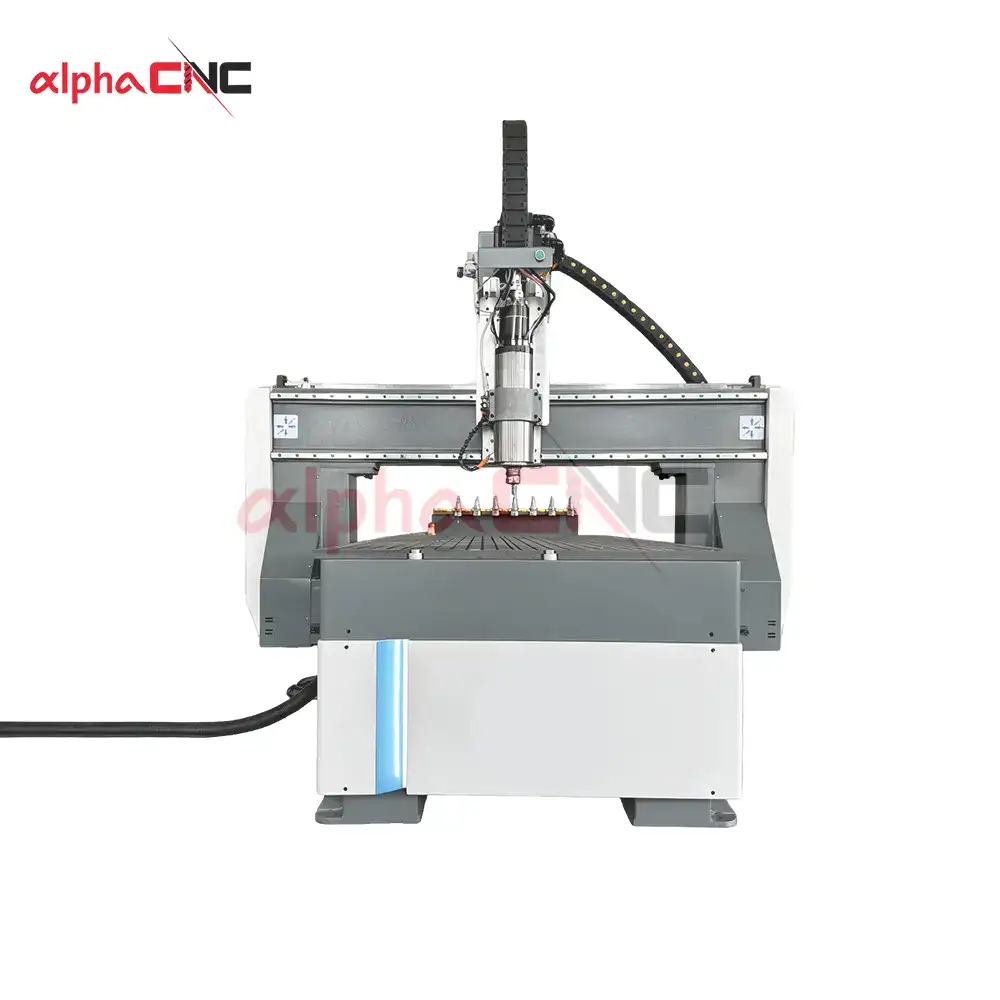

- Vacuum Suction Worktable – The whole sheet can be directly fixed by vacuum suction for processing, without cutting in advance. It supports zone suction control and meets the processing needs of different sizes of sheets.
- The machine supports processing multiple materials. You can use it to complete engraving, cutting, drilling, grooving, milling, and other processing operations on solid wood, MDF, plywood, acrylic, PVC, plastic, foam, copper, aluminum, and other materials.
Parameters
Model | APS-1020 |
X, Y axis travel | 1000x2000mm option: 1300*2500mm; 1500*3000mm; 2000*3000mm; 2000*4000mm, etc. |
Spindle | ATC air cooling spindle |
Tool magazine | Linear tool magazine Option: carousel type auto tool changer |

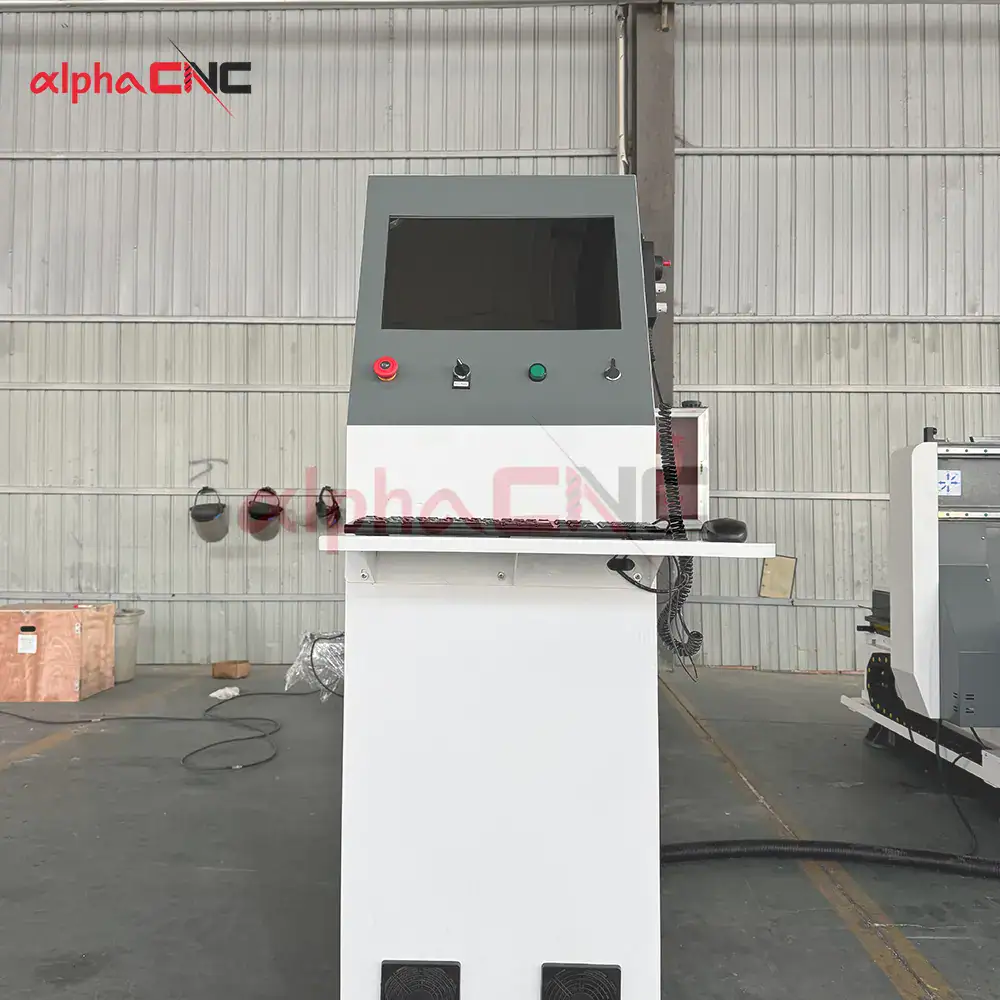

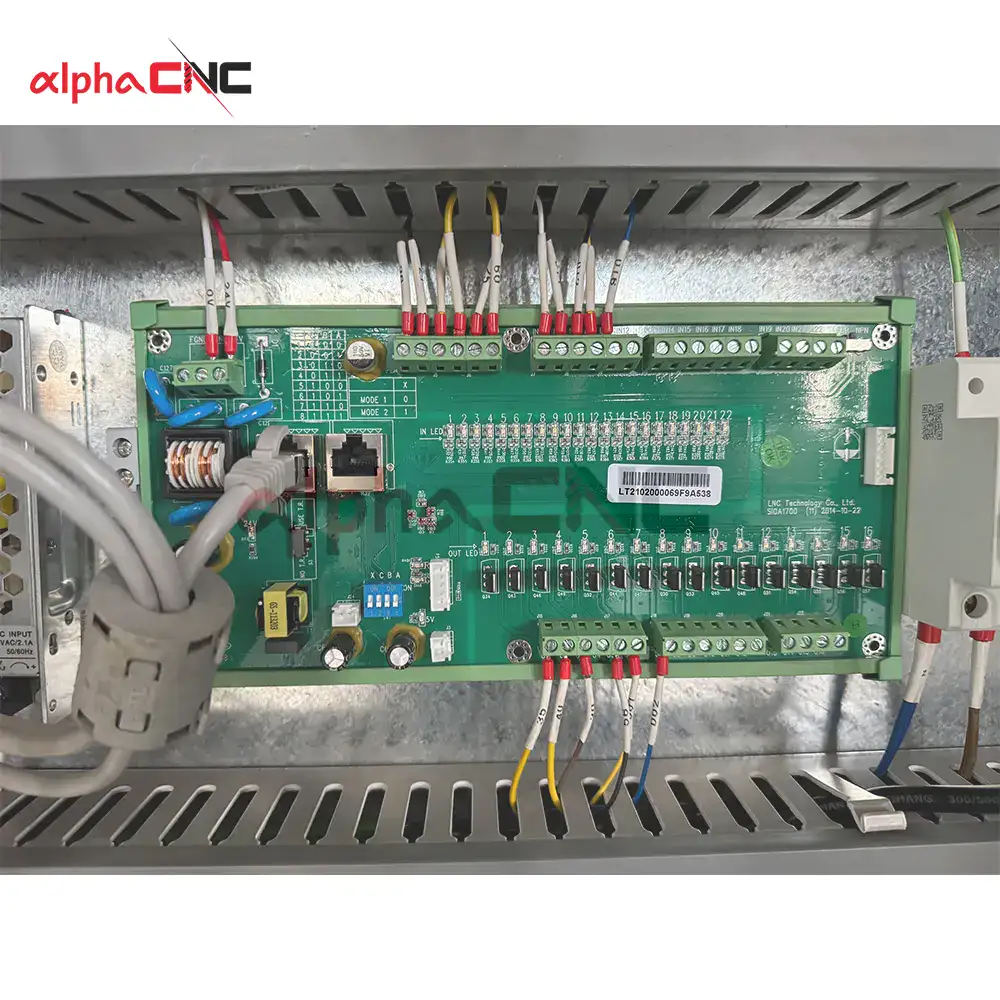

Control system | LNC/SYNTEC controller |
Driving system | Driving servo motor |
Machine structure | Heavy duty machine body |
Work table | T-slot & vacuum work table |
Lubrication system | Automatic lubrication system |
Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire,etc |
Command language | G Code & M Code |
Working air pressure | 0.8MPa |
Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/60HZ |
Optional items
- Custom Tool Magazine Capacity: You can choose a capacity of 6, 8, 10, or more tools.
- Custom Worktable Size: The worktable size can be adjusted according to the size of your processing sheets. For example, sizes such as 1325, 1328, 1528, 1530, and 1928 can be selected.
- Spindle Power: It is not fixed and can be freely selected according to your actual processing needs.
- Dust Collection System: A dust collection system can be optionally added to reduce the accumulation of sheet scraps and keep the worktable clean.
- Rotary Axis: This machine supports adding a fourth-axis rotary axis to expand the processing range of your factory.
Frequent asked questions
What is the difference between a water-cooled spindle and an air-cooled spindle?
The main difference between the two is in the suitable materials and processing intensity. The water-cooled spindle uses water circulation for cooling, with better heat dissipation and lower operating noise. The air-cooled spindle uses a fan for heat dissipation. Processing high-hardness materials will produce a lot of heat. The water-cooled structure can keep the temperature stable and avoid tool wear and spindle overheating problems. The APS-1020 is equipped with a water-cooled spindle and spray system as standard, which can meet the processing needs from wood to soft metals.
Is the machine difficult to operate?
The APS-1020 uses a full English operating system and is also equipped with a complete operation manual. We provide operation training videos and remote technical support services. The machine is simple to operate. Beginners can operate the machine independently after short-term training.
How is my machine transported, and how do I install it after receiving it?
The machine will complete a full set of inspections before leaving the factory. We will disassemble and arrange the machine, then pack it together to fully ensure transportation safety. We will provide video and document installation tutorials. After you receive the machine, whether it is installation or debugging, you can contact us at any time. Our technical team is online 24 hours a day to assist you.
What about the warranty and after-sales service?
Before the machine is shipped, we will provide real machine test videos and pictures for you to check and confirm. The whole machine has a one-year warranty, and we also provide lifetime free technical consultation. We will provide you with online technical support through phone, email, and other channels. If needed, we can also provide on-site service.
3 Axis ATC CNC Router details
Application
- Soft Metal Processing Industry

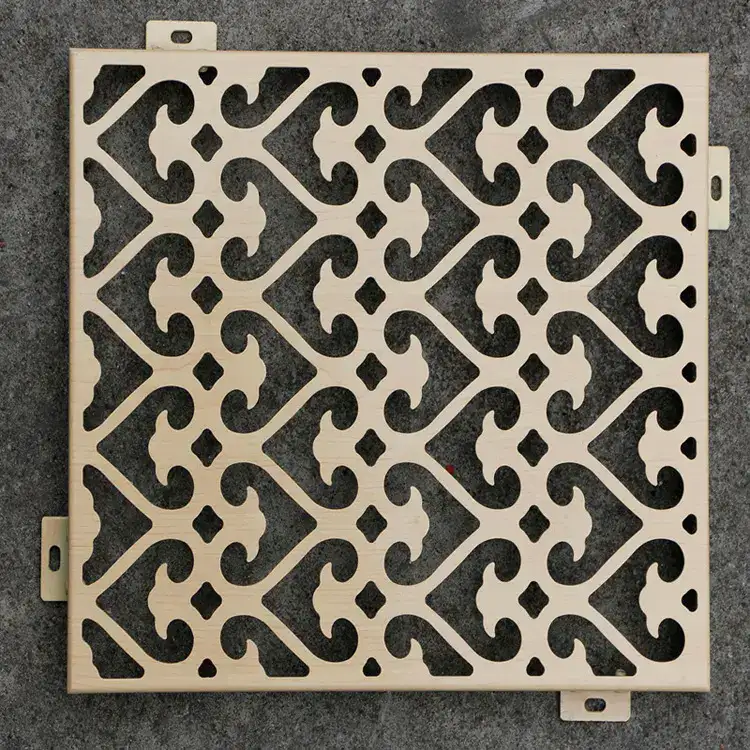

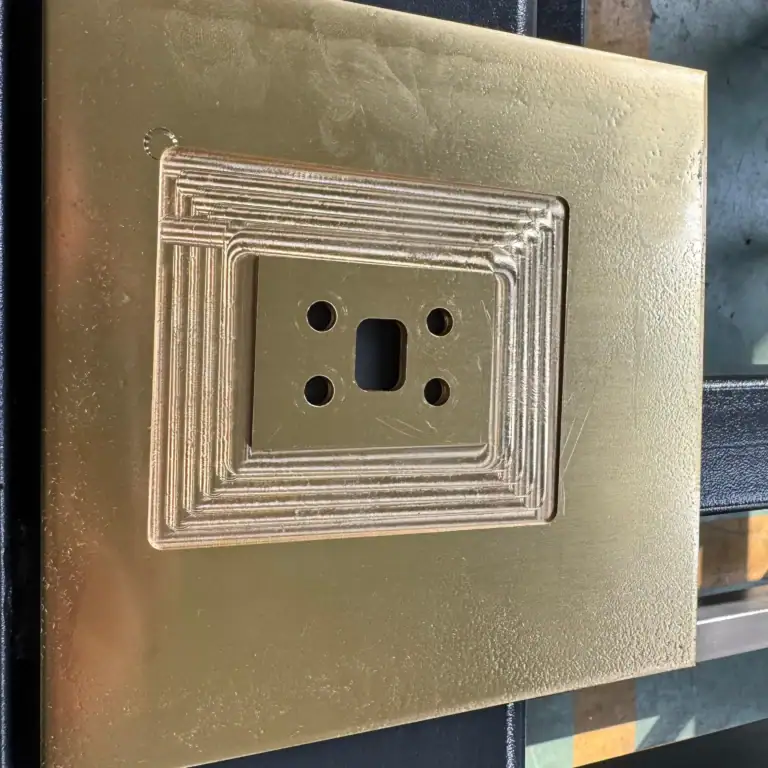

This machine can process soft metal materials such as aluminum sheets, copper sheets, and aluminum-plastic composite panels, and can complete cutting, grooving, drilling, and other processing operations.
- Furniture Manufacturing Industry
It can be used for cutting, carving, drilling, and grooving of panel furniture, cabinet doors, wardrobe doors, office furniture, tables and chairs, doors and windows, and other products.
- Wood Product Processing Industry

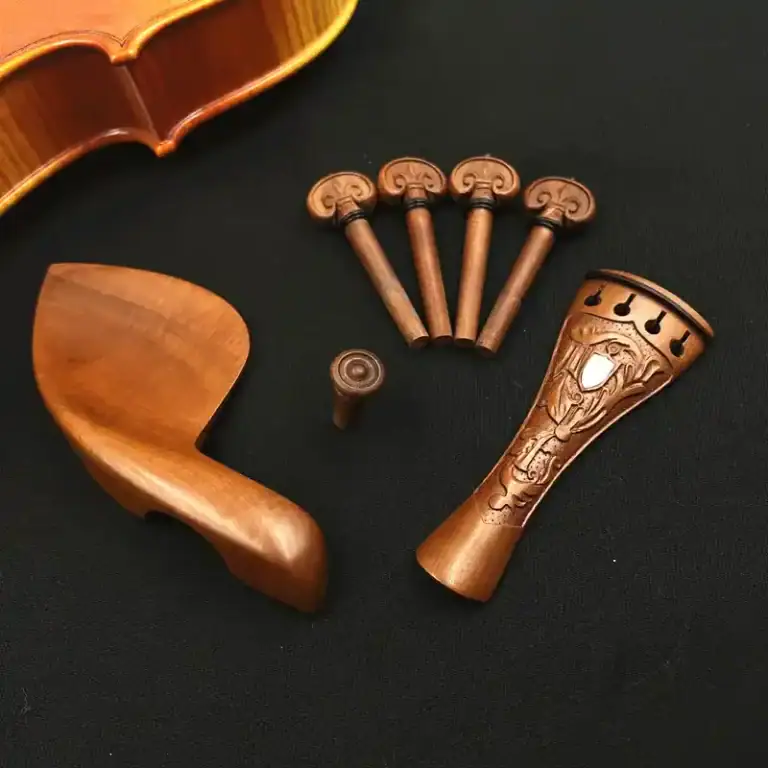

You can use this machine to process various box products such as speakers, game machine cabinets, and computer desks. It can also process guitar and violin instrument parts, as well as wooden products such as stair treads, decorative fan windows, and screens, to complete milling and carving.
- Advertising Sign Industry
It is suitable for cutting and engraving acrylic signs, illuminated letters, mini letters, PVC letters, two-color board signs, signs, aluminum-plastic panel signs, and other products.
- Decoration and Renovation Industry
Common decoration materials, such as artificial stone countertops, acrylic decorative parts, soft metal decorative strips, wave panels, decorative wall panels, and decorative engraving panels, can all be processed by it.
Production facility
Quality control & testing
FAQ
What is the difference between a water-cooled spindle and an air-cooled spindle?
The main difference between the two is in the suitable materials and processing intensity. The water-cooled spindle uses water circulation for cooling, with better heat dissipation and lower operating noise. The air-cooled spindle uses a fan for heat dissipation. Processing high-hardness materials will produce a lot of heat. The water-cooled structure can keep the temperature stable and avoid tool wear and spindle overheating problems. The APS-1020 is equipped with a water-cooled spindle and spray system as standard, which can meet the processing needs from wood to soft metals.
Is the machine difficult to operate?
The APS-1020 uses a full English operating system and is also equipped with a complete operation manual. We provide operation training videos and remote technical support services. The machine is simple to operate. Beginners can operate the machine independently after short-term training.
How is my machine transported, and how do I install it after receiving it?
The machine will complete a full set of inspections before leaving the factory. We will disassemble and arrange the machine, then pack it together to fully ensure transportation safety. We will provide video and document installation tutorials. After you receive the machine, whether it is installation or debugging, you can contact us at any time. Our technical team is online 24 hours a day to assist you.
What about the warranty and after-sales service?
Before the machine is shipped, we will provide real machine test videos and pictures for you to check and confirm. The whole machine has a one-year warranty, and we also provide lifetime free technical consultation. We will provide you with online technical support through phone, email, and other channels. If needed, we can also provide on-site service.
Review
Metal Decoration Processing Factory
November 5, 2025
This machine is commonly used to process aluminum composite panels. The machine body is solid, and there is little vibration during cutting operations. The spray cooling system is very helpful for long-time processing. When processing aluminum panels, the tool is not easy to overheat, and the processed surface quality is also relatively stable.
