APS-1325 ATC CNC Router with Laser Engraving | Wood CNC Machine
Description
As labor costs continue to rise and production becomes increasingly reliant on skilled operators, is your workflow hitting a bottleneck? As your order volume grows, multi-process complexity can lead to production delays and longer delivery times.

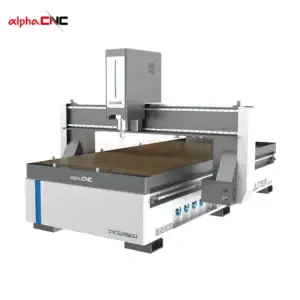

The APS-1325 ATC CNC Router combines CNC routing and laser marking in one system. Equipped with a high-precision laser marking head and a high-speed cutting spindle, it helps reduce equipment investment while saving valuable floor space. The automatic tool changer improves production efficiency and delivers a strong return on investment.
This machine is an ideal choice for woodworking, sign making, and prototype development. Talk to our team to discuss your application and receive reliable after-sales support.
Features

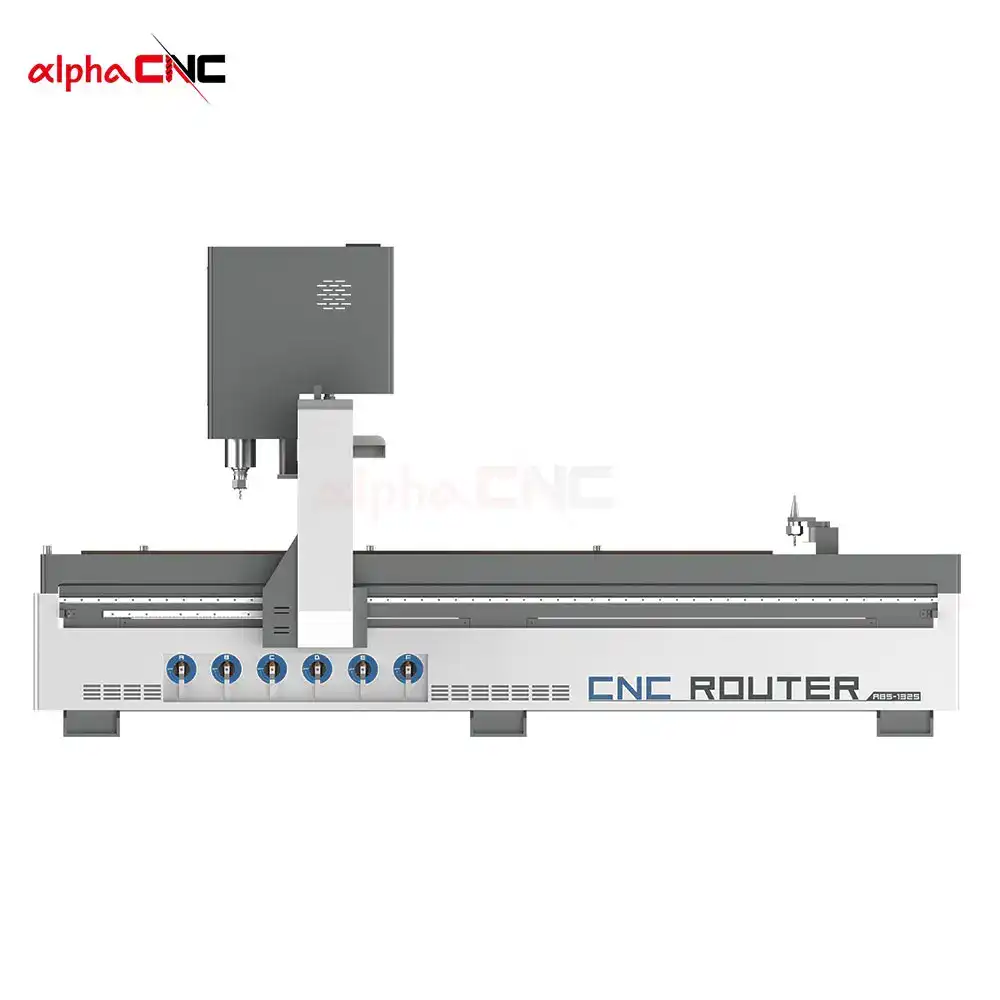

- Dual-Function Precision: Laser head marks intricate designs before the spindle cuts shapes – controlled in one seamless program.

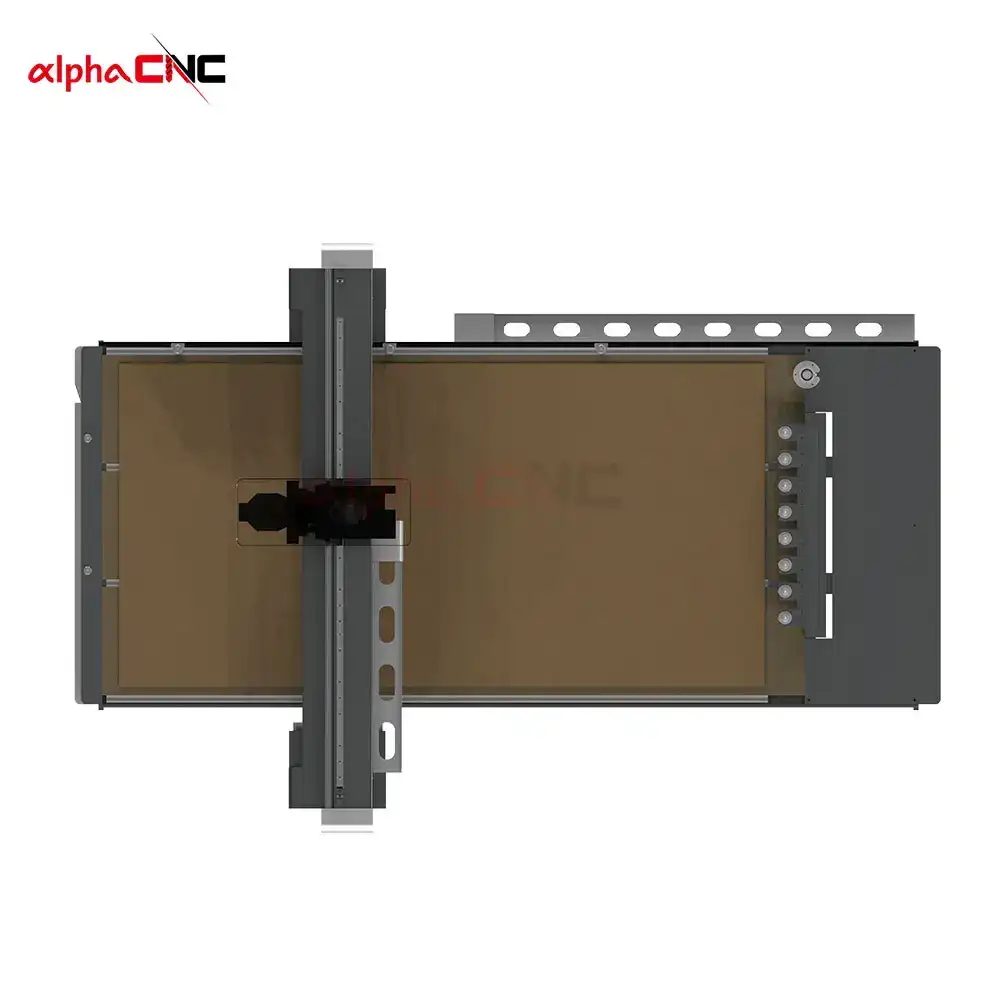

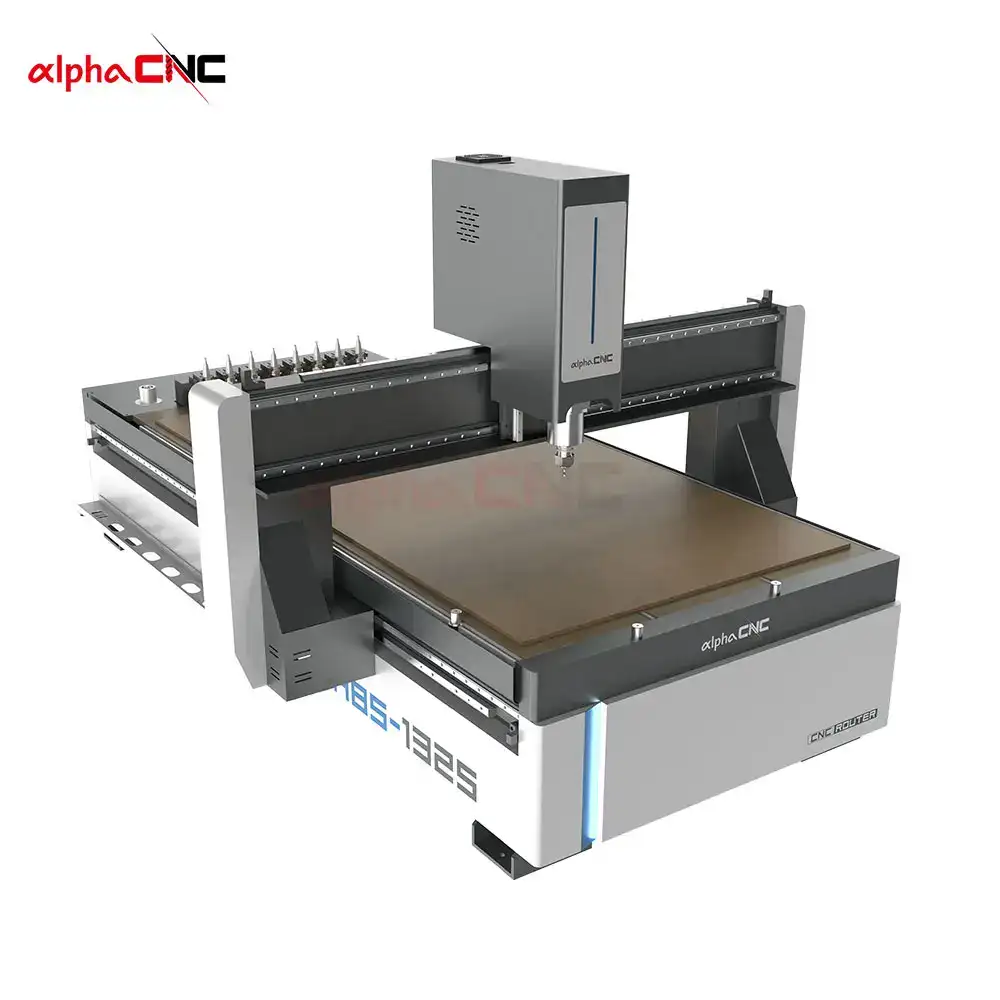

- ATC System: Automatic tool changes reduce downtime and boost productivity for multi-stage projects.

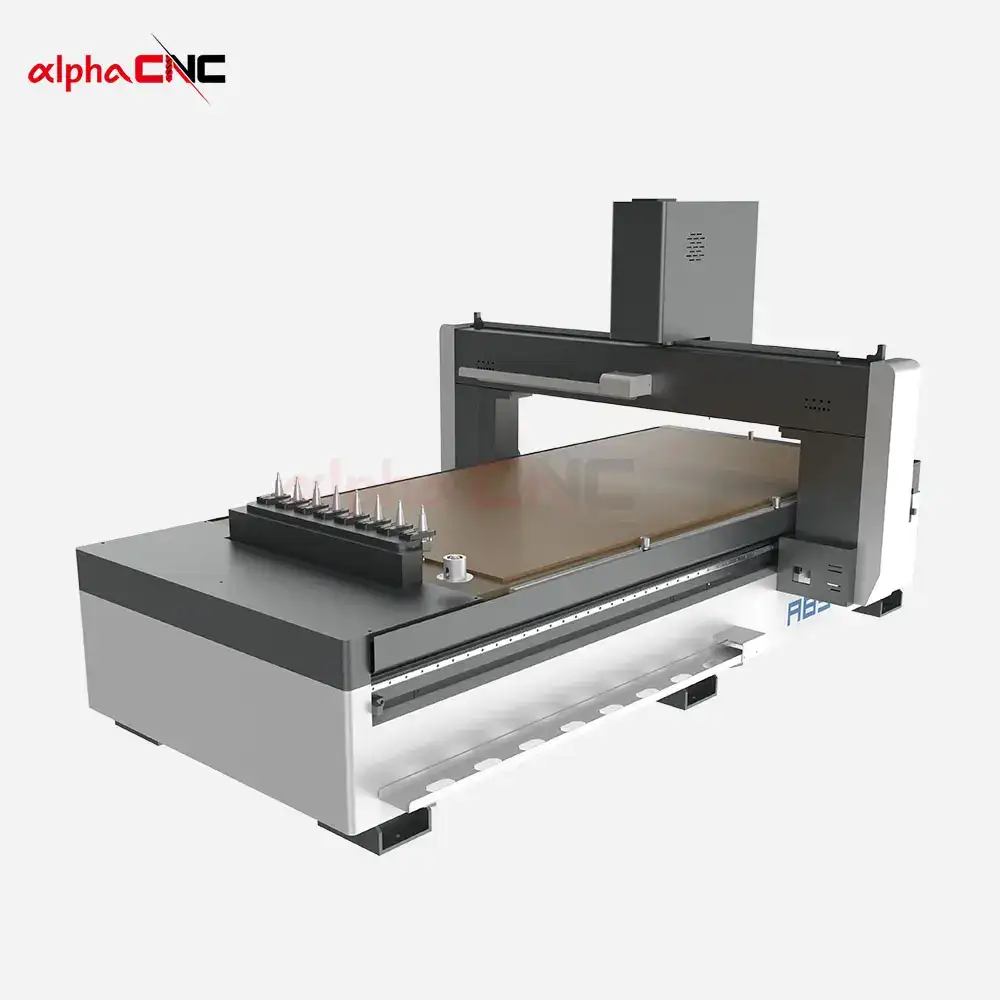

- Industrial-Grade Spindle: Spindle ensures powerful, stable cutting during extended operations.

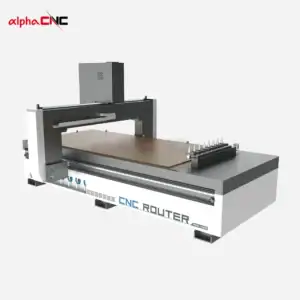

- Rear Linear Rail Design: Enhanced structural stability for superior accuracy and reduced vibration.
- Premium Components: Branded parts guarantee smooth operation, reliability, and extended machine life.
Parameters
Model | APS-1325 |
X, Y axis travel | 1300x2500mm option: 1500*3000mm; 2000*3000mm; 2000*4000mm, etc. |
Z axis travel | 200mm option: 300mm, 400mm, etc. |
Spindle | ATC air cooling spindle |
Laser head | Equipped with a laser head |
Tool magazine | Linear tool magazine Option: carousel type auto tool changer |
Control system | LNC/SYNTEC controller |
Driving system | Driving servo motor |
Machine structure | Heavy duty machine body |

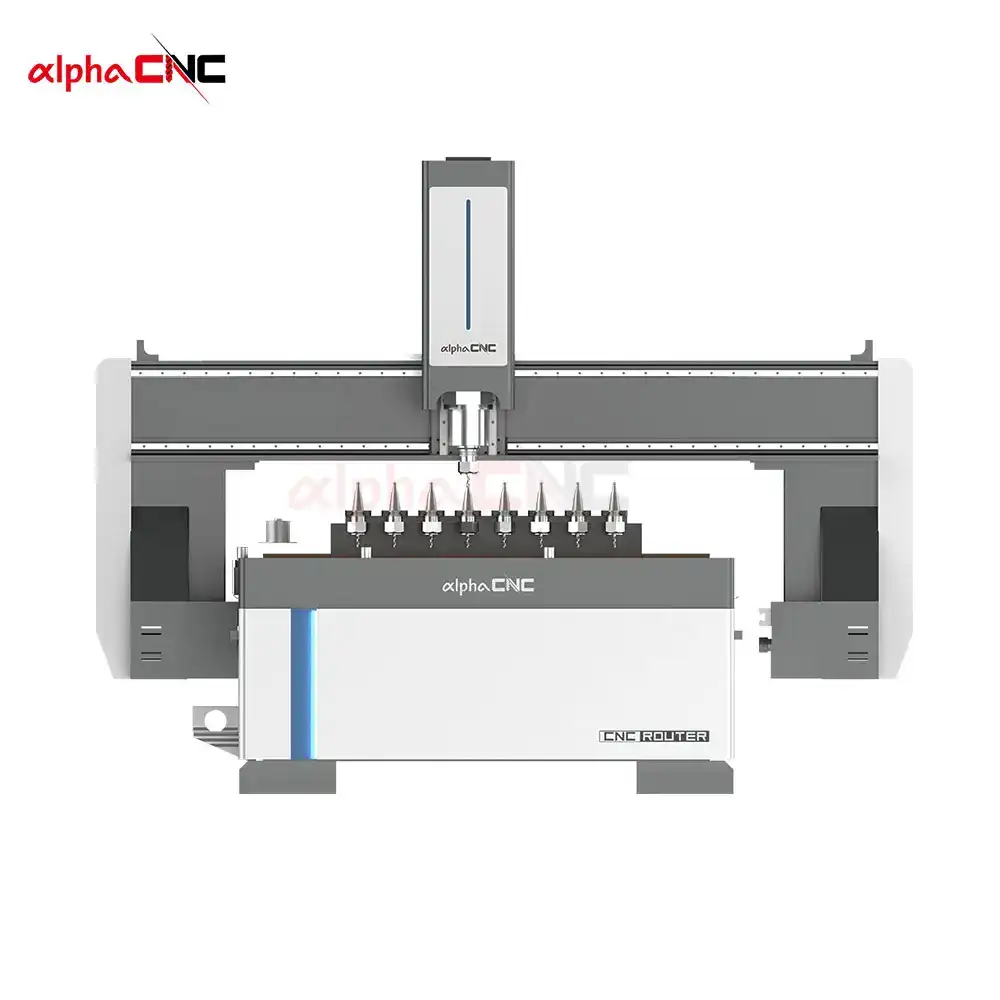

Work table | T-slot & vacuum work table |
Lubrication system | Automatic lubrication system |
Tool calibration | Auto tool sensor calibration |
Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire,etc |
Command language | G Code & M Code |
Traveling speed | 40m/min |
Working speed | 0-25m/min |
System resolution | ±0.0025mm |
Working air pressure | 0.8MPa |
Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/60HZ |
Optional items
Vacuum Pumps: Oil-free rotary vane models (various capacities)
Dust Collection: 3KW–7.5KW systems with hoods & full piping
Air Compressors: Piston or screw-type options
Safety: Light curtain protection devices
Frequent asked questions
Q: How does the rear linear rail improve performance?
A: It ensures exceptional rigidity and cutting accuracy, especially for heavy-duty tasks.
Q: What materials can this machine process?
A: Wood, MDF, acrylic, plastics, and other non-metallics.
Q: Do you offer after-sales technical support?
A: Yes, we provide 24/7 remote support, spare parts supply, and engineer dispatch if needed.
3 Axis ATC CNC Router details
Application
The APS-1325 Automatic Tool Changer (ATC) CNC Router revolutionizes fabrication for furniture manufacturing, cabinet factories and small businesses. Engineered with a heavy-duty steel frame, water-cooled spindle, and consistently high precision, this industrial-grade wood CNC machine delivers unmatched versatility for both prototyping and high-volume production.
Top Applications & Industries
Dominate your niche with precision:
✅ Woodworking & Furniture Manufacturing: Upgrade your production efficiency for cabinet making, complex carving, furniture components, and 3D wood carving.
✅ Signage & Advertising: A CNC router integrated with a laser system for cutting acrylic signage, PVC displays, foam boards, and aluminum sheets.
✅ Metal Fabrication: Engrave/mill aluminum, brass, and copper for parts, plaques, and instruments.
✅ Architectural Models: Machine detailed scale models from MDF, plywood, or composites.
✅ Prototyping & Molds: Create precise prototypes, jigs, and molds for industrial design.
