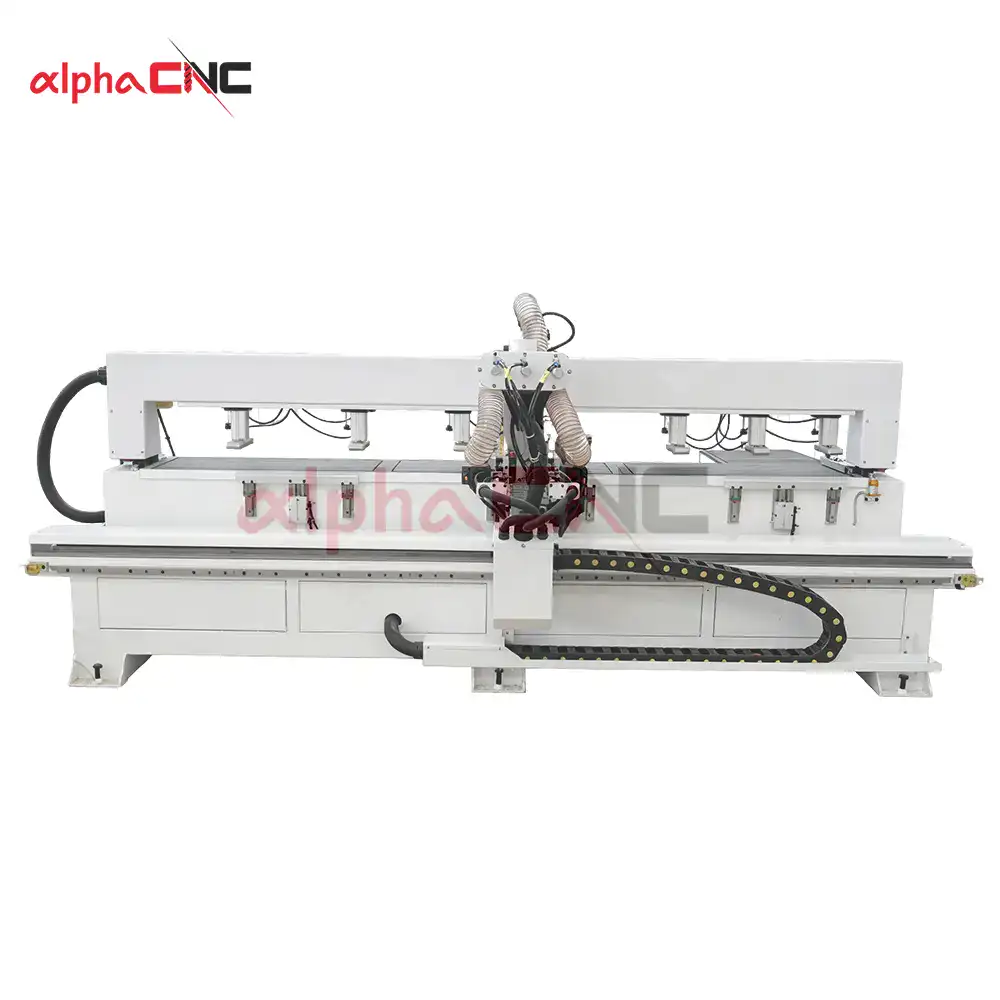

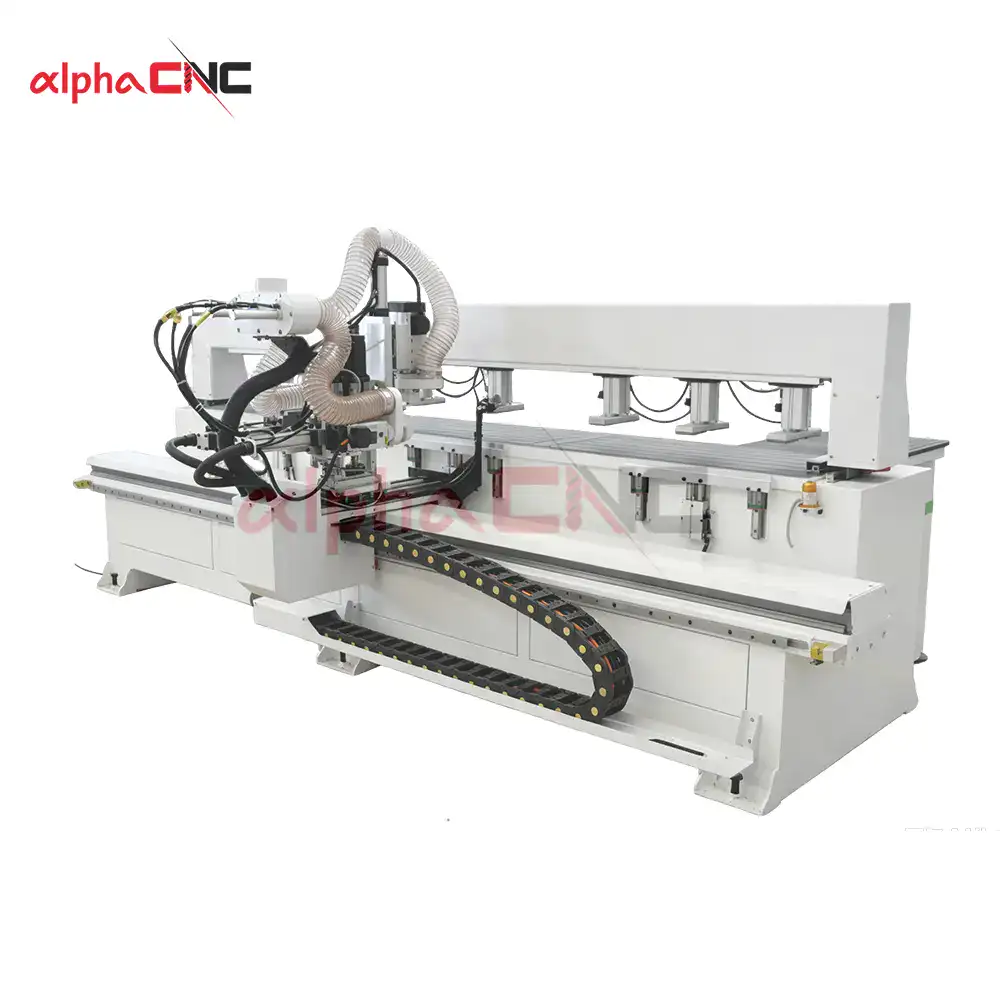

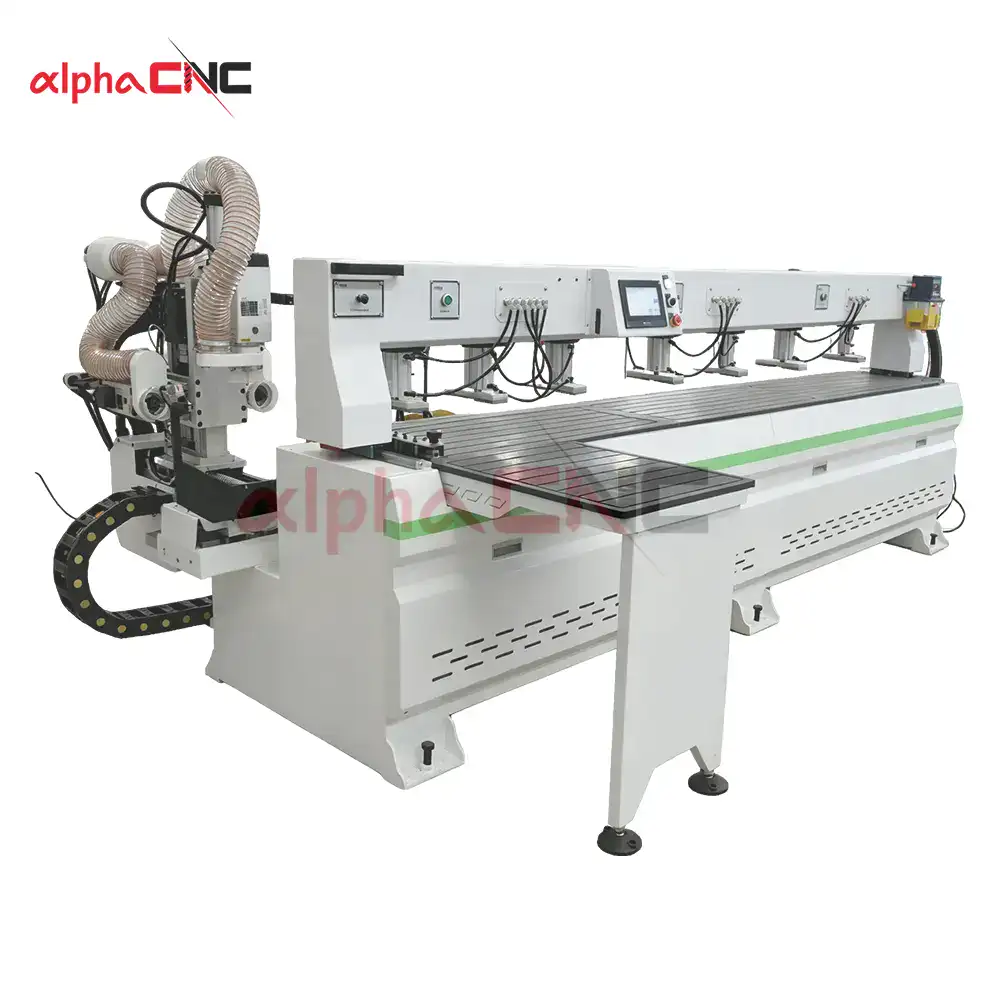

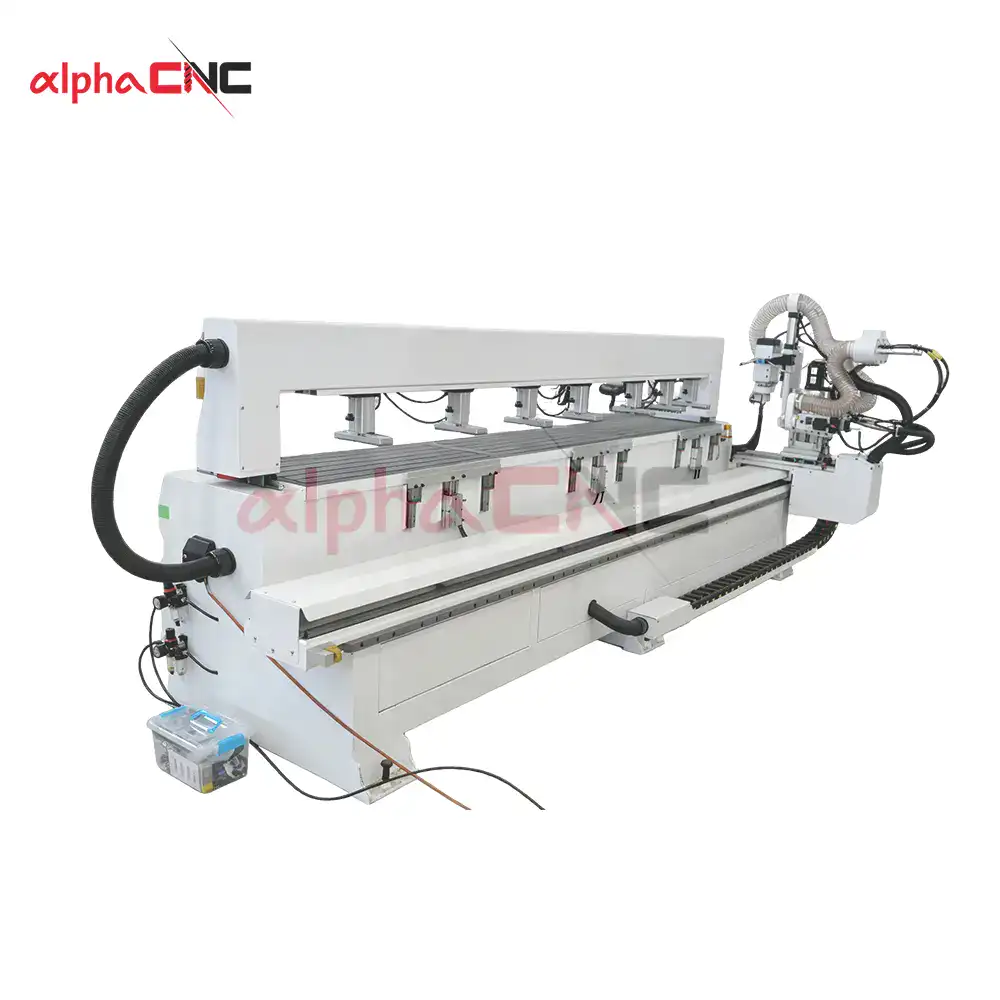

CNC Side Hole Drilling Machine with 3 Spindles for Panel Furniture
Description
Alpha CNC 3-spindle CNC side drilling machine is designed for custom panel furniture production. You can use it to process side holes, connector holes, grooves, and hidden connection structures on custom cabinet panels and furniture panels. The machine is equipped with three independent spindles. Multiple processes can be completed with one clamping of the panel. Furniture factories can reduce repeated manual positioning. The consistency of finished products is better. Switching between different custom orders is also faster.
Features

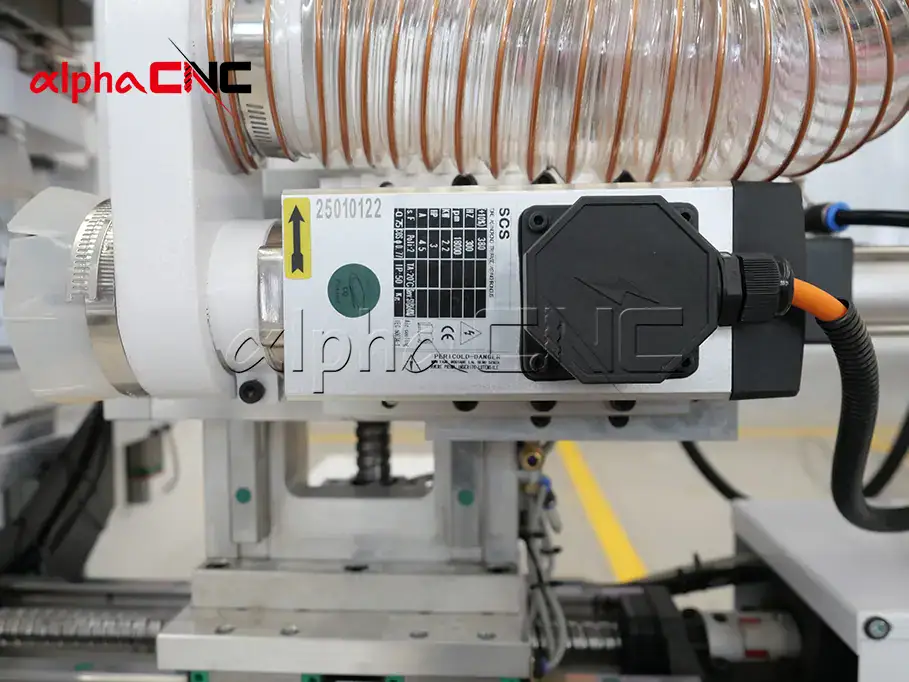

1. Three Spindles
The machine is equipped with three spindles, which can independently complete various drilling and milling operations. The panel only needs to be clamped and fixed once to complete multiple processing steps, reducing repeated tool changes, panel moving, and repositioning operations, and greatly simplifying the processing process.
2. Compatible with Multiple Connection Methods

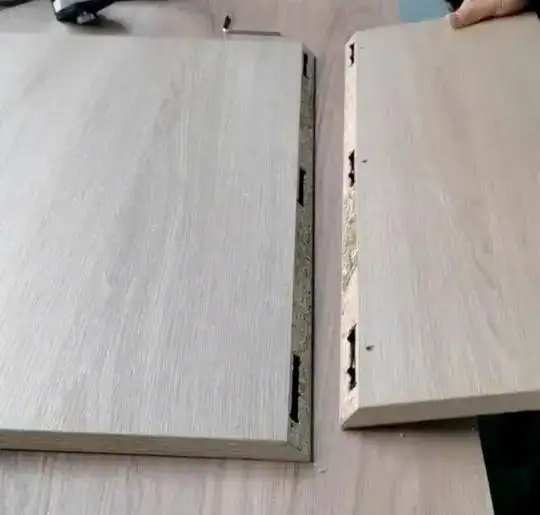

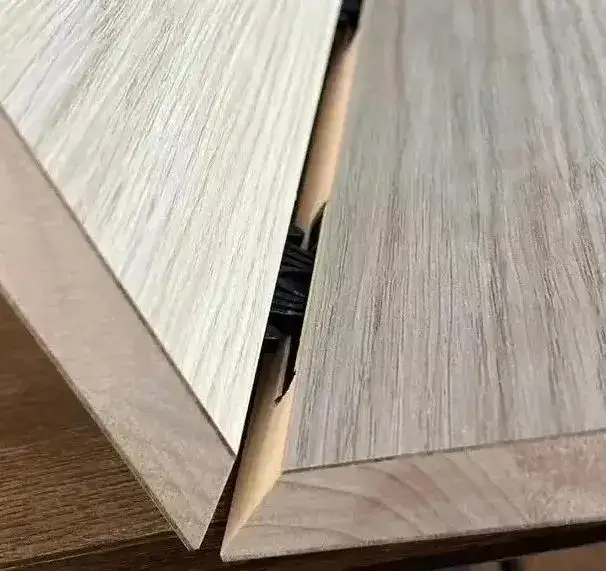

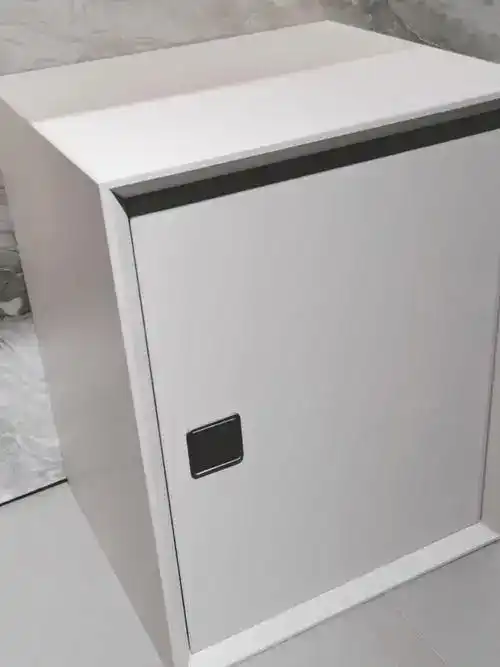

The CNC side hole drilling machine is compatible with the main connection methods for panel furniture. It can process various connection structures such as 3-in-one connectors, dowels, hidden connectors, and Lamino. It is suitable for a wide range of applications.
3. Suitable for Custom Furniture Production
With the advantage of CNC precise positioning, the CNC side hole drilling machine is suitable for the production of various custom cabinets. Whether it is different panel sizes, layout structures, different hole position designs, or small-batch custom orders, it can be easily processed.
4. High CNC Repeated Processing Accuracy
You only need to set the processing data in advance. The hole positions and processing styles of subsequent batch panels can remain highly consistent. This effectively reduces manual errors.
5. Suitable for Digital Production Processes of Panel Furniture
The machine can connect with design data and directly implement the digital panel processing process. It is widely suitable for large-scale production of cabinets, wardrobes, kitchen cabinets, and various types of custom panel furniture.
Parameters
Brand | Alpha CNC |

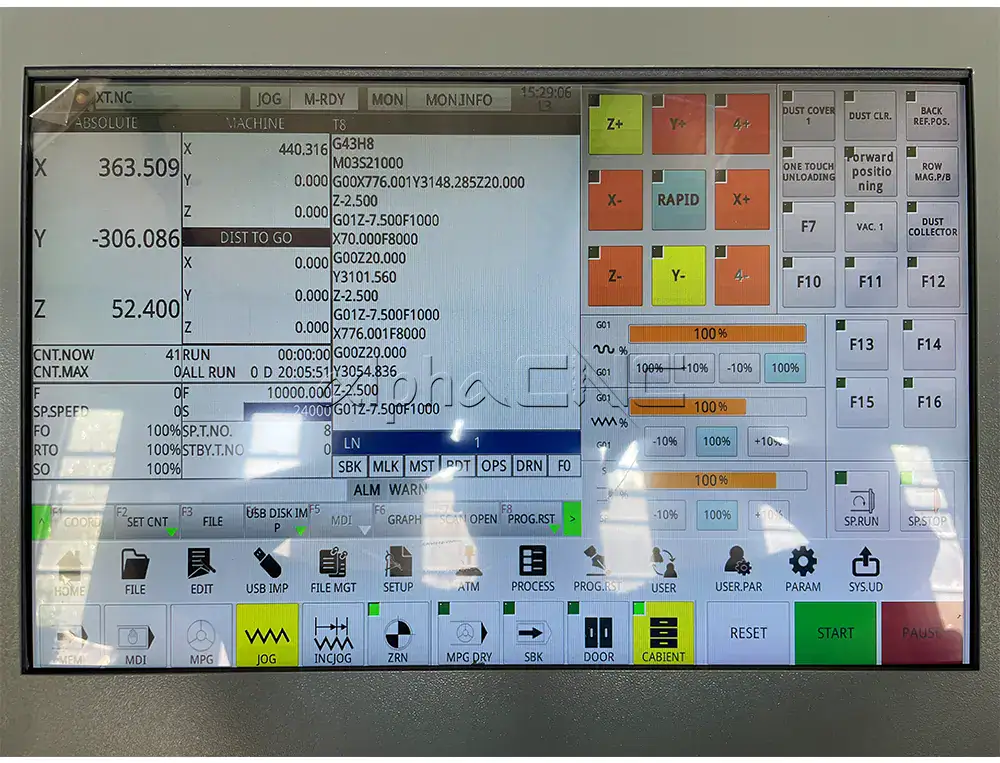

Control System | Syntec/LNC |
Number of Spindles | 3 |
Spindle Speed | 0-18000rpm |
Driving Speed | 60 m/min |
Voltage | 220V/380V |
Power (kW) | 4 |
Processing Materials | Multi-layer panel, solid wood panel, particle panel |
Warranty | 1 year |
Optional items
- Custom Tools
You can select the suitable number and functions of processing tools according to the connectors, hole positions, and groove processing needs of your production. - Laser Positioning System
It can provide positioning assistance and processing reference for panel processing, help you quickly find the processing position, and make alignment more convenient. - Furniture Software Connection
The CNC side hole drilling machine can connect with furniture design software. Whether it can be compatible with your existing software and data format can be configured separately according to your equipment software situation. - Custom Spindle Configuration
You can match the suitable number of spindles and tool combination according to your actual panel processing needs. - Barcode Scanner
It is used to scan panel barcodes and quickly read the processing information of each panel, so that each panel can accurately match the corresponding processing program. - Automatic Panel Positioning

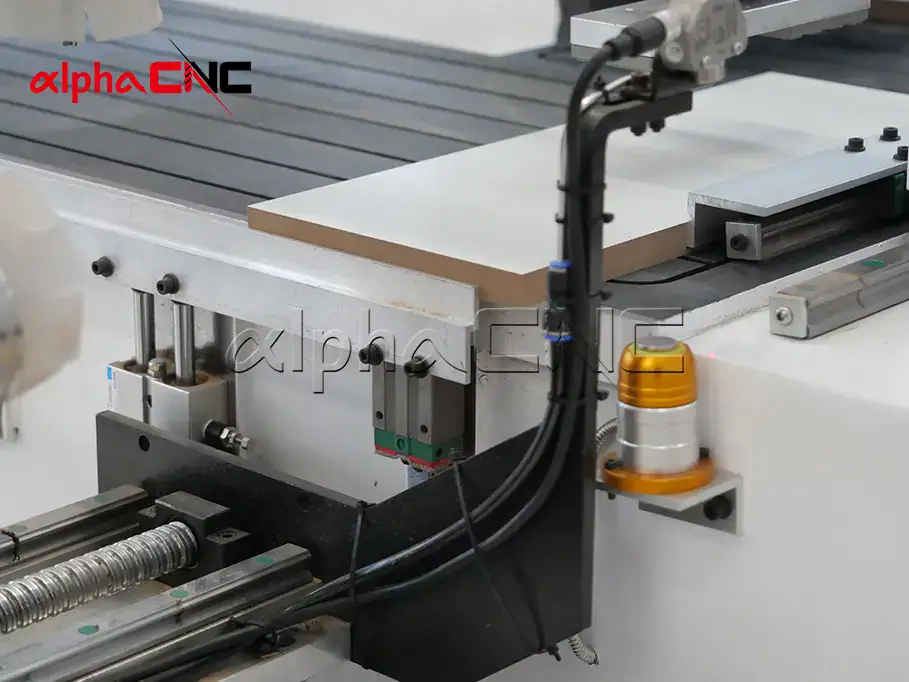

The CNC side hole drilling machine supports automatic panel positioning. There is no need to repeatedly measure and manually place panels. It effectively reduces manual operations.
Frequent asked questions
What is a 3-spindle CNC side drilling machine?
A three-spindle CNC side drilling machine is equipped with 3 independent processing spindles on the machine body. They can separately complete various drilling and slot milling processes. The spindle arrangement can be based on the configuration. When one panel needs multiple hole and groove processes, there is no need to frequently change tools or repeatedly clamp the panel. It is suitable for customized production scenarios. It is easier to operate, and the processing accuracy is also more stable.
What furniture can a side drilling machine make?
This machine can process various panel parts of panel furniture. It can be used to process products such as kitchen cabinets, wardrobes, bookcases, TV cabinets, bathroom cabinets, office furniture, storage cabinets, and shelving systems. It is mainly used to process the connection holes and slots needed for the assembly of various panels. It is suitable for customized order production with different styles and different hole positions.
What materials can it process?
The machine mainly processes common panels used for panel furniture, including MDF, particle board, melamine-faced panels, plywood, and other man-made panels. With the corresponding configuration, it can also process solid wood panels. For different materials and different hole and groove processes, the machine speed, feed speed, tool specifications, and drilling depth need to be adjusted accordingly. It is recommended that you use the actual panels and matching tools for test processing before formal production.
How to choose a suitable CNC side drilling machine?
You need to confirm the panel material, panel thickness, maximum processing panel length, hole position type, connector system, groove size, spindle configuration, tool specifications, and production output in advance. If one panel needs more than three different processing processes, a multi-spindle configuration can effectively reduce machine setup time. If you are doing custom furniture production, you also need to confirm whether the machine control system and supporting software can connect with your existing production process.

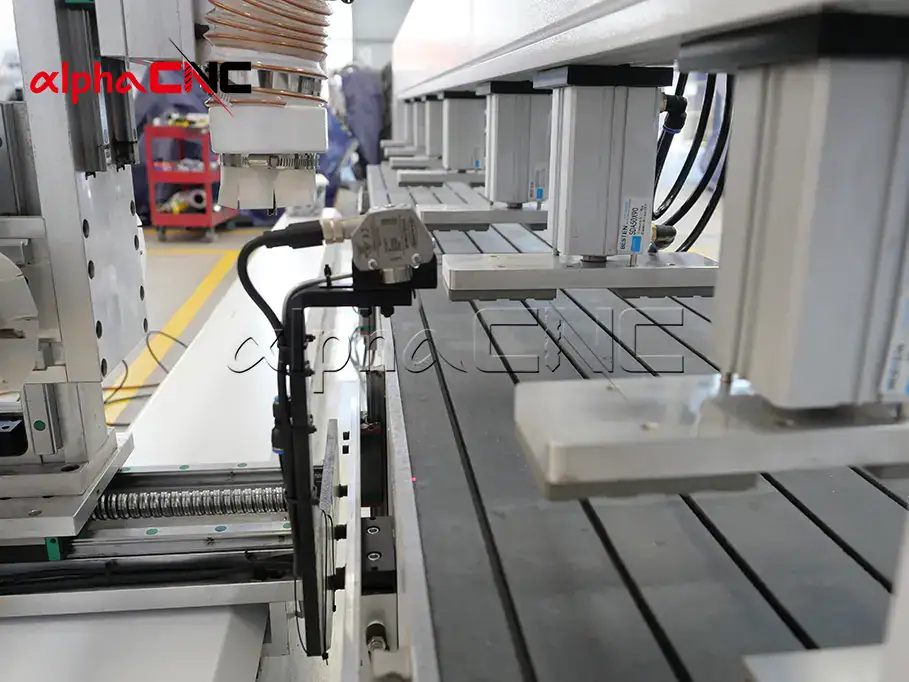

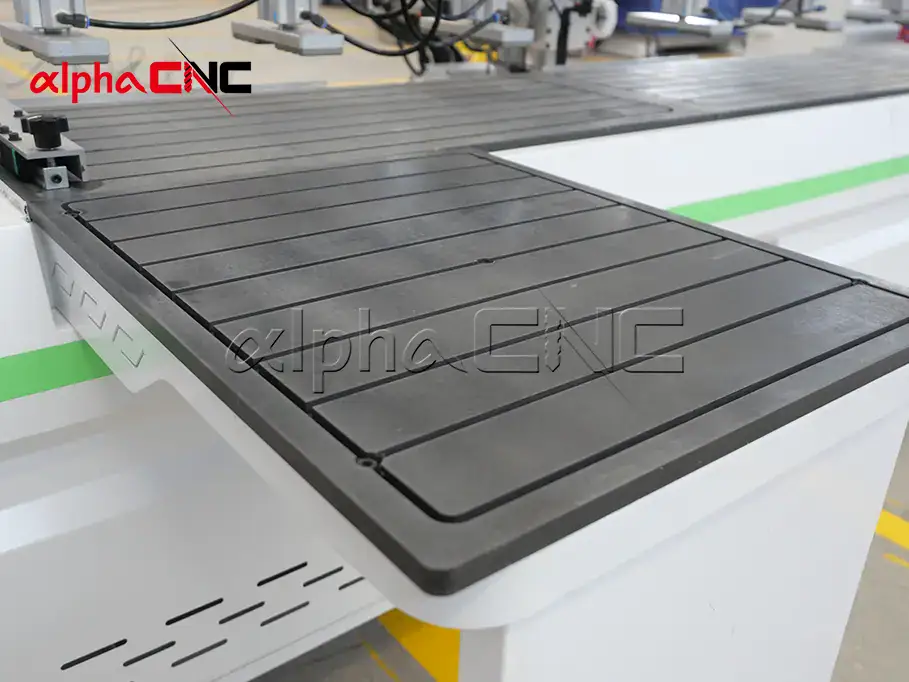

CNC Wood Drilling Machine details
Application
1. Custom Panel Furniture
This machine is suitable for panel assembly furniture manufacturers. Before the panels are assembled into finished products, you can use it to process various holes and connection structures on the sides of the panels.
Applicable products: custom cabinets, kitchen cabinets, wardrobes, bookcases, TV cabinets, bathroom cabinets, office furniture, storage cabinets, shelving systems, and various custom furniture panels.
2. Cabinet Manufacturing
There are many cabinet styles and different sizes. Cabinets with different structures also have different hole position designs. With a CNC side drilling machine, the hole positions can be precisely controlled through programs, reducing the need for manual measuring, marking, and drilling templates.
The machine can process side holes, connector holes, dowel holes, blind holes, and some grooves needed for cabinet assembly.
3. Wardrobe and Custom Storage Furniture Production
Wardrobe orders have large differences in customization. Especially for built-in wardrobes, walk-in closets, and custom storage systems, the panel parameters may be different for each order. You can directly call different CNC processing programs for production, avoiding the tedious process of manually drawing lines and marking each panel.
4. Kitchen Furniture Production
Cabinet production has many repeated side hole and connection processing steps. At the same time, the panel sizes and structures of different projects are flexible and varied. This machine can stably process kitchen cabinet side panels, shelves, dividers, and various custom kitchen furniture panels.
5. Small-Batch and Multi-Product Custom Furniture
For furniture factories with various order styles and frequent specification changes, the core advantage of this machine is not only fast processing speed. With the CNC programming switching function, you can quickly switch production between different panel design plans to meet changing custom order needs.

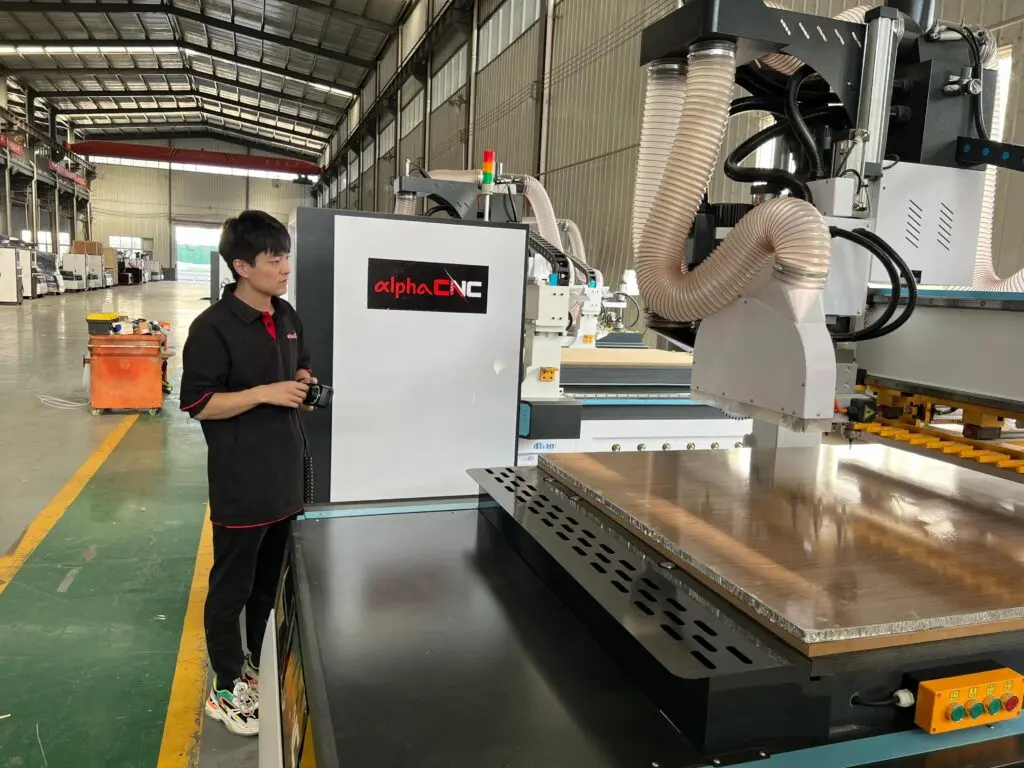

Production facility
Quality control & testing
FAQ
What is a 3-spindle CNC side drilling machine?
A three-spindle CNC side drilling machine is equipped with 3 independent processing spindles on the machine body. They can separately complete various drilling and slot milling processes. The spindle arrangement can be based on the configuration. When one panel needs multiple hole and groove processes, there is no need to frequently change tools or repeatedly clamp the panel. It is suitable for customized production scenarios. It is easier to operate, and the processing accuracy is also more stable.
What furniture can a side drilling machine make?
This machine can process various panel parts of panel furniture. It can be used to process products such as kitchen cabinets, wardrobes, bookcases, TV cabinets, bathroom cabinets, office furniture, storage cabinets, and shelving systems. It is mainly used to process the connection holes and slots needed for the assembly of various panels. It is suitable for customized order production with different styles and different hole positions.
What materials can it process?
The machine mainly processes common panels used for panel furniture, including MDF, particle board, melamine-faced panels, plywood, and other man-made panels. With the corresponding configuration, it can also process solid wood panels. For different materials and different hole and groove processes, the machine speed, feed speed, tool specifications, and drilling depth need to be adjusted accordingly. It is recommended that you use the actual panels and matching tools for test processing before formal production.
How to choose a suitable CNC side drilling machine?
You need to confirm the panel material, panel thickness, maximum processing panel length, hole position type, connector system, groove size, spindle configuration, tool specifications, and production output in advance. If one panel needs more than three different processing processes, a multi-spindle configuration can effectively reduce machine setup time. If you are doing custom furniture production, you also need to confirm whether the machine control system and supporting software can connect with your existing production process.
Review
Custom Panel Furniture
June 18, 2026
"We do custom cabinet production. We mainly use it to process connector holes, panel side holes, and various Lamino processes. This three-spindle side drilling machine has very stable processing, and the consistency of the finished products is also very good."
