Double Drill Unit ATC Automatic Tool Change 6-Sided CNC Drilling Machine
Description
This six sided CNC drilling machine combines dual independent drill bags and ATC spindle, which can complete all six surface machining of wooden boards in one clamping. Unlike single head models, it greatly reduces cycle time while supporting slotting, hinge holes, side groving, and front milling. Specially designed for medium to large customized furniture workshops that pursue stable production and reduce long-term production costs.
Features
- Dual independent drilling packages run simultaneously, resulting in a 30% increase in productivity for batch cabinet drilling orders compared to single drilling package six sided machines.
- Built in linear ATC automatic tool changing device; Continuous slotting, milling, and porous processing do not require manual tool change.
- One panel clamping can complete drilling and slotting of six surfaces (top, bottom, left, right, front, and back), eliminating errors caused by flipping and repeated positioning.
- Equipped with heavy-duty welding steel bed and servo frame drive system, ensuring stable accuracy of ± 0.05mm in batch production, stable even after long-term operation, without hole misalignment.

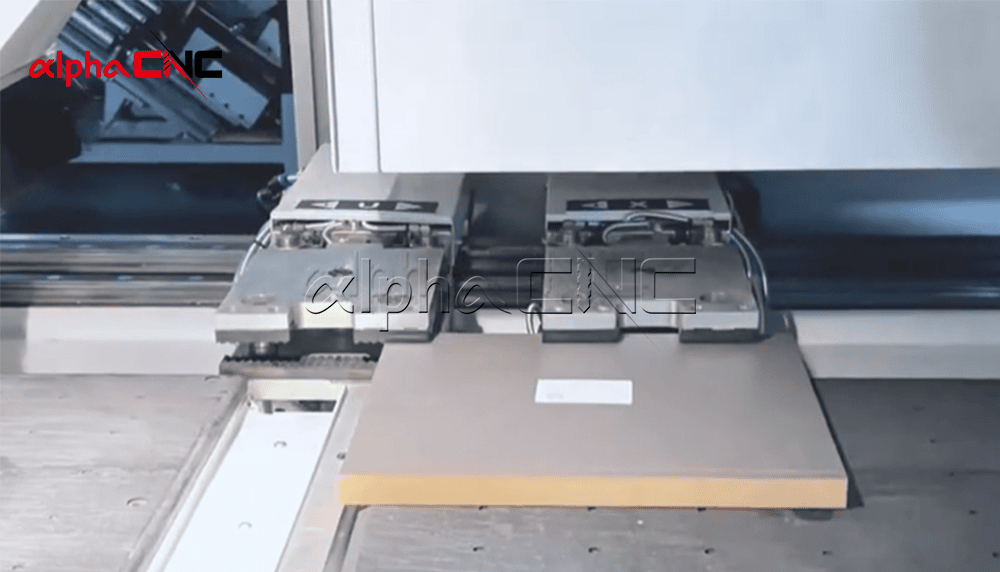

- Air floating workbench to prevent scratches on the surface of the panel; Intelligent fixture automatically adjusts the position of narrow strips and oversized plates.
- Fully enclosed dust-proof casing protects internal drive components and extends machine lifespan during heavy daily woodworking work.
Parameters
Panel size | Width: 50-1220mm Length: 250-2800mm Thickness: 12-45mm |
Number of tools | Vertical top drilling*2 + bottom vertical drilling*1 |
Voltage/frequency | 380V/50HZ/3P |
Control system | NC studio V5/Syntec |
Spindle type | HQD 3.5KW 118000 rpm |
Inverter | Best/Fuling/Delta |
Tool magazine capacity | 6 Tools ISO30 |
Driver system | Servo motor |
Reducer | Shimpo |
Worktable | Air floatation table |
Lubrication system | 1.5L Automatic lubrication |
Optional items
- Upgrade production line, equipped with automatic loading and unloading system, edge banding machine, sanding machine, four sided saw, reducing manual intervention.
- Centralized dust removal linkage system to reduce the accumulation of sawdust in the workshop.
- Additional side milling spindle for deep groove and embedded handle groove machining
- Extended workbench for processing ultra long solid wood panels up to 3200mm in length
- Wireless barcode scanning module, one click batch order program call
- CE certified voltage conversion kit that complies with EU, US, and Southeast Asian factory power standards
Frequent asked questions
Q: How much faster is the double drill version than standard single drill six-sided drilling machines?
A: The dual drill pack simultaneously handles symmetrical hole layouts and dispersed porous layouts. In actual batch production of cabinets, the processing time of single panels can be reduced by 25-35%. For factories that rotate 8 hours a day and produce over 60 panels per day, the efficiency gap directly shortens the order delivery cycle, allowing you to handle more seasonal urgent orders steadily.
Q: Is professional CNC programming experience required to operate this six-sided driller?
A: Advanced numerical control skills are not required for daily operations. Our English control system panel is very simple; You only need to import files from furniture design software or scan the order barcode directly. Through our remote video training and step-by-step operation manual, most ordinary workshop workers have fully mastered the basic operations within 2-3 days.
Q: What panel thickness and size ranges does this machine support?
A: It can accommodate panels ranging from 12mm to 45mm thick, 250mm to 2800mm long, and 50mm to 1220mm wide. Small narrow edge strips and wardrobe side panels can be clamped and stably processed. The system can automatically detect panel size and adjust processing paths, helping you reduce board waste and positioning errors.
Q: How long is the warranty period, and how do you provide overseas after-sales support?
A: We offer a 1-year warranty for the entire machine and a lifetime supply of paid spare parts. Our technical team is available 24/7 online, providing technical support and troubleshooting through video calls; If on-site service is required, our technicians will arrive at your factory within 3-8 working days based on the actual situation to help you solve the problem.
Q: Can this six-sided driller connect with my existing nesting machine and edge banding machine production line?
A: Of course. Its feeding and discharging speed is perfectly matched with mainstream nesting and edge sealing equipment. We can adjust the machine layout and operating parameters based on your existing production line to establish a fully automated panel furniture processing process, without the need for additional modification costs to the existing machines. Now tell us your needs and we will provide you with a tailored solution.
cnc 6 sided drilling machine details
Application
- Custom kitchen cabinets, bedroom wardrobes, bathroom vanities
- Office storage cabinets, walk-in closet systems
- Knockdown furniture with Lamello, 2-in-1 & 3-in-1 invisible connectors
- Wooden door frames, drawer components and interior decorative wood panels
Production facility
Quality control & testing
FAQ
Q: How much faster is the double drill version than standard single drill six-sided drilling machines?
A: The dual drill pack simultaneously handles symmetrical hole layouts and dispersed porous layouts. In actual batch production of cabinets, the processing time of single panels can be reduced by 25-35%. For factories that rotate 8 hours a day and produce over 60 panels per day, the efficiency gap directly shortens the order delivery cycle, allowing you to handle more seasonal urgent orders steadily.
Q: Is professional CNC programming experience required to operate this six-sided driller?
A: Advanced numerical control skills are not required for daily operations. Our English control system panel is very simple; You only need to import files from furniture design software or scan the order barcode directly. Through our remote video training and step-by-step operation manual, most ordinary workshop workers have fully mastered the basic operations within 2-3 days.
Q: What panel thickness and size ranges does this machine support?
A: It can accommodate panels ranging from 12mm to 45mm thick, 250mm to 2800mm long, and 50mm to 1220mm wide. Small narrow edge strips and wardrobe side panels can be clamped and stably processed. The system can automatically detect panel size and adjust processing paths, helping you reduce board waste and positioning errors.
Q: How long is the warranty period, and how do you provide overseas after-sales support?
A: We offer a 1-year warranty for the entire machine and a lifetime supply of paid spare parts. Our technical team is available 24/7 online, providing technical support and troubleshooting through video calls; If on-site service is required, our technicians will arrive at your factory within 3-8 working days based on the actual situation to help you solve the problem.
Q: Can this six-sided driller connect with my existing nesting machine and edge banding machine production line?
A: Of course. Its feeding and discharging speed is perfectly matched with mainstream nesting and edge sealing equipment. We can adjust the machine layout and operating parameters based on your existing production line to establish a fully automated panel furniture processing process, without the need for additional modification costs to the existing machines. Now tell us your needs and we will provide you with a tailored solution.
Review
Custom Cabinet Factory Owner
November 28, 2025
We chose this machine mainly for the processing of invisible joints for our customized wardrobe. The automatic tool changing device of Alpha CNC machine works smoothly without jamming, and the dual drill bits greatly accelerate the repetitive drilling work. Their machine manufacturing quality is very stable to use.
