Alpha CNC AMS-4 Multi‑Spindle CNC Router with Built‑in Rotary Axis
4 Spindle Multi-spindle CNC Router Machine Wood MDF Milling Engraving Drilling Wood CNC Machine
Description

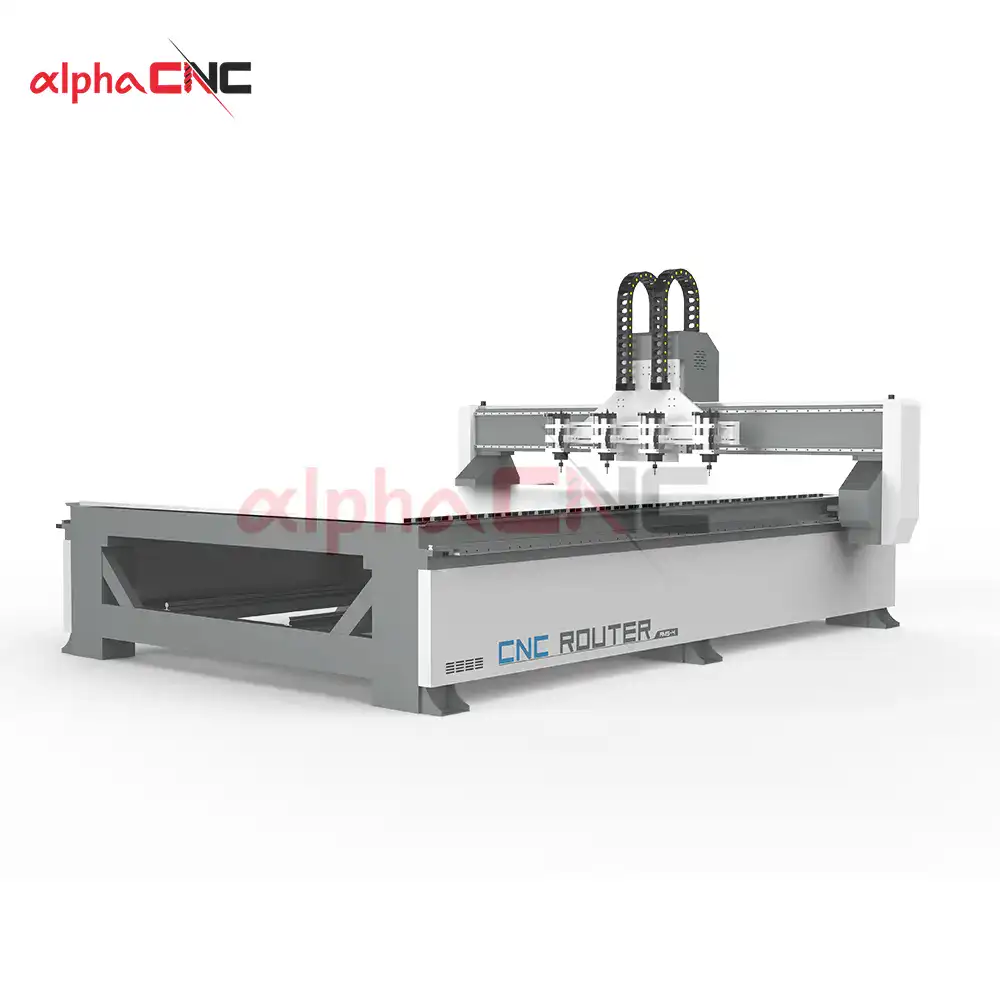

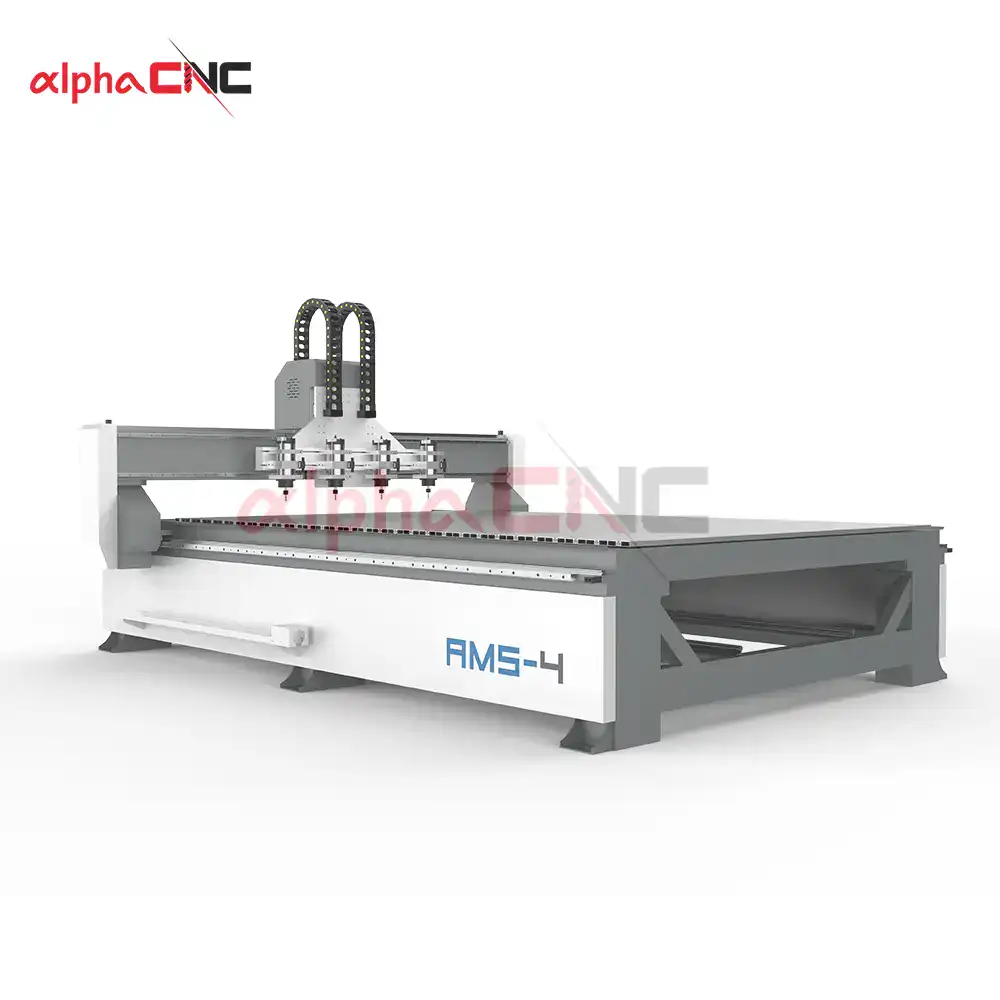

AMS-4 CNC engraving machine combines a four-spindle flat processing system with a built-in rotary axis in one machine, allowing users to complete flat sheet processing and cylindrical carving on a single machine.

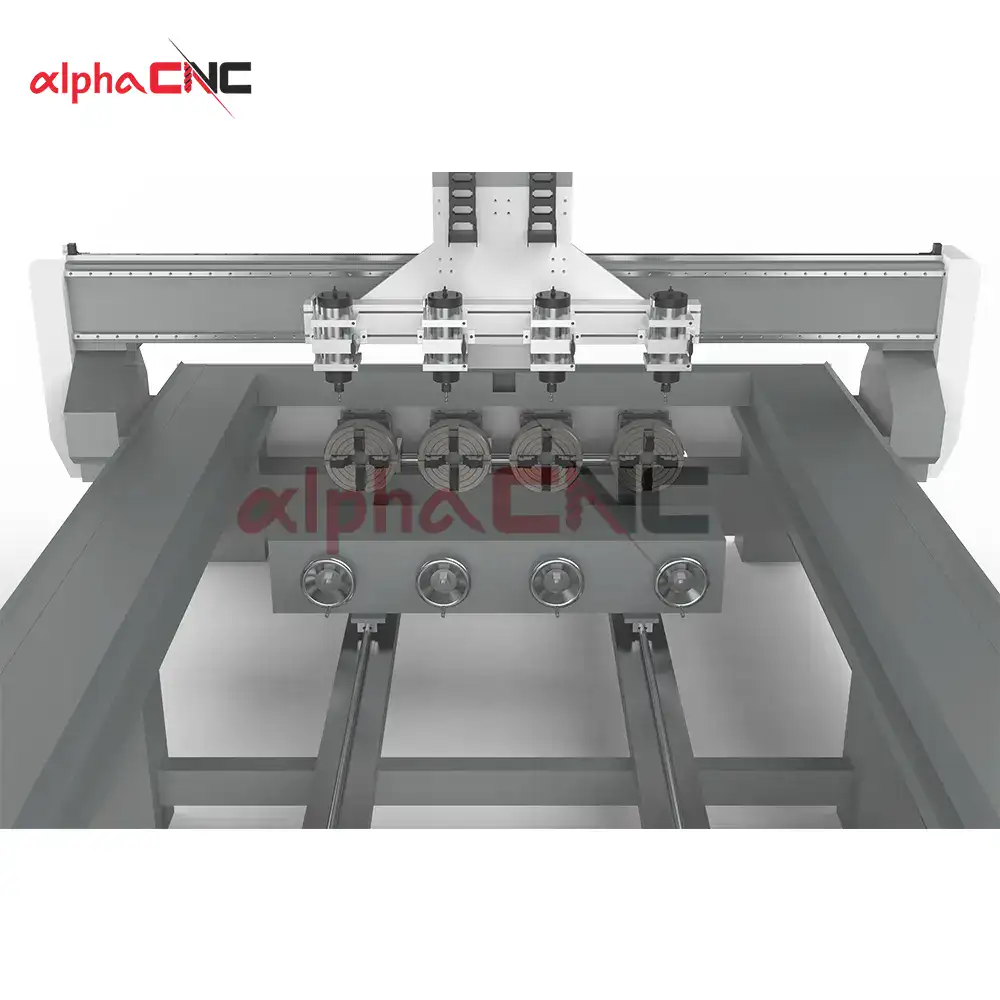

The rotary axis is built into the machine table, which can keep the work area clean and save factory space. When you need rotary processing, simply move the work table away and use the rotary system. When adding the work table, the AMS-4 can run as a standard 3-axis multi-spindle CNC router.
4 spindles configuration is suitable for repeated production. It can reduce downtime and frequent tool-change time to improve daily production efficiency.
Features
- Four-Spindle System

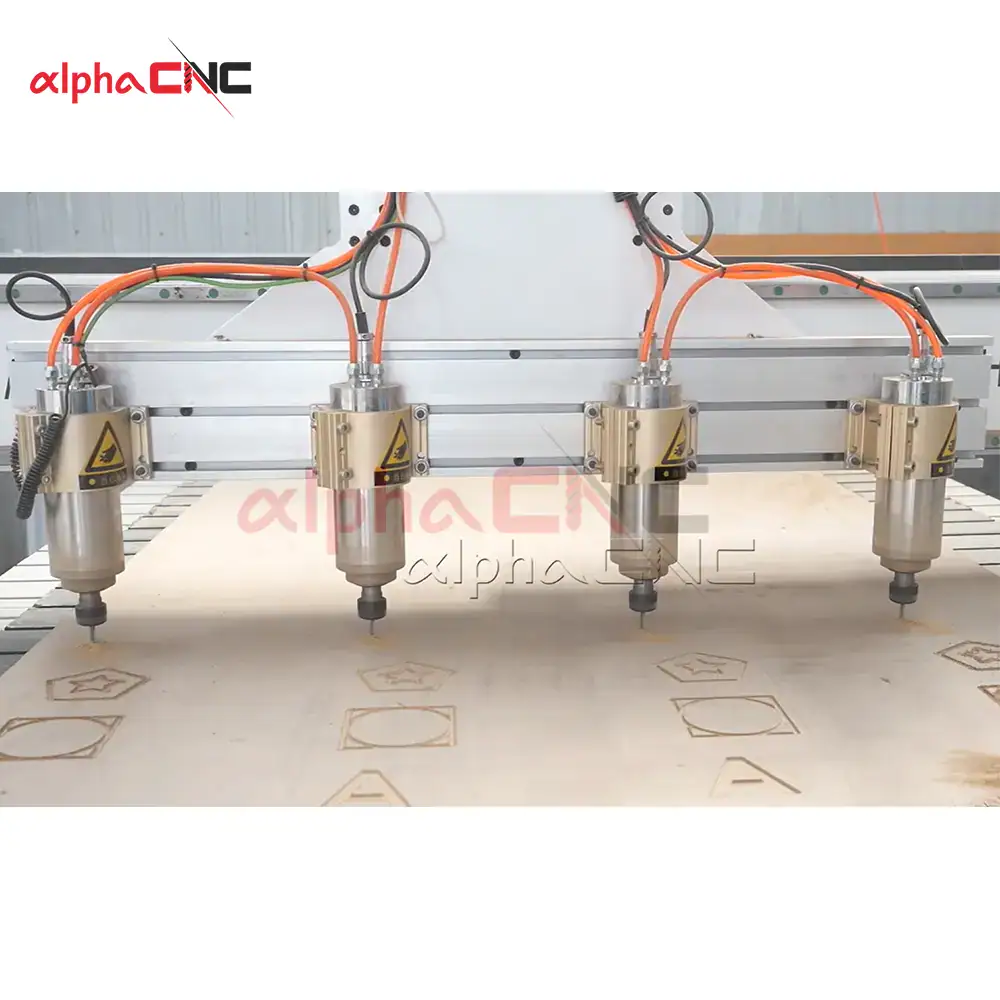

The AMS-4 CNC router has 4 spindles. It can process multiple of the same workpieces simultaneously, improving production efficiency for panel sheets, signs, reliefs, and other repeated processing tasks. Compared with a single-spindle CNC router, it reduces tool changing and waiting time.

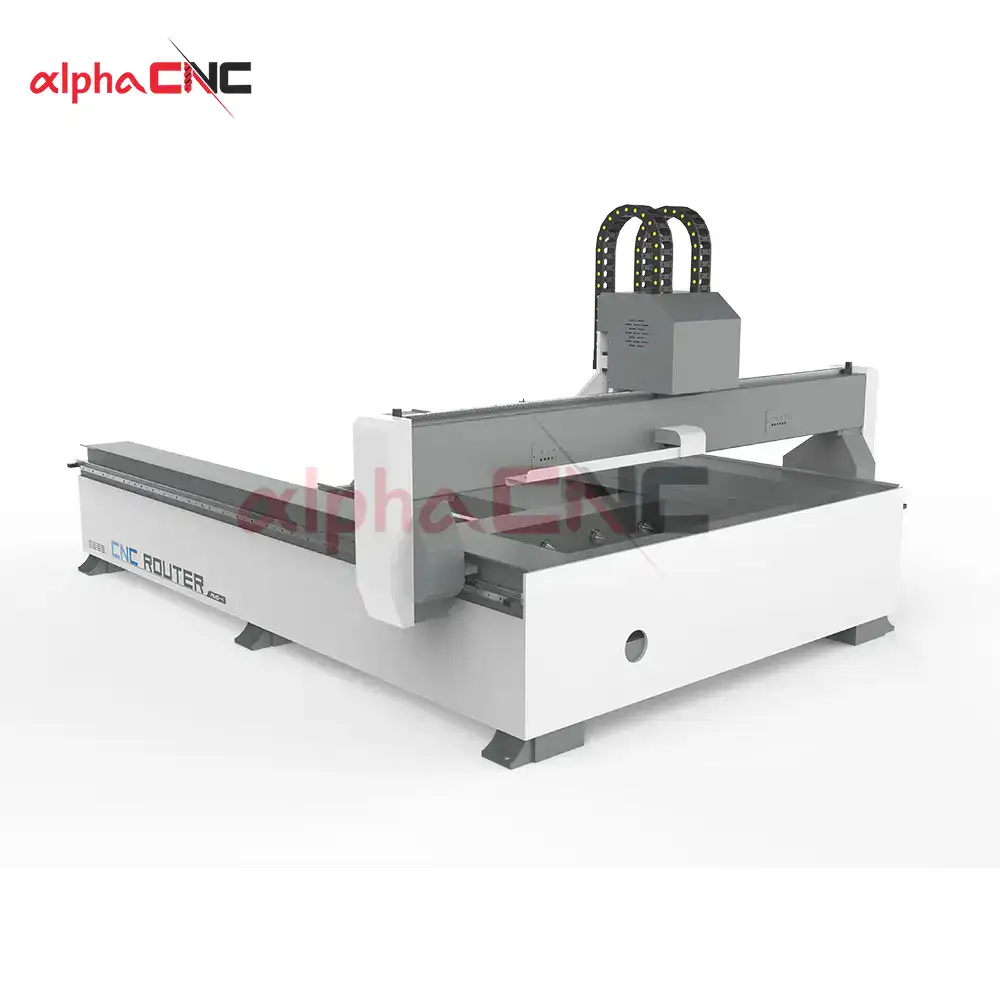

- Worktable with Built-In Rotating Axis

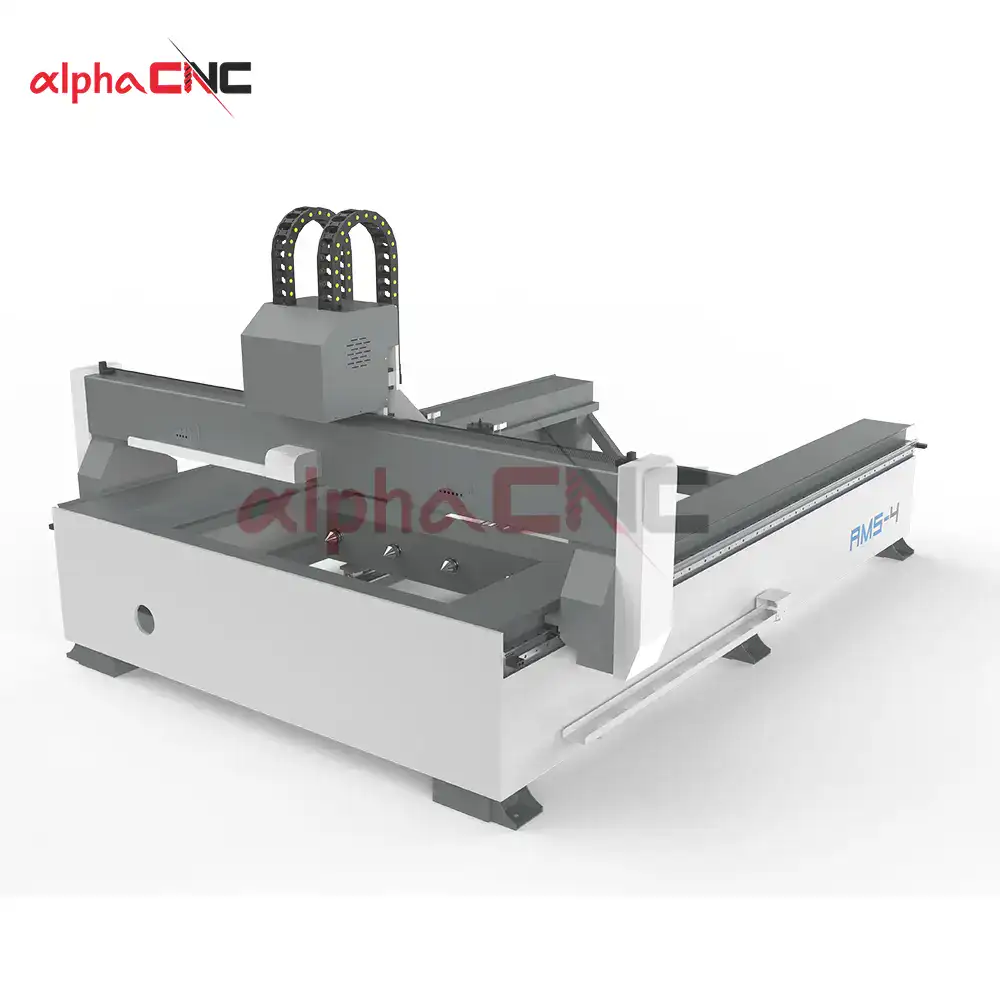

The worktable does not feature extra rotary parts because of the internal rotary axis. It can save workshop space and keep it clean.
Operation of the rotary axis is easy. When processing cylindrical parts, you need to remove the worktable and start the rotary axis. The function is very suitable for manufacturers processing cylindrical, upright wooden shafts, and various cylindrical workpieces.
- One CNC Router for Multi-Function
A CNC router can process both panel sheet and cylindrical workpieces. The machine supports cutting, carving, relief, and 3D products. Besides, it has a lower investment and more processing types.
- Mechanical Structure
Built based on a mature and stable 3-axis CNC structure, reducing the learning cost while ensuring processing stability and reliability during long-term production.
Parameters
Brand | Alpha CNC |
Machine Type | Multi-spindle CNC Router with Built-in Rotary Axis |
Working Modes | Flat-sheet mode + Rotary cylindrical mode |
Spindle Quantity | 4(6 or 8 optional) |
Spindle Power | 2.2kw(1.5–4.5 kw) |
Spindle Speed | 0–24000 rpm |
Spindle Expandability | Customizable |
Guide Rail | Taiwan Linear guide |
Transmission | X, Y axis: Taiwan /Germany helical rack and pinionZ axis: Taiwan high precision ball screw |
Drive Motor | Stepper or servo motor (configurable) |
Controller | DSP/Syntec/LNC Control system |
File Format | G-code |
Voltage | 220V 1PH/3PH 50HZ/60HZ380V 3PH 50HZ/ 60HZ |
Machine Dimension | 1300*2500 option: 1300*2800mm; 2000*3000mm; 2100*4000mm, etc. |
Tool calibration | Automatic tool sensor calibration |
Optional items
- Add Spindle: Improve batch processing capability.
- Servo Motor Kit: Increase feed speed, run more quietly.
- Dust System: Reduce processing dust, keep the working area clean.
- Table Size: Provide a 1325/1328/1530/1630/1928/2030 mm configured working area.
- Optional: Customized for your actual requirements.
Frequent asked questions
Can the 4 spindles and rotary axis work at the same time?
AMS-4 adopts an independent process mode. The 4 spindles and rotary axis work independently. When processing cylindrical workpieces, only open the worktable to use the built-in rotary axis. After adding a worktable, it can be converted to flat processing. This design separates flat processing and cylindrical processing; it avoids risks of mechanical interference and collision and reduces vibration.
Can I add more spindles after the machine is received?
Yes. This machine has reserved installation positions and space for the spindle, which can be used to add additional spindles. When the order volume of your factory increases at a later stage, you can increase the number of spindles according to your needs, without replacing the entire machine. We suggest that you inform us of your requirements and estimated number of spindles when placing an order, so that we can provide you with corresponding solutions and reduce the need for later machine function changes.
What after-sales service can you provide after we receive this machine?
We provide 24/7 online service. We can help you solve machine problems through telephone and video communication. If spare parts need to be replaced, we can also provide corresponding spare parts support. For problems that cannot be solved remotely, we will arrange on-site technical support according to the actual situation to assist customers in solving problems.
In which countries and regions is this CNC router more popular?
This four-spindle router can process both flat parts and cylindrical parts. It is mainly more popular in the Middle East market. There is a lot of demand for furniture processing, woodworking decoration, handicrafts, and cylindrical carving in that area. The machine can handle both flat sheets and 3D cylinders. Local processing factories can also use it to make different types of products, so customers recognize it more.
Industrial CNC Router details
Application
1. Suitable for small and medium-sized processing workshops and custom woodworking enterprises.
2. This machine can meet the processing needs of flat sheets and cylindrical workpieces.
It can be used for processing various products such as architectural decorative reliefs, furniture legs, stair columns, cylindrical handicrafts, and others.
3. After the order volume increases, the batch processing capability of the same products can be improved by adding spindles.
There is no need to make excessive investment in the early stage, and it can be gradually expanded according to actual production needs.
4. Supports materials such as wood, MDF, suitable for custom orders and medium-batch production.
5. More suitable for processing workshops with multiple product types and mixed orders.
Production facility
Quality control & testing
FAQ
Can the 4 spindles and rotary axis work at the same time?
AMS-4 adopts an independent process mode. The 4 spindles and rotary axis work independently. When processing cylindrical workpieces, only open the worktable to use the built-in rotary axis. After adding a worktable, it can be converted to flat processing. This design separates flat processing and cylindrical processing; it avoids risks of mechanical interference and collision and reduces vibration.
Can I add more spindles after the machine is received?
Yes. This machine has reserved installation positions and space for the spindle, which can be used to add additional spindles. When the order volume of your factory increases at a later stage, you can increase the number of spindles according to your needs, without replacing the entire machine. We suggest that you inform us of your requirements and estimated number of spindles when placing an order, so that we can provide you with corresponding solutions and reduce the need for later machine function changes.
What after-sales service can you provide after we receive this machine?
We provide 24/7 online service. We can help you solve machine problems through telephone and video communication. If spare parts need to be replaced, we can also provide corresponding spare parts support. For problems that cannot be solved remotely, we will arrange on-site technical support according to the actual situation to assist customers in solving problems.
In which countries and regions is this CNC router more popular?
This four-spindle router can process both flat parts and cylindrical parts. It is mainly more popular in the Middle East market. There is a lot of demand for furniture processing, woodworking decoration, handicrafts, and cylindrical carving in that area. The machine can handle both flat sheets and 3D cylinders. Local processing factories can also use it to make different types of products, so customers recognize it more.
