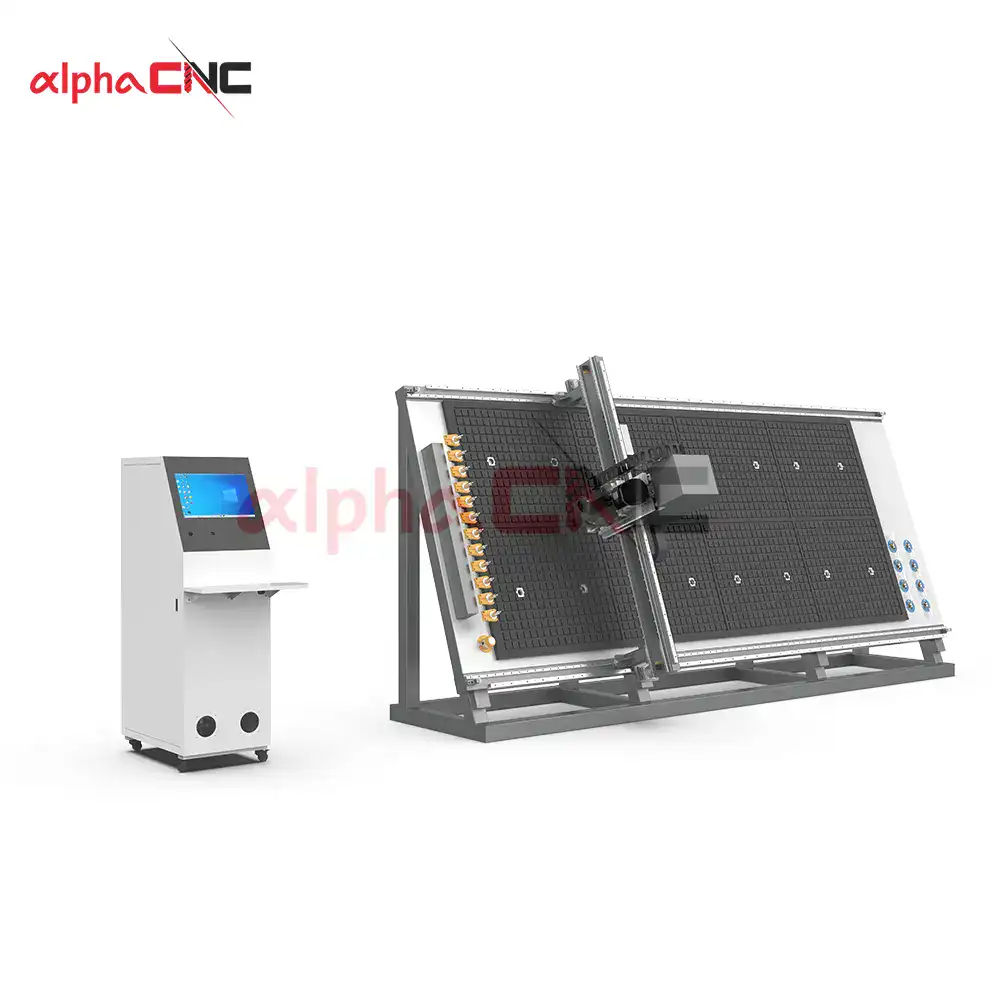

Alpha CNC Tilting Bed CNC Router with Vacuum Table
Description

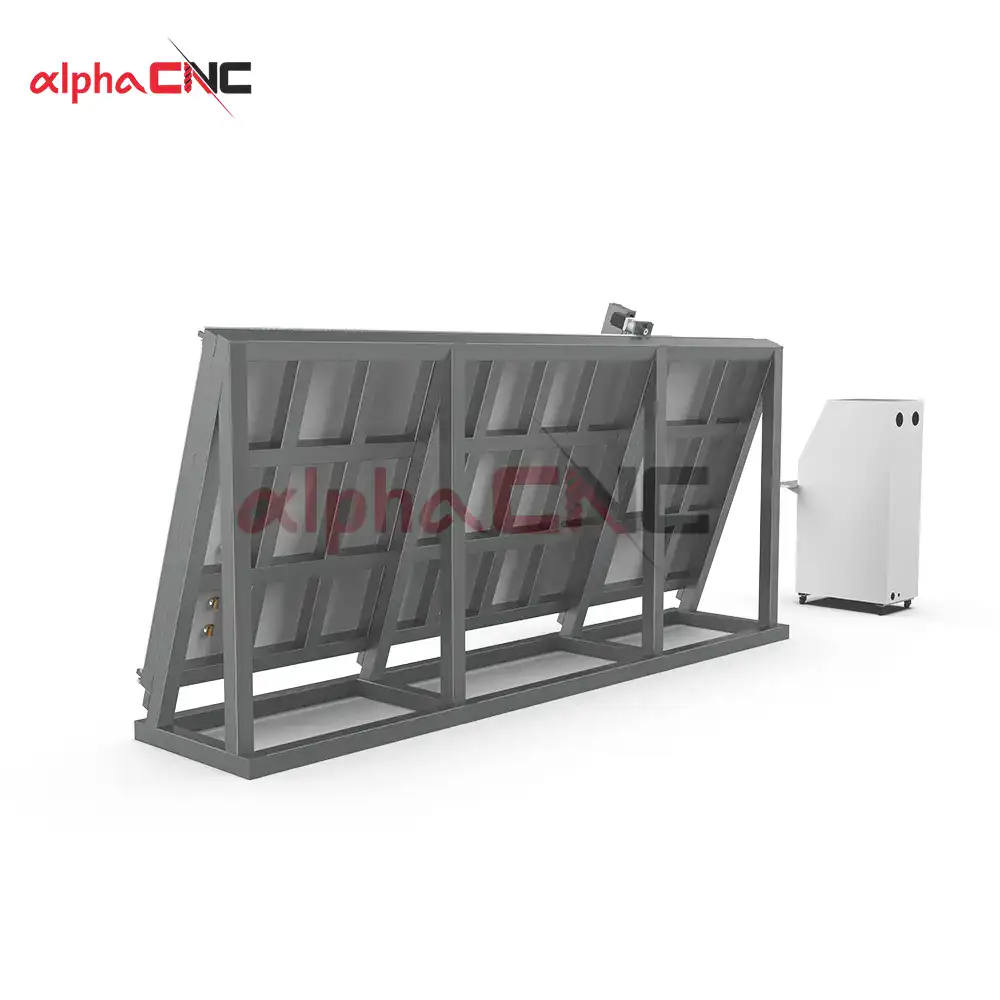

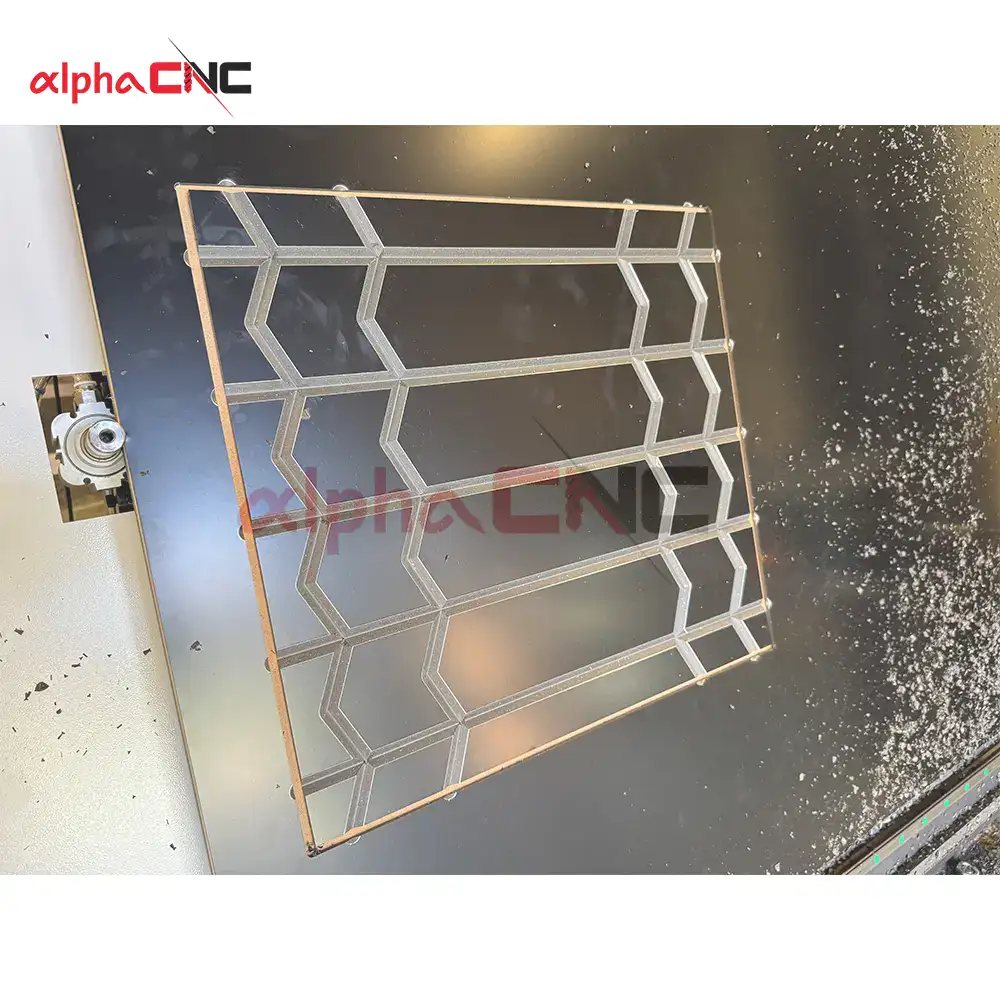

This tilting bed CNC router is equipped with a special tilting bed structure. You can place the machine horizontally according to the space needs, or place it vertically against the wall directly. Compared with traditional flat bed machines, it can save about 50% of the floor space. The machine is equipped with a partitioned vacuum adsorption table, supports independent control of each section, and is flexible and convenient to use. It can meet the carving and cutting needs of various materials such as wood, MDF, acrylic, PVC, foam, composite panels and other materials.
Features
Tilting Bed Design: The machine bed uses a tilting structure. The chips produced during processing can automatically slide down by gravity, effectively preventing chip buildup. Compared with flat bed machines, this tilting structure has better rigidity, less vibration during processing, and can give the workpiece a higher surface finish.

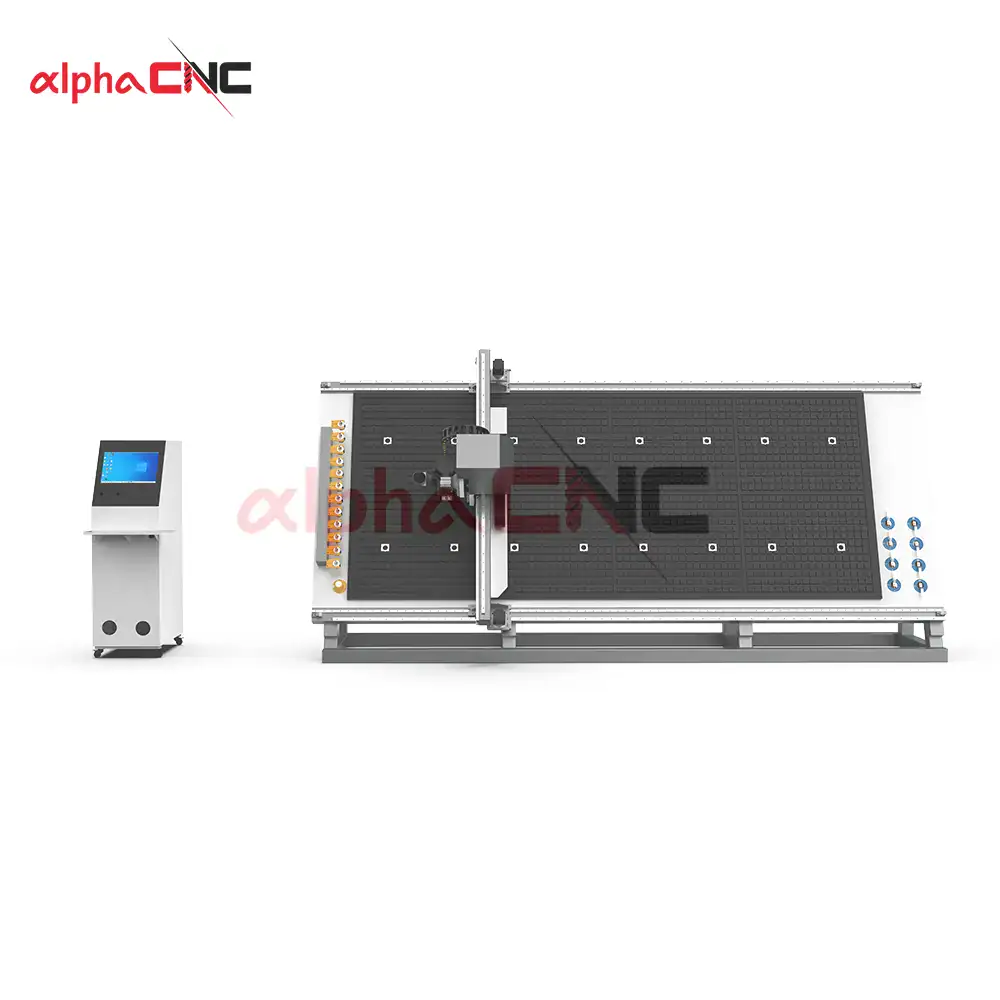

Vertical and Horizontal Placement Ways: You can choose to place the machine vertically against the wall or horizontally according to the space conditions. When the machine is used vertically, it can save about 50% of the floor space compared with traditional flat bed engraving machines, and is very suitable for users with limited workshop space.

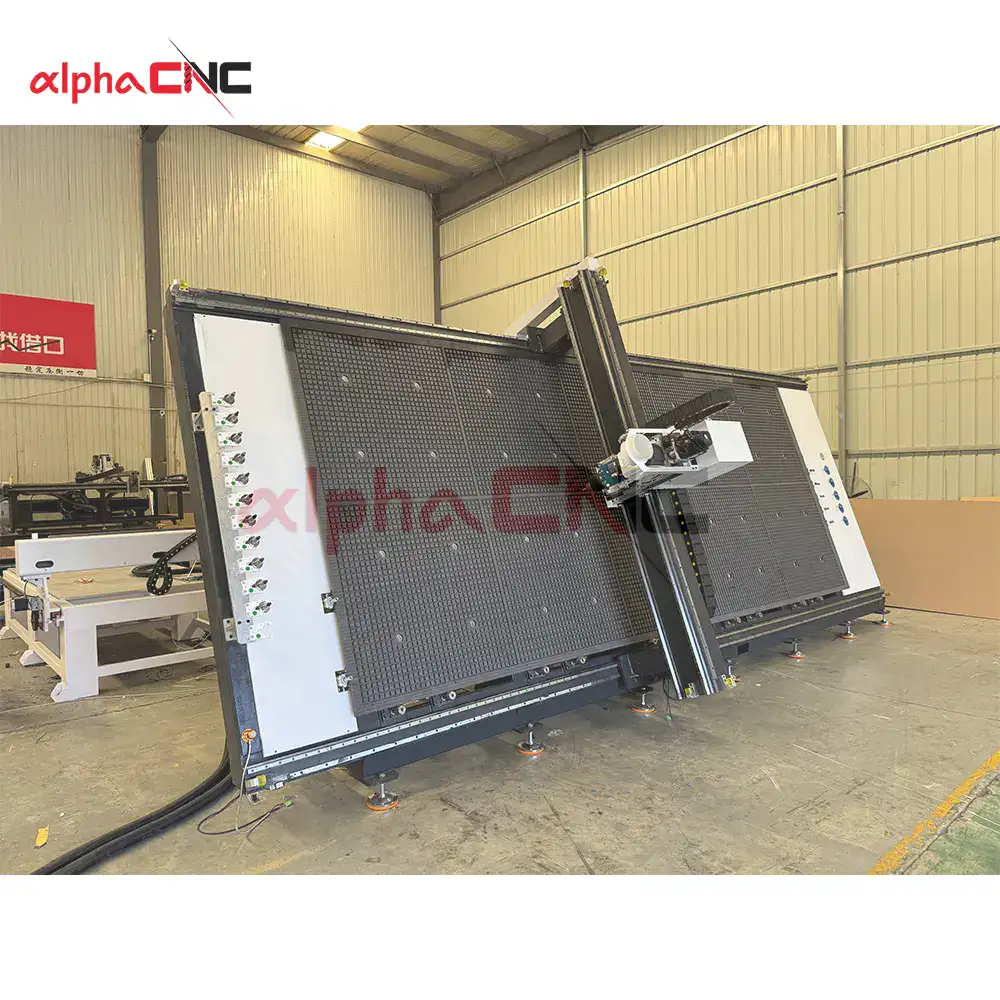

Partitioned Vacuum Table: The table is divided into multiple independent vacuum areas. You can turn on the corresponding adsorption area separately according to the workpiece size. The machine adsorption pressure can reach 0.4-0.8MPa. When processing small workpieces, you can turn off unused areas to make the suction more concentrated and also effectively reduce energy consumption.
Automatic Tool Changing System: Equipped with a linear tool magazine, reducing machine downtime and waiting time and manual intervention. It is suitable for continuous processing with multiple processes and improves batch production efficiency. The tool magazine capacity depends on the model, commonly with 8 tool positions or 12 tool positions.
High-Precision Transmission System: The X and Y axes of the machine use rack transmission, the Z axis uses a ball screw, and the machine is equipped with imported linear guide rails. The overall load-bearing capacity is strong, and the machine runs smoothly and steadily throughout the whole process.
Parameters
Brand | Alpha CNC |
Work aera | 2000*4000mm, 2000*5000mm, 2000*6000mm, etc. |

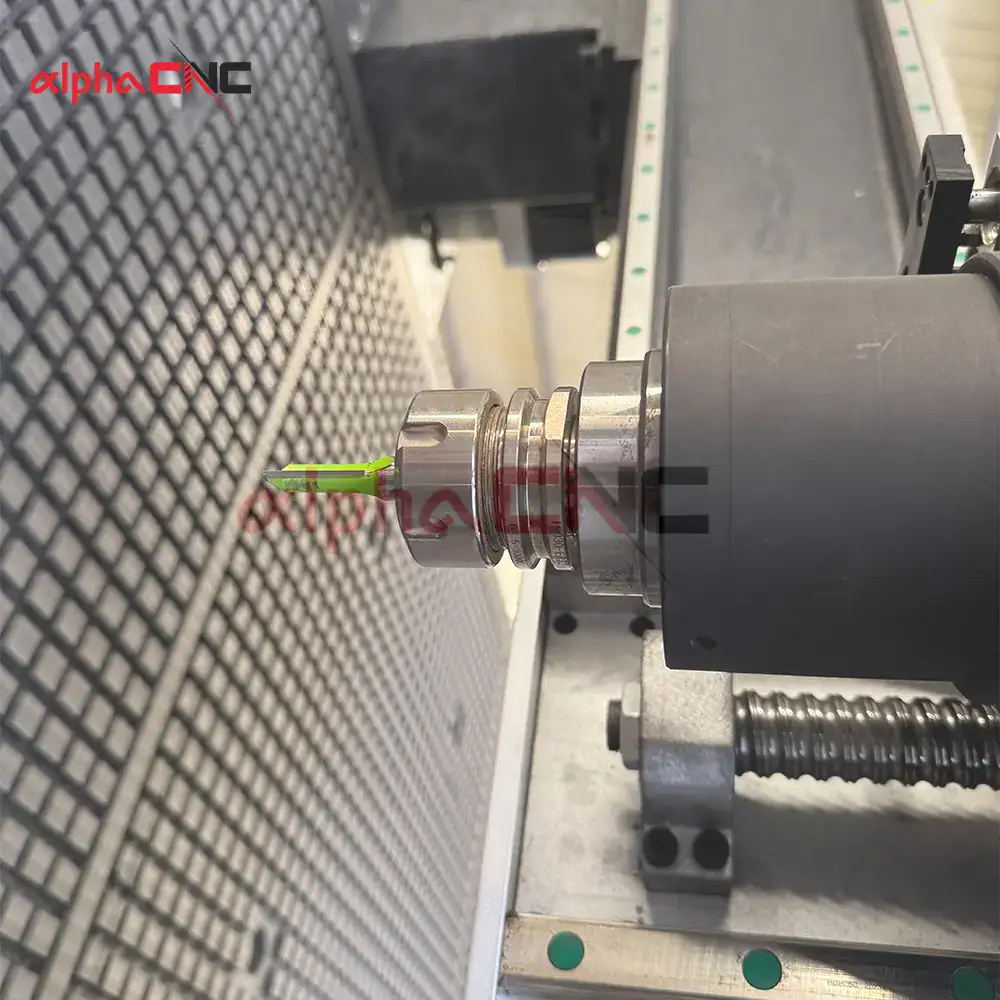

Spindle | ATC air cooling spindle |
Tool magazine | Linear tool magazine |

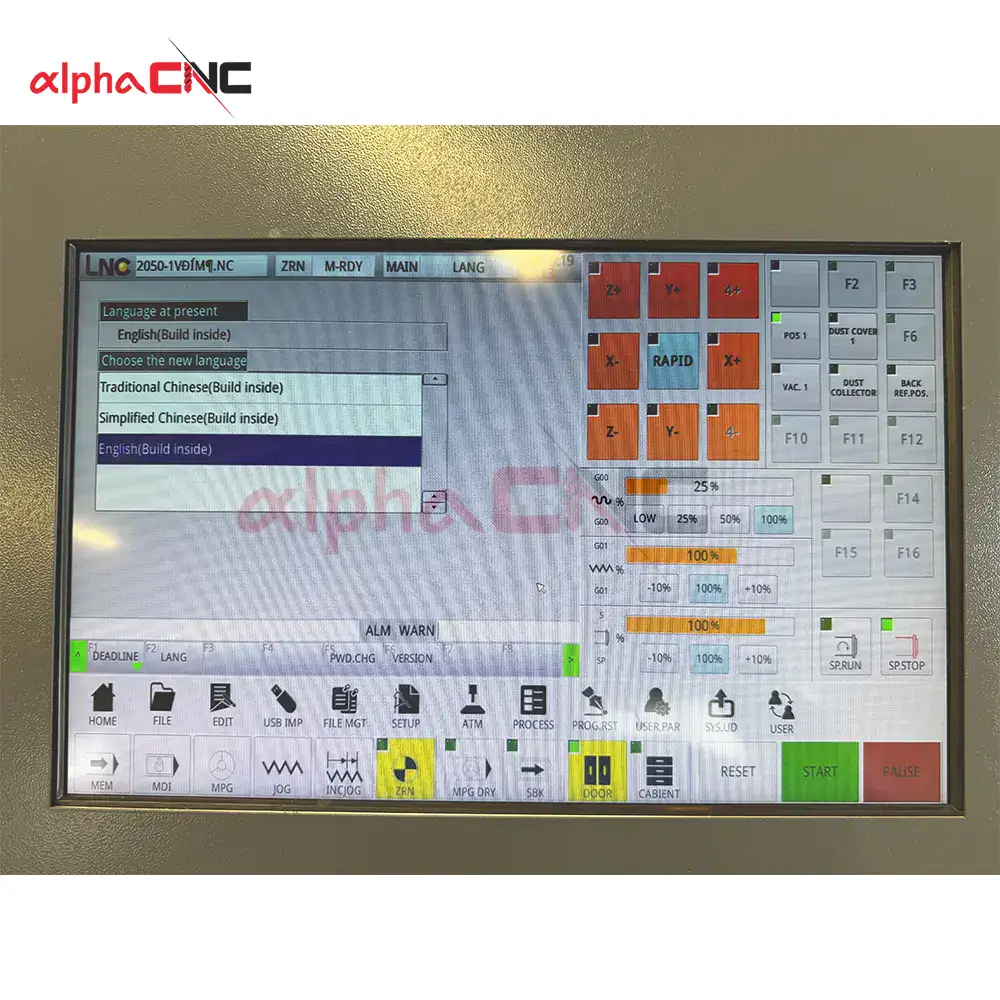

Control system | LNC/SYNTEC controller |
Driving system | Driving servo motor |
Work table | T-slot & vacuum work table |
Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire,etc |
Command language | G Code & M Code |
Working air pressure | 0.8MPa |
Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/60HZ |
Optional items
- Vacuum Pump: Supports multiple power options
- Spindle: Two types are available, water-cooled and air-cooled. The spindle power can be selected as needed.
- Automatic Lubrication Device: Equipped with an automatic lubrication structure to ensure stable operation of the machine.
- Rotary Axis: A rotary axis can be added, specially for processing various cylindrical workpieces.
- Dust Collection System: A dust collection system can be selected to improve the working environment.
Frequent asked questions
How to use the vacuum adsorption table?
You only need to place the board on the table, start the vacuum pump, and open the valve of the corresponding area. The negative pressure produced can firmly fix the board, without manual clamping. The table uses a partitioned structure. When processing small boards, you only need to open the corresponding working area, and there will be no air leakage. Compared with the traditional manual fixing method, it can effectively shorten the board clamping time and improve processing efficiency.
What is the difference between vertical and horizontal placement of the machine?
Vertical placement means placing the machine vertically against the wall, which can save about 50% of the floor space. Horizontal placement is the placement method of conventional flat machines. Under both placement modes, the machine processing accuracy and machine functions are exactly the same. The only difference is the space occupied. This tilting bed machine is very suitable for small factories with limited space.
What size vacuum pump does the machine need?
Our commonly used standard configuration is a 5.5KW vacuum pump. The greater the vacuum pump power, the stronger the overall adsorption performance. You can choose a suitable power according to the board size and processing material. If processing large-area boards or MDF and other materials, it is recommended to use a high-power vacuum pump.
How is after-sales service guaranteed?
Alpha CNC provides a one-year warranty for the whole machine. The specific warranty period can be determined according to the machine configuration. We have a professional after-sales technical team that can provide services such as machine installation and commissioning, and operation training. We provide online support 24 hours a day to answer and solve machine use problems. Common wearing parts are in stock and can be shipped quickly.
3 Axis ATC CNC Router details
Application

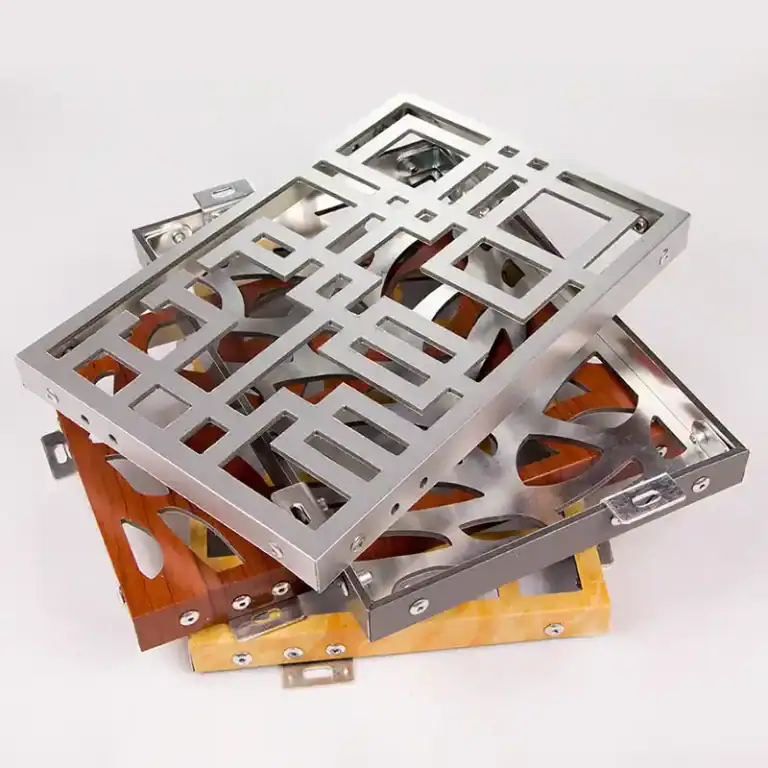

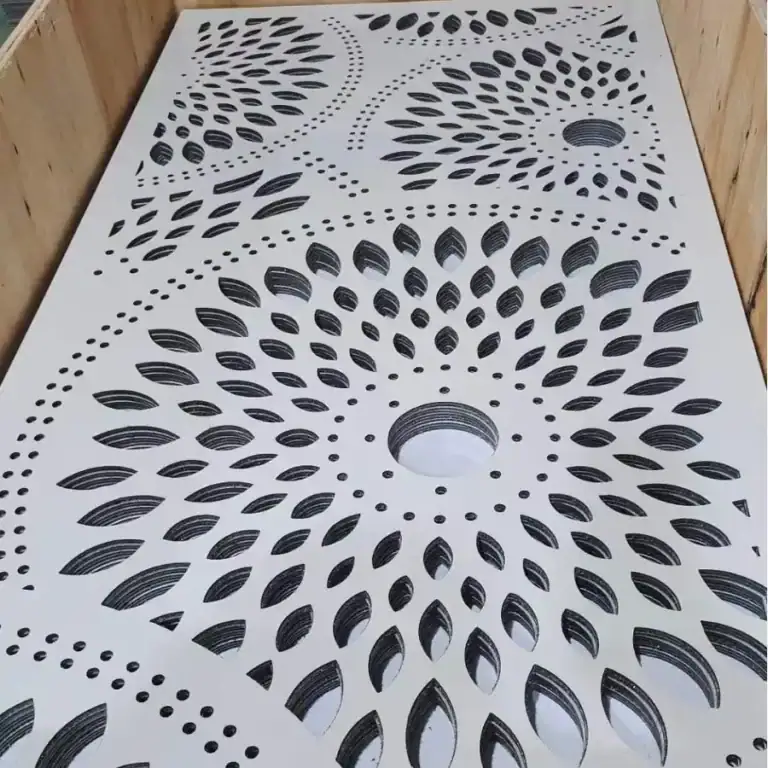

Building Decoration Industry: Supports making building models, decorative lines, relief wall panels, partition grilles, and antique building components.
Woodworking and Furniture Industry: Can be used to process and produce solid wood furniture, panel furniture, cabinet doors, wardrobe doors, and various indoor wooden doors.

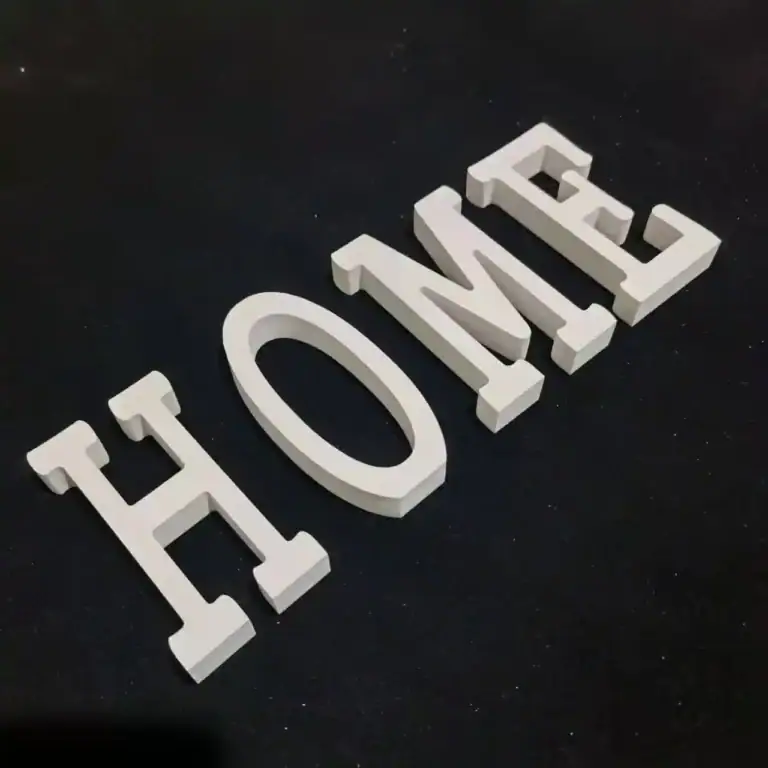

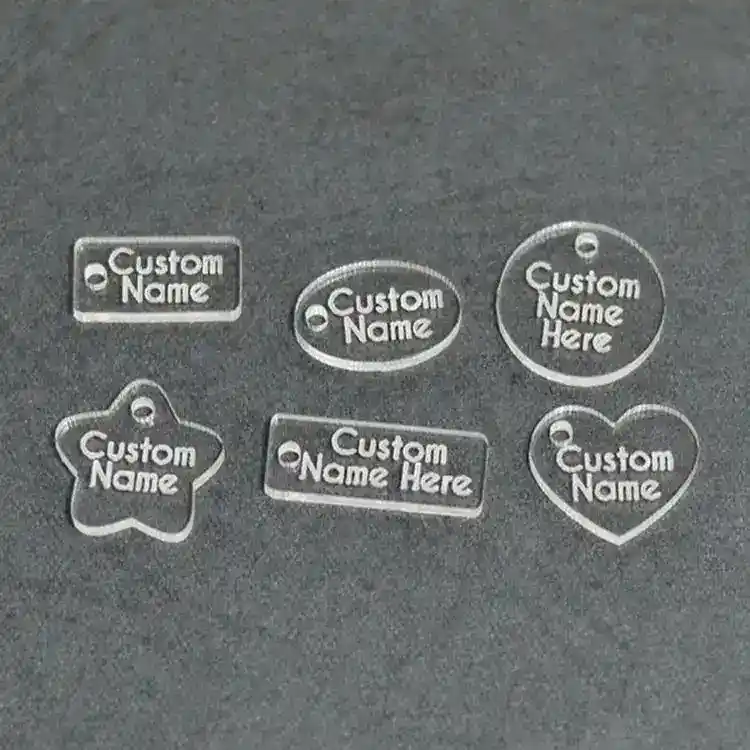

Advertising and Sign Industry: Suitable for making acrylic lighted letters, PVC signs, display props, 3D letters, and various directional signs.
Mold Manufacturing Industry: Can process casting foam molds and lost foam molds, and can also make molds for RV and yacht interior parts.
Crafts Industry: Can engrave wooden gifts, souvenirs, photo frames, religious products, and various musical instrument parts.

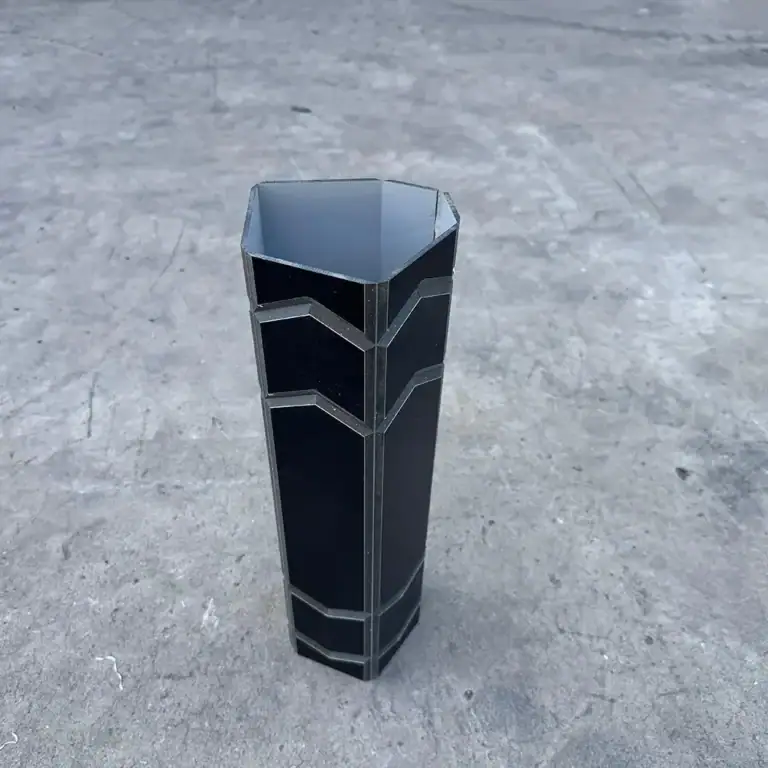

Packaging and Composite Materials Industry: Can cut and process composite panels, honeycomb panels, insulation materials, gaskets, and other materials.
Production facility
Quality control & testing
FAQ
How to use the vacuum adsorption table?
You only need to place the board on the table, start the vacuum pump, and open the valve of the corresponding area. The negative pressure produced can firmly fix the board, without manual clamping. The table uses a partitioned structure. When processing small boards, you only need to open the corresponding working area, and there will be no air leakage. Compared with the traditional manual fixing method, it can effectively shorten the board clamping time and improve processing efficiency.
What is the difference between vertical and horizontal placement of the machine?
Vertical placement means placing the machine vertically against the wall, which can save about 50% of the floor space. Horizontal placement is the placement method of conventional flat machines. Under both placement modes, the machine processing accuracy and machine functions are exactly the same. The only difference is the space occupied. This tilting bed machine is very suitable for small factories with limited space.
What size vacuum pump does the machine need?
Our commonly used standard configuration is a 5.5KW vacuum pump. The greater the vacuum pump power, the stronger the overall adsorption performance. You can choose a suitable power according to the board size and processing material. If processing large-area boards or MDF and other materials, it is recommended to use a high-power vacuum pump.
How is after-sales service guaranteed?
Alpha CNC provides a one-year warranty for the whole machine. The specific warranty period can be determined according to the machine configuration. We have a professional after-sales technical team that can provide services such as machine installation and commissioning, and operation training. We provide online support 24 hours a day to answer and solve machine use problems. Common wearing parts are in stock and can be shipped quickly.
