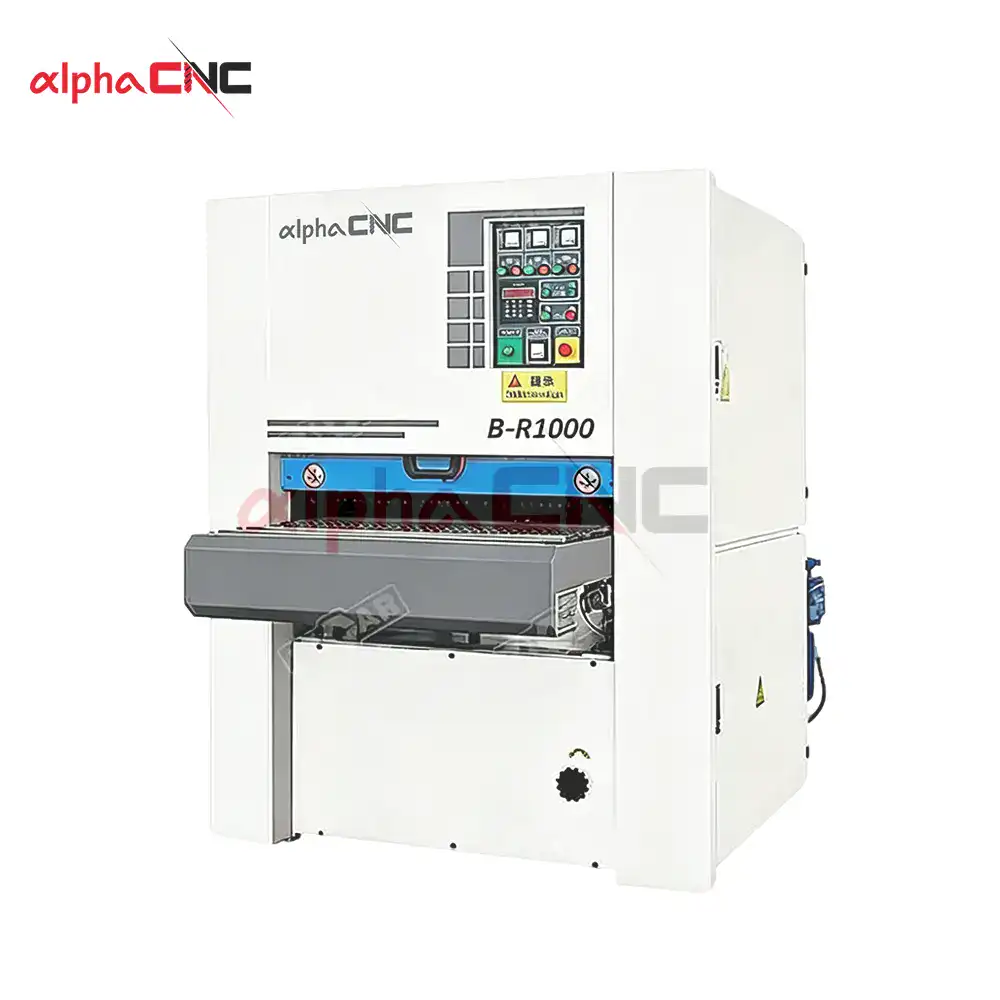

B-R1000 Wide Belt Sander 1000mm Planing Sanding Machine For Wood Furniture & Artificial Panels
Description
The separate planer and sanding machine equipment result in inconsistent panel thickness. Alpha CNC’s B-R1000 wide belt sander machine integrates planing, rough sanding, and fine polishing to solve this problem. This sanding machine is equipped with imported core components and a heavy-duty quenched steel frame, balancing stable long-term operation and flexible speed adjustment, making it an ideal choice for medium to large furniture factories to reduce labor and workshop space costs.
Features
- Compared with a single head sanding machine, the wide belt sander combination frame can complete calibration and polishing in one feed, shortening the production cycle by 40%.
- The thickened quenched steel body with integral beam structure ensures low vibration during continuous batch production and avoids uneven sanding caused by frame deformation.

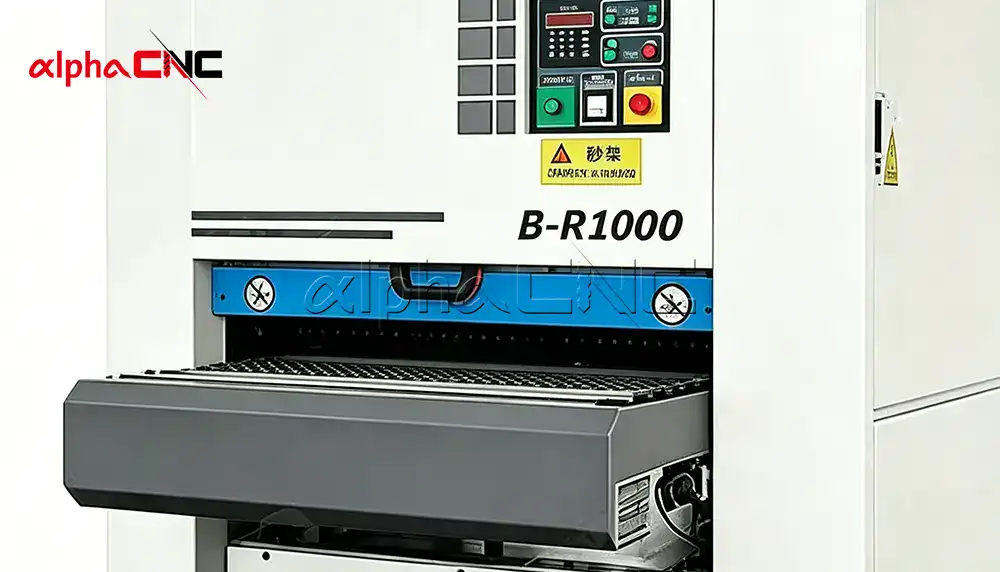

- The original imported frequency converter and digital control panel support a stepless conveyor speed of 6-30m/min, which can freely match the processing needs of hardwood, cork, and painted panels.
- The 63 * 20 specification pneumatic cylinder and anti rebound casting plug can prevent workpiece deviation and rebound damage, greatly reducing workshop safety risks.
- High precision photoelectric thickness sensors maintain stable thickness detection in dusty and complex workshop environments, reducing the rework rate of finished products.
- The large dust collection port of 8000m ³/h is matched with industrial vacuum cleaners and meets environmental standards, extending the service life of the sand belt.
- All core motors have obtained complete CE certification and one-year warranty, supporting customized industrial voltage installation in factories worldwide.
Parameters
Item | Parameter |
Model | B-R1000 Wide Belt Sander |
Maximum Working Width | 1000 mm |
Minimum Feedable Workpiece Length | 300 mm |
Maximum Processing Thickness | 200 mm |
Conveying Speed Range | 6 – 30 m/min |
Total Installed Power | 28.75 kW |
Conveyor Drive Motor Power | 2.2 kW |
Worktable Lifting Motor Power | 0.37 kW |
Standard Abrasive Belt Dimension | 1020 × 1920 mm |
Rated Working Air Pressure | 0.6 MPa |
Required Dust Extraction Airflow | 8000 m³/h |
Overall Machine Dimension | 2350 × 1300 × 2200 mm |
Optional items
- Multi grit abrasive belt (80 #/120 #/180 #/240 # for rough and fine machining)
- Spare imported wear-resistant conveyor belt
- Replace the graphite sand board pad
- Customized voltage transformer
Frequent asked questions
Q: What is the minimum workpiece length this B-R1000 sander can process steadily?
A: This model of wide belt sander supports a minimum feed length of 300mm and is equipped with a pneumatic full width compression structure to prevent short boards from tilting or sliding during transportation. We do not recommend processing workpieces smaller than this size as it can lead to unstable feeding and excessive local polishing. If you frequently handle small narrow strips, we recommend that you equip an auxiliary short board feeding fixture as an optional accessory to ensure processing safety and surface uniformity.
Q: Can this machine sand both raw wood boards and primer painted panels?
A: Of course, its variable feed rate of 6-30m/min is very suitable for two mainstream work scenarios. You can set the high speed for raw wood/MDF calibration and the low speed for fine primer polishing to avoid polishing through the paint layer. Our factory's on-site data shows that this combination planer sanding machine performs better on painted panels than a single sanding machine, thanks to the evenly stressed airbag sanding machine frame, which can prevent local paint wear.
Q: How long is the warranty, and how do we get spare parts after purchase?
A: We offer a standard 1-year warranty that covers all components such as the main drive motor, frequency converter, and sanding frame. Our team is online all day long. If you send us a fault description and part model, we will quickly respond to the factory and arrange for direct shipment to shorten your equipment downtime losses.
Q: What air pressure and dust extraction configuration does this machine require?
A: The standard working pressure needs to be stable at 0.6Mpa. We recommend equipping an air compressor with a rated pressure of at least 1.0Mpa to avoid insufficient tension in the sand belt and failure in workpiece pressing. The dust removal air volume of the wide belt sander reaches 8000m ³/h, and it needs to be connected to a large industrial dust collector to extract wood chips in a timely manner; Poor dust removal can lead to sand belt blockage, frequent breakage, and obvious sand marks on the surface of the panel.
Panel Furniture Manufacturing Line details
Application
- Batch production workshop for solid wood furniture, cabinets, wardrobes, and wooden doors

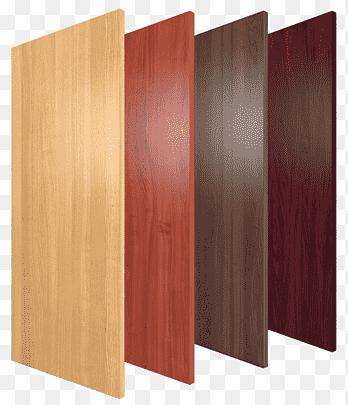

- Medium density fiberboard, plywood, particleboard, and decorative board processing plants
- Polishing of Primer and Topcoat for Wooden Building Decoration Materials
- Customized woodworking manufacturer and woodworking machinery trading distributor
Production facility
Quality control & testing
Related products
FAQ
Q: What is the minimum workpiece length this B-R1000 sander can process steadily?
A: This model of wide belt sander supports a minimum feed length of 300mm and is equipped with a pneumatic full width compression structure to prevent short boards from tilting or sliding during transportation. We do not recommend processing workpieces smaller than this size as it can lead to unstable feeding and excessive local polishing. If you frequently handle small narrow strips, we recommend that you equip an auxiliary short board feeding fixture as an optional accessory to ensure processing safety and surface uniformity.
Q: Can this machine sand both raw wood boards and primer painted panels?
A: Of course, its variable feed rate of 6-30m/min is very suitable for two mainstream work scenarios. You can set the high speed for raw wood/MDF calibration and the low speed for fine primer polishing to avoid polishing through the paint layer. Our factory’s on-site data shows that this combination planer sanding machine performs better on painted panels than a single sanding machine, thanks to the evenly stressed airbag sanding machine frame, which can prevent local paint wear.
Q: How long is the warranty, and how do we get spare parts after purchase?
A: We offer a standard 1-year warranty that covers all components such as the main drive motor, frequency converter, and sanding frame. Our team is online all day long. If you send us a fault description and part model, we will quickly respond to the factory and arrange for direct shipment to shorten your equipment downtime losses.
Q: What air pressure and dust extraction configuration does this machine require?
A: The standard working pressure needs to be stable at 0.6Mpa. We recommend equipping an air compressor with a rated pressure of at least 1.0Mpa to avoid insufficient tension in the sand belt and failure in workpiece pressing. The dust removal air volume of the wide belt sander reaches 8000m ³/h, and it needs to be connected to a large industrial dust collector to extract wood chips in a timely manner; Poor dust removal can lead to sand belt blockage, frequent breakage, and obvious sand marks on the surface of the panel.
Review
UK Cabinet Factory Owner
12 June 2026
We replaced two separate planers and a single head sanding machine with this B-R1000 machine. The one-time planing and polishing function reduces our labor costs, and even after running for 12 hours a day, the thick steel frame hardly vibrates. The after-sales team answered our parameter debugging questions very promptly, which is definitely worth investing in for a medium-sized furniture workshop like ours.
