Alpha CNC A‑1530 Heavy‑Duty Stone CNC Router for Granite & Marble Processing
Description
Our A-1530 stone CNC router machine is designed specifically for the heavy-duty production needs of stone processing plants, rather than for light amateur use. This machine has a large tabletop and is capable of handling tasks such as deep relief, tabletop drilling, and thick plate processing. We have optimized the dust and waterproof performance and vacuum adsorption system, effectively reducing downtime, which is very suitable for small and medium-sized stone processing enterprises that pursue stable daily production capacity.
Features
- Adopting a heavy-duty and structured frame, after stress relief treatment, it can effectively suppress the vibration during long-term heavy load stone cutting process, ensuring stable processing accuracy.
- Equipped with a high-power water-cooled high torque spindle, it can handle carving, cutting, and simple polishing operations on hard granite without frequent shutdowns due to overheating.
- The XYZ three-axis adopts a waterproof and dustproof sealing design, effectively protecting the linear guide rail and rack from stone slurry erosion and reducing the risk of equipment failure on site.
- Having a large working range of 3000 × 1500 × 500mm; The Z-axis height reaches 500mm, which can meet the needs of thick stone processing, deep relief carving, and special height fixture installation.
- The combination of T‑slot countertop and vacuum adsorption system can firmly fix large stone slabs; Equipped with an automatic lubrication system to reduce daily manual maintenance workload.
- The control system has strong compatibility with software and supports mainstream CAM software in the stone industry; Support customization based on voltage standards of workshops worldwide.
Parameters
Model | A-1530 |
Working Size | 3000*1500*500mm Option: 900*1500*500mm/1300*2500*500mm/1500*2500*500mm, Other size |
Accuracy | ±0.5mm |
Stone CNC Machine Table | Heavy duty steel T-slot table |
Stone CNC MachineFrame | Thick steel machine frame |
X, Y Structure | X/Y Helical German rack and pinion |
Z Structure | Z High precision TBI ball screw |
XYZ Guide rail | XYZ Axis HIWIN Square Rail |
Spindle Power | Powerful 5.5KW Water Cooling Spindle |
Max. Rapid Travel Rate | 30,000mm/min |
Max. Working Speed | 8,000mm/min |
Drive Motors | Yako or Leadshine |
Way of fixing Workpiece | Vacuum cup sucking |
Operating System | Mach 3/Nc studio/DSP |
Working Voltage | AC380V/3PH/50Hz(option:220V or custom made) |
Command Language | G Code |
Software | Option: Vectric Aspire, Type3, Ucancam, Artcam, AlphaCam, Powermill, Solidworks,etc. |
Stone Design machine Running Environment | Temperature: 0℃~45℃Relative Humidity: 30%~75% |
Optional items
- High-power water-cooled spindle
- Complete set of stone grinding and polishing tools
- Automatic Tool Changer (ATC) Tool Storage
- High-flow vacuum pump suitable for overweight stone slabs
- DSP offline control system
Frequent asked questions
Q: What kinds of stone materials can the A‑1530 process?
A: This stone CNC router is suitable for granite, marble, bluestone, artificial quartz stone, and engineering stone. If equipped with appropriate cutting tools, it can also be used for small-scale processing of tiles and hard glass. Please note that processing ultra hard natural stone will accelerate tool wear; If long-term and large-scale stone processing is required, it is recommended to use diamond cutting tools to ensure stable processing results.
Q: Does this machine handle full‑size large stone slabs reliably?
A: Yes, the T-slot groove table combined with vacuum suction can firmly fix large boards during cutting and carving processes. However, the flatness of the original board is crucial. If the stone is warped, it will reduce the vacuum adsorption force; For plates with uneven thickness, it is recommended to use T-shaped groove pressure plates for fixation to prevent displacement of the workpiece during high-load cutting.
Q: What maintenance work do I need to do every week for stone‑slurry environment?
A: Please clean the mud residue on the shaft protective cover and vacuum table every week. Check the oil level of the automatic lubricator and inspect the water circulation filtration device. Stone powder and mud are the main causes of premature damage to guide rails. In the actual working conditions of the stone processing workshop, simple regular cleaning will significantly extend the overall service life of the machine.
Stone CNC machine details

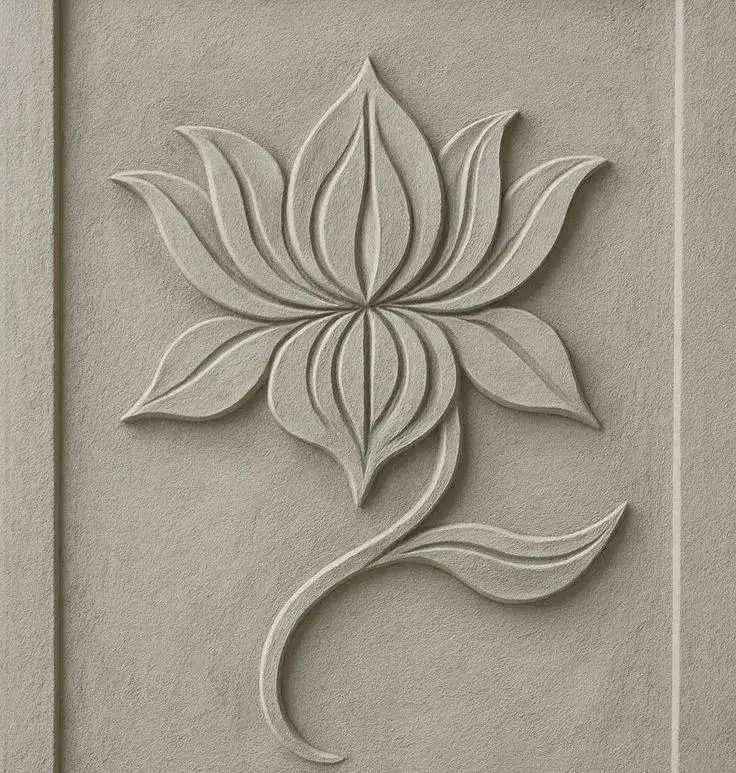

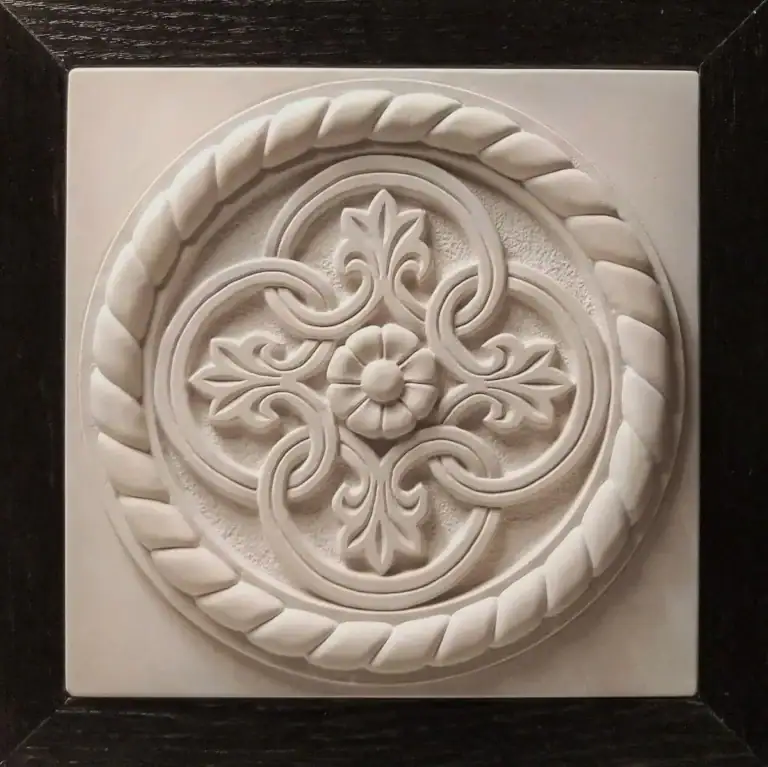

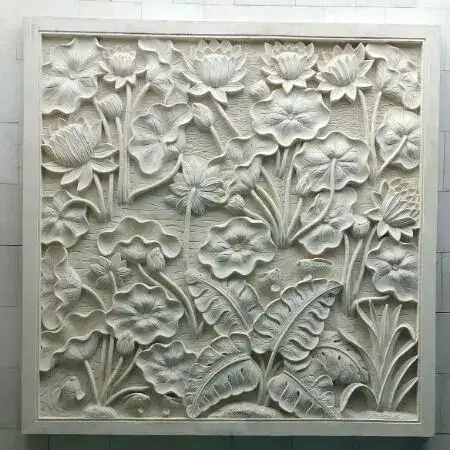

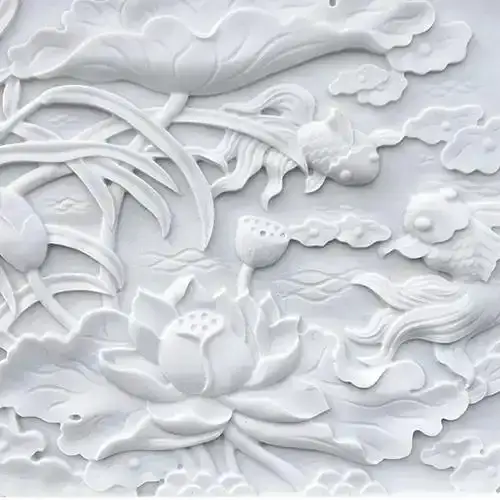

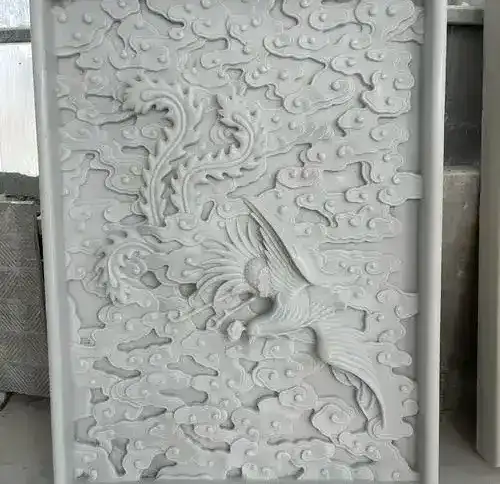

Application
Production facility
Quality control & testing
FAQ
Q: What kinds of stone materials can the A‑1530 process?
A: This stone CNC router is suitable for granite, marble, bluestone, artificial quartz stone, and engineering stone. If equipped with appropriate cutting tools, it can also be used for small-scale processing of tiles and hard glass. Please note that processing ultra hard natural stone will accelerate tool wear; If long-term and large-scale stone processing is required, it is recommended to use diamond cutting tools to ensure stable processing results.
Q: Does this machine handle full‑size large stone slabs reliably?
A: Yes, the T-slot groove table combined with vacuum suction can firmly fix large boards during cutting and carving processes. However, the flatness of the original board is crucial. If the stone is warped, it will reduce the vacuum adsorption force; For plates with uneven thickness, it is recommended to use T-shaped groove pressure plates for fixation to prevent displacement of the workpiece during high-load cutting.
Q: What maintenance work do I need to do every week for stone‑slurry environment?
A: Please clean the mud residue on the shaft protective cover and vacuum table every week. Check the oil level of the automatic lubricator and inspect the water circulation filtration device. Stone powder and mud are the main causes of premature damage to guide rails. In the actual working conditions of the stone processing workshop, simple regular cleaning will significantly extend the overall service life of the machine.
Review
Countertop fabricator, Mexico
May 04, 2026
Our factory mainly produces kitchen quartz stone and natural marble countertops. We chose A-1530 because of its large processing size. The vacuum adsorption table ensures the stability of the board during water tank drilling operations. This is a reliable stone CNC machine.
