Can Process Full Sheets
This 4×8 wood CNC router has a 1300×2500 mm processing area. You can directly process standard 4×8 ft full sheets commonly used in plywood furniture, cabinets, door panels, and sign making.
4x8 CNC Router for Woodworking and Furniture
Alpha CNC provides 4×8 CNC machines for woodworking, furniture, cabinets, doors and windows, sign making, and processing various sheet materials. You can customize a suitable CNC router according to your materials, product types, and production needs. The machine can directly process standard 4×8 ft sheets.
Processing size: 4×8 ft, 48×96 in, 1300×2500 mm
Customizable configurations: 3-axis, ATC, 4-axis, 5-axis, multi-head, etc.
Optional tables: vacuum table, T-slot table, aluminum profile

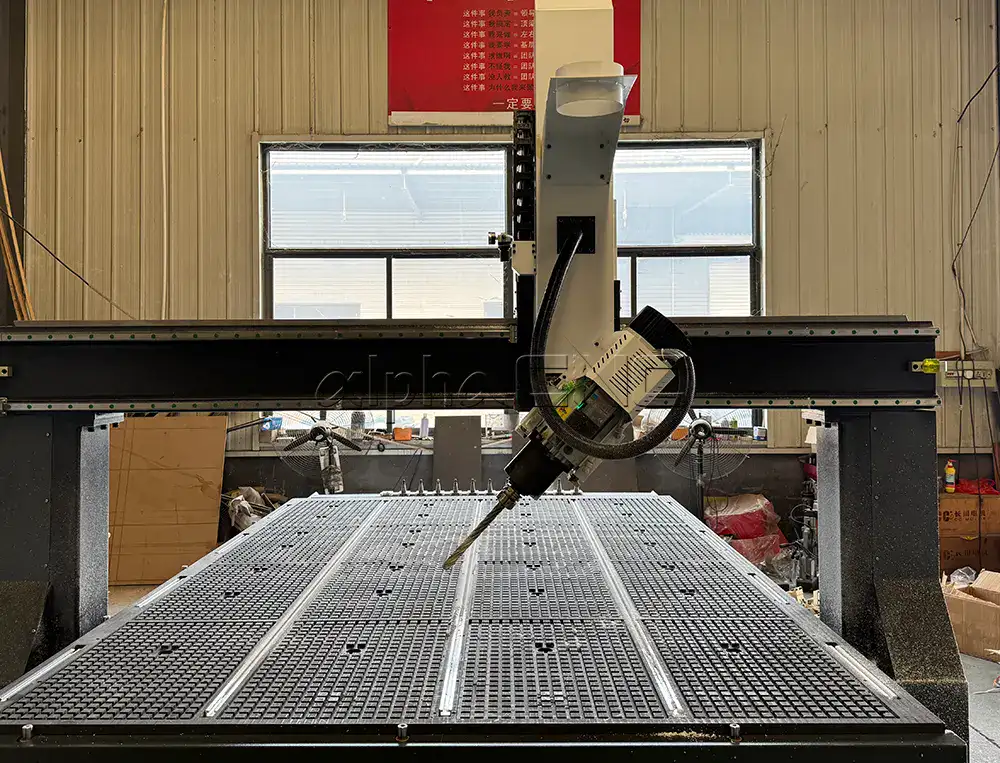

The industrial 4×8 CNC router machine is specially designed for processing wood, MDF, plywood, acrylic, PVC, and other sheet materials.
4x8 CNC Router Specifications
Item | Specifications |
CNC Router Type | 4x8 CNC Router / 1300x2500 CNC router |
Machine Structure | Heavy-Duty/Welded Steel Structure |
Number of axes | 3-Axis/4-Axis/5-Axis |
Spindle | 1.5kw-11kw, Customizable |
Spindle Speed | 0–24,000 RPM (optional 18,000 RPM) |
Tool Changing Method | Manual Tool Change / Automatic Tool Change (carousel or linear type) |
Table Type | Vacuum Table / Vacuum Table with T-slots / Aluminum Profile Table |
Vacuum Pump | 2.2–7.5 kW |
Drive System | Stepper Motor/Easy Servo Motor/Servo Motor |

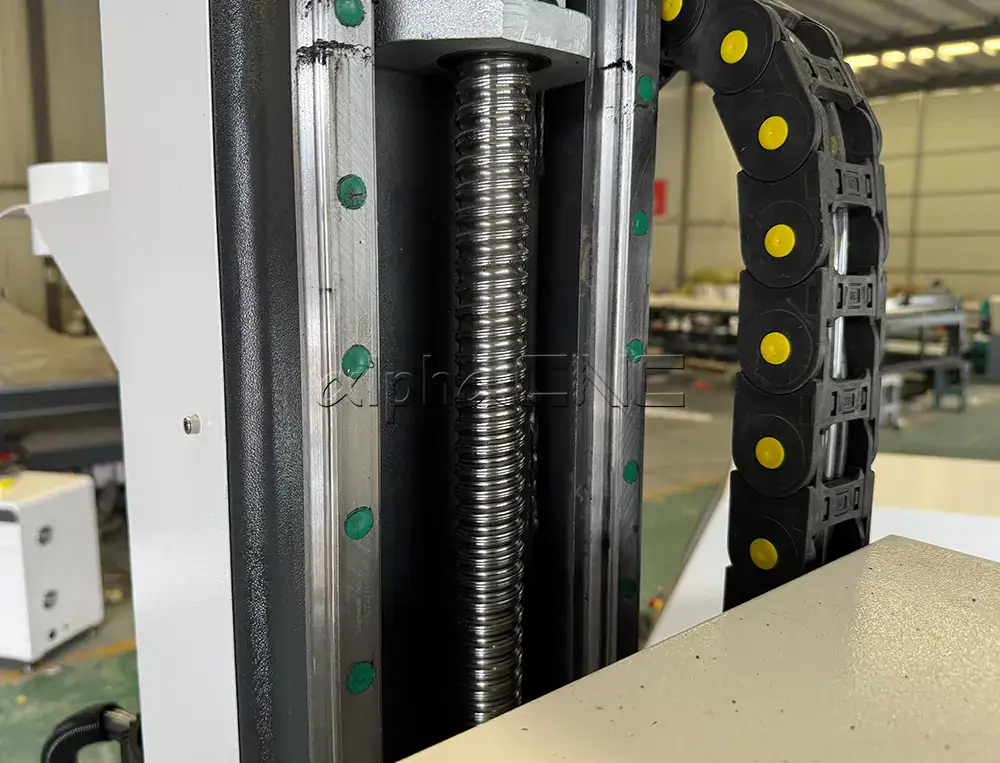

Linear Guide Rail | Taiwan Square Rail. Common Sizes: 15/20/25/30mm |
Control System | NC studio/ Richauto/ Mach 3/ Syntec/ LNC/ XDW/ DSP |
Transmission Method | Rack and Pinion / Ball Screw |
Working Voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/60HZ |
Software Compatibility | ArtCAM, Alphacam, Type3, UCanCam, Aspire, etc. |
Application Range | Furniture/Cabinet Making/Wooden Door/Signage and more |
When choosing spindle power, do not only choose the highest power. You need to combine processing materials, sheet thickness, cutting tools, and production needs for comprehensive matching. The controller also needs to match your operation habits, software process, and on-site production environment, so that it can better fit the CNC router operation.
Do you need a customized CNC router configuration?
You can tell us your processing materials, product types, and production output. We will recommend a machine configuration that fits your needs before providing a quotation.
Why Choose This 4x8 CNC Router?
Supports Customized Configurations
Alpha CNC provides multiple machine configurations. Core parts such as the spindle, controller, and table can be selected according to your processing requirements.
Flexible Fixing of Different Processing Materials
The vacuum table can firmly fix large sheets and is suitable for normal CNC processing conditions. For workpieces that cannot be fixed by vacuum suction, you can use the T-slot table for mechanical clamping.
Suitable for Continuous Mass Production
The machine frame, guide rails, spindle, drive system, and other components contribute to the long-term stable processing performance of the 4×8 CNC cutting machine. Alpha CNC will match your daily production workload.
Alpha CNC Full-Process Support
Before production, we will check all configuration details with you. We will complete the whole machine quality inspection according to the confirmed plan before shipment. After the machine is delivered, you can also receive installation guidance, technical support, and spare parts supply services to ensure stable production.
Suitable for Custom Orders and Repeat Batches
The automatic tool changer configuration can change tools during multi-process machining, reducing manual tool changing steps and improving processing efficiency. If your processing process is simple, the 3-axis configuration will be a more convenient and cost-effective choice.
You can use a 4x8 wood CNC router to process a full 4×8 ft sheet. The machine has flexible processing methods and can adapt to various processing applications.
What Can a 4x8 CNC Router Do?
- Furniture Manufacturing
You can process MDF, plywood, and other sheet materials to make various furniture parts, panels, and custom accessories.
- Cabinet Shop
This commercial CNC router is suitable for cabinet production. It can process cabinet panels, shelves, side panels, cabinet doors, and other cabinet parts.
- Wardrobe and Walk-in Closet Production
You can use the large processing size of the CNC router to make wardrobes, storage systems, and various custom walk-in closet furniture.

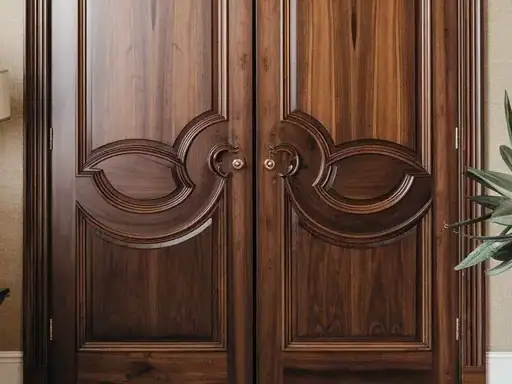

- Wood Door Manufacturing
It can machine decorative patterns, engrave shaped lines, and process various wood door parts.

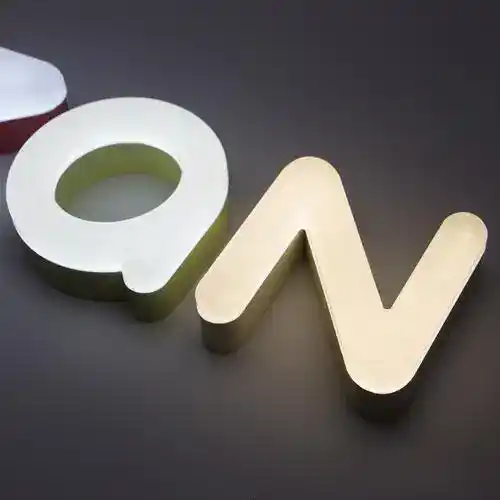

- Sign Making
You can cut and carve sign materials such as acrylic, plastic, MDF, and wood to make various signs and display products.
- Architectural Wood Products
It can produce decorative wall panels and interior decoration parts in batches, and also supports custom sheet material design and processing.
- Display and Retail Fixtures
You can process various sheet materials to make display racks, shelves, retail display fixtures, and exhibition display parts.
- Custom Woodworking Furniture
Whether it is a small workshop or a CNC outsourcing factory, you can use this 4×8 wood CNC machine to accept custom processing orders.
Materials Processable by 4x8 CNC Router
You can use the 4*8 CNC router to process various sheet materials. The final cutting and forming effect depends on the materials you use, sheet thickness, processing tools, spindle configuration, and cutting parameters. The following are the common processing materials and corresponding processing uses of the machine.
Material | General Machining Applications |
MDF | Cabinet panels, furniture parts, and various decorative panels |
Plywood | Furniture, cabinets, door panels, and various structural panels |
Particle board | Panel furniture and various cabinet accessories |
Solid wood | Furniture components, door leaves, decorative accessories |
Acrylic | Signs, shaped letters, display props, and various decorative parts |
Polyvinyl chloride | Signs, various sheet materials, and display products |
Composite board | Sign making, interior decorative panel, various sheet materials |
If the material you need to process is not in the list, you can directly tell us your material type and sheet thickness. We will match the suitable machine configuration for you.
Choose the Suitable 4x8 CNC Router for Sale
Whether the 4x8 CNC Router is suitable for your production depends on your products, the types of tools you use, and your daily processing frequency. Not all workshops need high-end machine models. You can choose according to your needs.

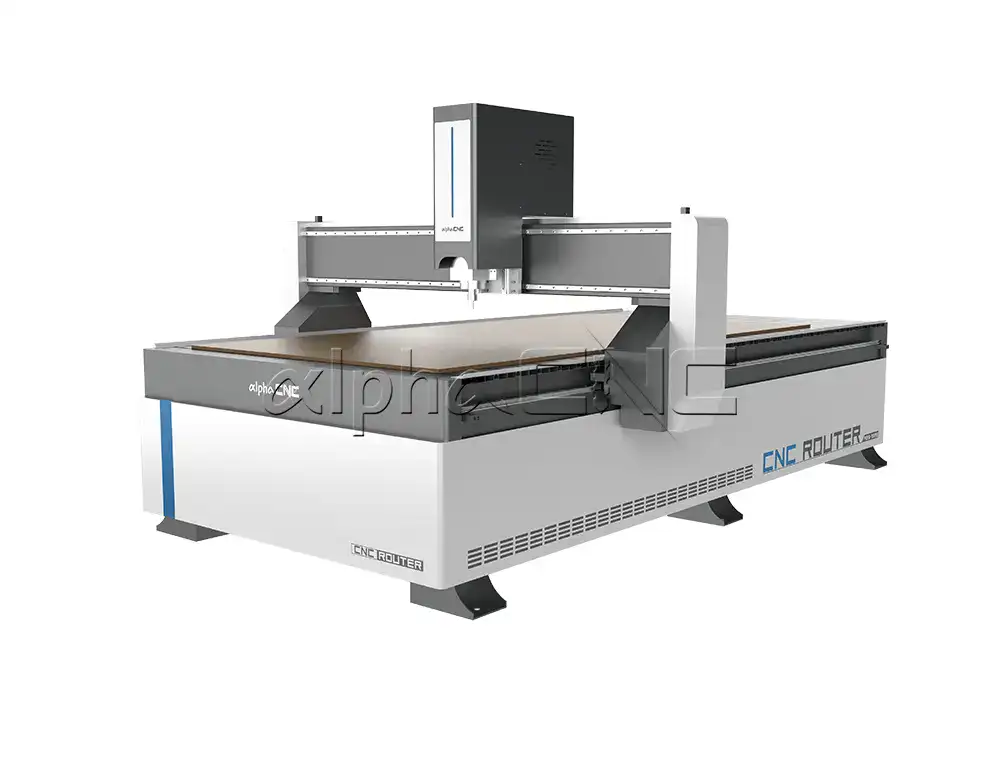

3-axis CNC Router
If you do regular 2D cutting, engraving, milling, and drilling processing, the 4x8 3-axis CNC router is a highly practical choice. It is suitable for basic woodworking processing, including MDF and plywood cutting, as well as regular processes such as furniture panels and cabinet parts processing.
More products>>

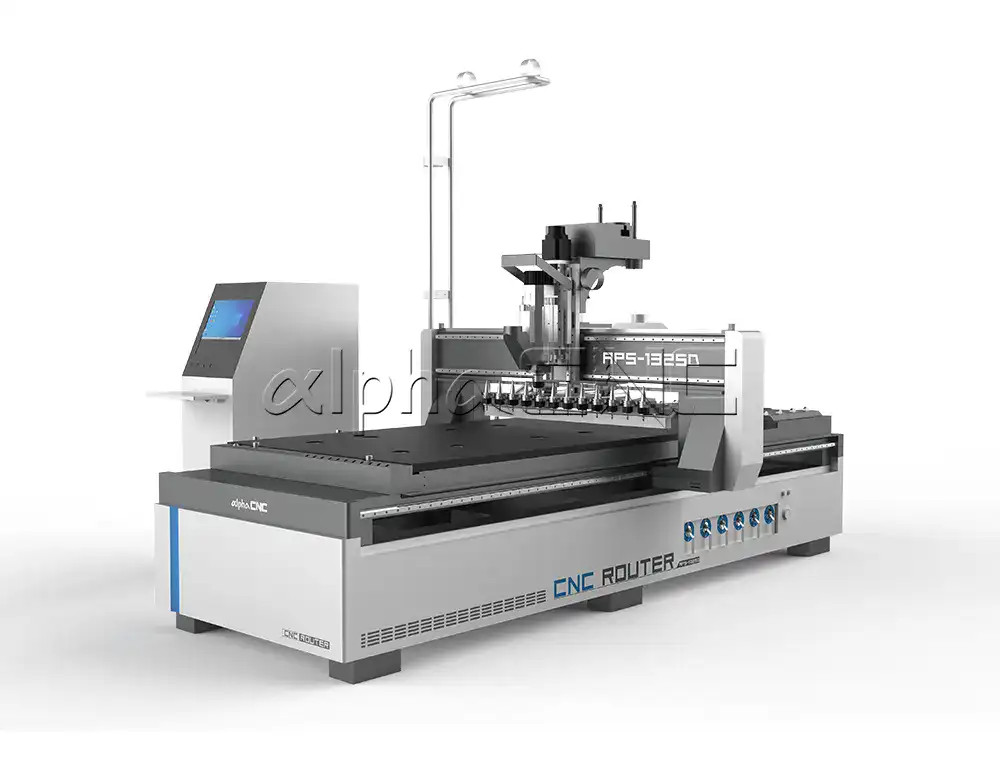

4x8 Automatic Tool Changer CNC Router
When your workpieces need multiple tools and frequent tool changes during processing, the automatic tool changer configuration can play a key role. It is suitable for multi-tool processing scenarios such as furniture and cabinets, and can also meet regular batch production needs.
More products>>
4-axis CNC Router
When your processing needs involve curved surfaces and multi-angle processes, and exceed the processing range of a regular 3-axis machine, you can choose the 4-axis 4x8 configuration. The specific suitable processing applications can be determined according to the actual machine configuration.
More products>>

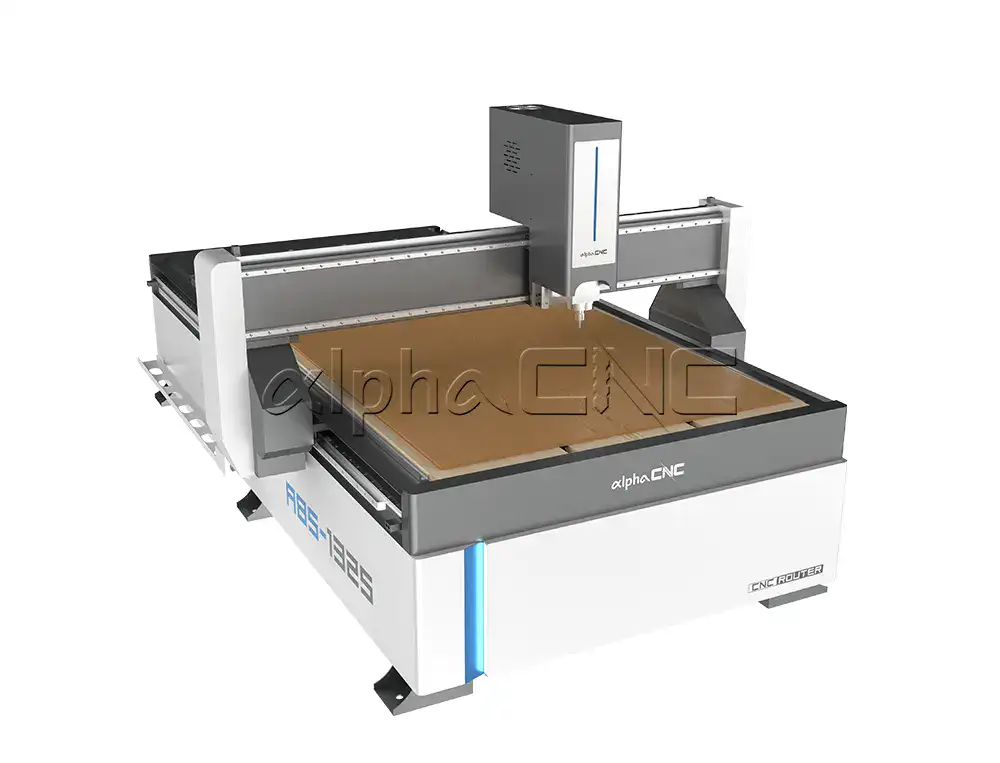

4x8 CNC Router with Vacuum Table
The vacuum table can help reduce sheet movement during processing. It allows you to process a full 4x8 ft sheet without frequently repositioning the workpiece, which can improve processing efficiency.
More products>>

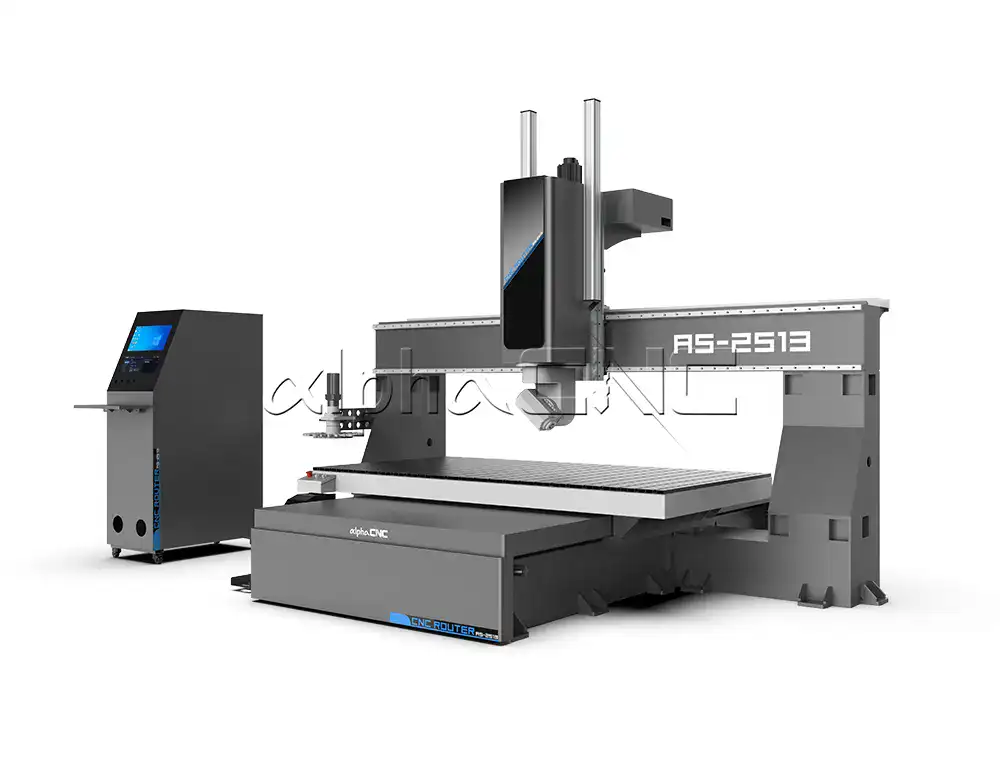

5-axis 4×8 CNC Router
The 5-axis model is suitable for processing complex curved surfaces, deep contours, or multi-angle workpieces. The spindle moves in multiple directions to process complex shapes.
More products>>

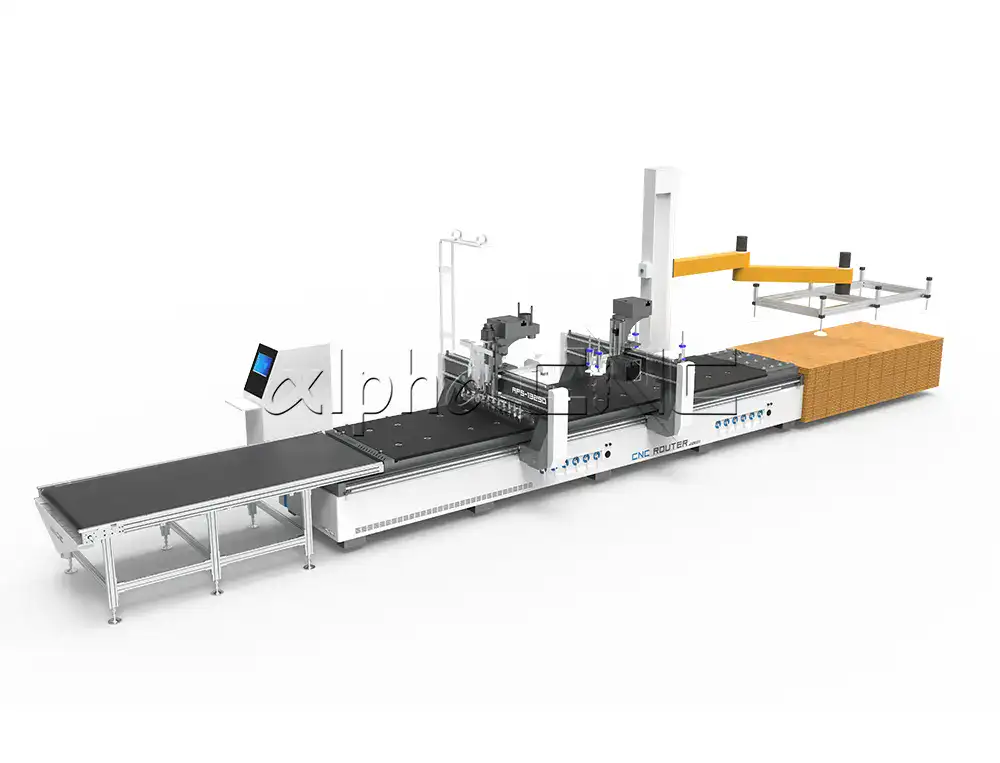

4x8 CNC Router for Full-Sheet Processing
This machine is suitable for standard 4×8 ft sheets. The configuration you choose will determine the effective processing range and table size. Please confirm your requirements before placing the order.
More products>>You only need to tell us your processing products, and we can match the suitable 4x8 CNC router configuration plan for you.
4x8 CNC Router Detailed Configuration

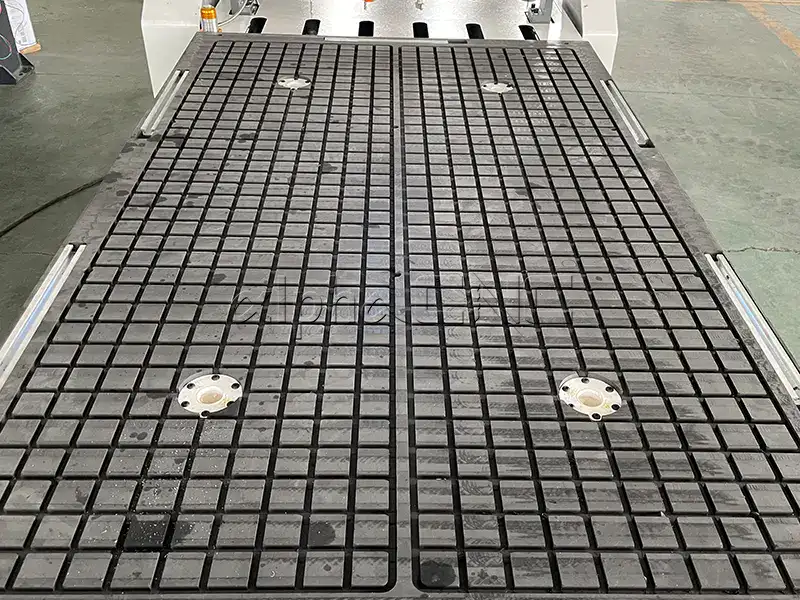

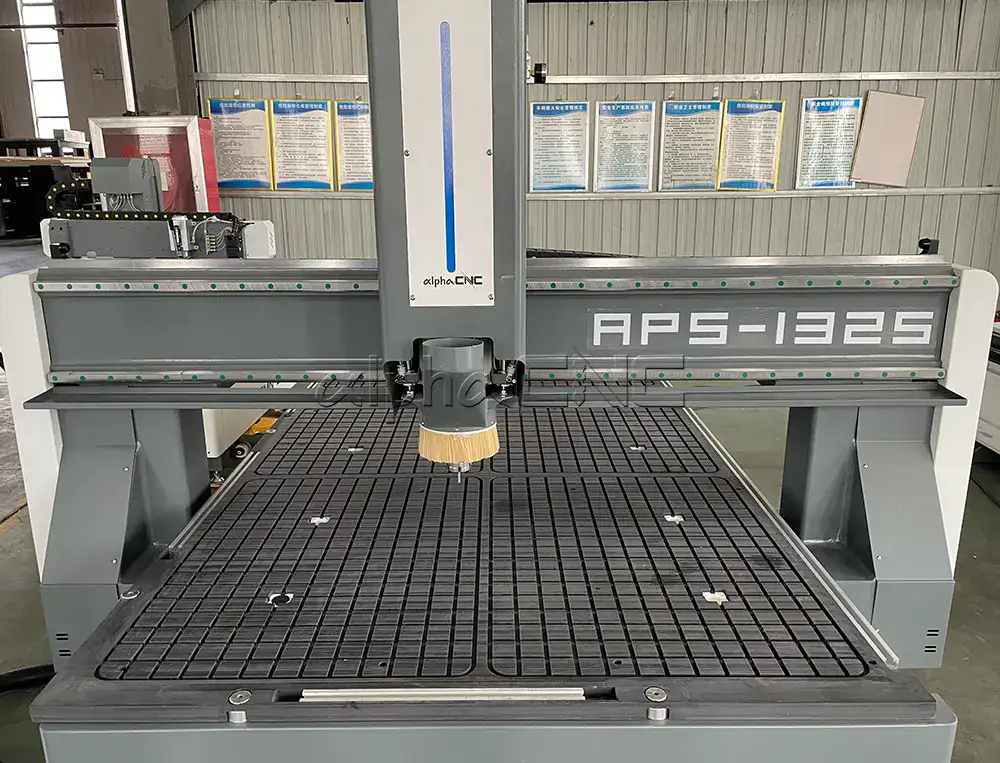

Independent Vacuum Zones
The 4x8 CNC router is equipped with independent vacuum zones. You can precisely control the suction area according to the sheet size and cutting position, and fix the workpiece as needed.

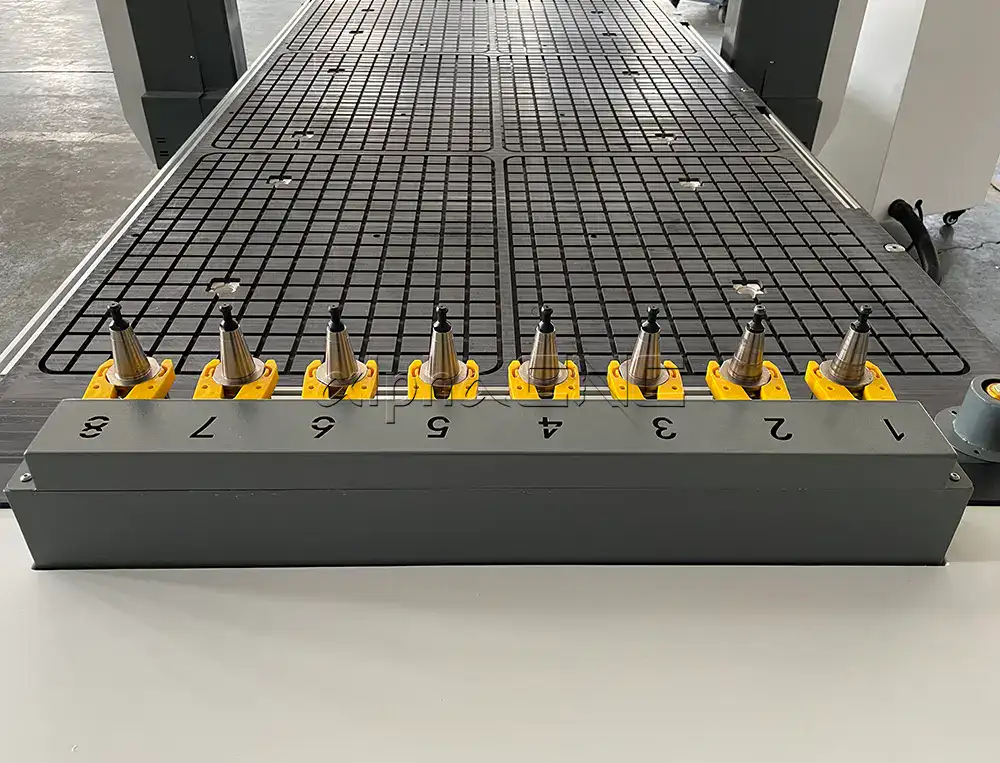

Tool Storage
A dedicated tool storage position makes it convenient for you to organize and store commonly used tools. Tools can be accessed as needed during multi-tool operations.

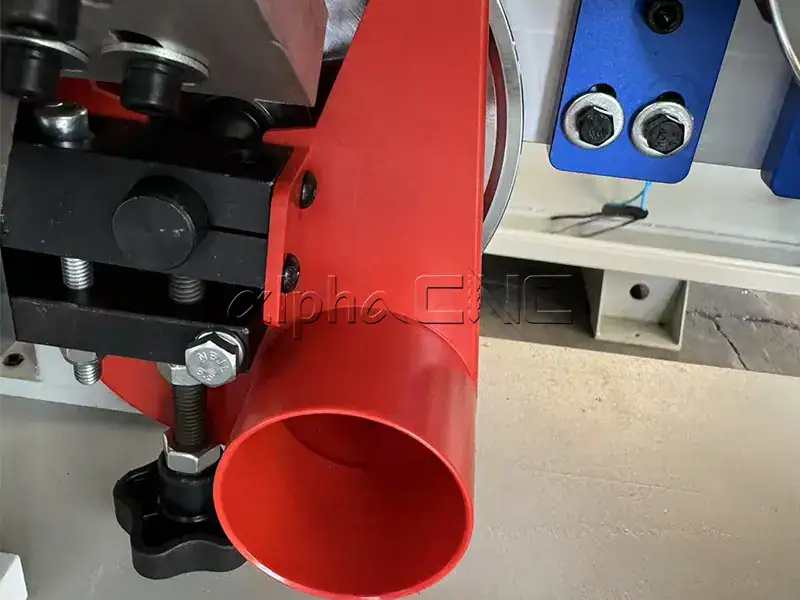

Dust Collection Port
You can connect an external dust collection device through the dust collection port to remove wood chips and dust during woodworking.

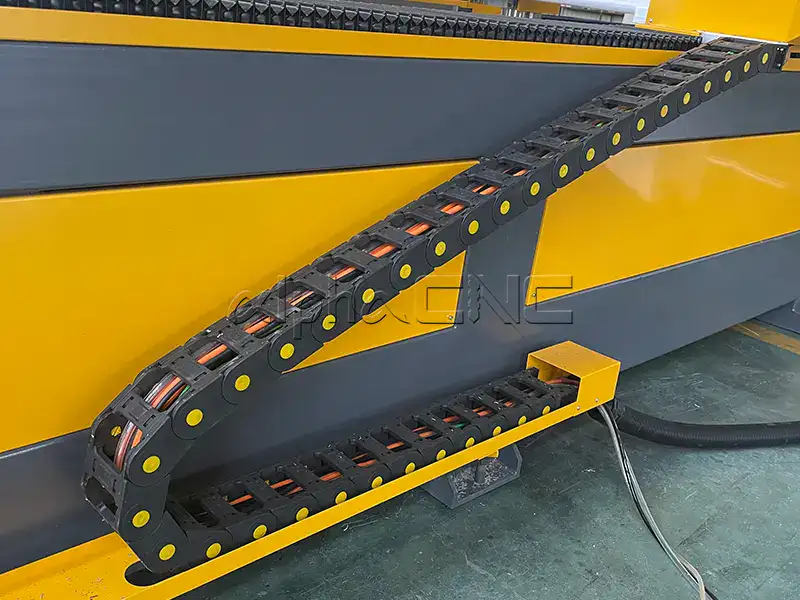

Cable Management
The 4x8 CNC router uses an organized cable routing design. All cables have dedicated protection and routing paths. They are arranged neatly along the moving axis, which helps reduce exposed cables during machine operation.

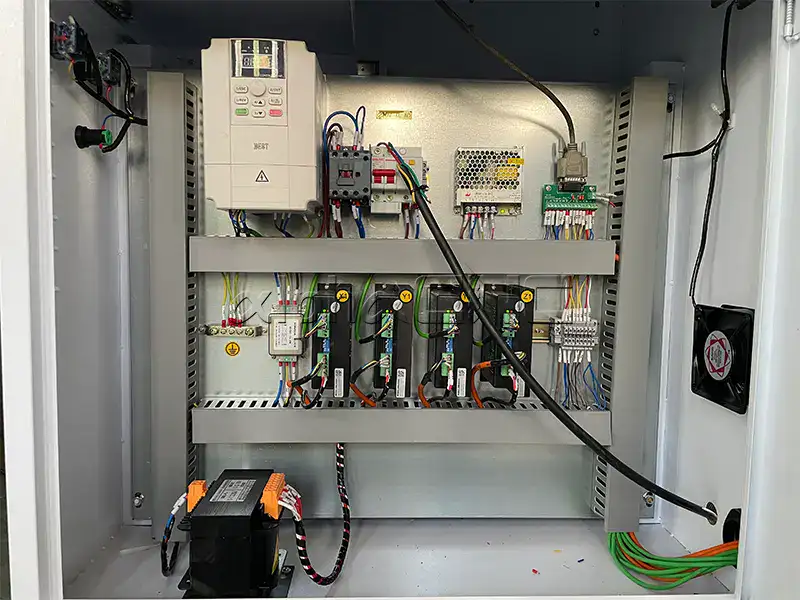

Electrical Control Cabinet Maintenance Channel
The layout of the electrical control cabinet is optimized. You can easily check and maintain various control components of the machine, making maintenance operations more convenient.

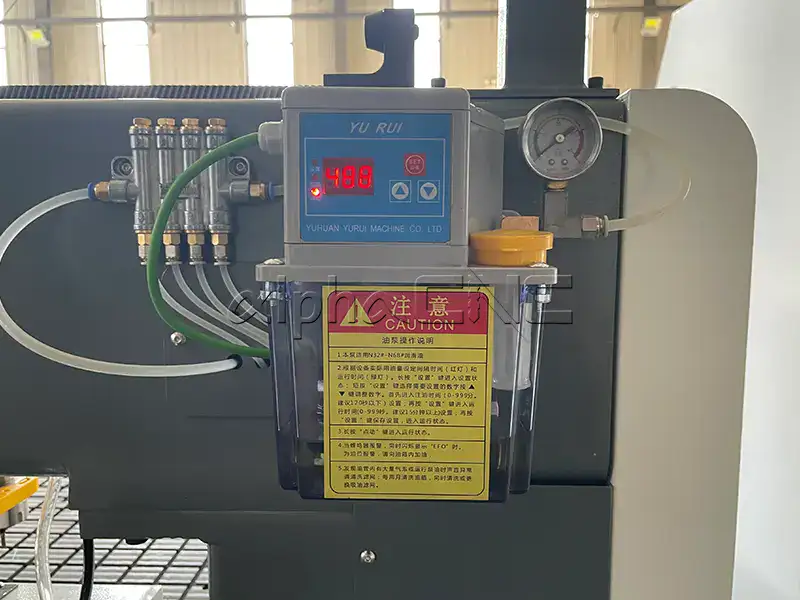

Lubrication Points
The lubrication points of the 4x8 CNC router machine are designed in easy-to-operate positions. During long-term use of the machine, you can easily complete daily maintenance and care work.
4x8 CNC Router Real Machine Video
View Alpha CNC machine videos to see full-sheet processing in action and learn about the 4×8 wood CNC machine’s processing range, spindle performance, and workpiece fixing system.
Alpha CNC 4x8 CNC Router Applications
You can learn about different CNC router configurations and their actual uses for furniture, cabinet doors, composite panels, and various decorative processing applications.
- Case 1
- Case 2
- Case 3
Item 1
4x8 ATC CNC Router for Furniture Production
Suitable for various furniture processing needs.

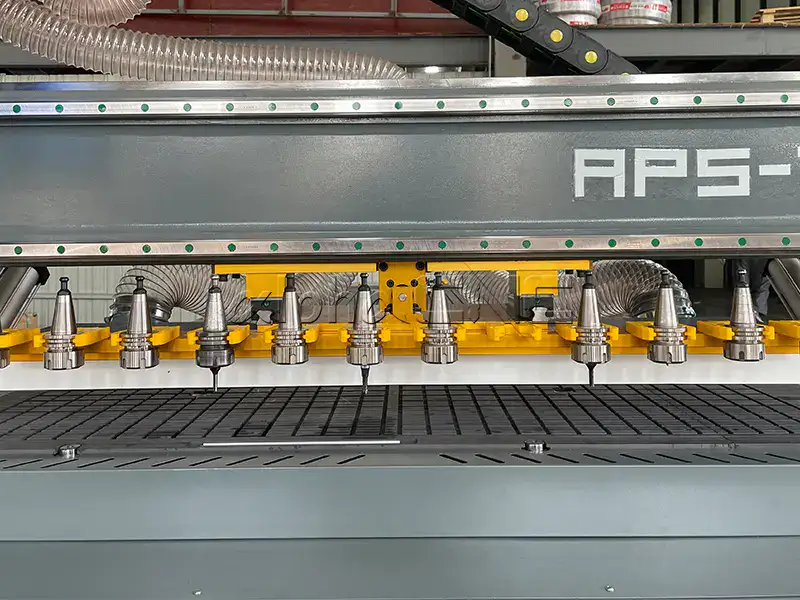

The 1325 CNC router with automatic tool changer supports multi-tool coordinated operation and can automatically change tools without stopping the machine for manual tool changes, effectively improving processing efficiency.
4x8 Automatic Tool Changer CNC Router Parameters
Model: APS-1325 wood CNC machine
Processing size: 1300x2500 mm / 4x8 ft
Spindle Speed: 0–24,000 RPM
Applicable main materials: MDF, plywood, particle board, solid wood
Application scenarios: cabinet making, furniture panel processing, wardrobe nesting accessory production, custom woodworking processing
Item 2

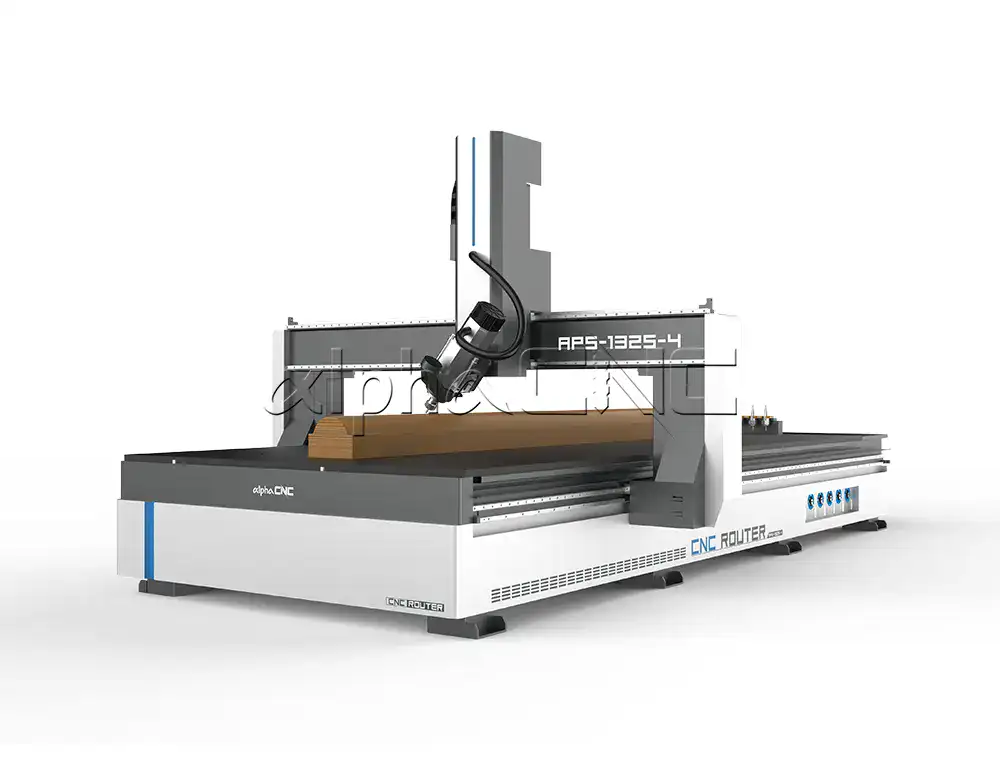

4-axis 4x8 Swing Head CNC Router
Suitable for CNC processing of cabinet doors and composite panels.
APS-1325-4 is equipped with a 9 kW swing head spindle with ±90° swing capability and an automatic tool changer. It is no longer limited to a single vertical processing method. It can easily complete the processing of cabinet doors, composite panels, and various irregular and angled workpieces.
4x8 CNC router for irregular and angled workpieces.
Model: APS-1325-4 4-axis swing head CNC router
Spindle configuration: 9 kW, ±90° swing head, automatic tool changer
Processing size: 1300x2500 mm / 4x8 ft
Applicable applications: cabinet doors, composite panels, furniture parts, multi-angle irregular processing.
Item 2

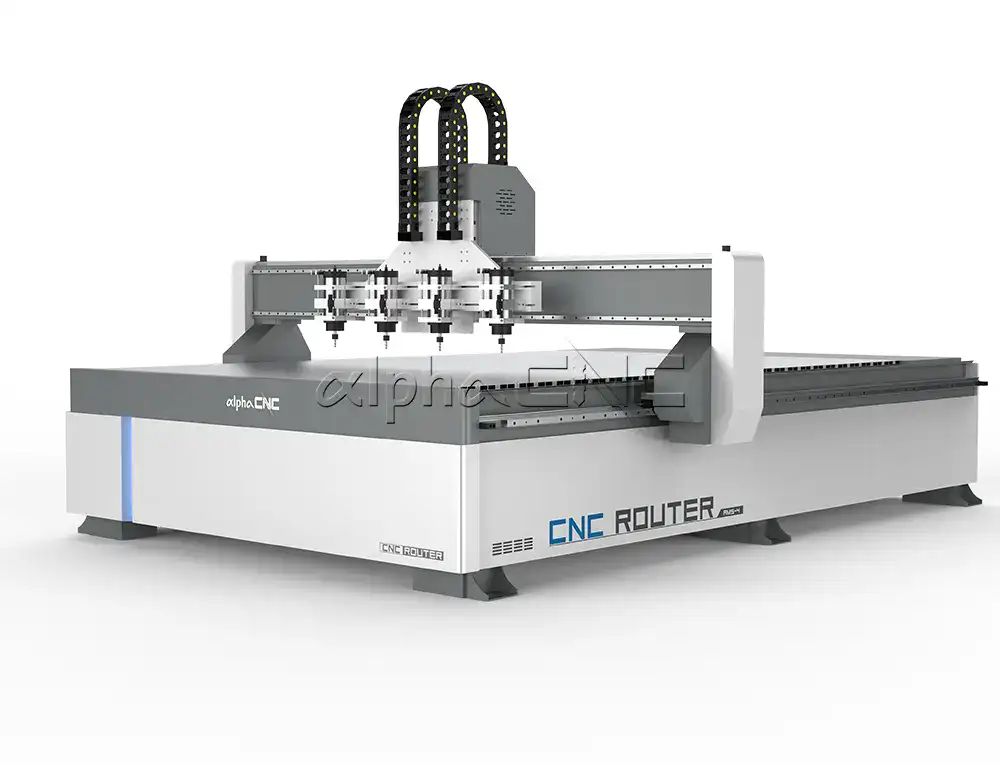

4x8 4-Spindle CNC Router
High-precision Relief Engraving and Hollow Partition

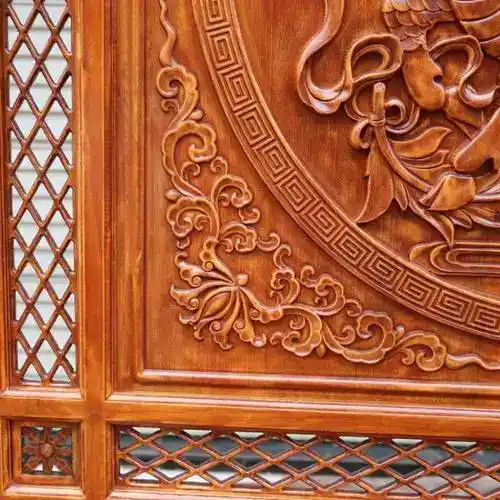

AMS-1325-4 is specially designed for decorative processing. You can use this machine to process fine relief patterns, hollow structures, and various repeated decorative shapes. The final effect of decorative processing depends on your processing materials, selected tools, and spindle configuration.
4x8 CNC Machine for Various Decorative Processing
Model: AMS-1325-4 4x8 wood engraving machine
Number of spindles: 4
Processing size: 1300x2500 mm / 4x8 ft
Applicable applications: Wooden decorative panels, partition screens, wall panels, and various interior decorative parts
Common processing materials: Wood, MDF, and other suitable sheet materials

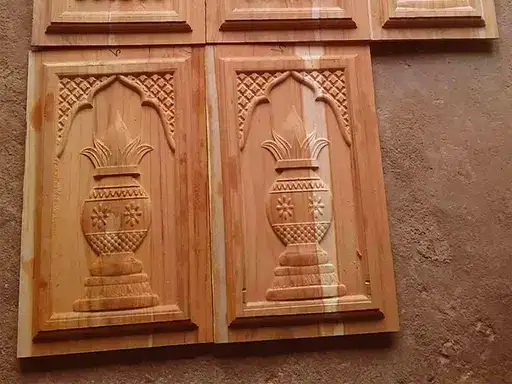

4x8 Wood CNC Machine Processing Samples
You can use Alpha CNC’s 4ft x 8ft CNC router to process various materials. It can process furniture, door panels, sheets, signs, and various custom projects.
Enter Alpha CNC Factory
10+ years of CNC router manufacturing experience | Customers in 100+ countries | Served more than 1,000 customers | 24-hour technical support.
Alpha CNC Customer Reviews
Cabinet Manufacturer
Suitable for Cabinet Mass Production
We mainly use this 8x4 CNC router to process MDF cabinet panels, cabinet doors, and various furniture accessories.
The 1300×2500 mm processing area matches our standard sheet sizes. We can directly process large full sheets without cutting and dividing them in advance, greatly simplifying the processing steps.
Panel Furniture Manufacturer
Effectively Saves Production Time
This ATC 4x8 CNC router can automatically change different tools to complete multiple processes such as cutting, engraving, and drilling. In the past, we needed to change tools manually.
Now the machine can automatically change tools during operation without manual intervention. Our furniture and cabinet batch orders are easier and more efficient to handle.
Custom Woodworking Workshop
Suitable for Multiple Materials and Custom Solutions
Our business covers a wide range and is not limited to a single processing category. We usually process MDF, plywood, solid wood, and acrylic parts for various furniture production and custom projects.
The 4×8 ft processing size is enough to support large-size sheet processing needs. With the vacuum table, it can stably fix various sheets and ensure processing accuracy throughout the process.
CNC Machining Outsourcing Factory
Timely and Reliable After-sales Response
This was our first time purchasing an industrial CNC router. Before buying the machine, we were most concerned about machine installation, debugging, and later use problems.
Alpha CNC patiently checked the suitable machine configuration with us before purchase, and also provided professional installation guidance after the machine arrived. Later, when we had problems with parameter adjustment and machine settings, we could get technical support in time. The service is very complete.
Before Buying a 4x8 CNC Router
Match Your Materials and Products
Before choosing the spindle, tools, and machine configuration, you can first confirm your material types, sheet thickness, product sizes, and processing methods to ensure the CNC router fully fits your production needs.
Confirm the Processing Area and Power Supply Conditions
Before placing an order, you need to check the actual effective processing area and table size of the 4x8 CNC router machine. At the same time, confirm the voltage, frequency, and phase of the site to avoid machine compatibility problems.
Confirm Machine Testing and After-sales Support
If needed, you can provide processing materials or CAD files, and we will conduct machine tests for you. Before buying the machine, you can also learn about our installation guidance and complete technical support services in advance.
Why Choose Alpha CNC to Purchase a 4x8 CNC Router?
Factory Direct Sales
We have our own production factory in China. We can customize the machine configuration according to your production needs.
Complete Compliance Documents
The machine has complete related certification documents such as CE, ISO, SGS, to support customs clearance and help you receive the machine and put it into production smoothly.
Technical Support
You can receive online installation guidance, remote technical service, and spare parts support. For special needs, we can also provide on-site assistance.
Configuration Check and Confirmation
Before the machine enters production, we will check and confirm the processing area, spindle, controller, worktable, electrical parameters, and all selected optional items with you one by one.
Mature Export Experience
We have 10+ years of production experience, and our machines are sold to 100+ countries around the world. Our production, quality inspection, shipping, and after-sales processes are mature and stable, providing you with reliable quality assurance.
Whole Machine Factory Test
The machine assembly process is strictly carried out according to the confirmed configuration. All machines will undergo full testing before shipment to ensure that their performance meets the confirmed requirements.
4x8 CNC Router Frequently Asked Questions
What is the best 4x8 CNC router machine?
For most panel furniture, cabinet making, and woodworking workshop applications, the 4×8 CNC router equipped with a 7.5 to 11 kW spindle, vacuum table, and automatic tool changer is a cost-effective choice.
There is no absolutely universal top configuration CNC router. The most suitable machine completely depends on your processing needs. If you only use one tool for sheet cutting, a normal 3-axis CNC router can help you control the purchase cost. If your processing workpieces include curved surfaces and angled structures, you can choose a 4-axis CNC router for production.
What is the price of a 4x8 CNC router?
A standard 4×8 CNC router with basic configuration costs about $4,000. After adding the automatic tool changer function, the machine price starts at about $8,000. Machine configuration is the key factor affecting the price. Spindle power, controller system, table type, and various optional functions will all cause price changes. High-end precision processing machines such as 4-axis and 5-axis models will have higher overall prices.
What are the common sizes of CNC routers?
The common CNC router sizes on the market include 6090, 1212, 1224, 1325, 1530, 2030, and other specifications. These numbers represent the approximate processing travel of the machine. For the same model from different manufacturers, the actual effective processing range may have small differences.
How long is the delivery time?
After placing the order, the total delivery time is generally 25 to 40 days. The actual time depends on the machine configuration, production schedule, and shipping arrangements. Standard CNC routers usually need several weeks for production, testing, packing, and transportation, while machines with customized
configurations may need more time. We will confirm the estimated delivery schedule before you place the order.
Are 4x8 CNC routers and 1325 CNC routers the same?
They are not completely the same. A 4×8 CNC router machine is a model designed for standard 4×8 ft sheets. 1325 is the metric size code of the machine, corresponding to an effective
working area of about 1300×2500 mm. The table size may vary depending on the selected configuration. The two have similar parameters but different definitions. It is recommended that you provide the sheet processing size before ordering, and we will accurately match the suitable machine specification for you.
