An automatic tool changer for a CNC Router can automatically change different types of tools. It can effectively reduce manual tool changing operations and greatly reduce machine downtime. It can continuously complete multiple processing operations, and you do not need to frequently operate the machine.
If you are starting to choose an ATC CNC router, before deciding on configurations such as an automatic tool-changing system, you may focus on the following key factors.
1. What Is an Automatic Tool Changer for a CNC Router?

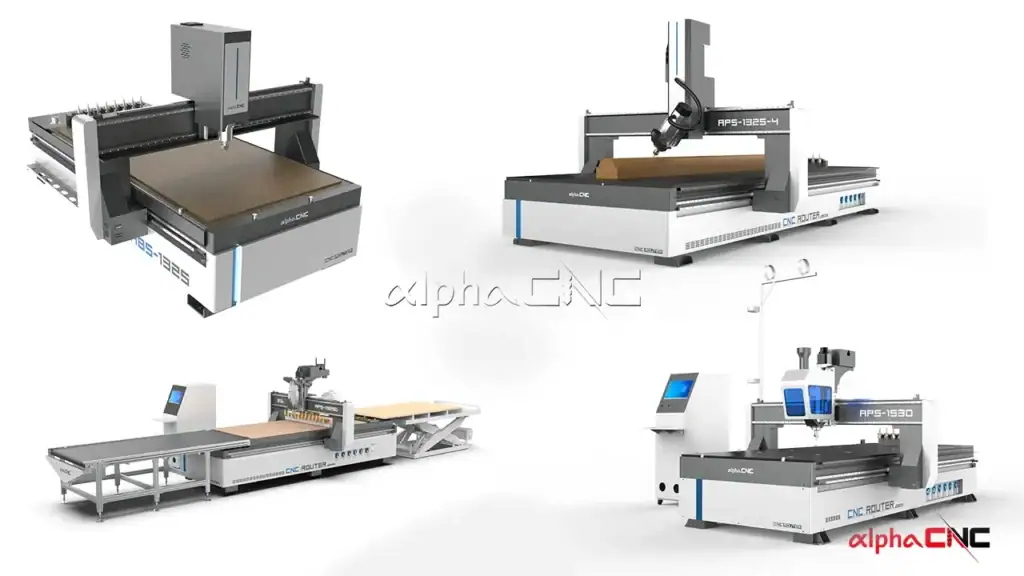

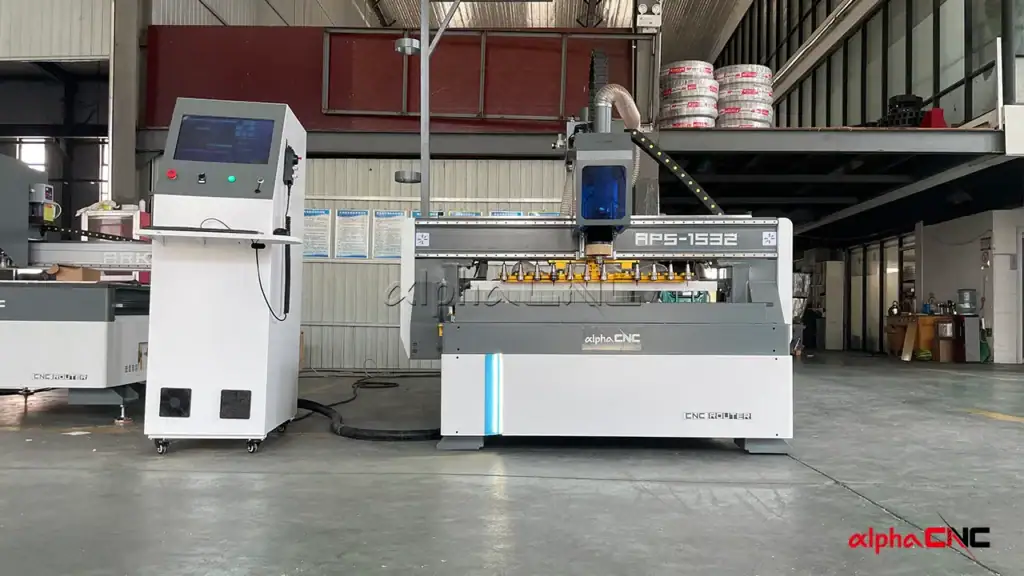

An Automatic Tool Changer is a tool-changing system installed on a CNC router.
It works with the spindle, tool holder, tool magazine, and CNC controller. After receiving the machining program instructions, the ATC automatically picks up, changes, and clamps the tool. You do not need to stop the machine and change tools manually. The machine can continuously complete multiple machining operations.

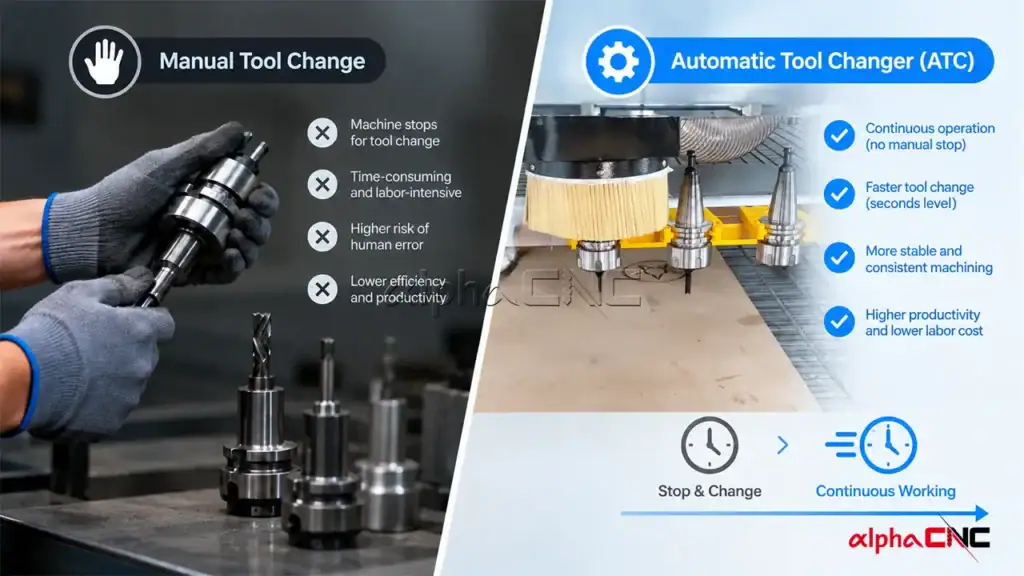

2. How an Automatic Tool Changer for a CNC Router Improves Production
The CNC router automatic tool changer will directly affect your factory production capacity and labor costs, and effectively improve your production conditions.
Many furniture factories face the problem of low efficiency from manual tool changing. This can cause the CNC router to stop frequently and delay the overall machining progress. This not only slows down the overall production capacity, but also causes waste of production resources.
With an automatic tool changing system, the CNC router can automatically change tools to complete different machining processes. There is no need to stop the CNC machine for a long time to change tools, and the overall machining process is smoother.
However, the ATC automatic tool changer is not necessary for all processing applications. If you only do simple cabinet door processing and change tools very few times a day, a normal manual tool changing spindle is enough to meet your production needs.
The core value of the automatic tool changer for CNC router is not only to improve processing speed, but also to provide stable processing quality. Every tool changing and clamping operation is standardized and consistent, and the processing accuracy is stable. It can protect both the workpiece and the spindle equipment and also help you maintain a stable processing reputation.

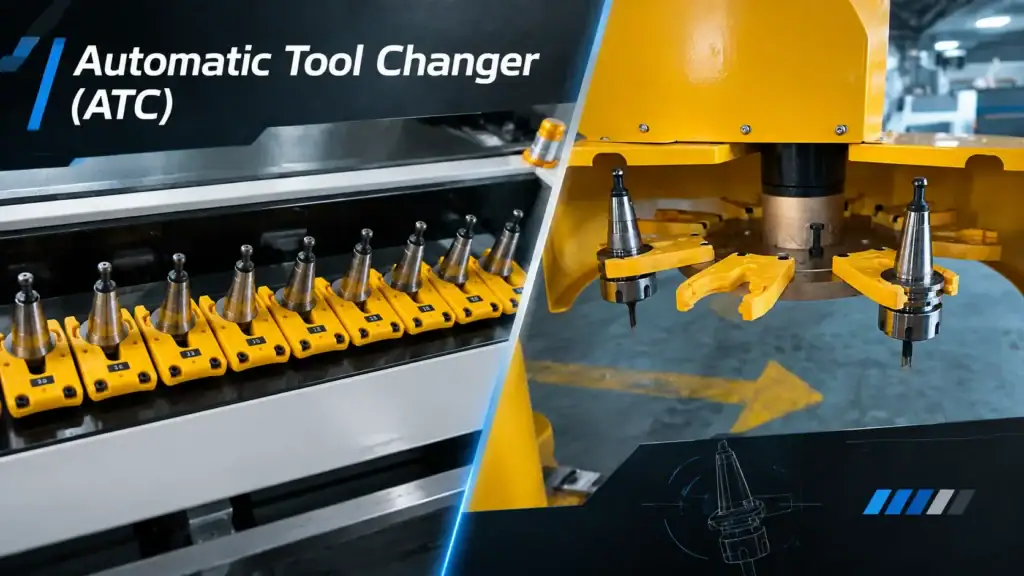

3. Types of Automatic Tool Changers for CNC Router
When choosing an automatic tool changer for a CNC router, you need to first determine the type of tool magazine. There are two main types on the market: Linear ATC and Carousel ATC. If, after comparison and evaluation, you find that neither of the two standard types above meets your needs, you can choose a hybrid tool magazine. However, these types basically need to be customized separately.
The main difference between these tool magazines is the arrangement of the tool magazine and the picking up and placing of the tools. For the linear type, the spindle moves to the tool magazine to pick up the tool. For the carousel type, the tool magazine rotates to move the tool to the side of the spindle. These differences directly determine the tool changing speed, the overall space occupied by the CNC router, and the types of workpieces suitable for machining.

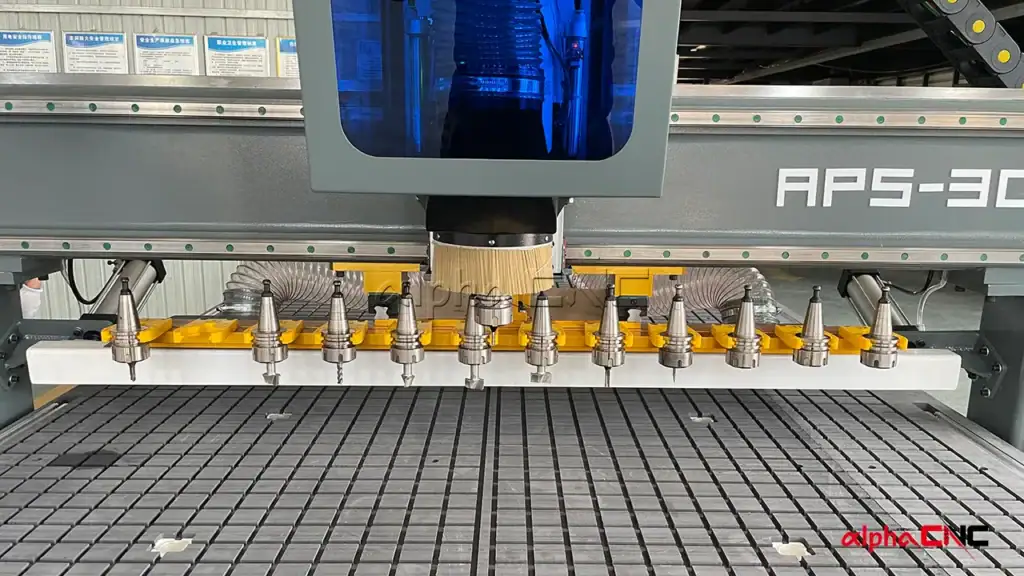

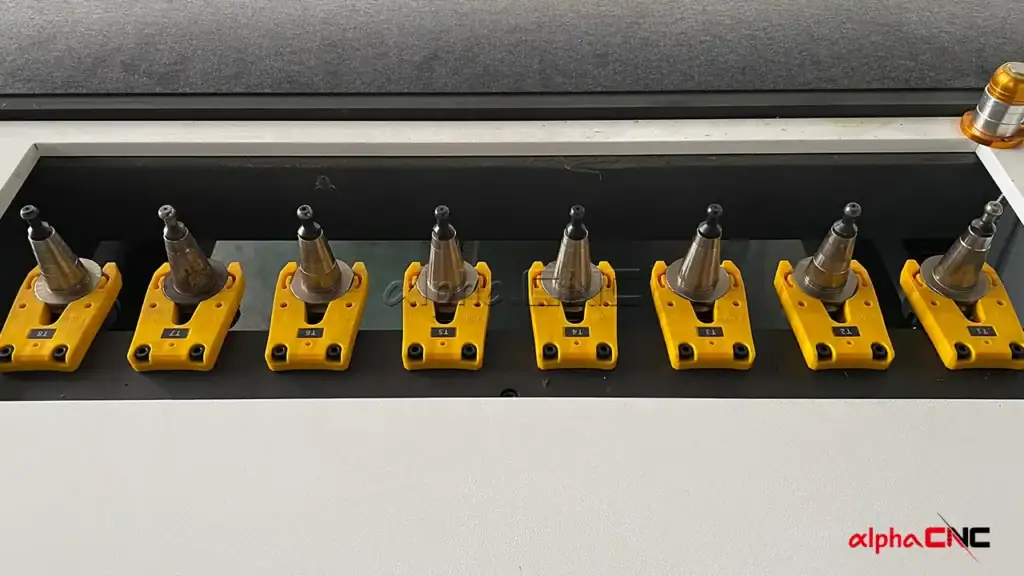

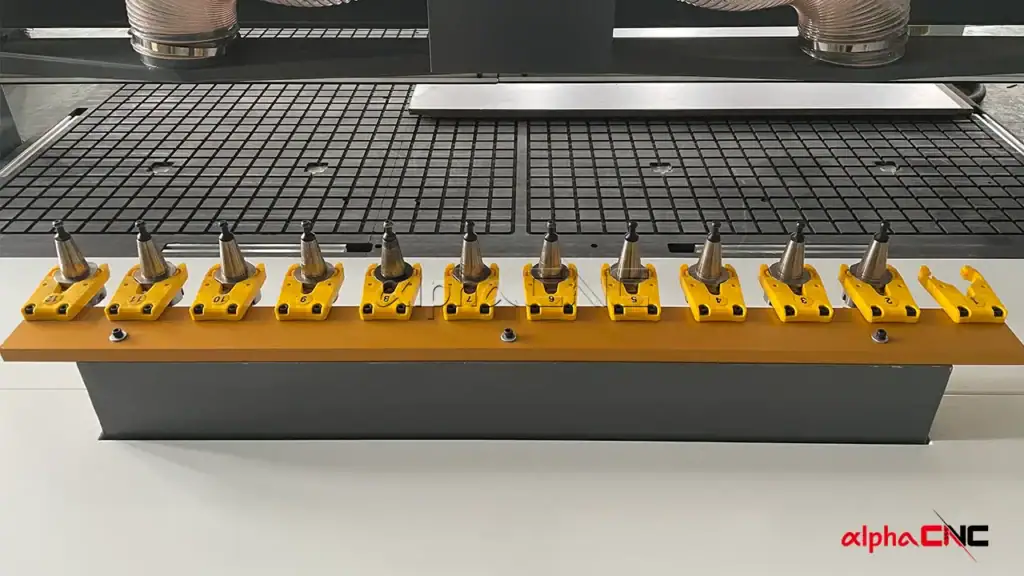

3.1 Linear ATC
The linear automatic tool changer can be divided into two installation types:
Rear fixed type, the tool magazine is fixed and does not move. The overall structure is simple, and your later maintenance cost is also lower. The disadvantage is that the spindle needs to travel the full distance, and each tool change takes 8-15 seconds. The more tool positions there are, the longer the tool magazine will be, and the more space it will occupy. It is suitable for production with low tool changing frequency and small to medium batches, such as advertising processing, where cost is an important consideration.
Gantry-mounted moving type, the tool magazine is installed under the gantry beam and moves together with the gantry. The spindle does not need to move to the rear of the machine. It does not take up extra space around the machine tool. Tool changing is completed at a nearby position, and the spindle travel distance is shortened. Due to the limits of the gantry structure, the number of tool positions is limited. It is more suitable for production with medium tool position requirements and frequent tool changes.
The standard number of tool positions for the linear type is 8-16 tools, and expansion can also be customized. For you, its biggest advantages are stable operation, controllable cost, and simple daily maintenance.

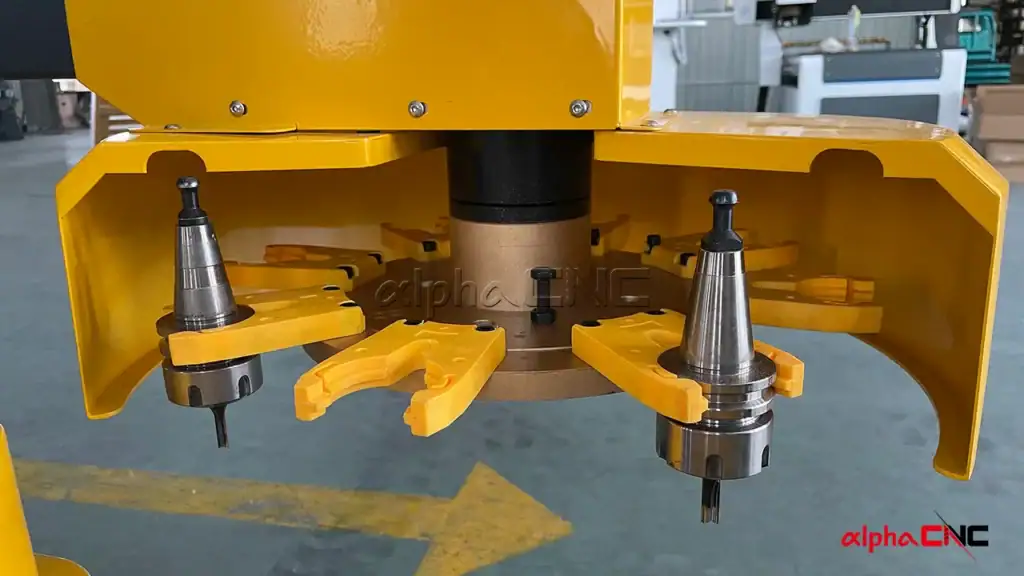

3.2 Carousel ATC
You can fix all the tools on a rotatable disc structure. The whole tool disc is usually installed on the side of the machine gantry. When the machine system sends a tool changing command, the disc automatically rotates and moves the required tool to the working position. The spindle moves to pick up the tool. After machining is completed, it puts the tool back in its original position.
This structure does not require the spindle to move back and forth to find the tool. It relies on the tool disc rotation to directly move the tool to the spindle position. This makes the overall tool changing speed faster. Each tool change only takes 5 to 10 seconds. The machine structure is very compact. It can hold 8 to 20 tools in a small installation space. If you need more tools, you can add more.
The carousel tool magazine can prepare all the tools in advance and automatically change tools among straight bits, drill bits, V-bits, and other tools. Compared with manual tool changing, it can help you save 30% to 55% of machining time.
However, the mechanical and control parts of the carousel type are more complex. The spindle, tool holder, pneumatic system, and control system have higher requirements for coordination. When choosing a model, you cannot only look at the number of tool positions. The matching of the whole ATC system is also important. At the same time, the upper limit of tool positions is limited by the Z-axis and gantry load capacity. Blindly increasing the number of tool positions will affect processing accuracy.
3.3 Hybrid ATC
If conventional standard tool magazines cannot fit your production conditions, you need to find a manufacturer to customize a hybrid tool changing solution. This device can combine the structural advantages of different tool magazines. The manufacturer will make targeted adjustments and modifications based on your actual number of tools, tool sizes, machining process, and reserved installation space of the machine.
For example, if you need to keep commonly used tools and also install special tools, or if there is not enough space for a standard linear or carousel tool magazine, you can make customized modifications. Common forms include a linear + carousel combination, ATC with special cutting tools, and so on.
However, a customized solution will increase the mechanical and electrical control development workload, and the purchasing, installation, and commissioning costs will also increase. Its purpose is not simply to speed up tool changing, but to solve problems with special tools, special processes, or limited equipment space. It is more suitable for factories with clear special production requirements. As long as a linear or carousel tool magazine can meet your production needs, there is no need to make additional customization and unnecessarily increase equipment complexity.
3.4 Linear ATC vs Carousel ATC
| Comparison Factor | Linear ATC | Carousel ATC |
| Tool Magazine Capacity | 8–16 tools (expandable) | 8–20 tools (more on some models) |
| Tool Changing Time | 8–15 seconds | 5–10 seconds |
| Floor Space | Longer, takes up bed or floor space | Compact, moves with the gantry |
| Structural Complexity | Simple, low maintenance cost | More complex, high requirements for system coordination |
| Suitable Applications | Budget-sensitive, small and medium batch production | Large-batch sheet processing, frequent tool changes |
4. How to Match a CNC Router Automatic Tool Changer for Your Processing Factory
4.1 Evaluate Your Processing Needs: Tools, Production Capacity, and Budget
When selecting an ATC system, you should first judge based on your actual processing conditions. Count the types of tools required for daily orders and the tool changing frequency for each shift. These are the main basis for selection.
If your production mainly consists of small-batch, multi-product orders, an 8- to 12-tool gantry-mounted moving linear ATC is enough. If you need to process hundreds of sheets every day and run large-batch production lines, it is recommended to choose a 16- to 20-tool carousel ATC.
Based on our previous cases, when choosing the number of tool positions, you can reserve 20% to 30% extra capacity based on the current maximum tool demand. This can effectively avoid insufficient tool positions and limited machine production capacity after later business upgrades and process optimization.
4.2 Spindle and Tool Holder Compatibility
Not all CNC spindles are compatible with automatic tool changing functions. To use an ATC system normally, your spindle must have a pneumatic tool clamping mechanism, and the spindle taper must precisely match the tool holder specification.
Common interfaces for woodworking routers include ISO30, BT30, and HSK63F. ISO30 is the most widely used specification in woodworking CNC routers. HSK63F tool holders are more suitable for high-speed, high-precision processing applications.
It should be noted that ordinary ER collets cannot be used with ATC automatic tool changing spindles and cannot be mixed. Before purchasing, you must check the spindle taper, tool holder taper, and the compatibility of the automatic tool changing gripper one by one to avoid specification mismatch.
In addition, a stable air supply is the key to smooth machine operation. You need to provide clean, dry, oil-free compressed air, with a stable air pressure maintained at 0.62 MPa (90 PSI). Unstable air pressure or too many impurities in the air supply can cause tool changing failures and machine downtime.

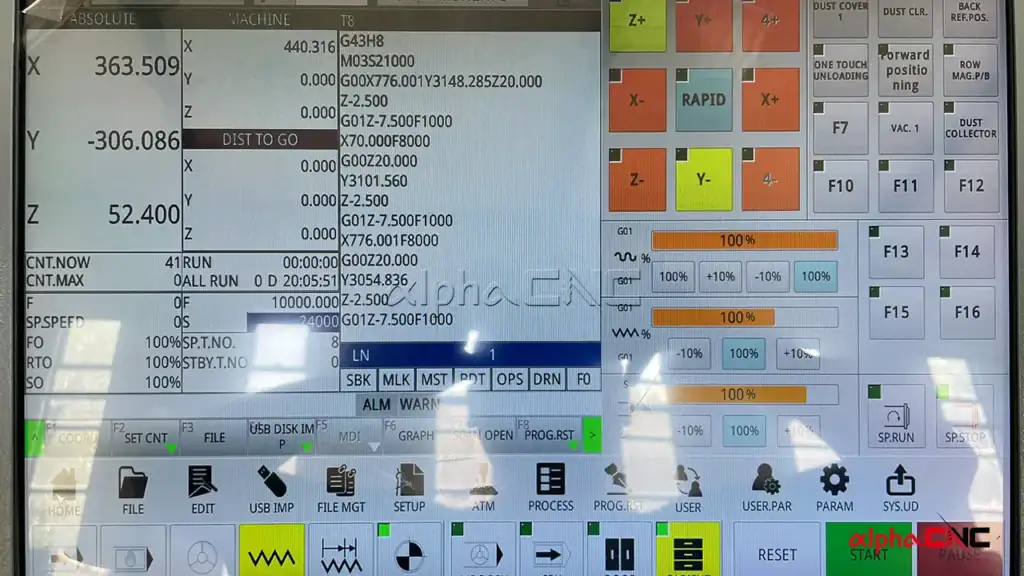

4.3 CNC System Integration
Hardware matching is only the basis. The compatibility of the CNC system directly determines whether the tool magazine can be used normally. Your CNC controller must support the M06 tool changing command and custom macro programs, and also have enough I/O ports to connect machine sensors and solenoid valves.
PC-based control systems such as Mach3, Mach4, and NC Studio typically use a separate M6 macro program to support the tool changing function. Industrial controllers such as Syntec and LNC are natively compatible with ATC systems and do not require additional debugging.
Before formal production, it is recommended that you perform a no-load test run. Without placing a workpiece, run the complete tool changing process and check the operating status of the spindle, tool magazine, and sensors. Solve problems such as jamming and misalignment in advance to avoid production risks.
4.4 Comparison Between Factory-Installed ATC and ATC Added to an Old Machine
A factory-integrated ATC usually reduces compatibility and commissioning risks because the machine is tested as a complete system.
Many processing factories choose to modify old machines and install ATC, but they often underestimate the cost and risks of modification. Old machines generally have problems such as insufficient frame rigidity, structural incompatibility, spindles without automatic tool clamping functions, and old control system versions.
Industry data shows that the complete cost of old machine modification is usually USD 15,000 to USD 20,000, which is close to half the cost of a new ATC router. As long as the machine has one compatibility limitation, the cost-effectiveness of the modification will be greatly reduced. You need to carefully evaluate the modification plan.
The selection of the tool changing system ultimately needs to be determined based on the expected number of tools, machining batch size, reserved space, and budget of your factory.
5. Cost and Return on Investment of Automatic Tool Changers for CNC Router
5.1 Total Cost
When purchasing automatic tool changing equipment, you cannot only focus on the price of the tool magazine. The total investment in the whole equipment includes many cost items. These costs may include tool holders and pull studs, tool-setting equipment, and operator training. These are all initial costs. Later replacement of spare parts, spindle upgrades, air supply equipment, and daily maintenance will also cause ongoing costs.
When calculating the return on investment, you must use the total investment as the basis. You cannot only calculate the separate cost of the tool magazine.
5.2 ROI Calculation
For example, a conventional manual tool change takes 5 minutes, while an automatic tool change only takes 10 seconds. Each tool change can save about 4 minutes and 50 seconds. If your workshop changes tools 50 times a day, it can save about 4 hours of labor time per day. Based on a labor cost of $20 per hour, you can save $80 per day. Based on 250 working days per year, the annual cost savings can reach $20,000. If your total ATC investment is $20,000, the theoretical payback period is about 1 year.
The above calculation assumes that the saved working hours can all be converted into actual output, or directly offset labor costs. If you only change tools 5 times a day, you can save only about $2,000 per year, and the overall payback period will extend to 10 years. The investment value will be greatly reduced.
The actual benefits depend on your working conditions. How frequently you change tools has a big impact. Whether the operator is familiar with the operation and whether the tools are prepared in advance will also have an impact. Therefore, there is often a gap between actual output and theoretical calculation.
You need to first calculate your actual tool changing frequency and the total investment cost of the equipment. Then you can accurately determine whether you need to install an ATC and whether a linear or carousel tool magazine is suitable for you.

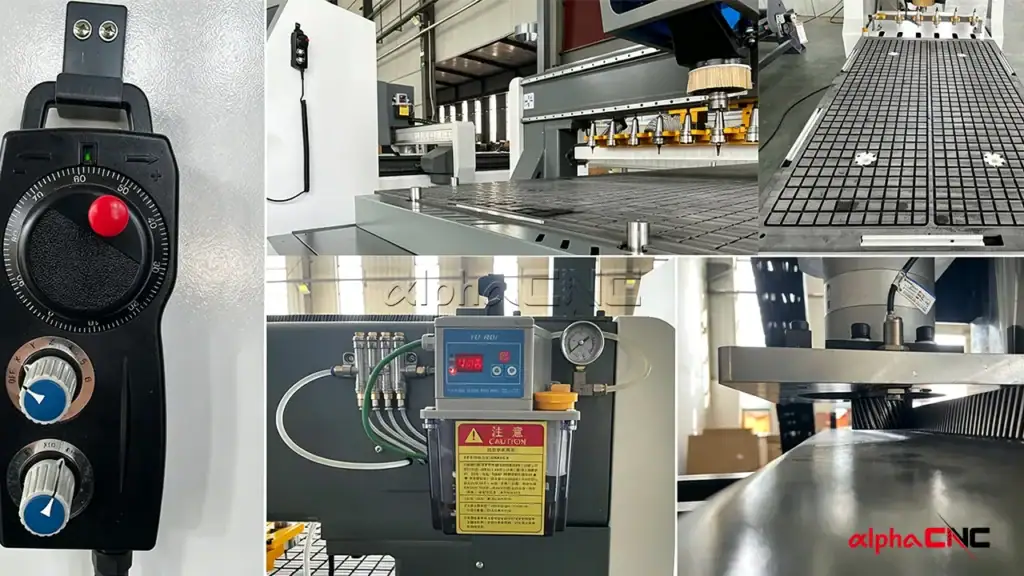

6. Key Points for Maintenance and Selection of Automatic Tool Changers for CNC Router
An automatic tool changer is a precision mechanical system. Long-term processing will cause dust to accumulate, normal wear to occur, and parts to age. Maintenance is not an optional operation, but a necessary one. When selecting an ATC, you must include maintenance convenience in your main considerations.
| Maintenance Cycle | Maintenance Items |
| Daily | Check the air pressure and confirm that it reaches the operating standard of the equipment. Clean the dust and machining debris from the tool positions. At the same time, confirm that the tools are installed firmly and are properly in position. |
| Weekly | Add lubricating oil to the linear guides, transmission chains, and tool changing grippers to ensure smooth tool changing without jamming. |
| Monthly | Check the operating status of the pull studs, sensors, and solenoid valves, and check for potential problems such as looseness, aging, and failure. |
| Yearly | Calibrate the tool magazine position and make a complete backup of all machine system operating parameters. |
Common ATC tool changing failures are caused by dust on sensors and improper air supply treatment. Therefore, when selecting, you should focus on confirming whether the sensors and solenoid valves are easy to inspect and replace, and whether the air supply treatment unit supports easy drainage and dry filtration.
In addition, be sure to confirm that the machine controller supports one-click backup and recovery of tool compensation data. If the system is reset or parameters are lost, you do not need to manually enter the tool length data one by one, which can greatly reduce machine downtime for debugging.
Simply put, give priority to an ATC device that is easy to maintain, supports parameter backup, and has complete air supply treatment. The long-term use cost of this type of equipment is lower. With proper preventive maintenance, it can keep your automatic tool changing system stable for a long time.
7. Common Mistakes When Purchasing an Automatic Tool Changer for a CNC Router
The problems caused by choosing the wrong automatic tool changer are often caused by many factors. The following are the 5 mistakes you most need to avoid when selecting one.
7.1 Focusing Too Much on Automatic Tool Changer Price
When choosing an automatic tool changer, do not only focus on the low price. Give priority to the operating stability of the equipment and the compatibility of the whole machine. Some low-priced systems may use lower-grade sensors or less rigid structures. These devices are prone to problems such as dropped tools, tool changing jams, and frequent failures.
7.2 Ignoring Spindle and System Compatibility
If the spindle is not properly compatible with the system, problems such as tool jumping and tool changing failure may occur. Before purchasing, you need to confirm and check all compatibility parameters to ensure that the control system can correctly execute tool changing commands and run the corresponding tool changing program.
7.3 Not Reserving Enough Tool Positions
If you only determine the number of tool positions based on your current order needs, you will still need to change tools manually when doing multi-process and multi-material machining later. Based on our previous customer machining experience, you can reserve an additional 20% to 30% of tool positions according to the maximum tool requirements.
7.4 ATC Type Does Not Match the Processing Conditions
Using a linear type for large-batch, high-frequency production or using a carousel type for small-batch customized production will cause waste of efficiency or money. You need to choose based on tool changing frequency, production batch size, and available space.
7.5 Ignoring Maintenance and Overall Use Cost
ATC cannot be maintenance-free. Unstable air supply, dust on sensors, and unbacked-up parameters can all cause machine downtime. When choosing, you should pay attention to maintenance convenience and parameter backup capability, and control long-term use costs.
8. FAQ: Automatic Tool Changer for CNC Router
How does a CNC router change tools automatically?
After the machine reads the controller program instructions, the spindle automatically returns to its position, releases the current tool, moves to the corresponding tool position, clamps the new tool, and then continues processing. The whole process is completed automatically, without you needing to stop the machine and change tools manually.
What is the difference between Linear ATC and Carousel ATC?
The linear type has a simple structure and lower purchase and maintenance costs, but the tool changing speed is slower and it takes up more space. The carousel type has a faster tool changing speed, a compact machine layout, and can hold more tool positions. It is more suitable for large-batch production.
Choose based on the number of tools, tool changing frequency, and workshop space.
Which automatic tool changer is most suitable for a woodworking CNC router?
If you do small-batch and customized processing, the linear ATC may offer better cost-effectiveness. If you mainly do cabinet sheet nesting and large-batch woodworking production, give priority to the carousel ATC, with better overall processing efficiency.
Is a CNC router with automatic tool changer worth buying for a small cabinet factory?
Whether an ATC is worth buying depends on the tool changing time, labor costs, downtime losses, ATC price, and daily maintenance costs. For example, if your processing for each batch requires switching between 4 or more types of tools, the tool changing frequency is high, and manual tool changing causes obvious machine downtime, the payback period of the ATC will be shorter, and the investment will have better cost performance. If daily machining only requires 1 to 2 types of tools, the overall cost of manual tool changing will be lower, which will be a more cost-effective choice.
Can an ATC router run unattended with the lights off?
Unattended processing can be achieved. But you need a stable air supply, accurate tool length compensation, a complete chip removal system, and a safety interlock system to ensure stable machine operation for a long time.
9. Final Thought
Alpha CNC supplies auto tool changer CNC routers directly from the manufacturer. We support two main configurations: linear type and carousel type. You can flexibly choose according to your own processing conditions.
The equipment is suitable for various processing applications such as custom woodworking, cabinet making, and sheet nesting. It provides efficient tool changing and enough tool positions, and can stably support unattended production in the workshop.
Tell us your specific machining needs, and we will provide you with a free customized ATC configuration plan and accurate quotation.
